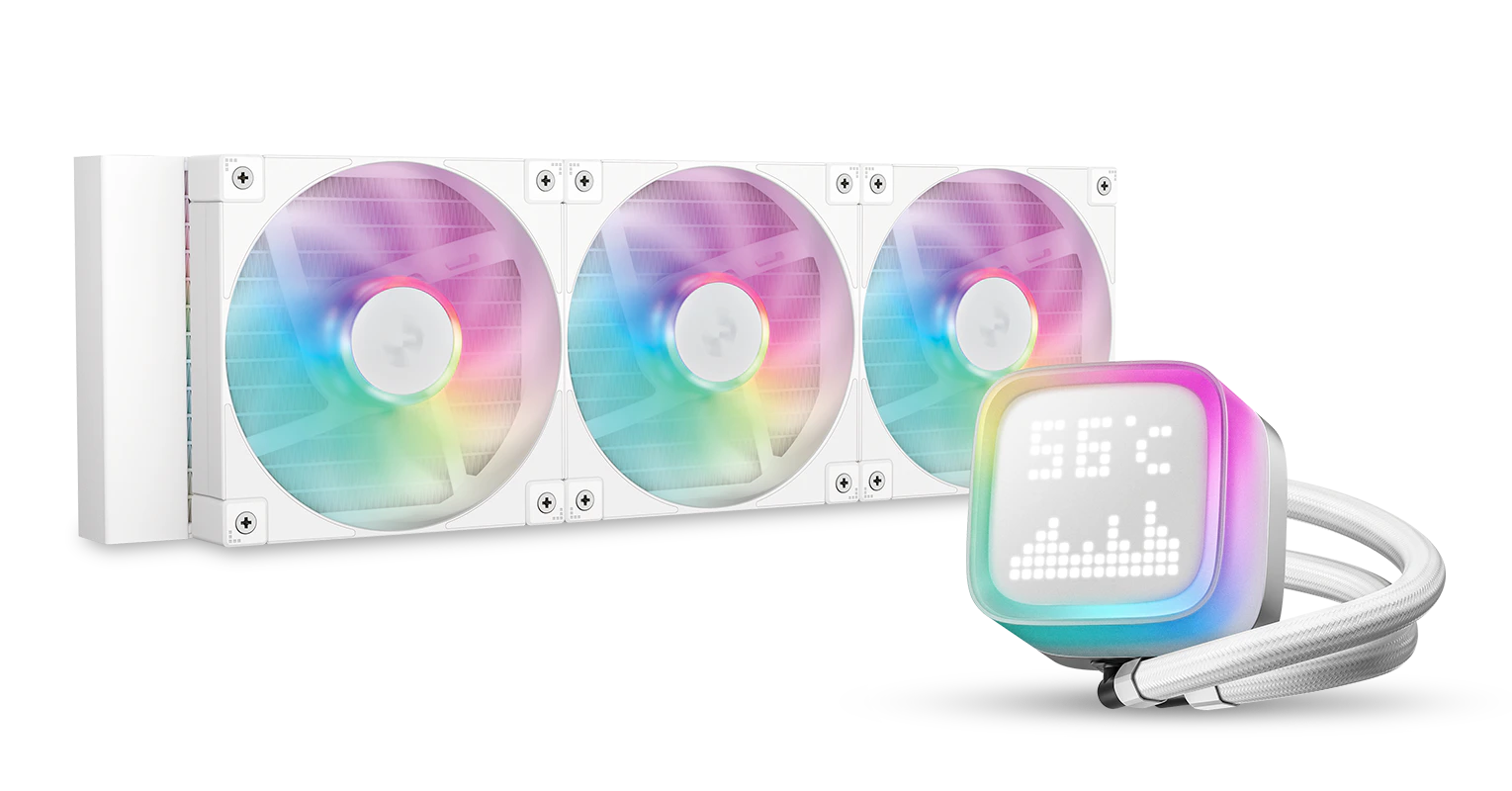

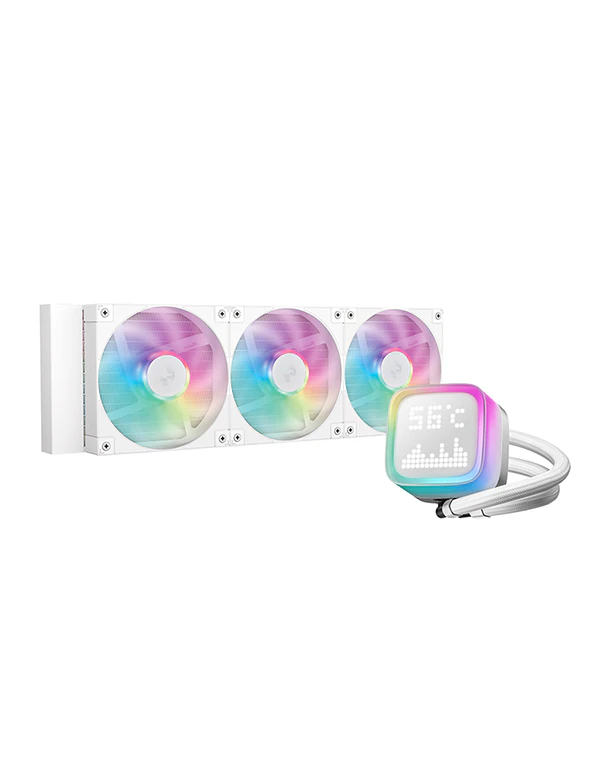

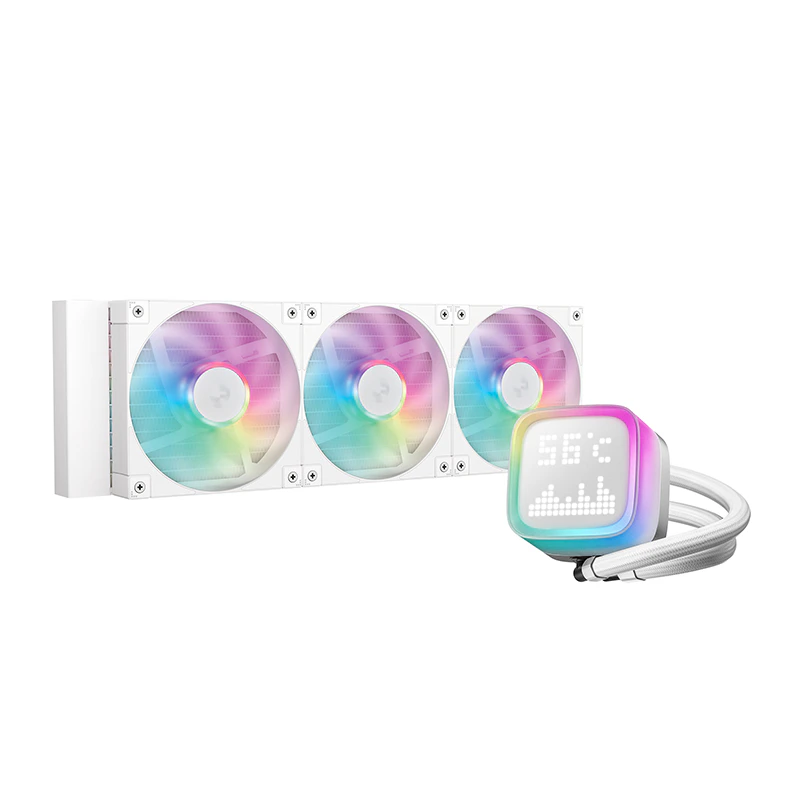

The LP360 WH is the newest addition to DeepCool's extensive line-up of chart-topping 5 PRO generation liquid coolers. The transparent ARGB pump bezel encases a unique dot-matrix screen with some fun and useful features. The white finish adds the final aesthetic touch to an impressive cooler.
Colour
white
MODEL
default
cancellation
confirm
DeepCreative: The Control Center
Bring all of the great features of the LP360 WH coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the ARGB halo synced to your motherboard's ARGB controller and add your personal touch to the dot-matrix screen. The many preset screen options can be split into single or dual parameter options.
DISPLAY MODES:
LOAD (utilization percentage):
Dual Parameter 01
Dual Parameter 02
Single Parameter
TEMPERATURE (℃/℉):
Dual Parameter
Single Parameter
POWER (watts):
Dual Parameter
Single Parameter
MUSIC:
Dual Parameter
Single Parameter
CREATIVE:
This is the mode where you can unlock your inner artist and manually design your pixelated drawing, export and import the dot-matrix files, and create a 3-frame animation. You can save up to 9 files!

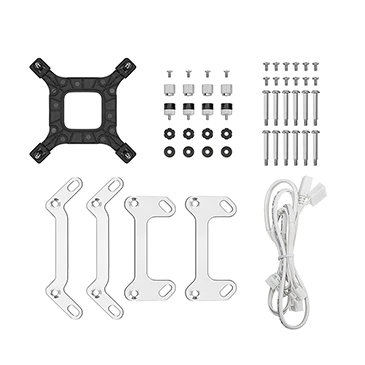

Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight1716 g

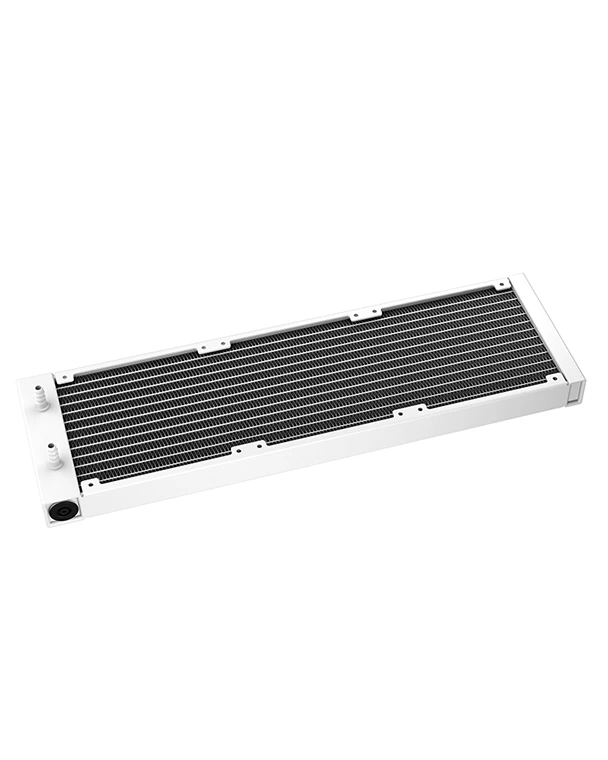

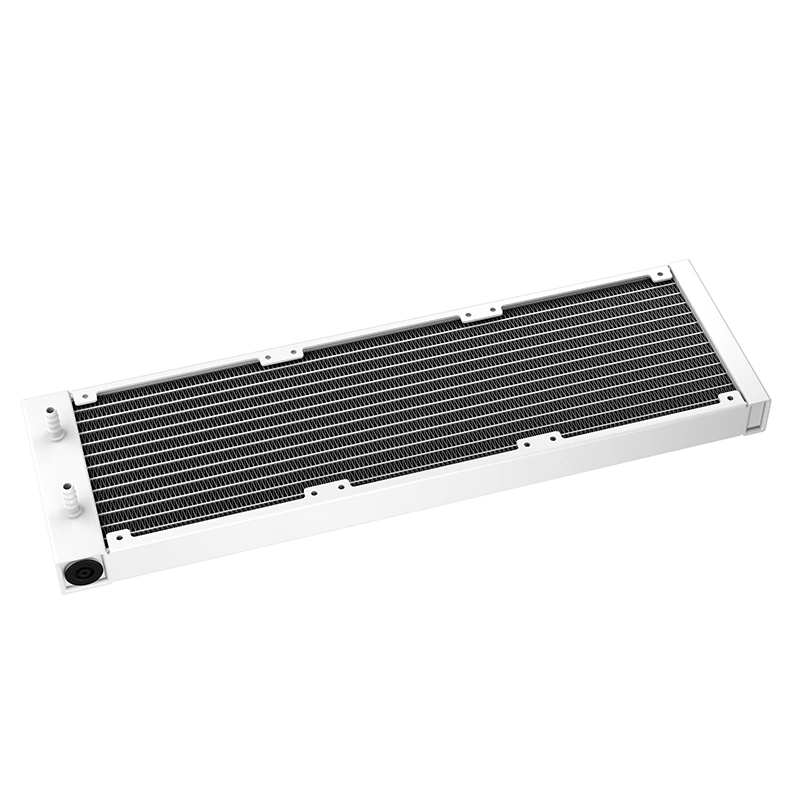

Radiator Dimensions402×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length410 mm

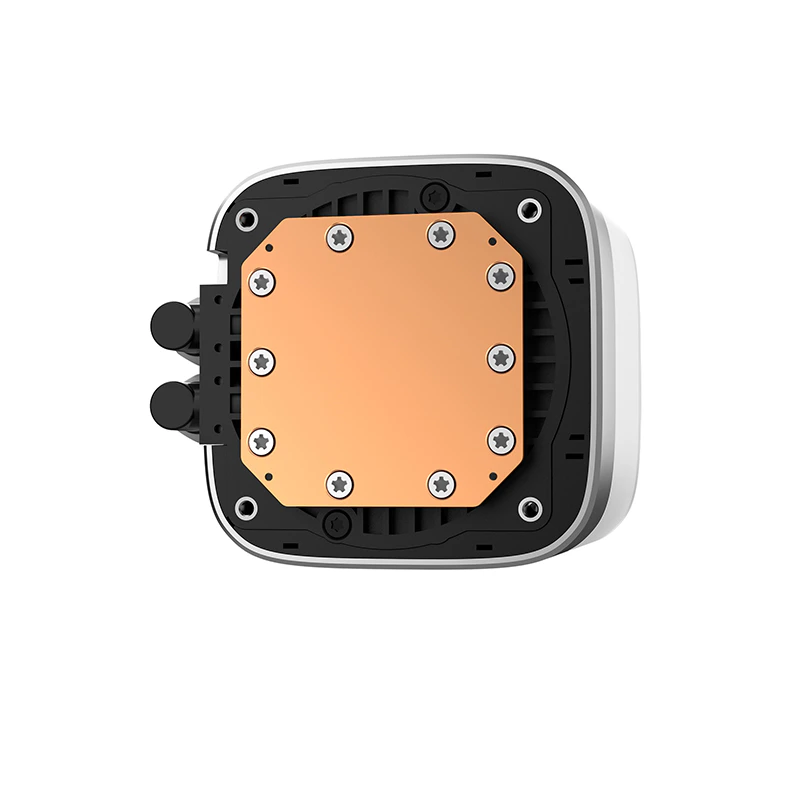

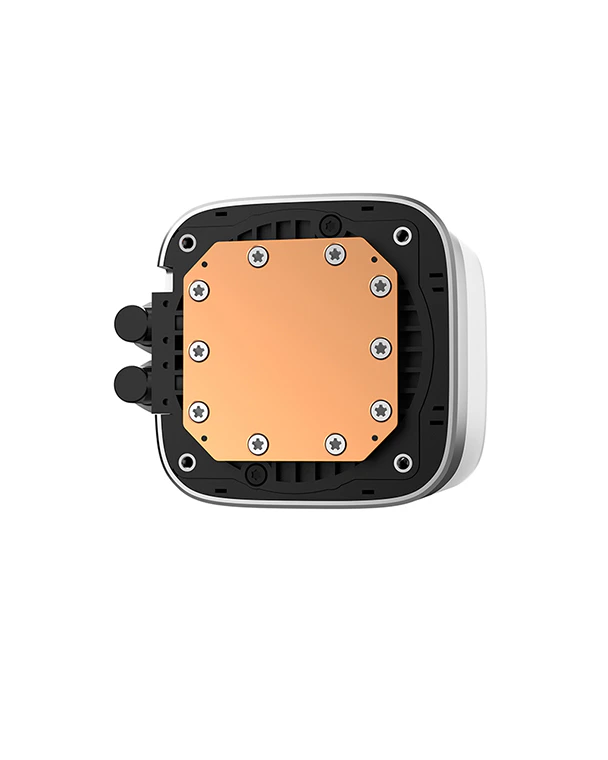

Pump Dimensions91×78×63 mm(L×W×H)
Pump Speed3400 RPM±10%
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.35 A
Pump Power Consumption4.2 W

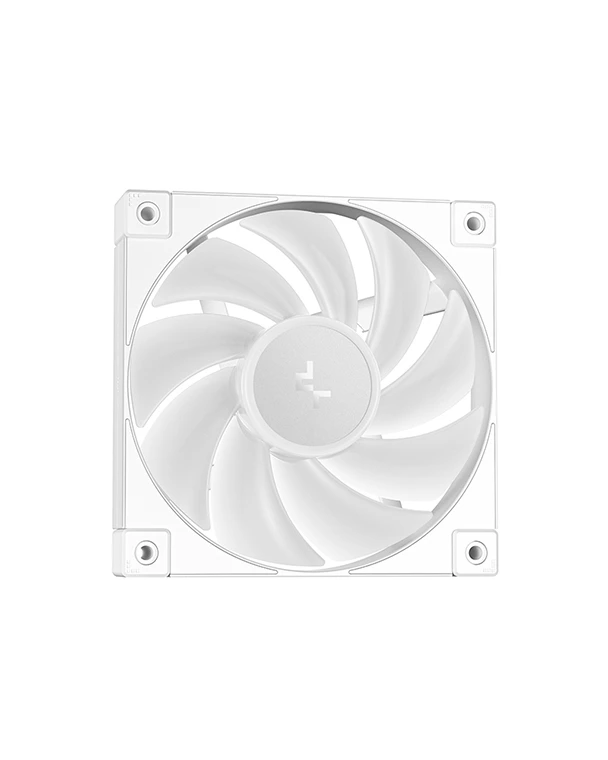

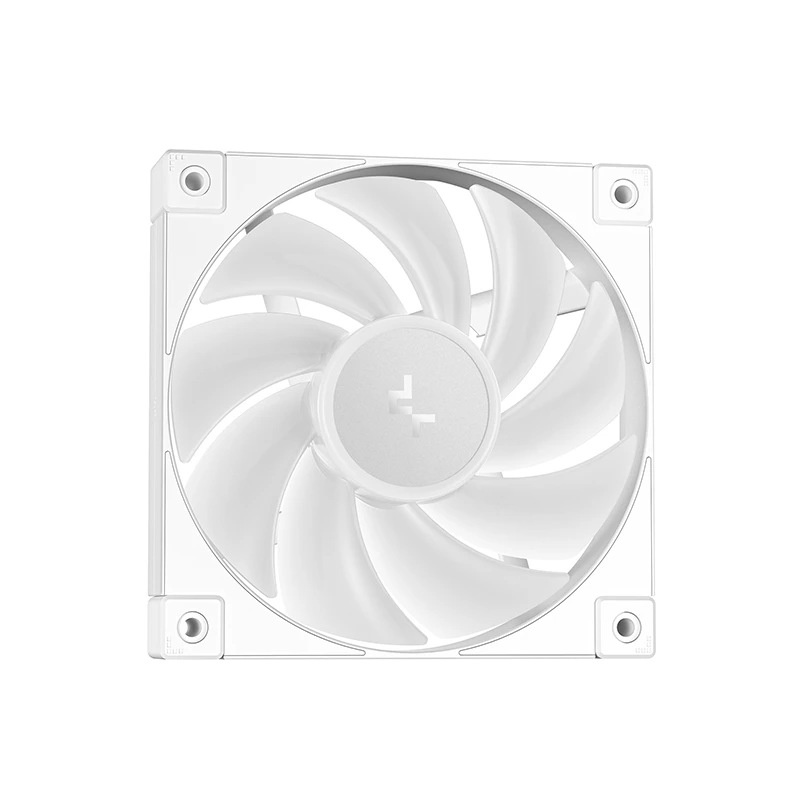

Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed600~2400 RPM±10%
Fan Airflow72.04 CFM
Fan Air Pressure3.48 mmAq
Fan Noise≤38.71 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.22 A
Fan Power Consumption2.64 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.8 W(PUMP)/ 3.15 W(FAN×3)
Display TypeLED Digital Display
EAN6933412729266
P/NR-LP360-WHMSMC-G-1
