LP360

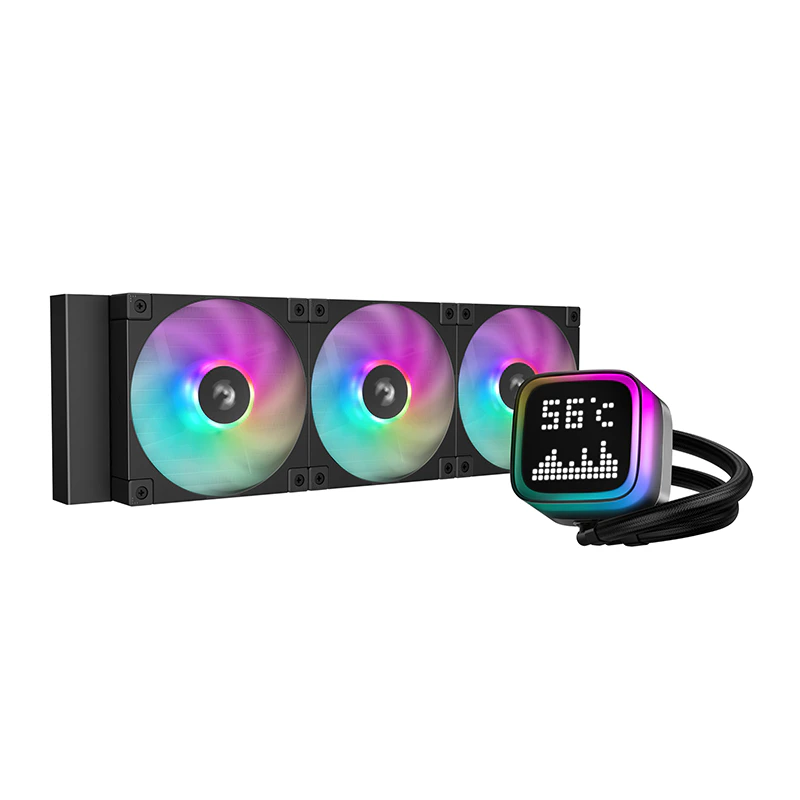

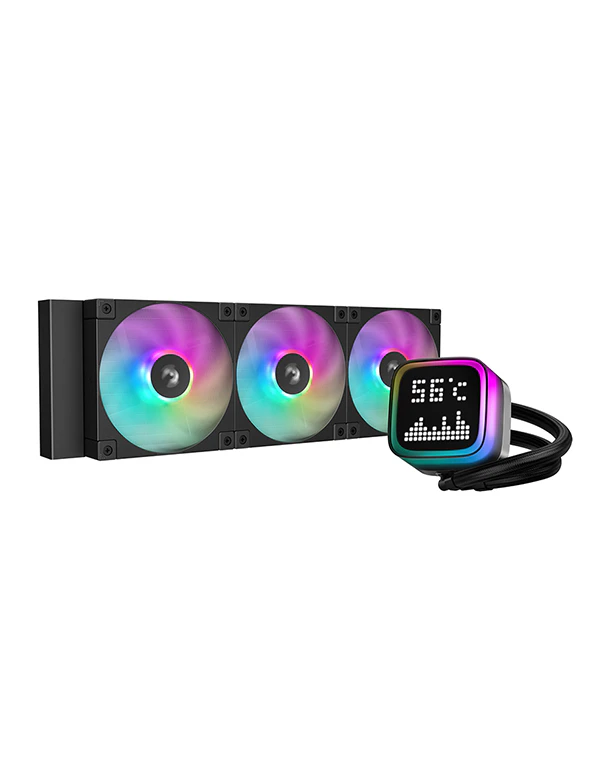

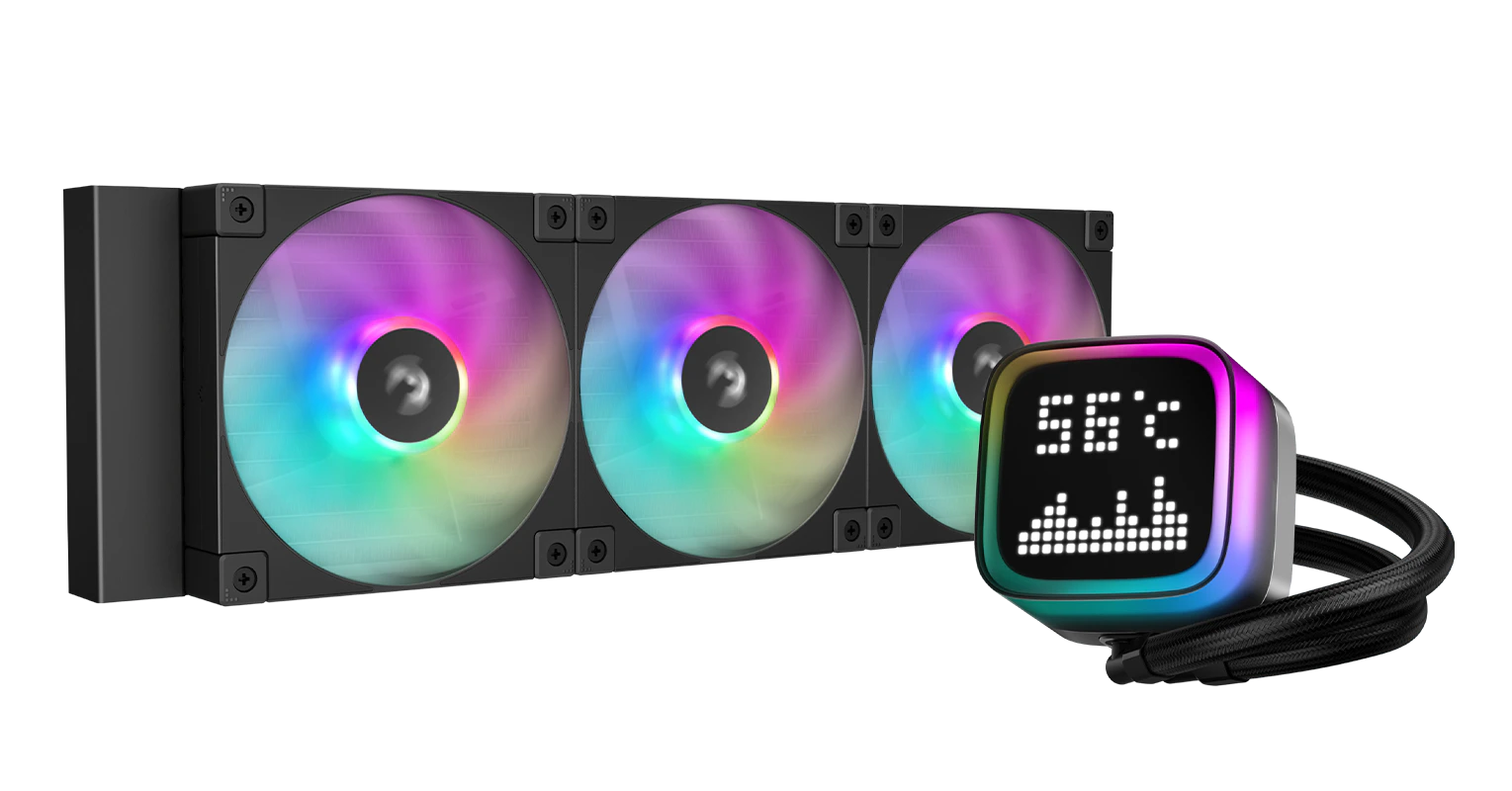

The LP360 is the newest addition to DeepCool's extensive line-up of chart-topping 5th generation liquid coolers. The transparent ARGB pump bezel encases a unique dot-matrix screen with some fun and useful features.
Colour
black
MODEL
LP360
ENTER THE MATRIX
CUSTOM PIXELATED DISPLAY
The dot matrix screen coordinates well with DeepCool's clean pixel ID that spans across all product lines. The screen can be customized with personalized pixel art using the 14 x 14 pixel grid, or simply select one of the many preset graphical options found in DeepCreative.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
default
cancellation
confirm
DeepCreative: The Control Center
Bring all of the great features of the LP360 coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the ARGB halo synced to your motherboard's ARGB controller and add your personal touch to the dot-matrix screen. The many preset screen options can be split into single or dual parameter options.
DISPLAY MODES:
LOAD (utilization percentage):
Dual Parameter 01
Dual Parameter 02
Single Parameter
TEMPERATURE (℃/℉):
Dual Parameter
Single Parameter
POWER (watts):
Dual Parameter
Single Parameter
MUSIC:
Dual Parameter
Single Parameter
CREATIVE:
This is the mode where you can unlock your inner artist and manually design your pixelated drawing, export and import the dot-matrix files, and create a 3-frame animation. You can save up to 9 files!

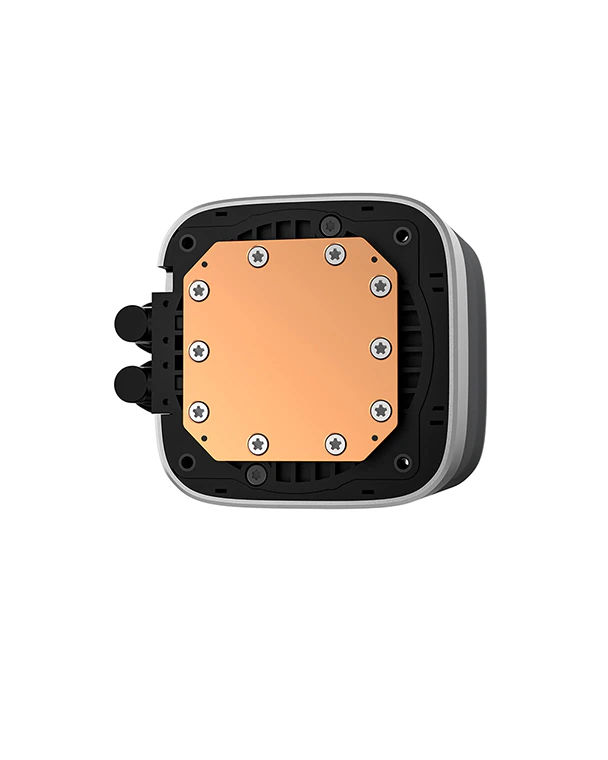

5th GENERATION PUMP

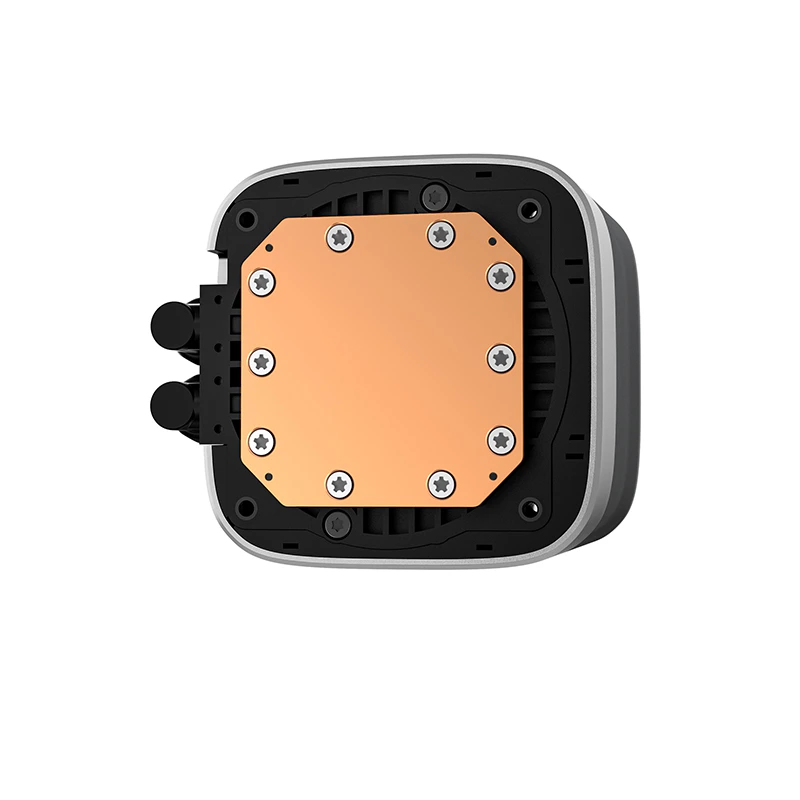

Built on DeepCool's optimized 5th generation high-performance water pump, the LP360 brings cooling modern power-hungry CPUs to the next level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM.

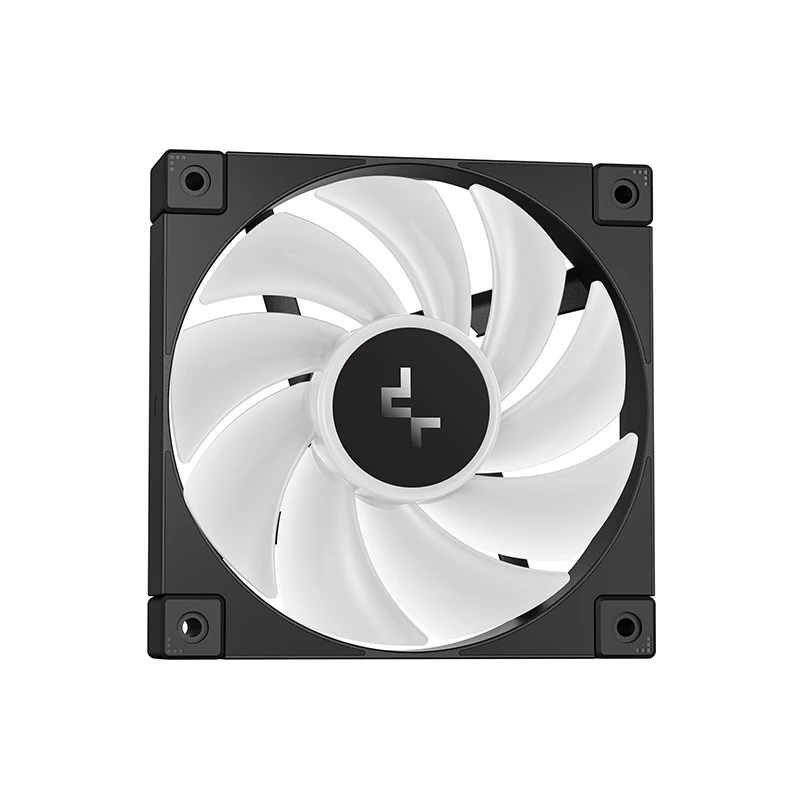

FINE TUNED FD12 ARGB FANS
Optimized FD12 ARGB PWM fans are included with the LP360 and have been fine-tuned to provide excellent cooling performance with a long-life Hydro Bearing. The LP360 includes three of these specialized FD12 fans, which have an easy-to-manage 8-pin cable that can be chained to each of the FD fans.
600-2400 RPM±10%
Fan Speed
72.04 CFM
Air Volume
3.48 mmAq
Static Pressure
≤38.71 dB(A)
Fan Noise
ANTI-LEAK TECHNOLOGY
The LP liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
QUICK AND EASY

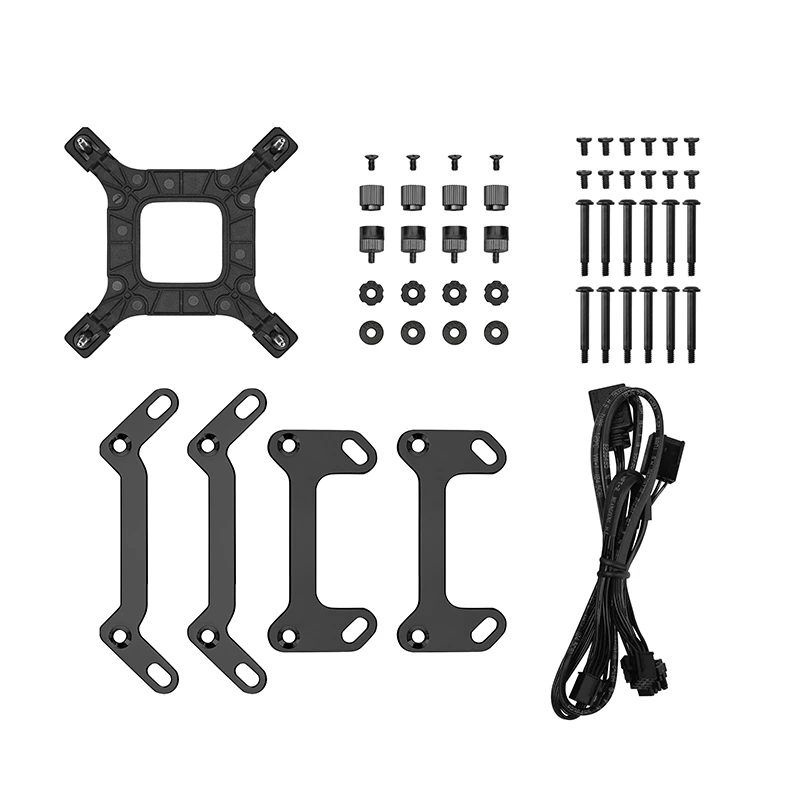

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LP360 to the latest mainstream CPUs is included in the box, so you are ready to go.
Intel: LGA1851/1700/1200/1151/1150/1155
AMD: AM5/AM4
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight1716 g

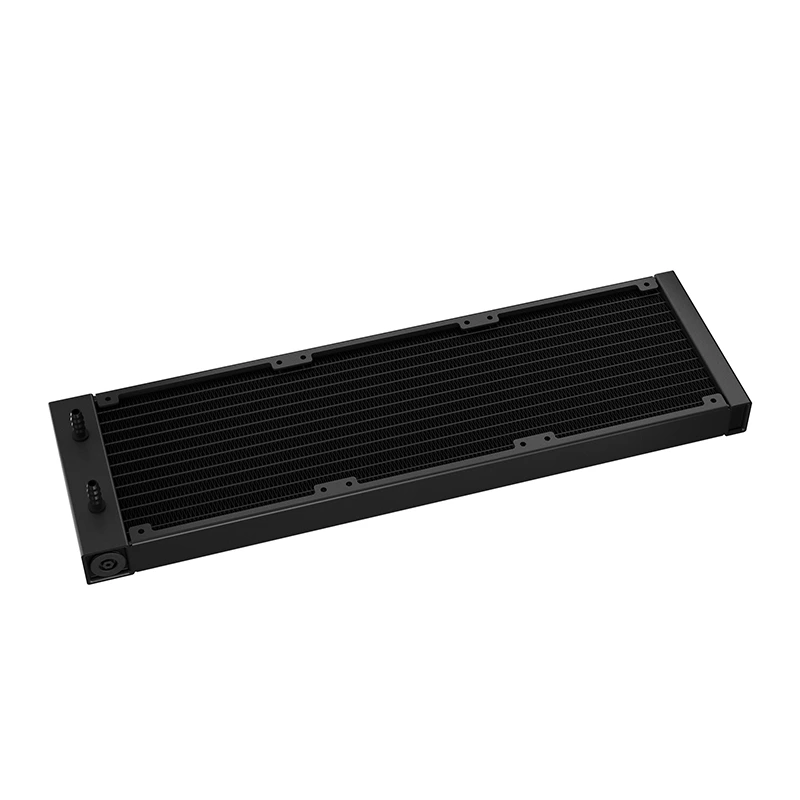

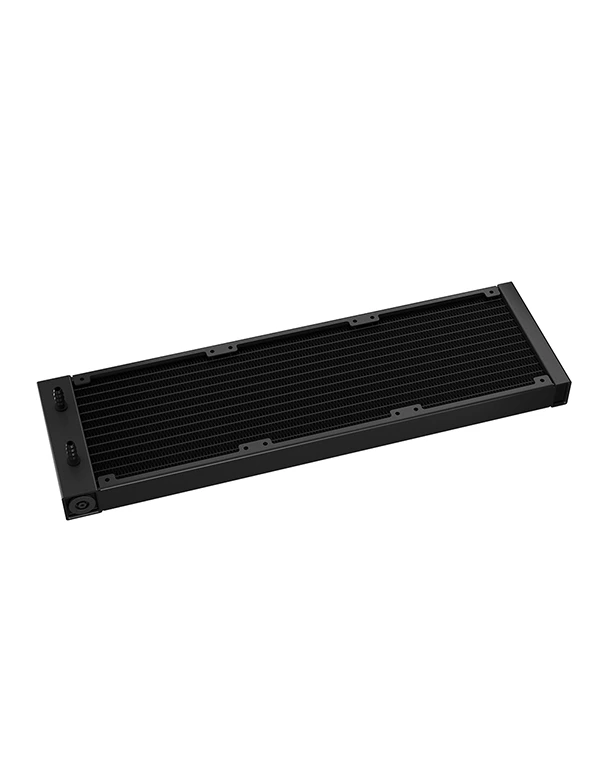

Radiator Dimensions402×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length410 mm
Pump Dimensions91×78×63 mm(L×W×H)
Pump Speed3400 RPM±10%
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.35 A
Pump Power Consumption4.2 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed600~2400 RPM±10%
Fan Airflow72.04 CFM
Fan Air Pressure3.48 mmAq
Fan Noise≤38.71 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.22 A
Fan Power Consumption2.64 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.8 W(PUMP)/ 3.15 W(FAN×3)
Display TypeLED Digital Display
EAN6933412728962
P/NR-LP360-BKMSNC-G-1
