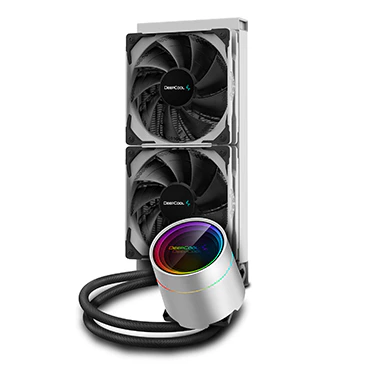

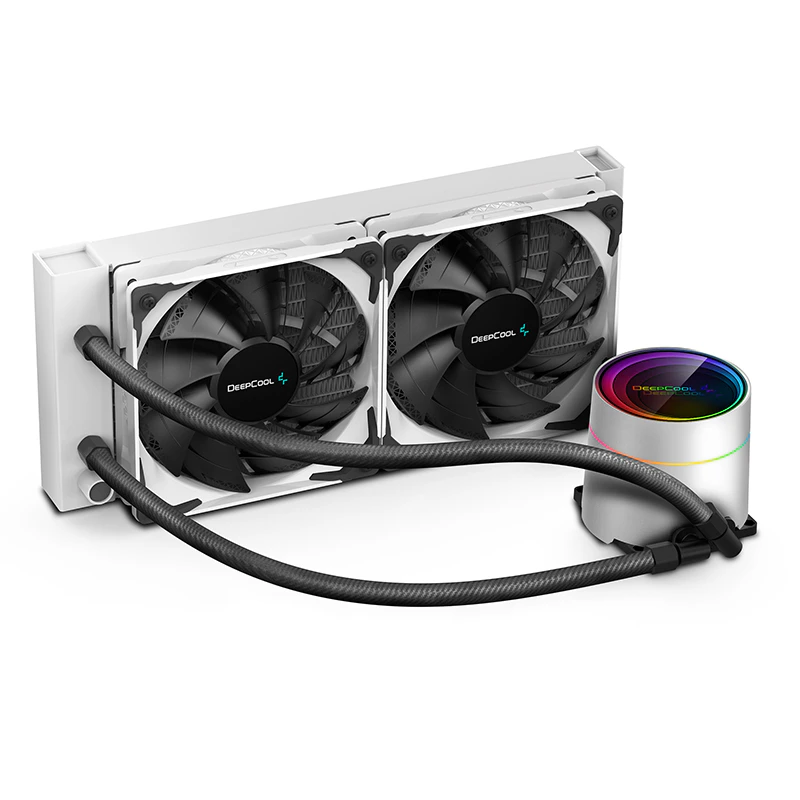

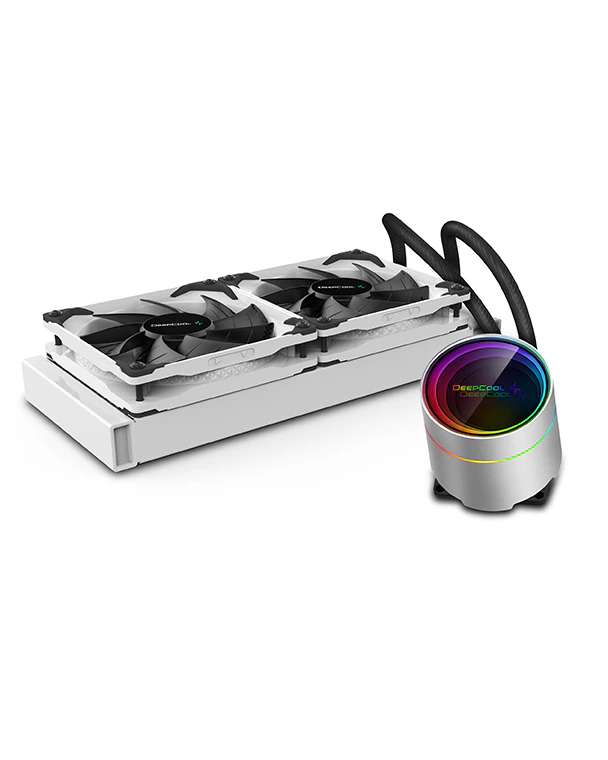

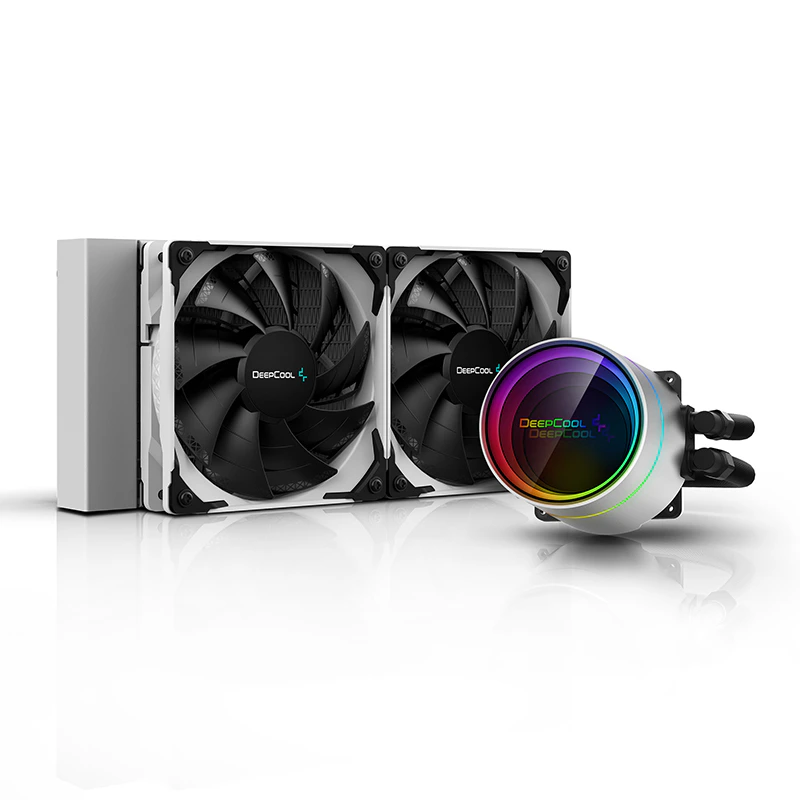

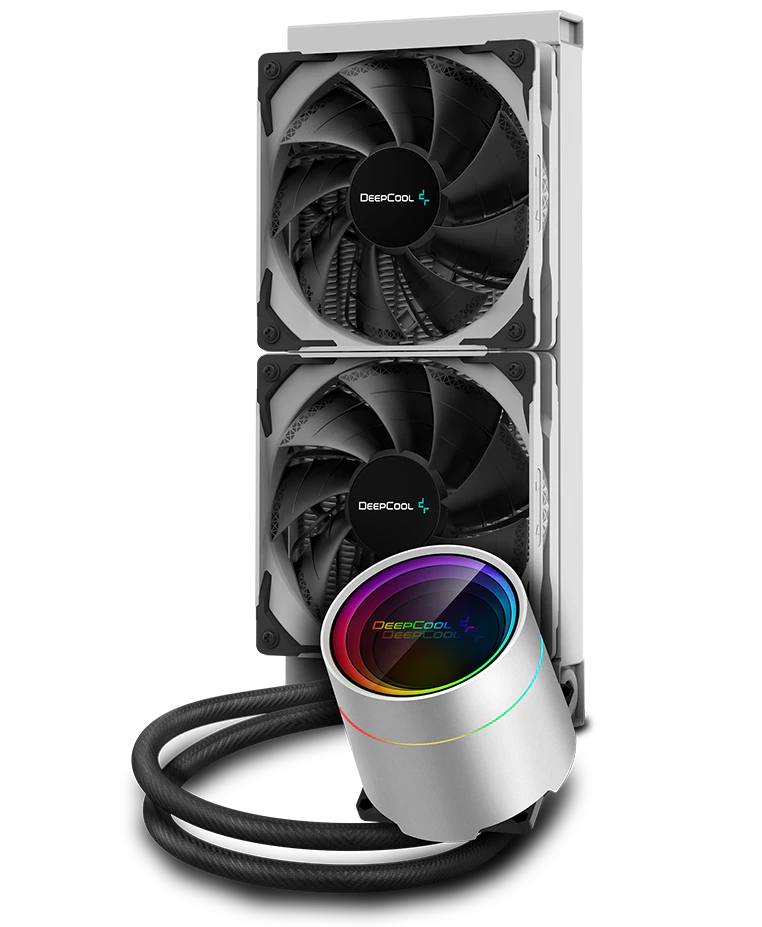

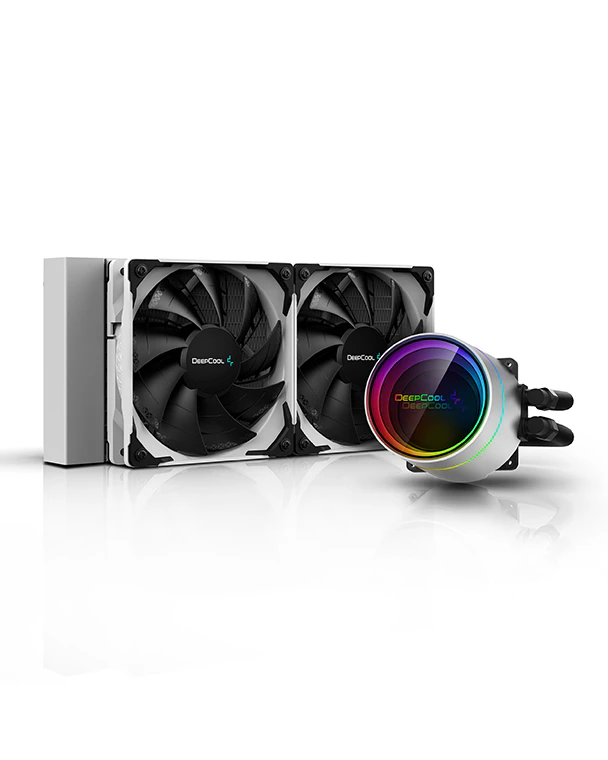

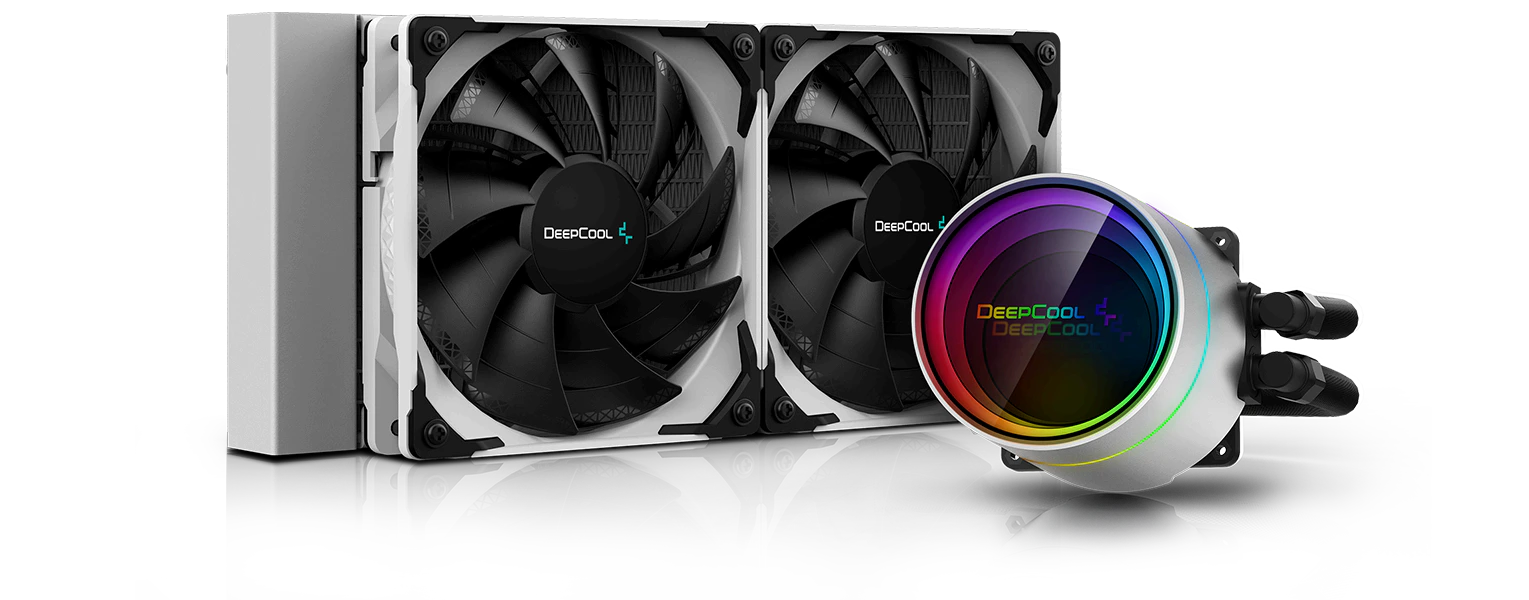

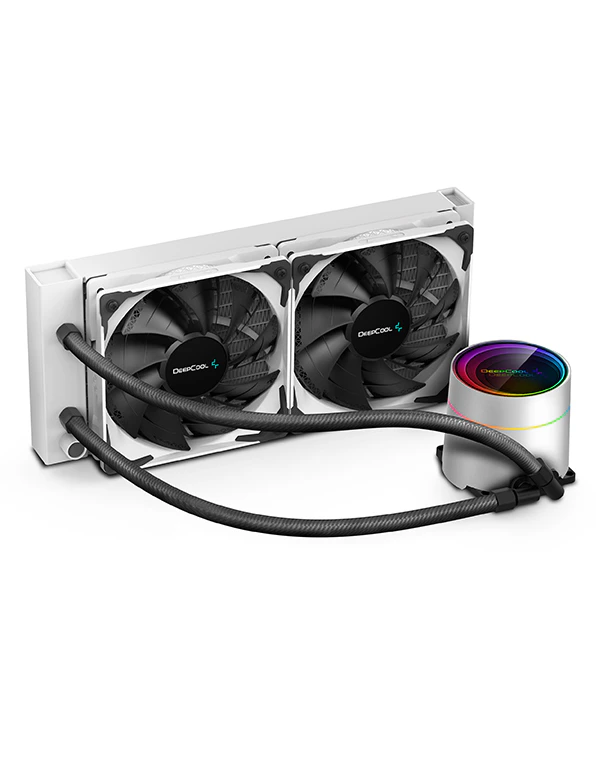

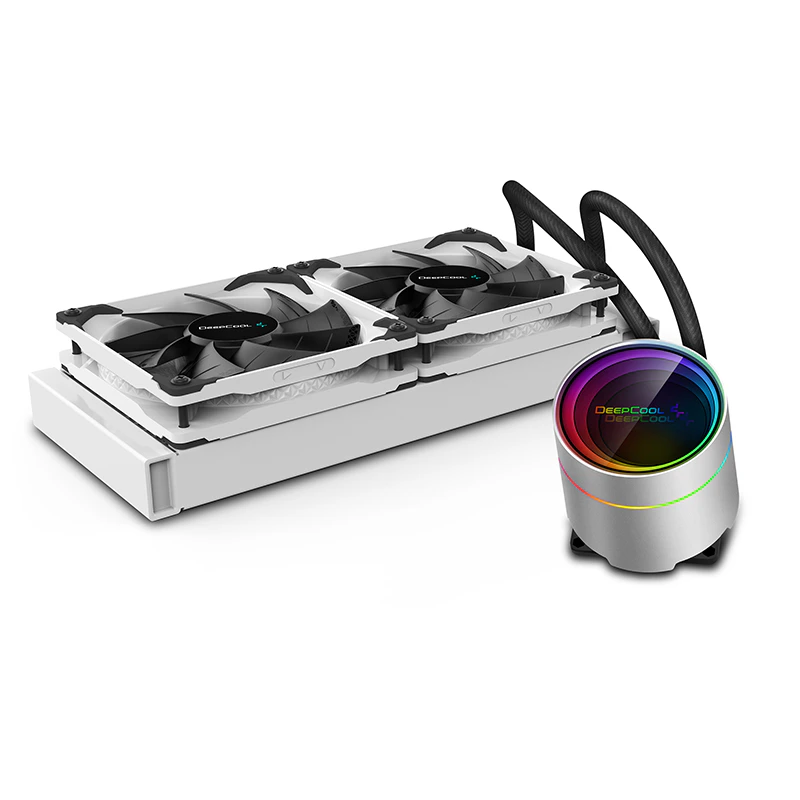

CASTLE 240EX WHITE
The CASTLE 240EX WHITE AIO liquid CPU cooler features Anti-leak tech to help keep systems safe and cool including a redesigned pump, 240mm radiator and RGB lighting support in a white enclosure.
Colour
white
MODEL
CASTLE 240EX WHITE
Advanced Cooling
PROTECT WHAT’S YOURS
Equipped with patented Anti-Leak technology that helps regulate pressure buildup inside the radiator to significantly improve operational safety and prevent leakage.
Powerful and quiet
―
A strong 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.
Efficient cooling
―

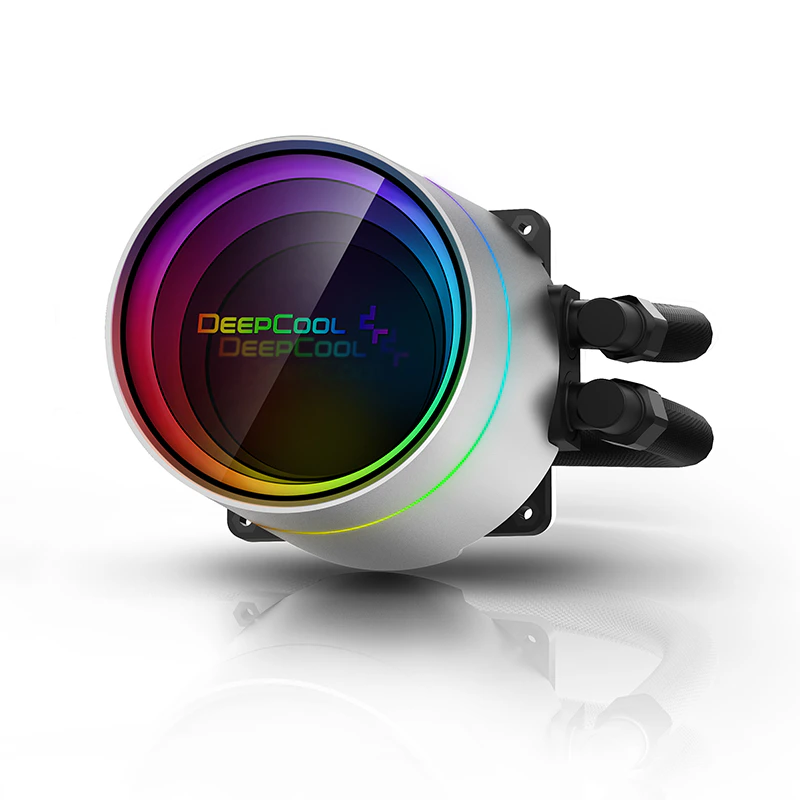

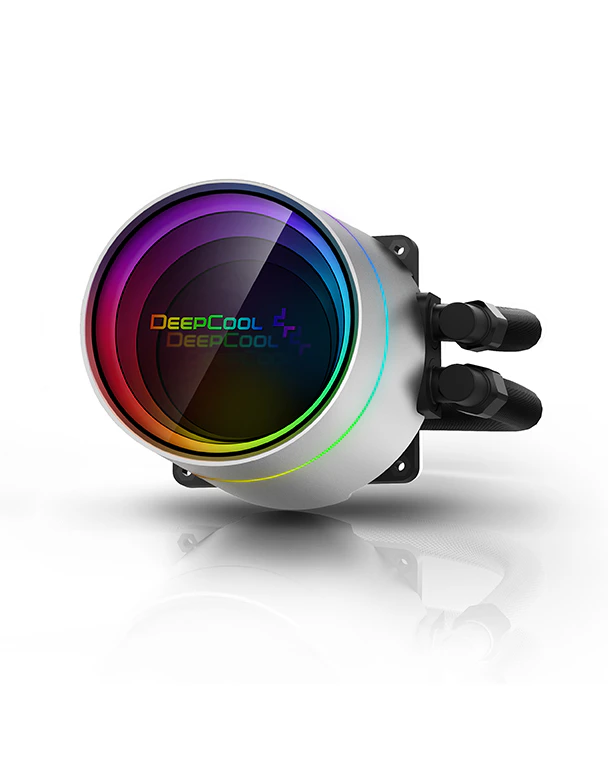

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
More surface area
―
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
Performance tuned
―

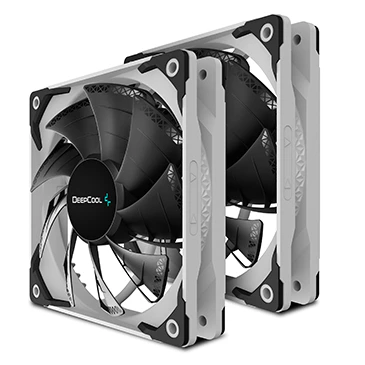

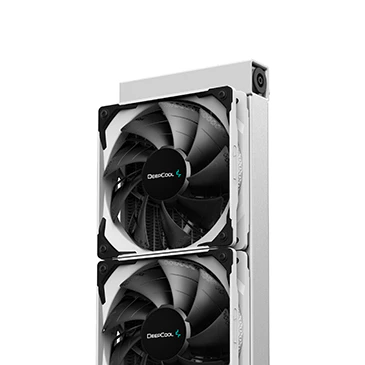

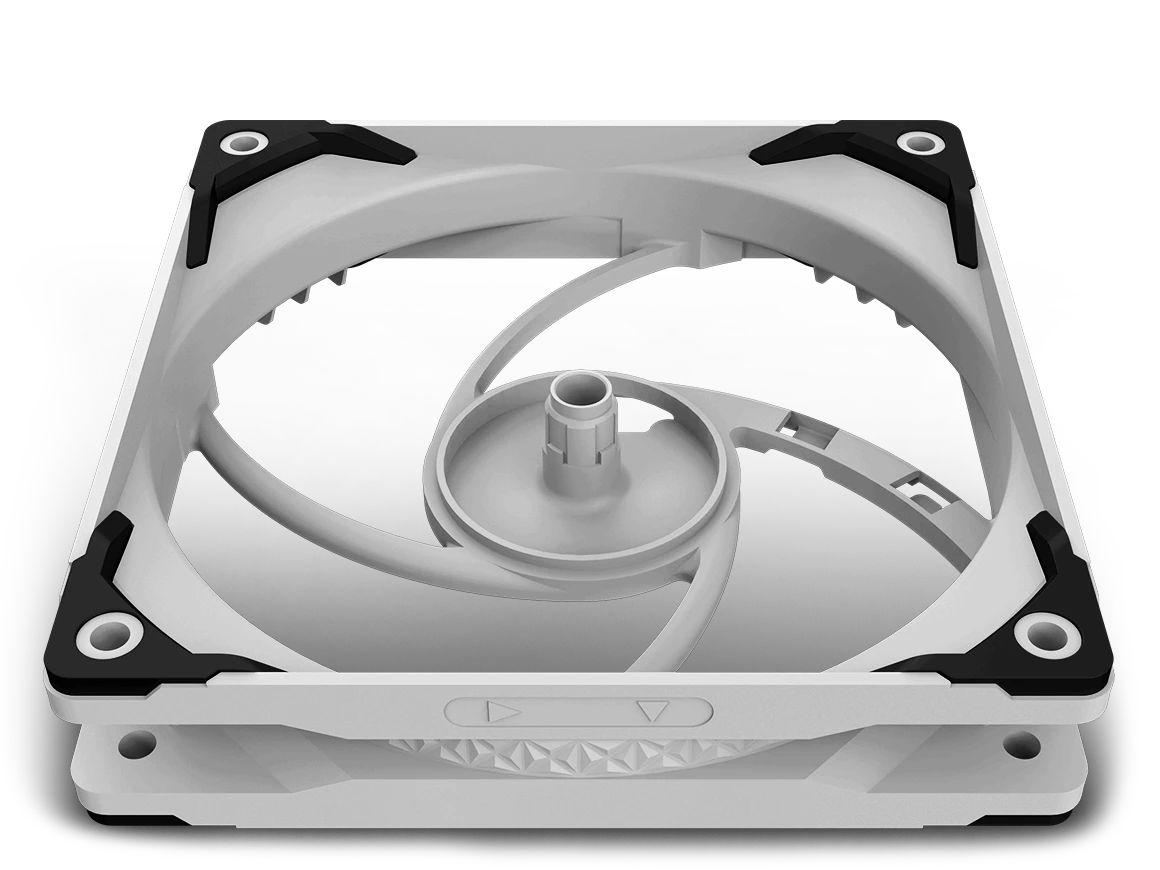

Specially tuned Deepcool TF120 S fans deliver the extreme cooling performance for AIO liquid coolers by maximizing both static pressure and airflow.
Customize your look
―

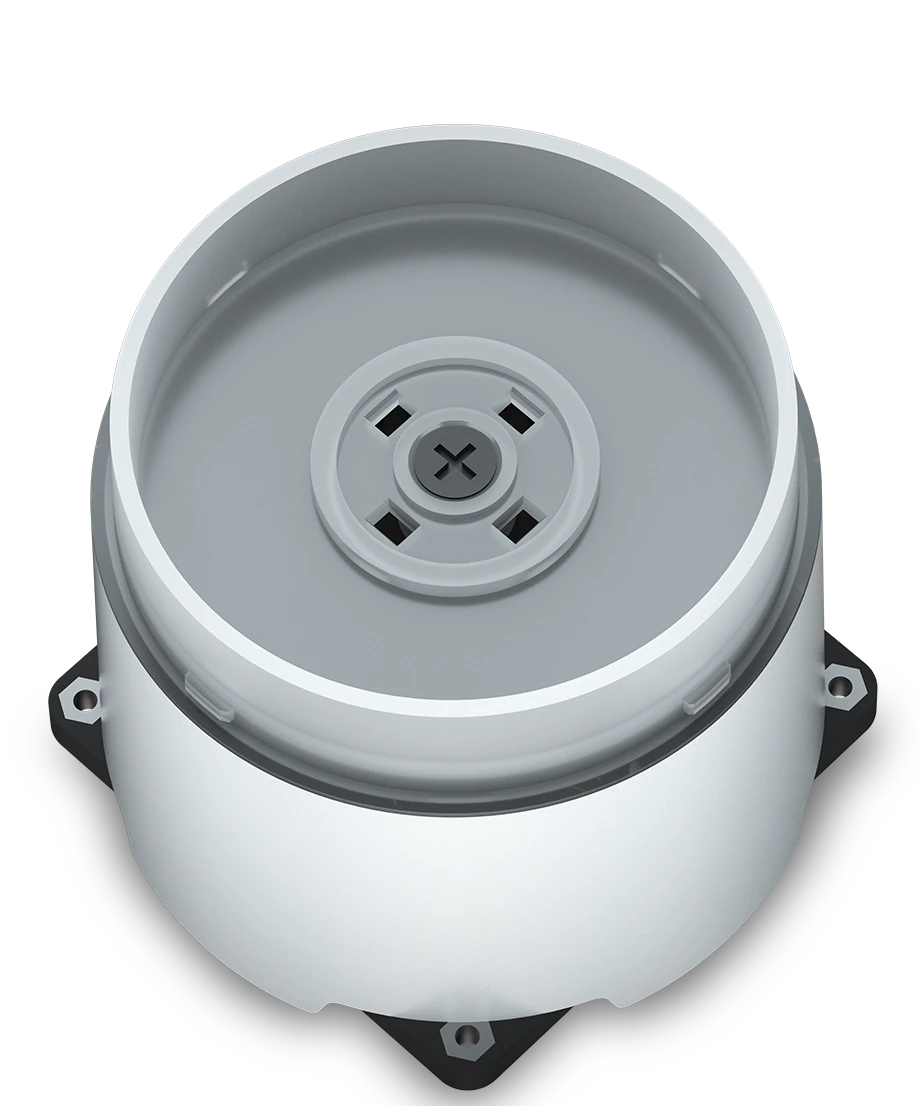

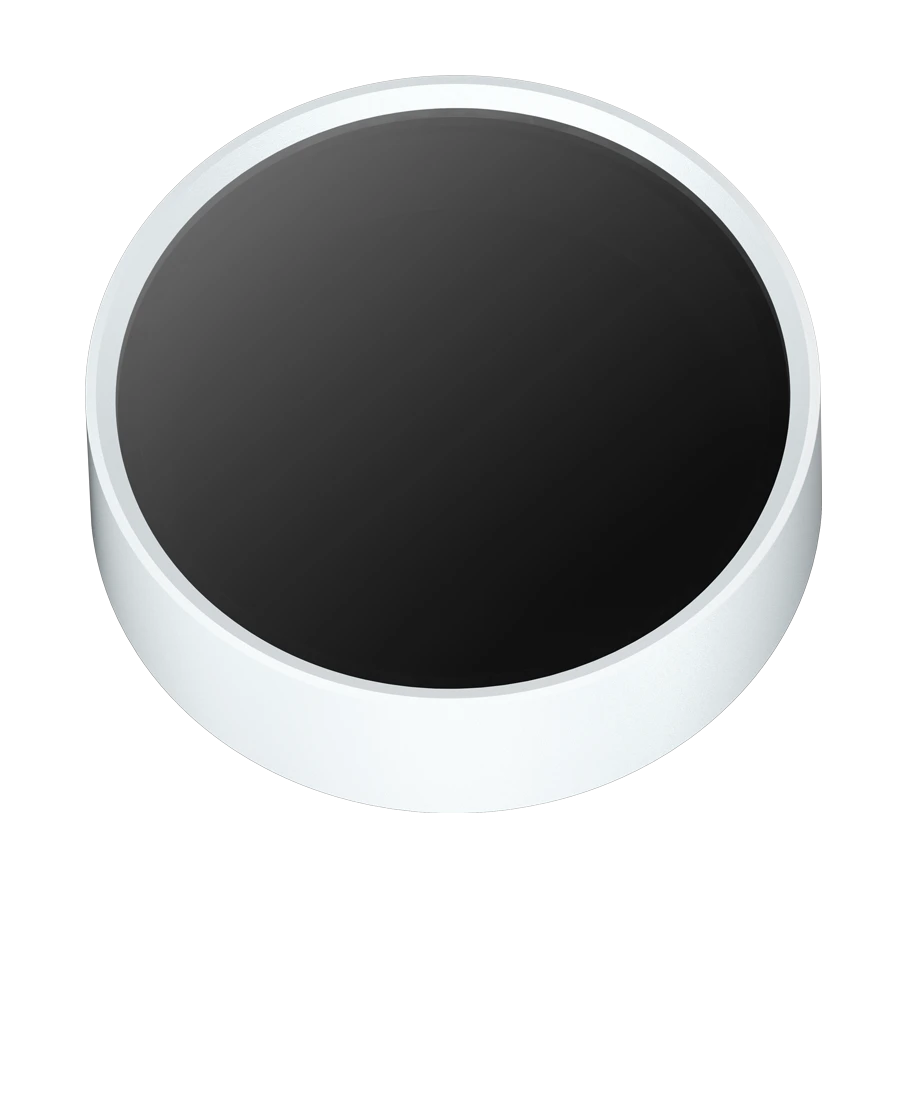

Upside down logo? Easily change orientation by twisting off the pump face to adjust the logo.
Mode+
Speed （Hold for 3 seconds to switch on/off）
Mode-
Choose your style
―
Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.
Dynamic
Static
Breathing
Comet
Fashion Collision
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM4
Technical Spec
Radiator Dimensions282×120×27 mm(L×W×H)
Radiator Material Aluminum
Net Weight 1421 g
Tube length 380 mm(L×W×H)
Pump Dimensions86×75×71 mm(L×W×H)
Pump Speed 2550 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.2 A
Pump Power Consumption 2.4 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed 500~1800 RPM±10%
Fan Airflow 64.4 CFM
Fan Air Pressure 2.33 mmAq
Fan Noise ≤32.1 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.15 A
Fan Power Consumption 1.8 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.25 W（PUMP）
EAN 6933412726852
P/N DP-GS-H12W-CSL240EXWH
Product Dimension
Download
CASTLE 240EX WHITE Manual.pdf
Download
