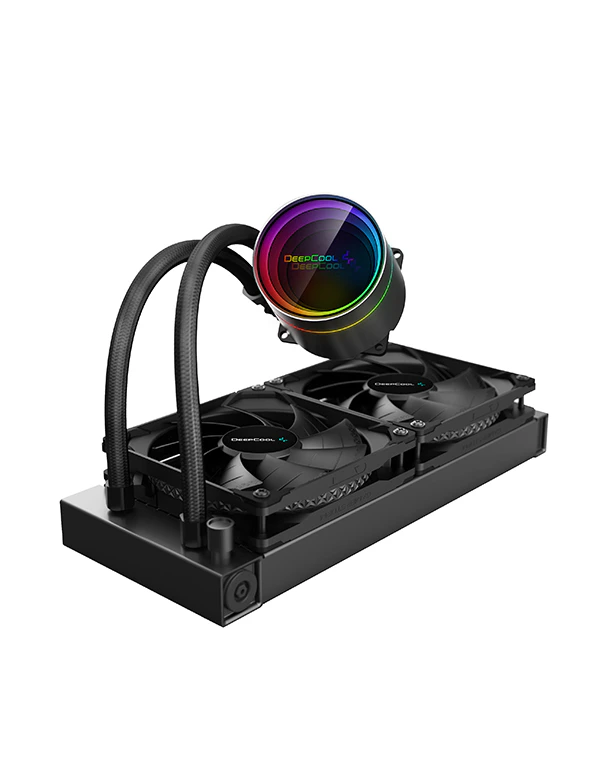

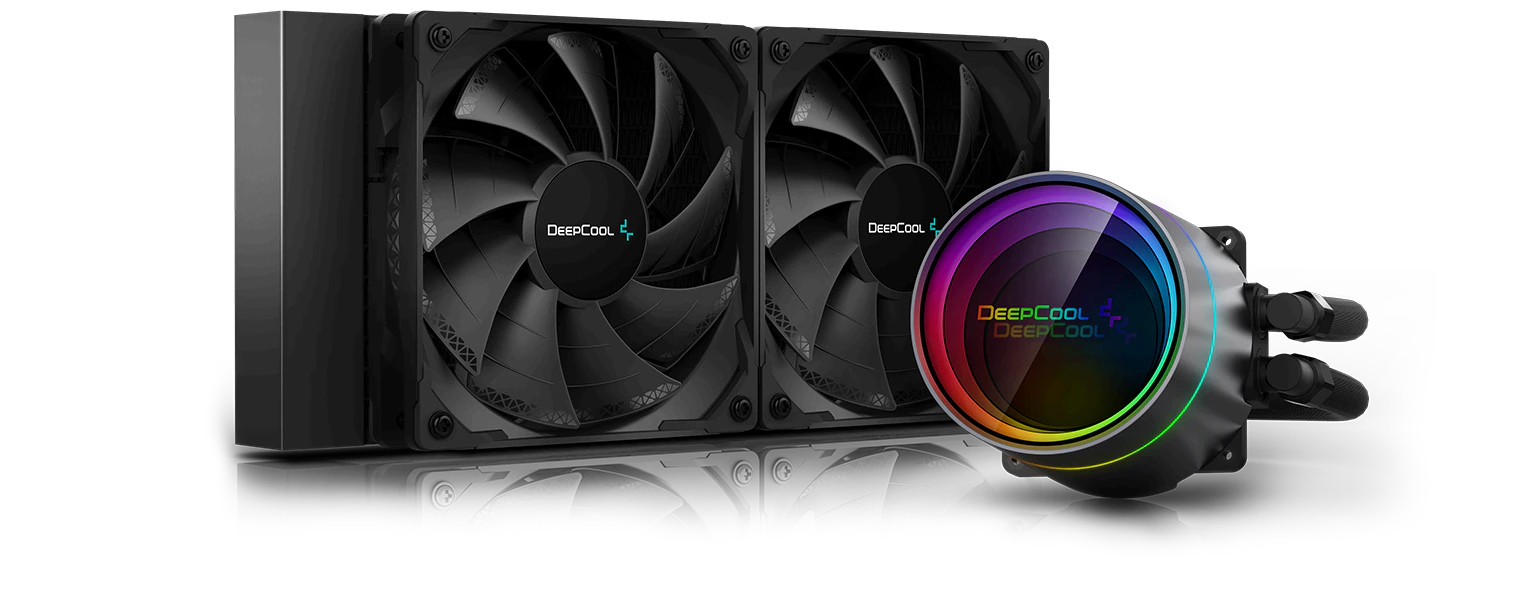

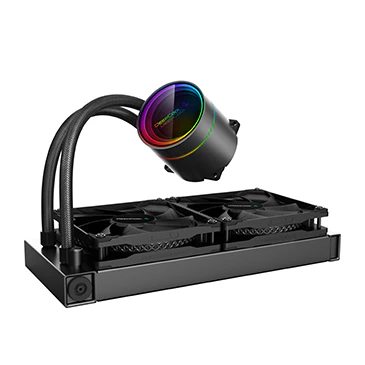

CASTLE 240EX

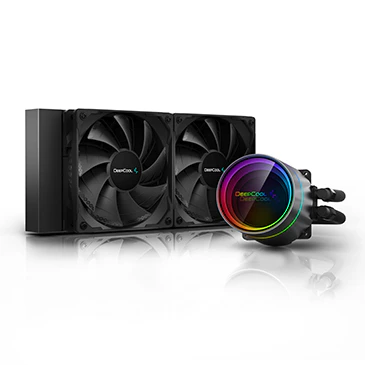

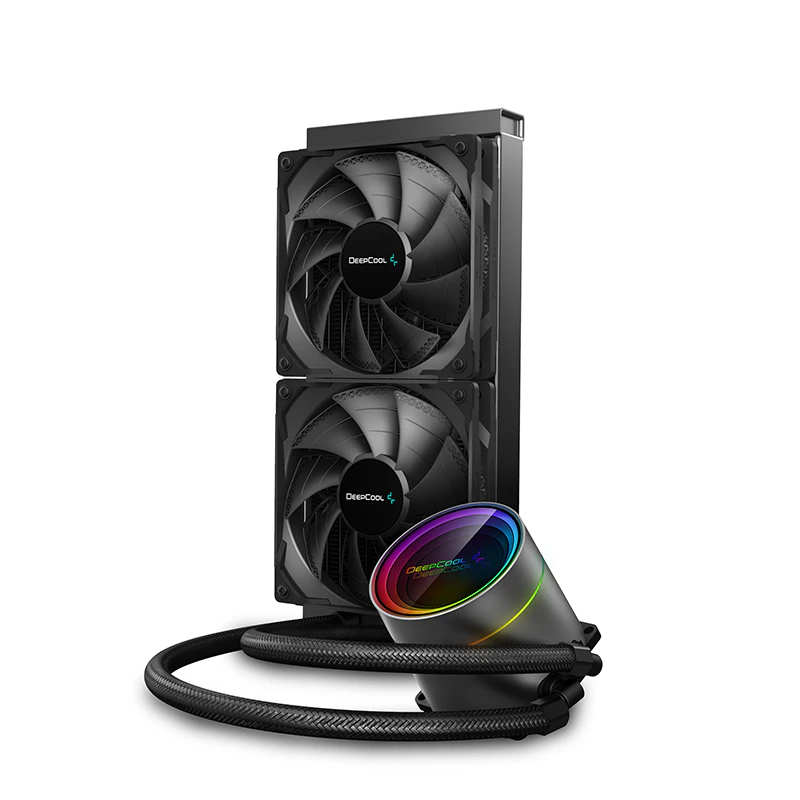

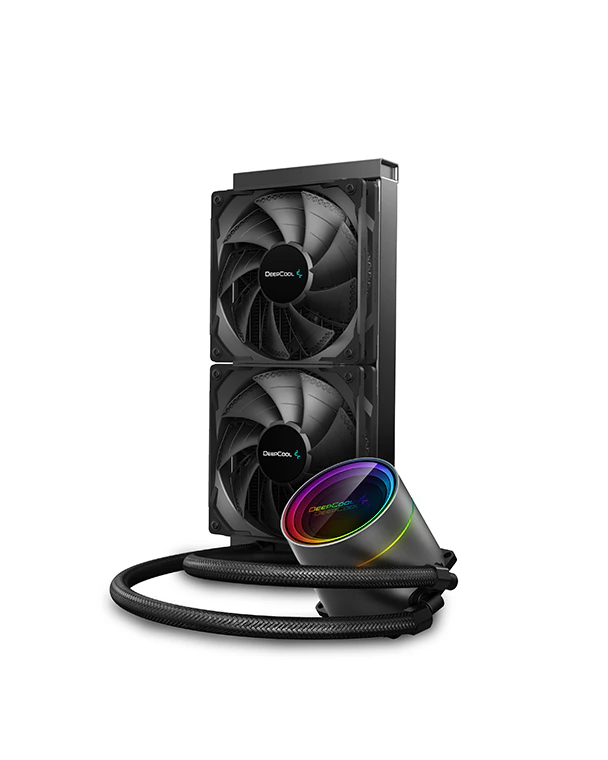

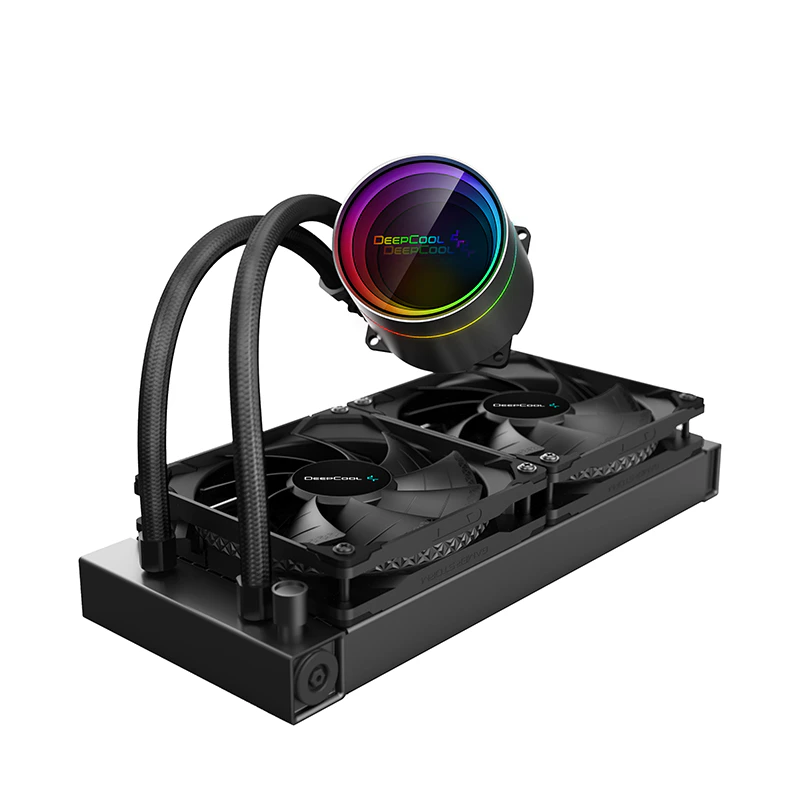

The CASTLE 240EX AIO liquid CPU cooler features Anti-leak tech to help keep systems safe and cool including a redesigned pump, 240mm radiator and RGB lighting support.
Colour
black
MODEL
CASTLE 240EX
Advanced Cooling

PROTECT WHAT’S YOURS

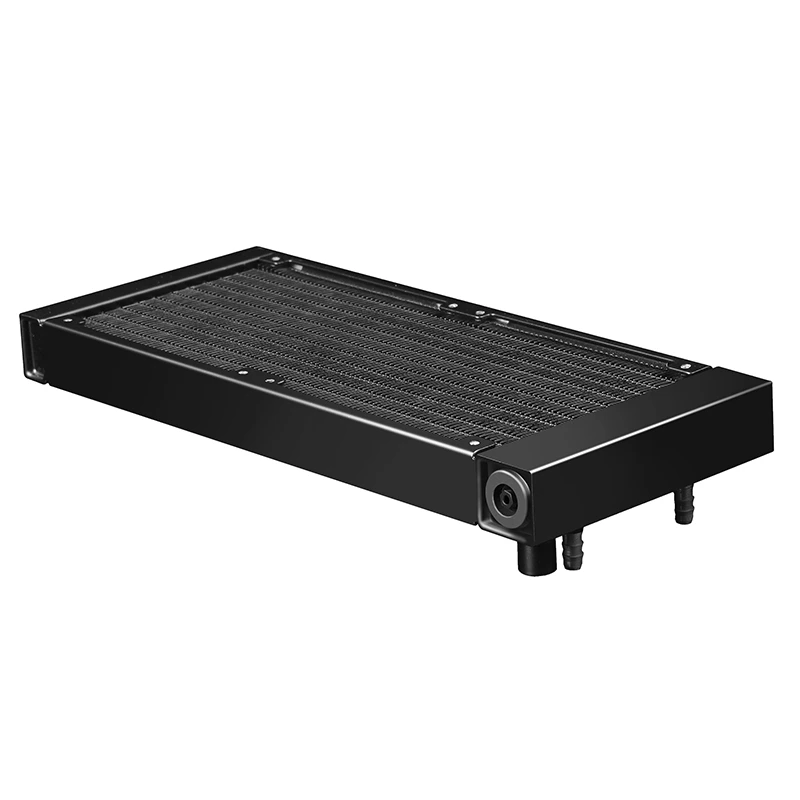

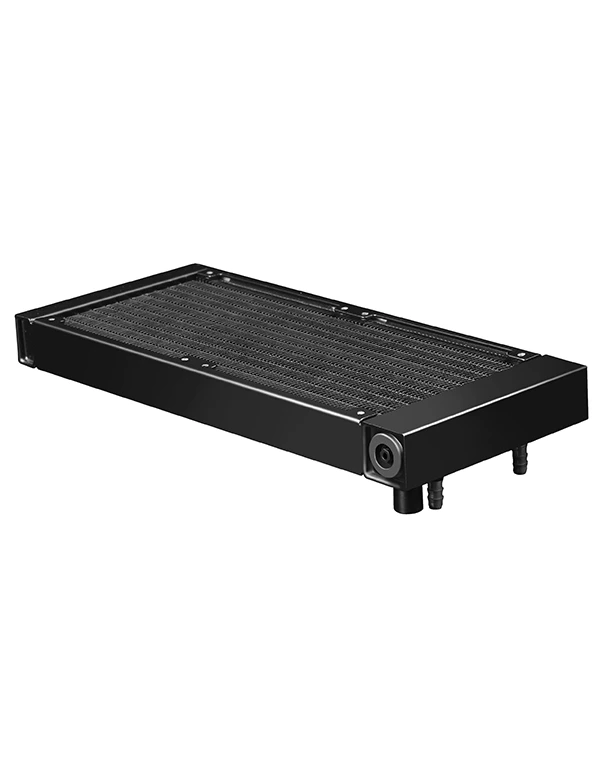

Equipped with patented Anti-Leak technology that helps regulate pressure buildup inside the radiator to significantly improve operational safety and prevent leakage.
Powerful and quiet
―

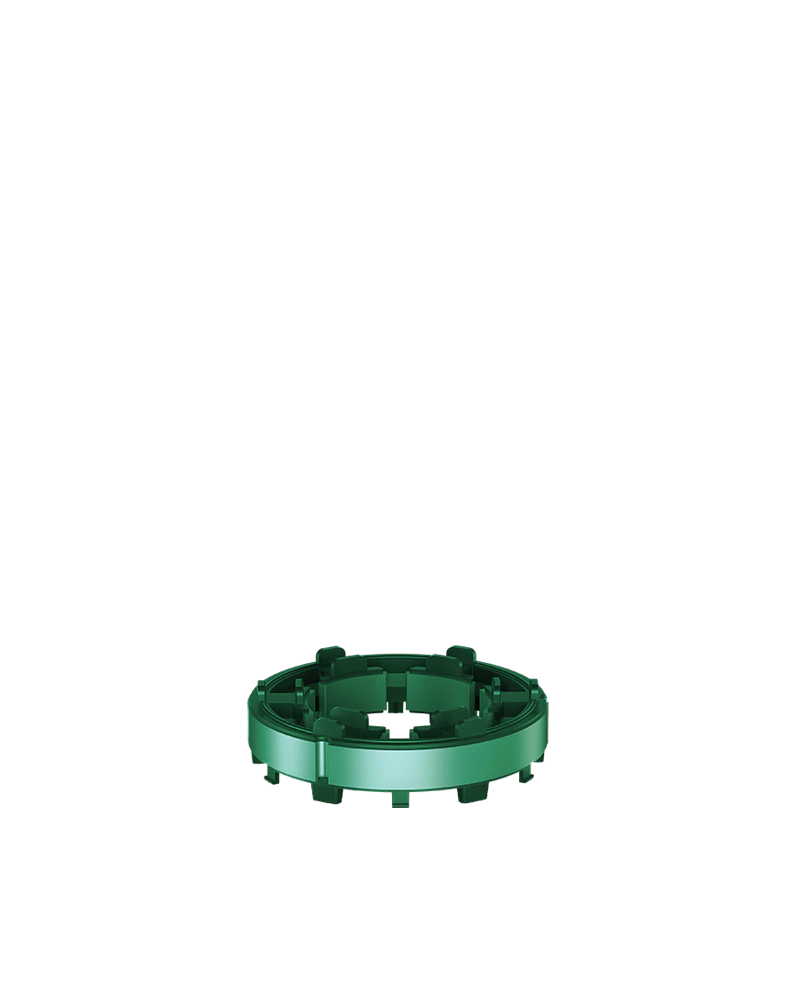

A strong 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.
Efficient cooling
―

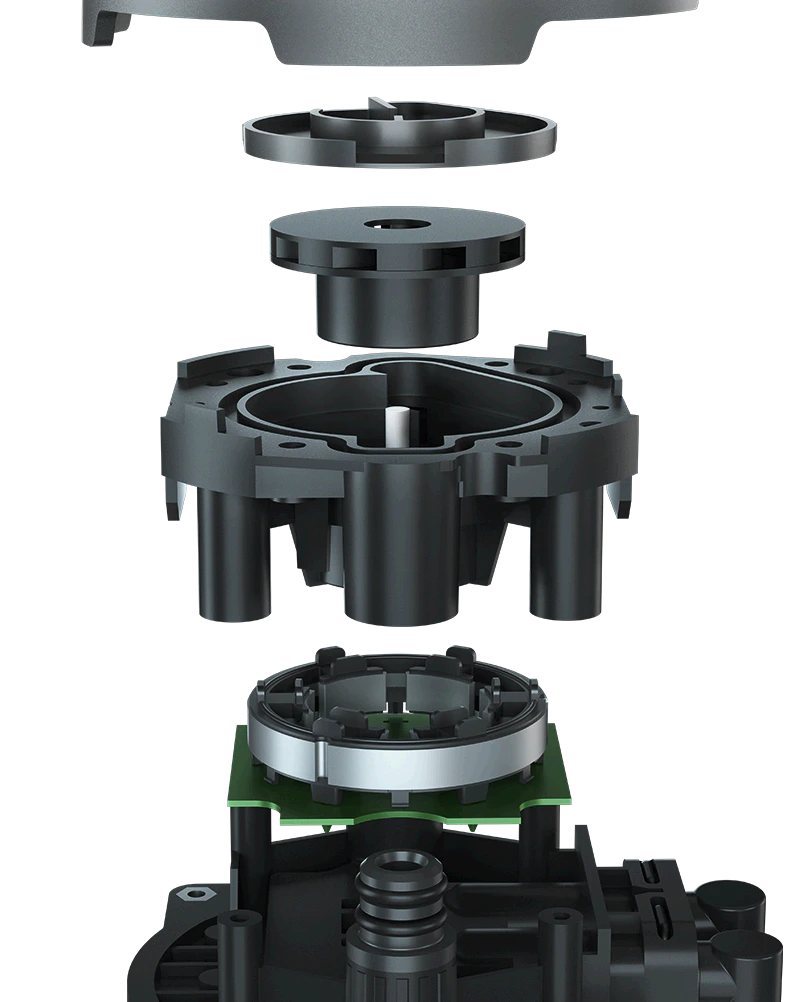

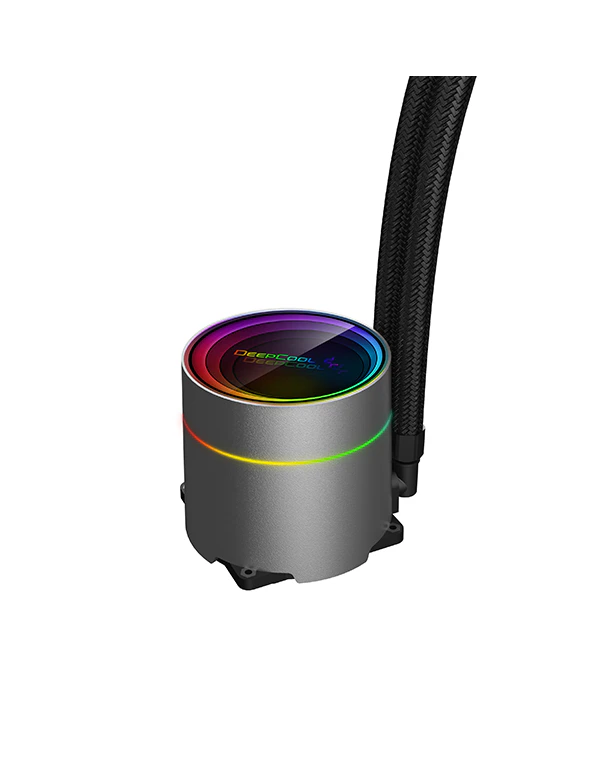

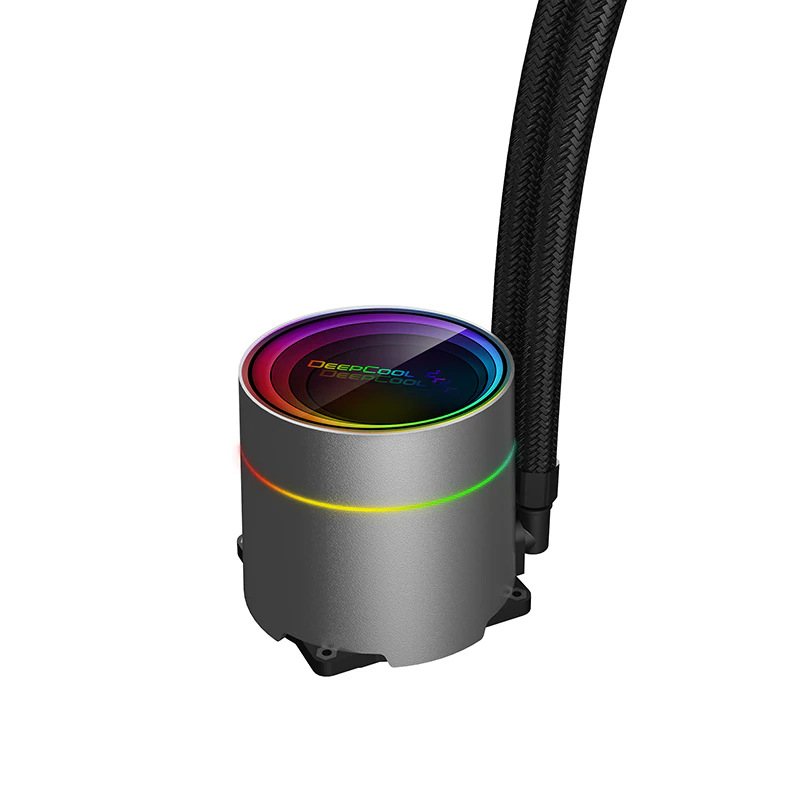

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
More surface area
―
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
Performance tuned
―

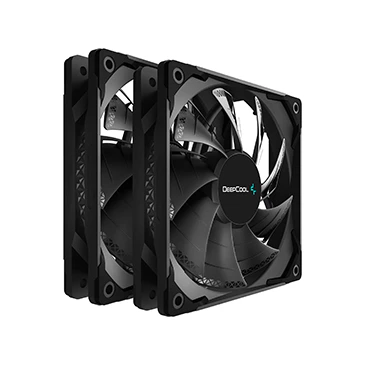

Specially tuned Deepcool TF120 S fans deliver the extreme cooling performance for AIO liquid coolers by maximizing both static pressure and airflow.
Customize your look
―
Upside down logo? Easily change orientation by twisting off the pump face to adjust the logo.
Mode+
Speed （Hold for 3 seconds to switch on/off）
Mode-
Choose your style
―

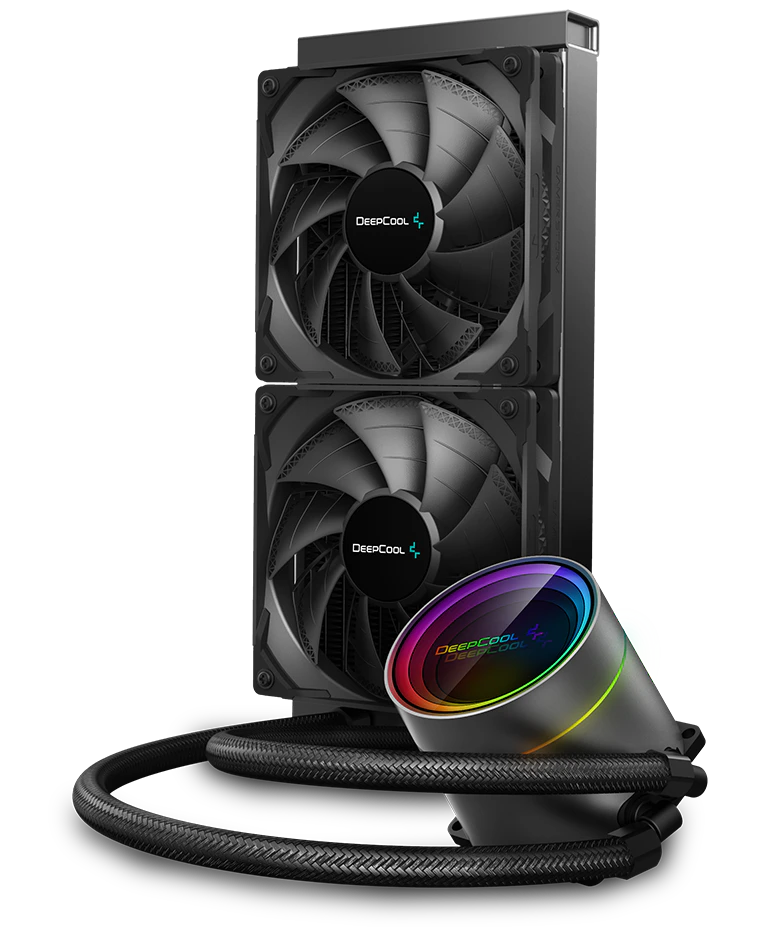

Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.
Dynamic
Static
Breathing
Comet
Fashion Collision
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM4
Technical Spec
Radiator Dimensions282×120×27 mm(L×W×H)
Radiator MaterialAluminum
Net Weight1421 g
Tube length380 mm(L×W×H)
Pump Dimensions86×75×71 mm(L×W×H)
Pump Speed2550 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.2 A
Pump Power Consumption2.4 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~1800 RPM±10%
Fan Airflow64.4 CFM
Fan Air Pressure2.33 mmAq
Fan Noise≤32.1 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.15 A
Fan Power Consumption1.8 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.25 W（PUMP）
EAN6933412726753
P/NDP-GS-H12-CSL240EX
Product Dimension
DeepCool Castle 240EX + 360EX AIO Liquid Cooler Review
DeepCool Castle series are high-performance coolers that look great, won't leak and are extremely quiet. Timmy Joe PC Tech tested both with the Ryzen 3700x at locked 4.3 Ghz and they both can did a great job!
View More
Date:2019/08
Media:Kitguru
Date:2019/08
Media:Guru3d
Date:2019/06
Media:Hexus
Best Looking AIO EVER!!! DeepCool Castle 240EX Review
DeepCool Castle 240 EX was one of the most talked-about coolers ever on Craft Computing. Let's learn more detail about this liquid cooler with Craft Computing.
View More
Date:2019/07
Media:Eteknix
Date:2019/09
Media:bit-tech
Download
CASTLE 240EX Manual.pdf
