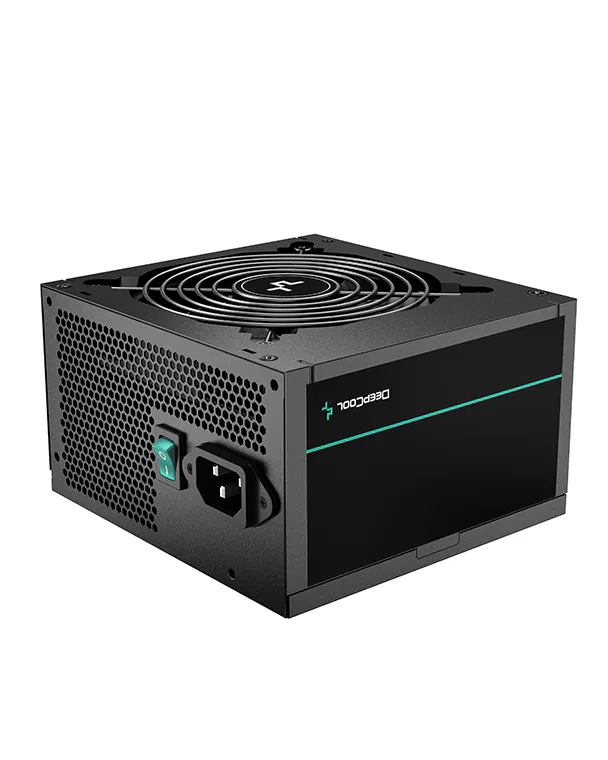

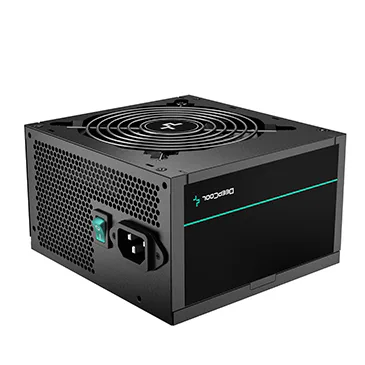

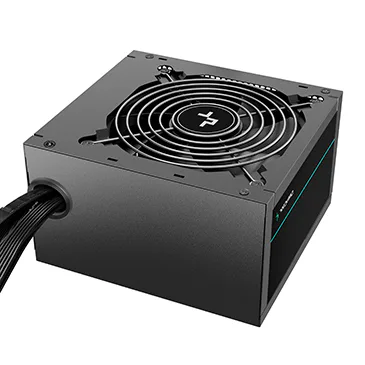

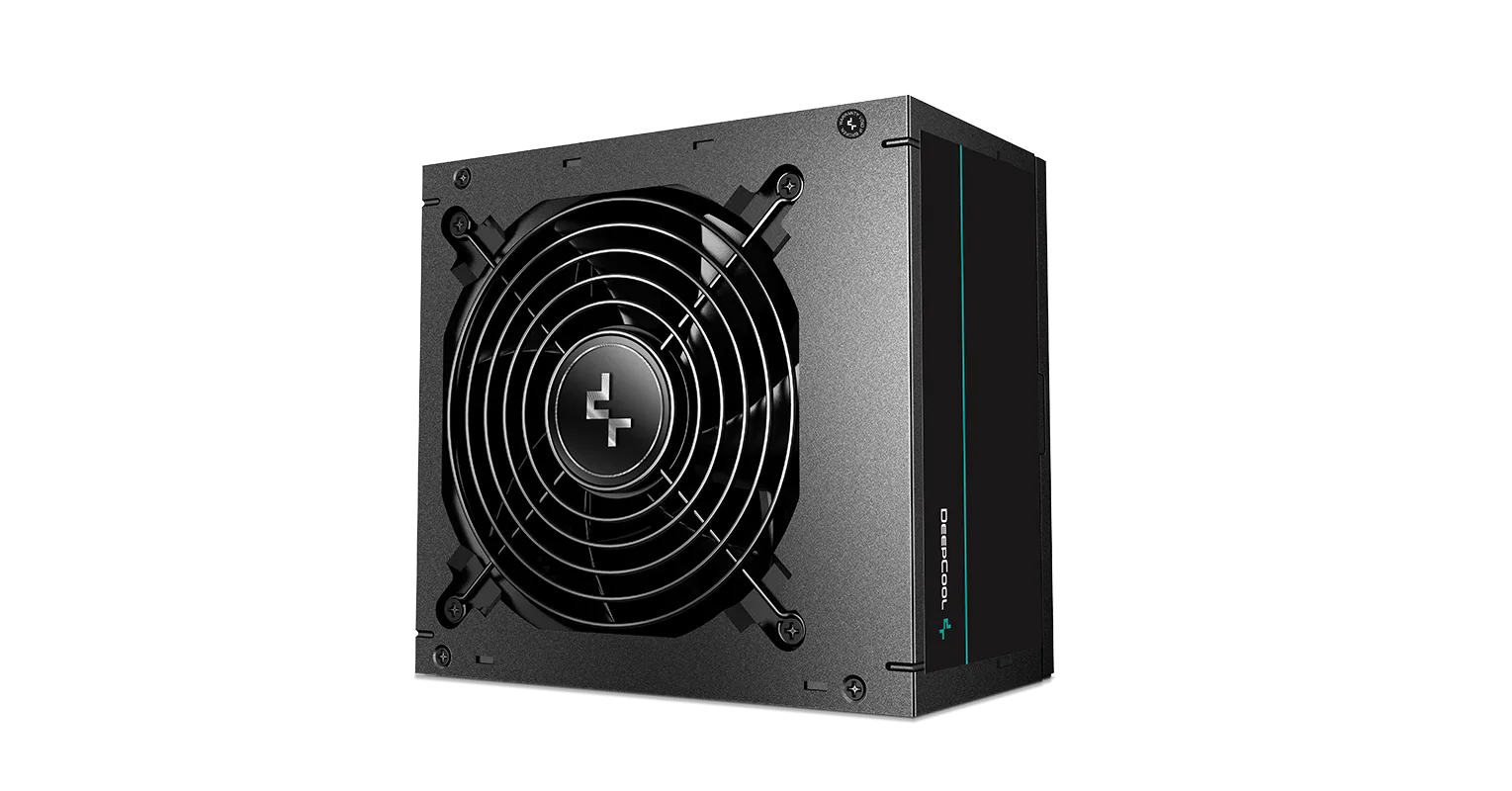

PM650D

Reliable 80 PLUS Gold Efficiency

DeepCool PM650D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.

80 PLUS Gold Certified

Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.

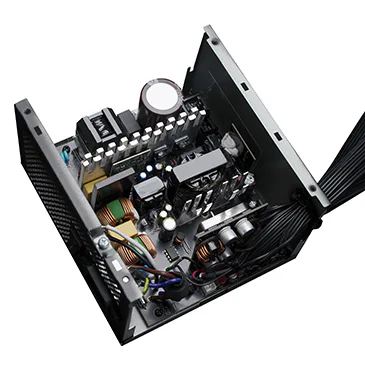

Quality topology

For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.

Built to spec

Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.

80 PLUS® Gold

80 PLUS® Gold certified - Up to 87~90% efficient (20~100% Loading)

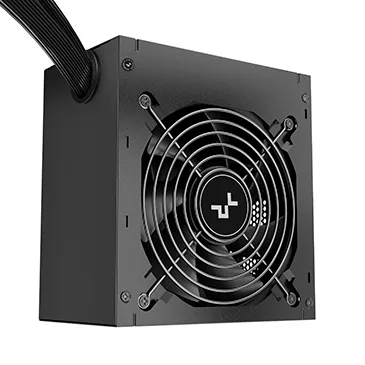

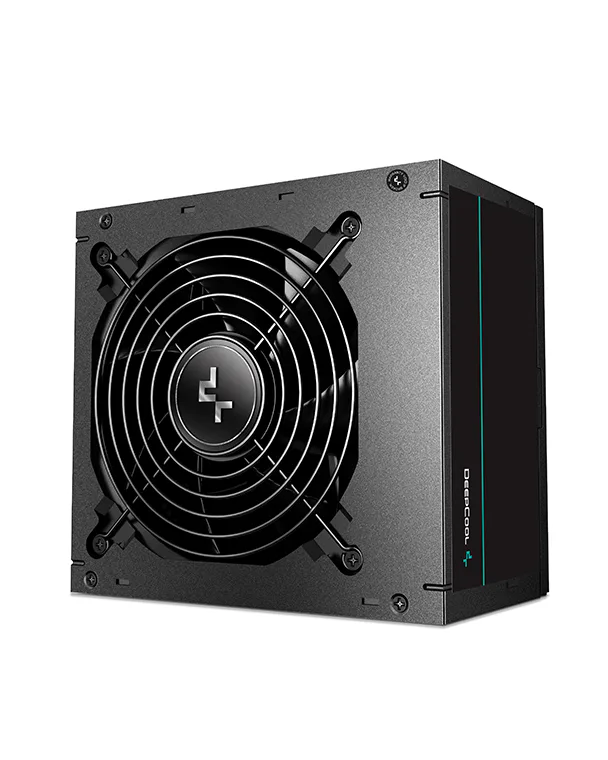

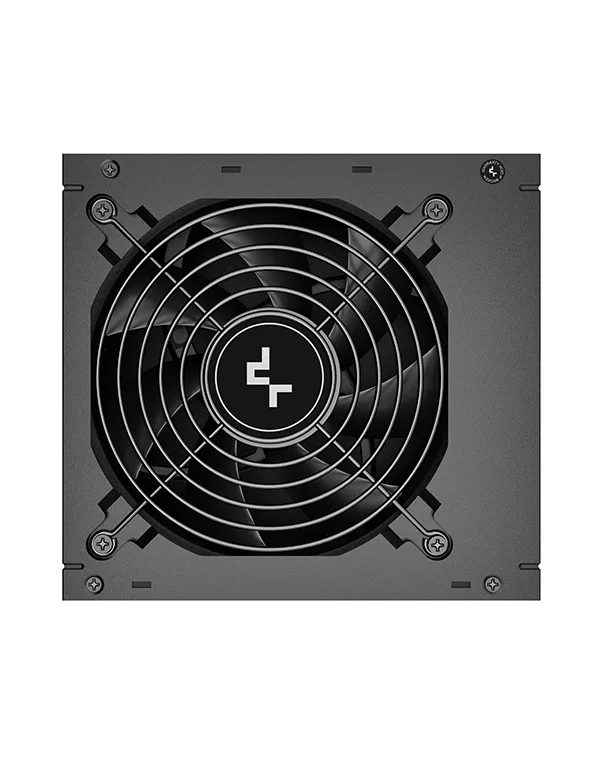

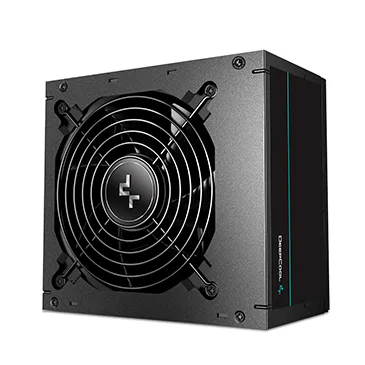

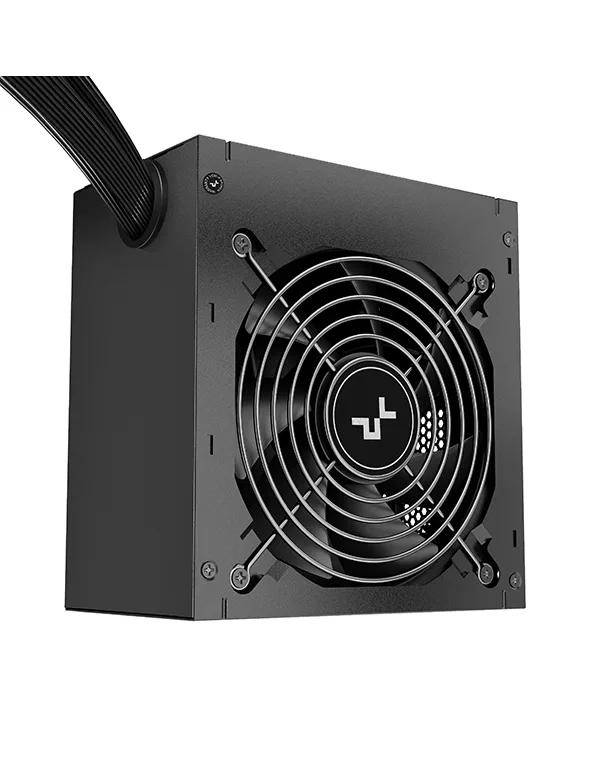

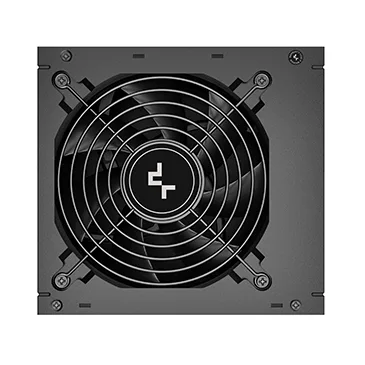

Silent and High Performance Fan

120mm silent fan has temperature control function to keep low noise

Efficiency throughout

The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.

* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

Peace of mind

Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP/UVP.

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Over Temp Protection

Over Current Protection

Under Voltage Protection

Main Power Connector (20+4)Pin x 1

CPU(4+4)Pin x 1

PCI-E(6+2)Pin x 1

SATA x 3

4Pin Peripheral x 3

Technical Spec

Type	ATX12V V2.4
Product Dimensions	150×140×86mm (W x L x H)
80PLUS Certifications	GOLD
Fan Size	120mm
Fan Bearing	Hypro Bearing
Topology	Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors	Japanese Bulk Capacitor
Power Good Signal	100-150ms
Hold Up Time	≥16ms(75% Load)
Efficiency	≥90% Under Typical Load(50% Loading)
Protection	OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature	0-40°C
Regulatory	TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS/RCM/CAN ICES-003(B)/NMB-003(B)
Erp Regulation	ErP(2014)
MTBF	100,000 Hours
EAN	6933412709695
P/N	R-PM650D-FA0B-UK

Download

PM650D Manual.pdf

Download
