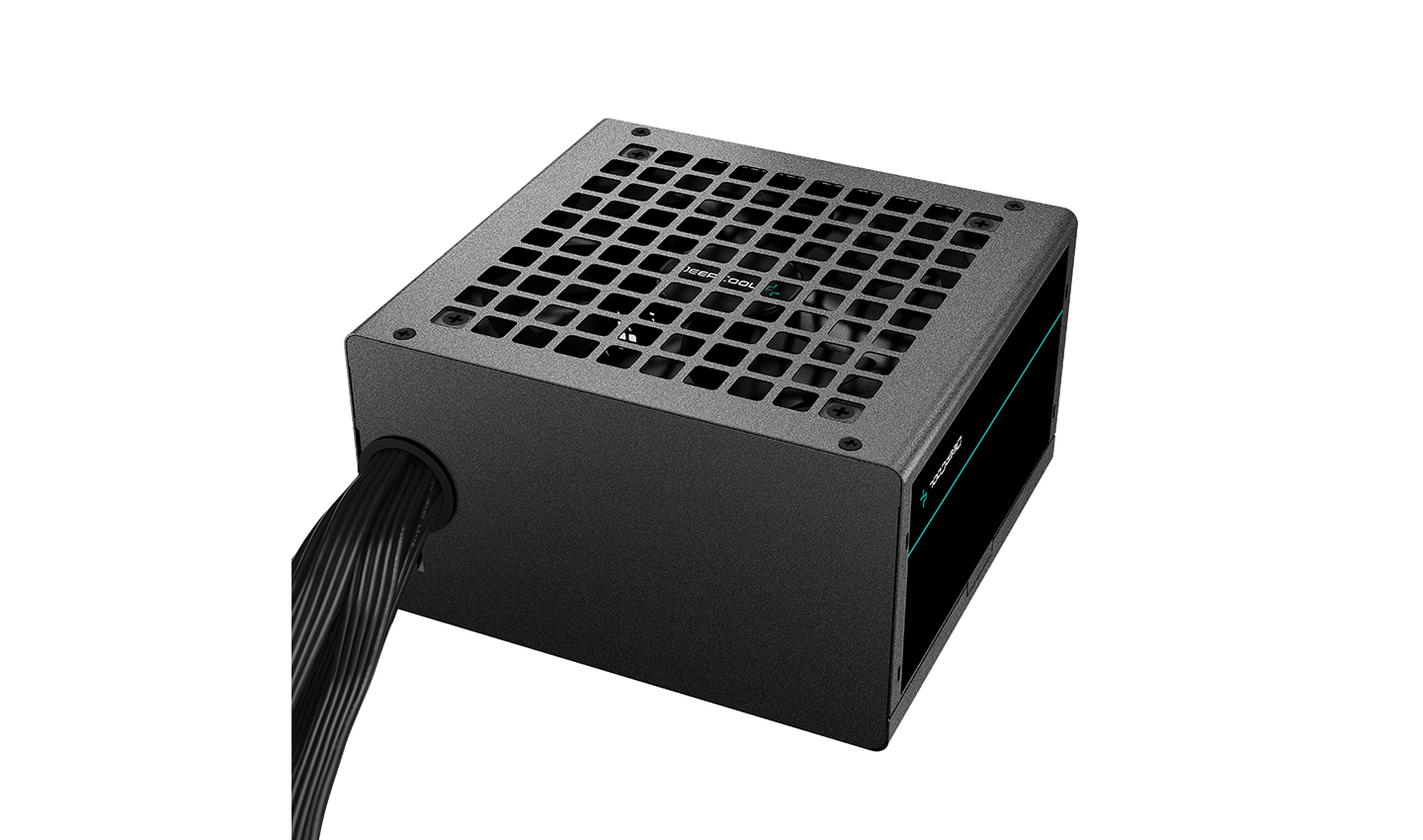

PF600
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
Colour
black
MODEL
PF600
80 PLUS Standard Power Supply
PF600
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
To Higher Standards
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.
Silent Hydraulic Bearing Fan
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
PF Series 80 PLUS Standard Power Supply
Flat Black Cables
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
Reliable Protection
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
*This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Main Power Connector 24 (20+4)Pin x1
X1
EPS 12V Connector 8 (4+4)Pin x2
X1
PCI-E (6+2)Pin x2
X2
SATA x3 + 4Pin Peripheral x1
X2
Technical Spec
TypeATX12V V2.4
Product Dimensions150×140×86mm (W x L x H)
80PLUS Certifications230V EU White
Fan Size120mm
Fan BearingHypro Bearing
TopologyActive PFC+Double tube forward
CapacitorsTaiwan bulk capacitor
Power Good Signal100-500ms
Hold Up Time≥16ms(75% Load)
Efficiency≥85% Under Typical Load(50% Loading)
ProtectionOPP/OVP/SCP/UVP
Operation Temperature0-30°C
RegulatoryCB/CCC/CE/UKCA/EAC/RCM/BIS
Erp RegulationErP 2010
MTBF100,000 Hours
EAN6933412711407
P/NR-PF600D-HA0B-UK
Pictures and content displayed on product pages are provided for reference only. Product features and specifications (including, but not limited to appearance, color, and size), as well as actual displayed content (including, but not limited to background, UI and icons) may vary.
