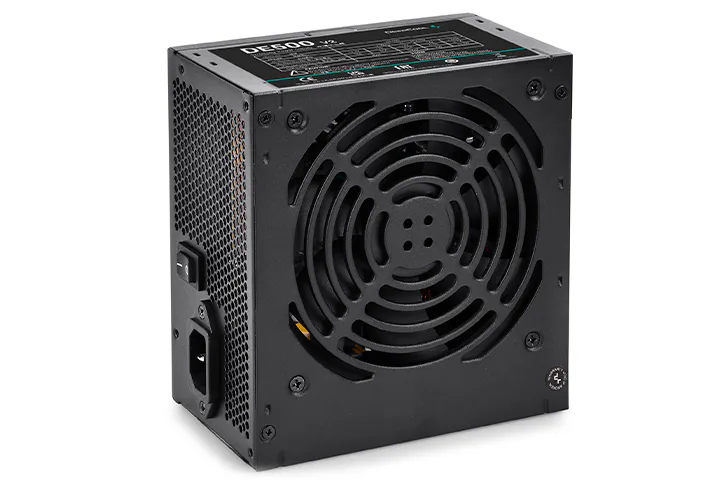

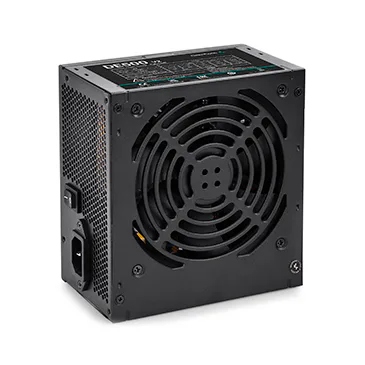

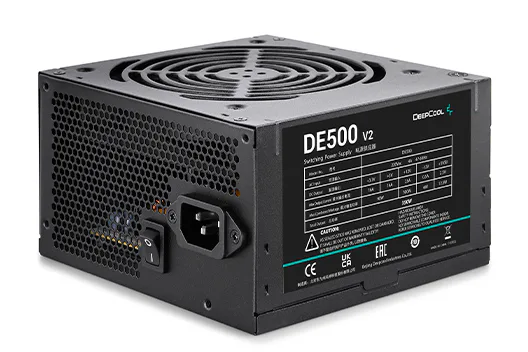

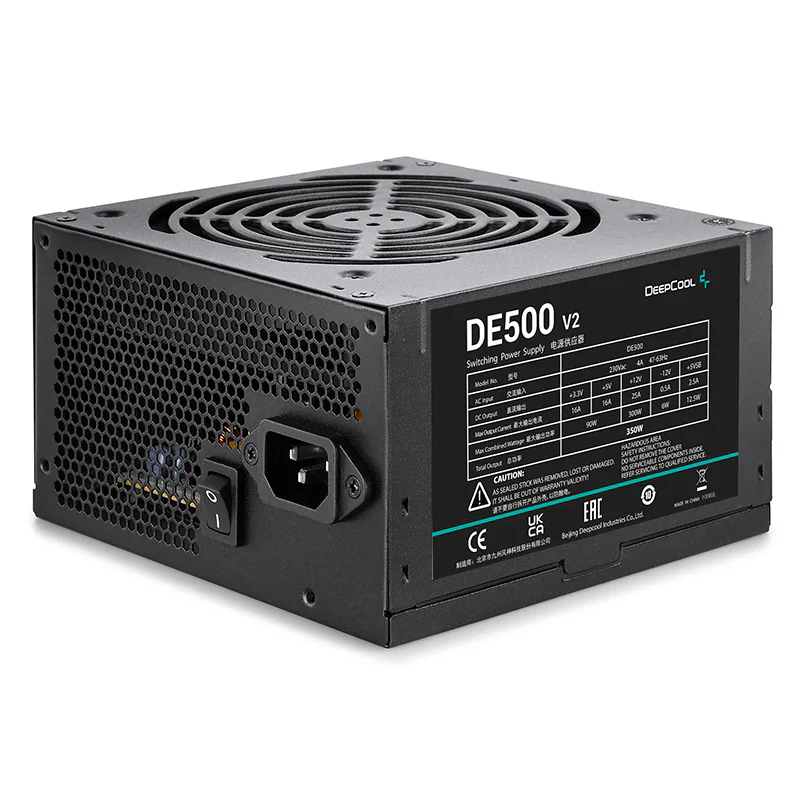

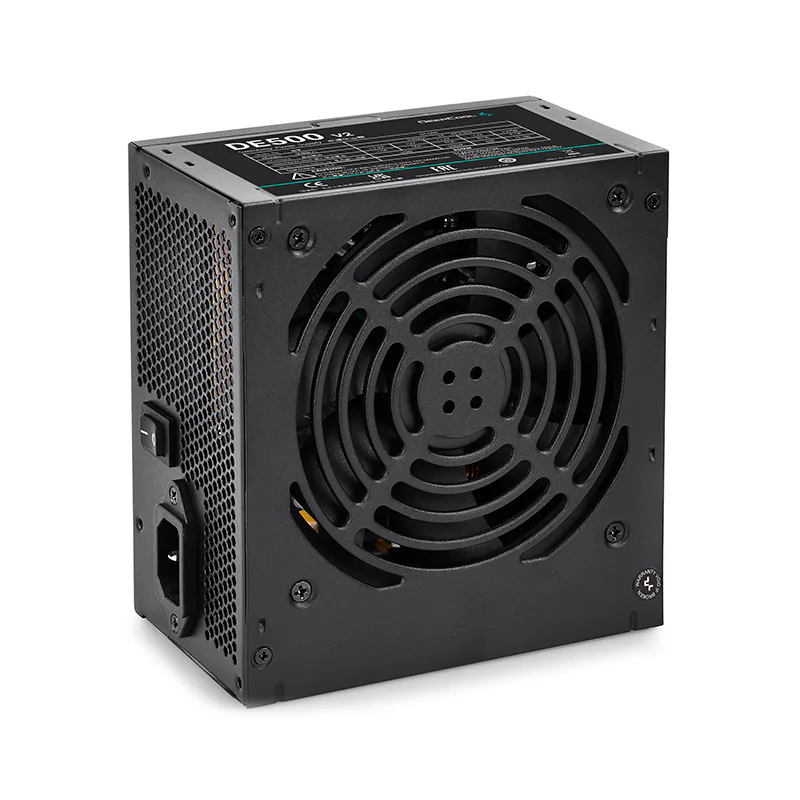

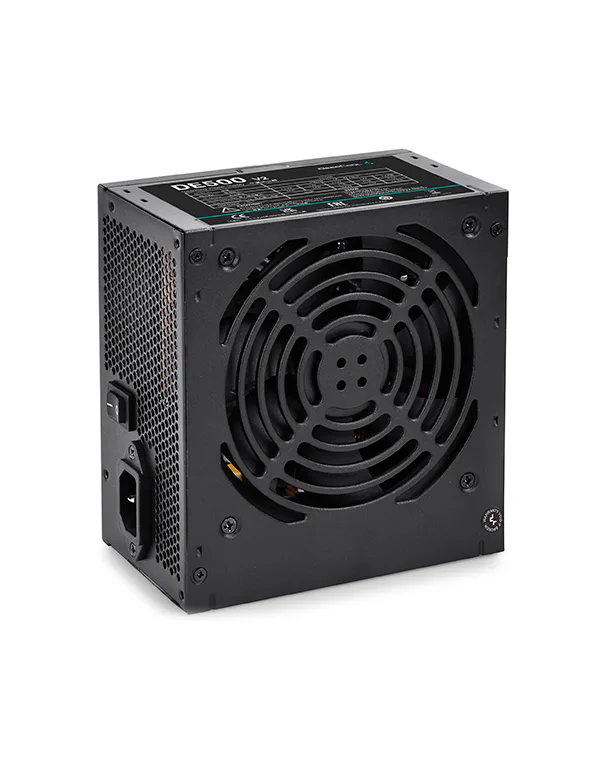

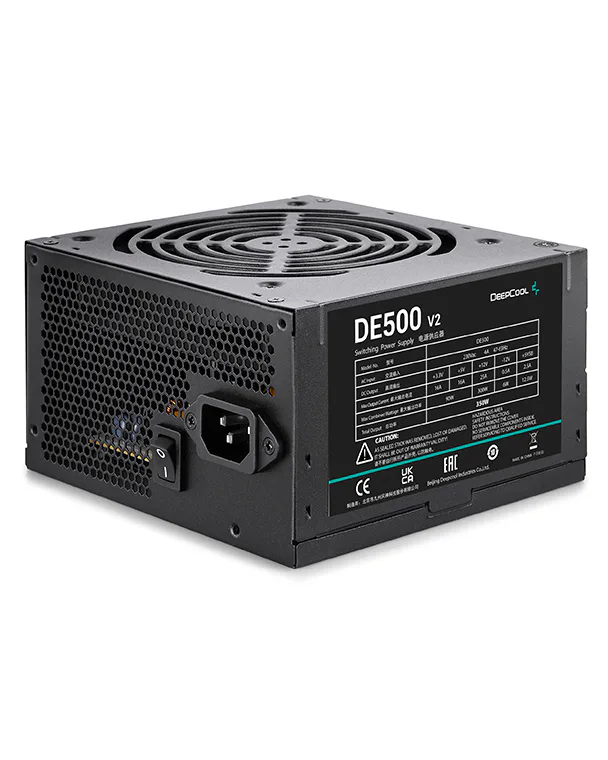

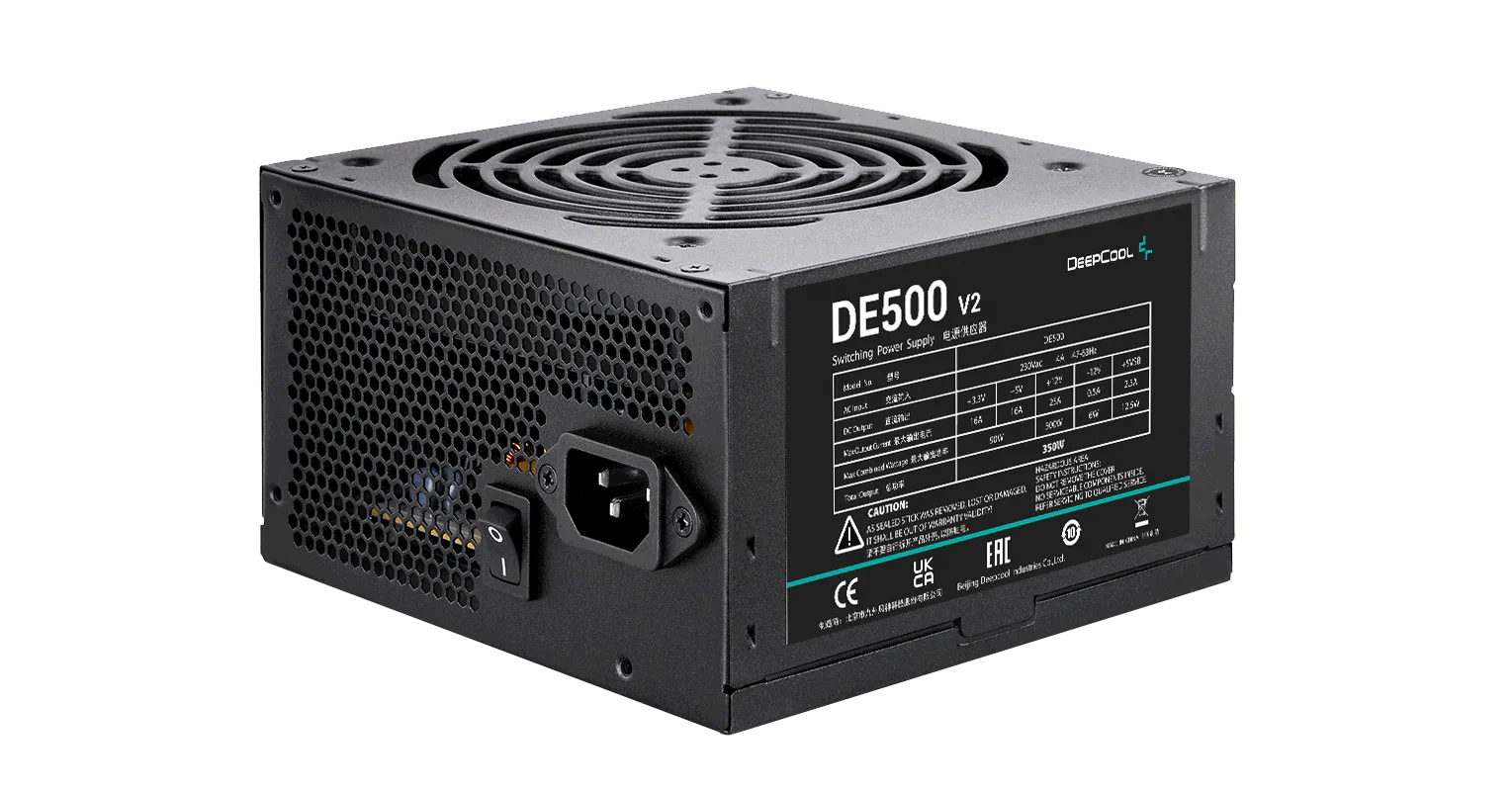

DE500
Excellent performance-to-noise ratio

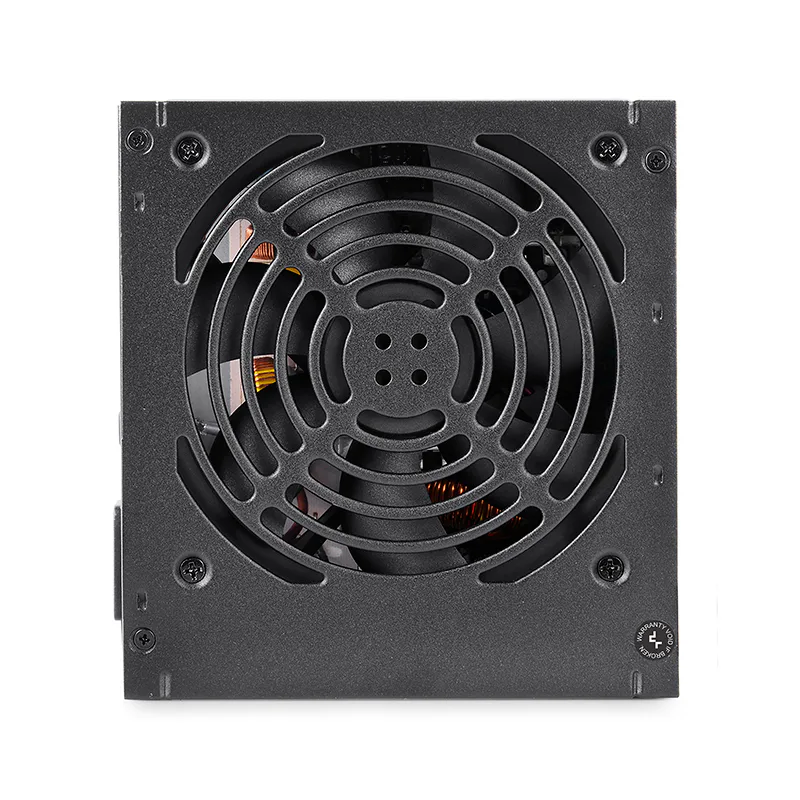

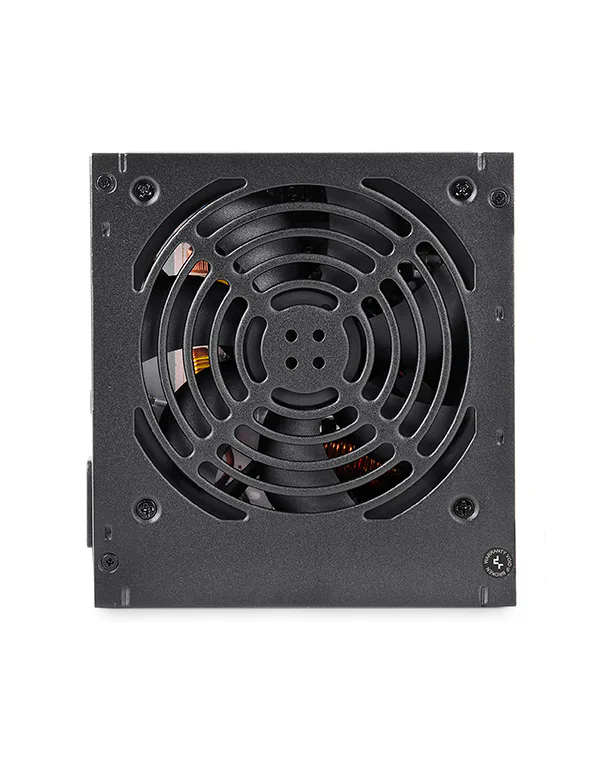

120 mm Smart fan
Excellent performance-to-noise ratio.
Safe and durable with long service life
Multiple protective measures for up to 100,000 hours of use
*This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

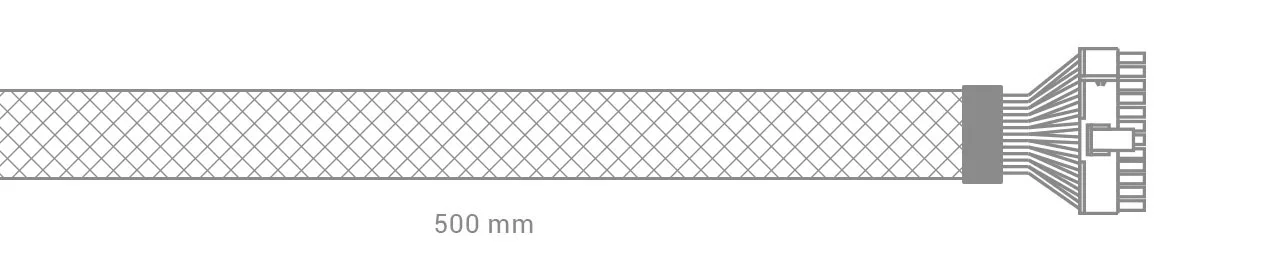

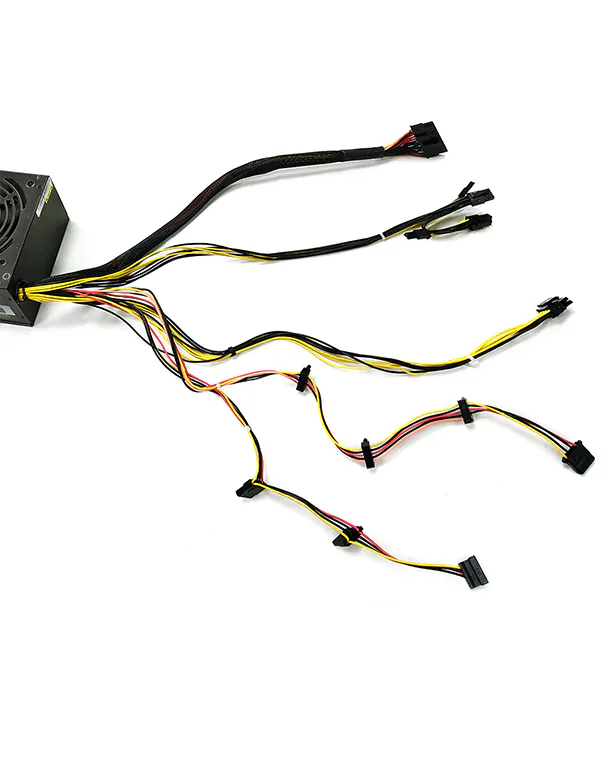

Main Power Connector (20+4)Pin x 1
X1
SATA×3+4pin Peripheral×1
X1
4pin Peripheral×2+SATA×1
X1

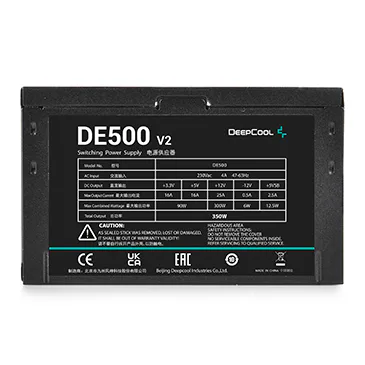

Technical Spec
|
Model |
DE500 |
|
Type |
ATX 12V V2.4 |
|
Dimension |
150×140×86mm (W x L x H) |
|
Output Capacity |
350W |
|
Input Voltage |
230Vac |
|
Input Voltage Range |
160~240V |
|
Input Current |
4.0A |
|
Input Frequency Range |
47~63Hz |
|
Fan Size |
120mm silent fan |
|
Power Good Signal |
100-500ms |
|
Hold Up Time |
>16ms |
|
Protection |
OVP / UVP / SCP / OPP |
|
Operation Temperature |
0~40°C |
|
Regulatory | CE/UKCA/EAC |
|
MTBF |
100,000 Hours |
|
EAN |
6933412798897 |
|
P/N |
DP-DE500US-PH |
Pictures and content displayed on product pages are provided for reference only. Product features and specifications (including, but not limited to appearance, color, and size), as well as actual displayed content (including, but not limited to background, UI and icons) may vary.
