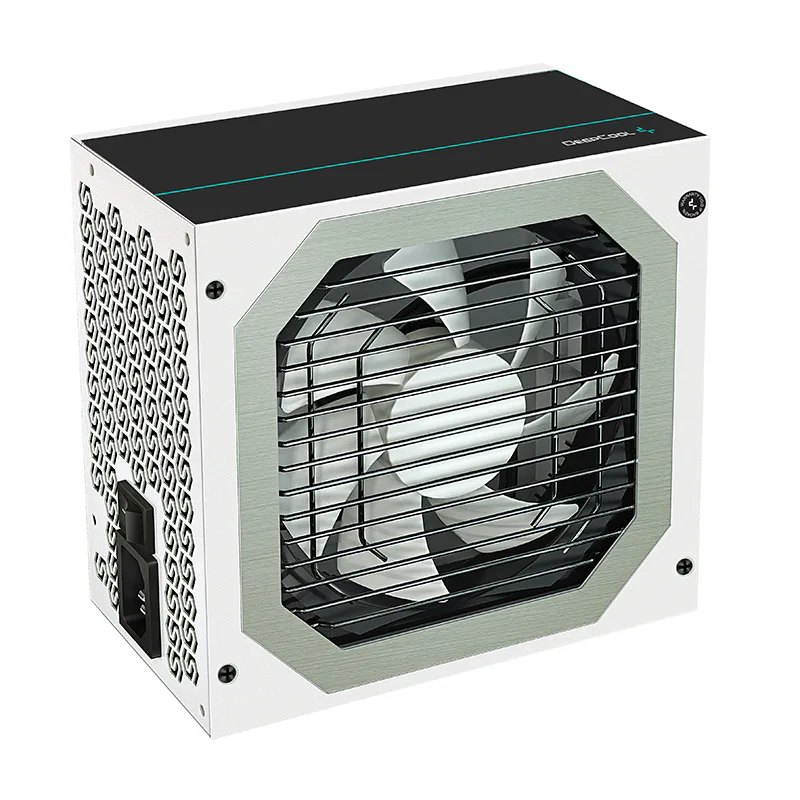

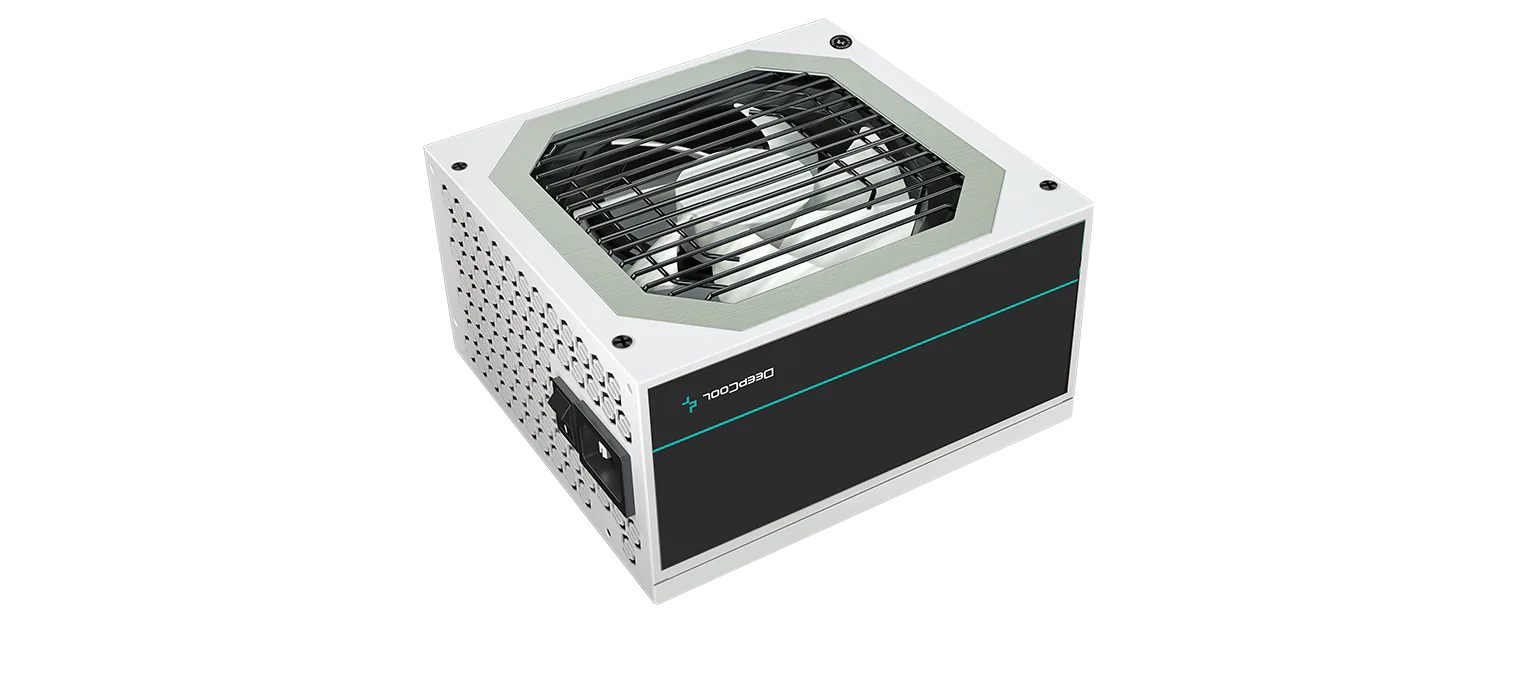

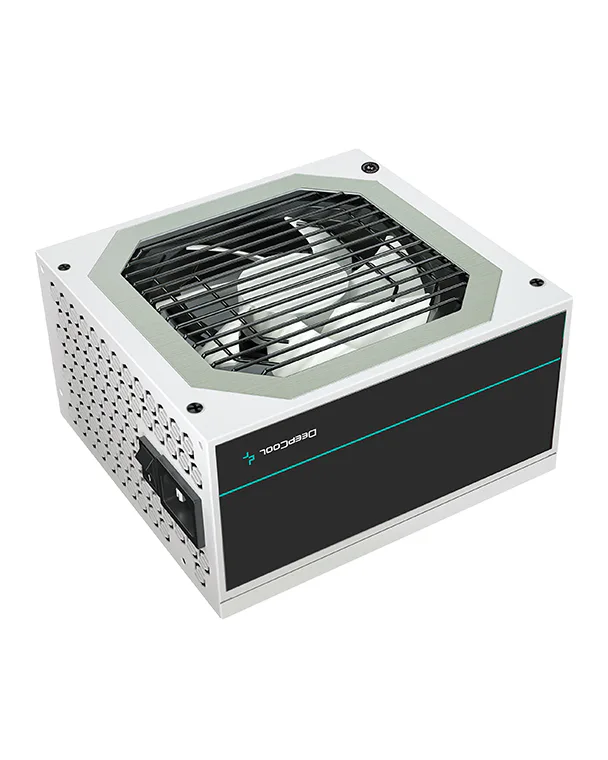

DQ750-M-V2L WH
Reliable 80 PLUS Efficiency
The DQ750-M-V2L WH fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and
high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency,
the DQ750-M-V2L WH offers better reliability for your PC system.
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy
consumption and waste heat.
Excellent Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter
and synchronous rectification DC-DC design,the DQ750-M-V2L WH delivers improved performance with lower power
dissipation, increased quality, and better thermals to meet your needs.
80 PLUS® Gold
80 PLUS® Gold certified - Up to 87~90% efficient (20~100% Loading)

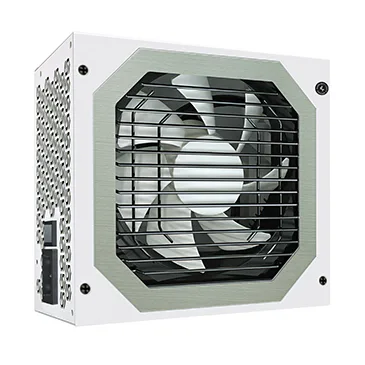

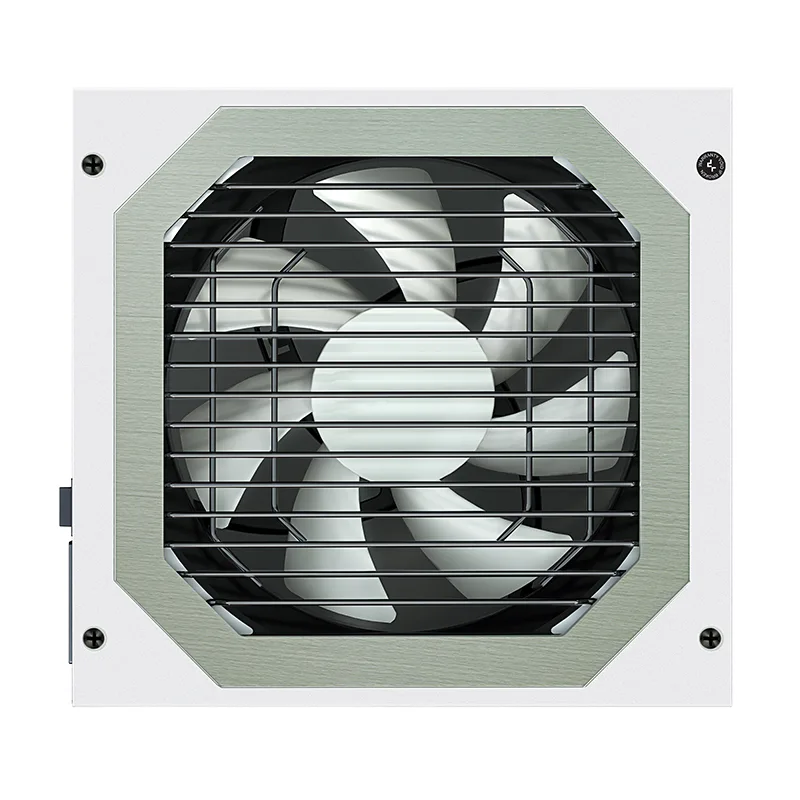

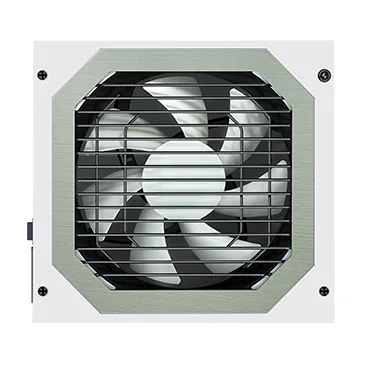

Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise

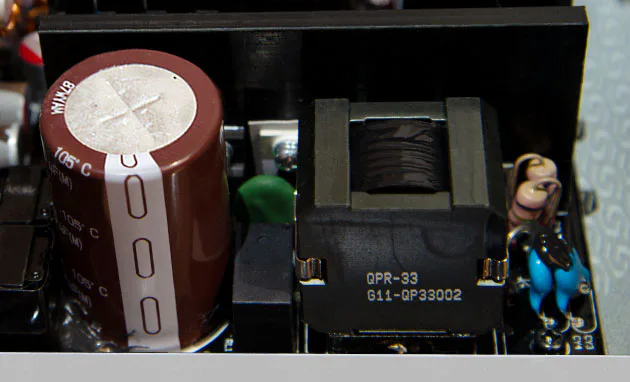

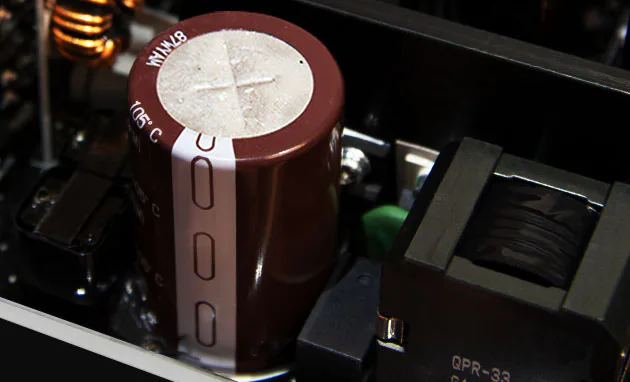

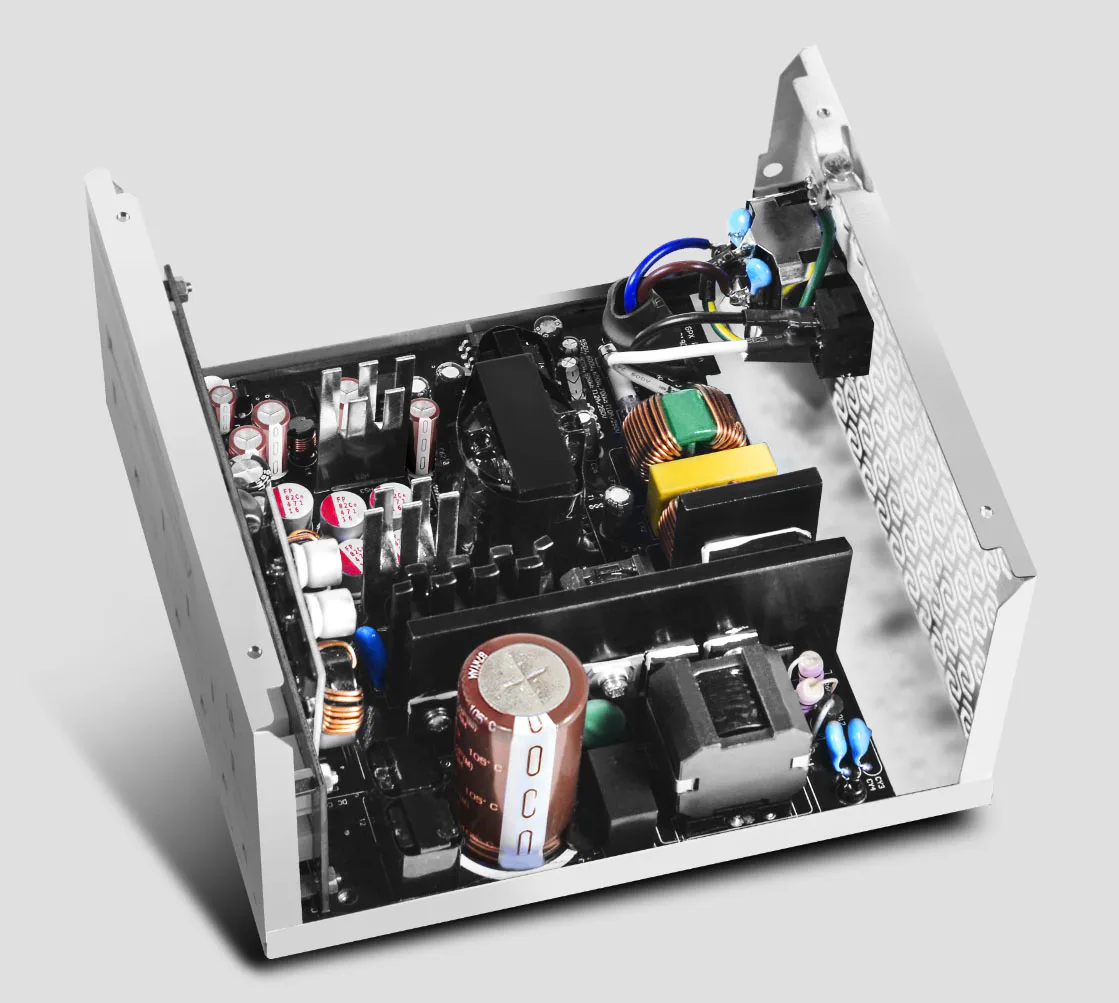

High grade Japanese 105℃
PFC Boost Capacitor

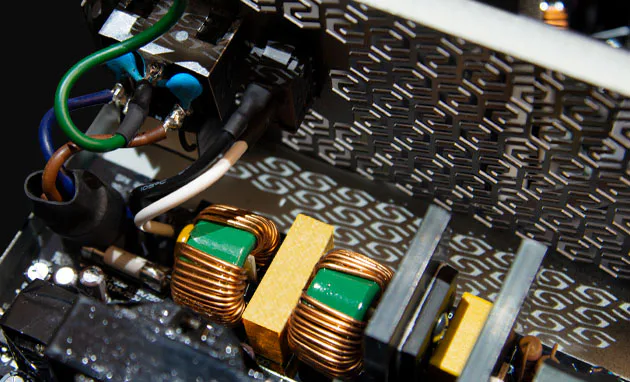

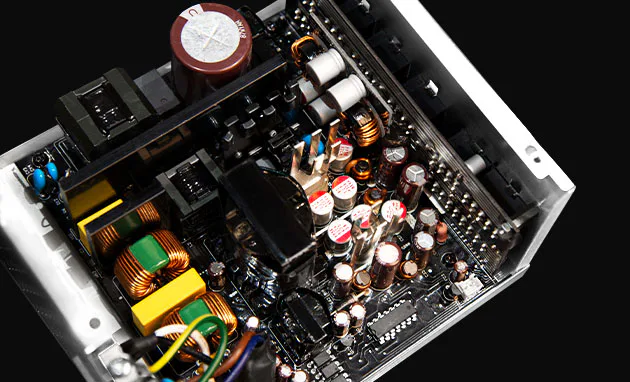

Excellent 1 and 2-stage EMI
filter circuit
Highly efficient Active PFC
Excellent manufacturing
process

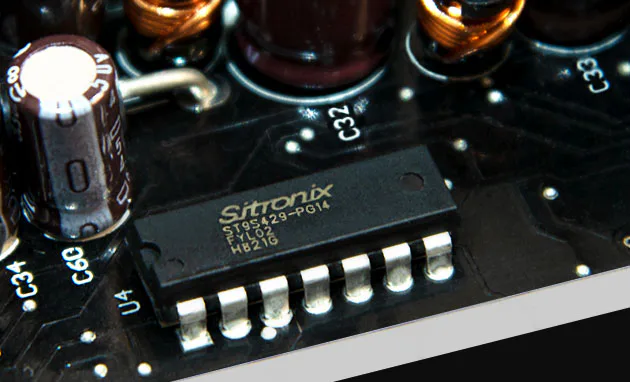

Highly reliable supervisor
IC for protections

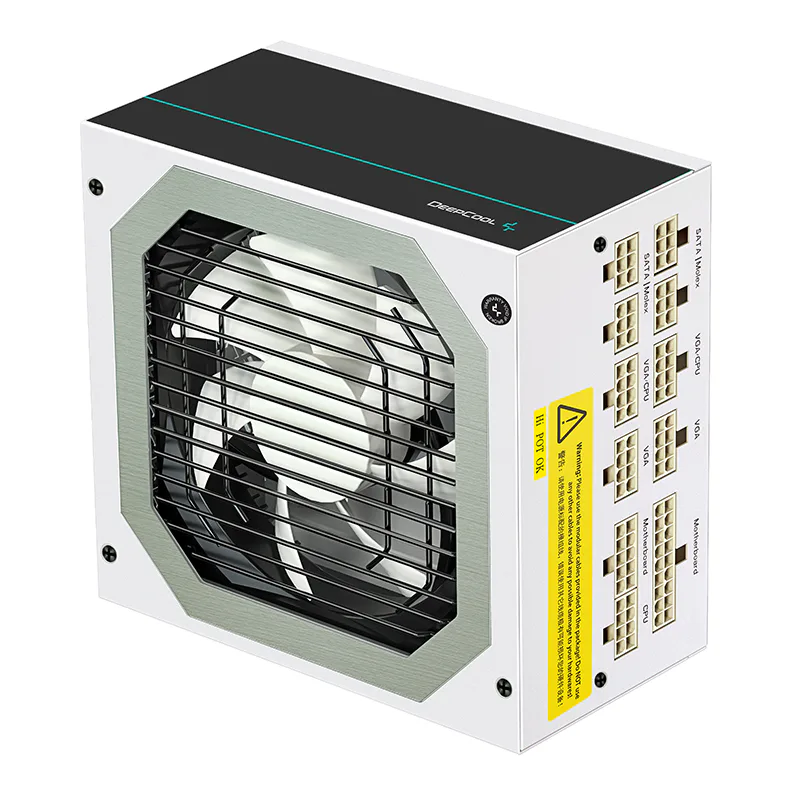

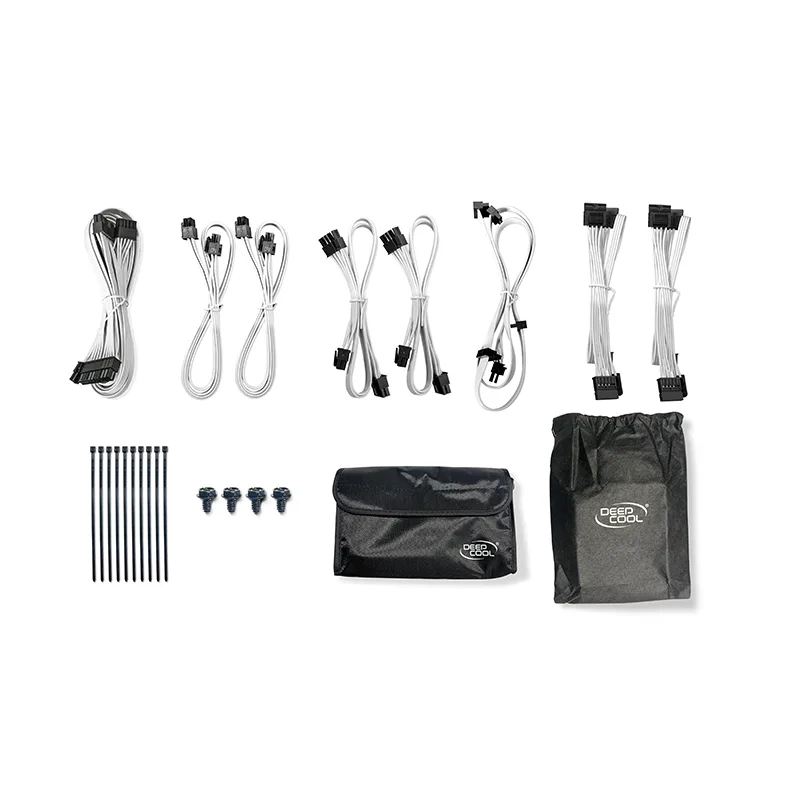

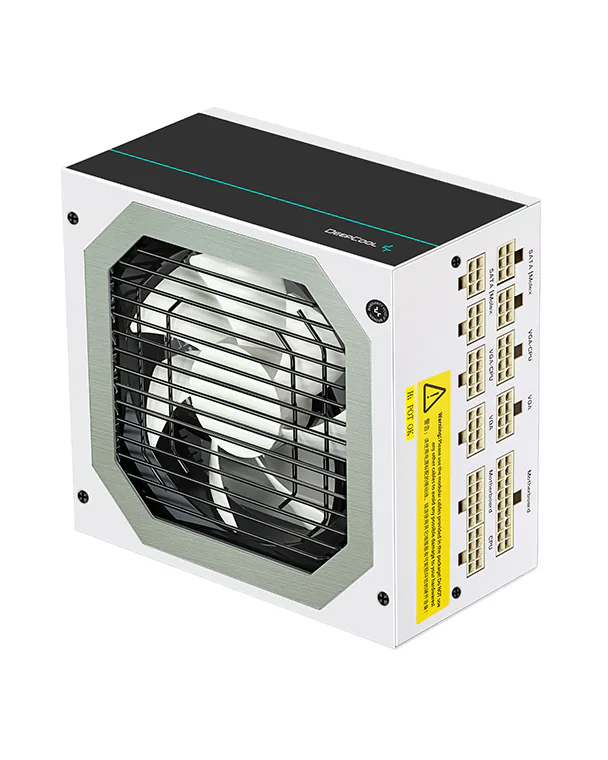

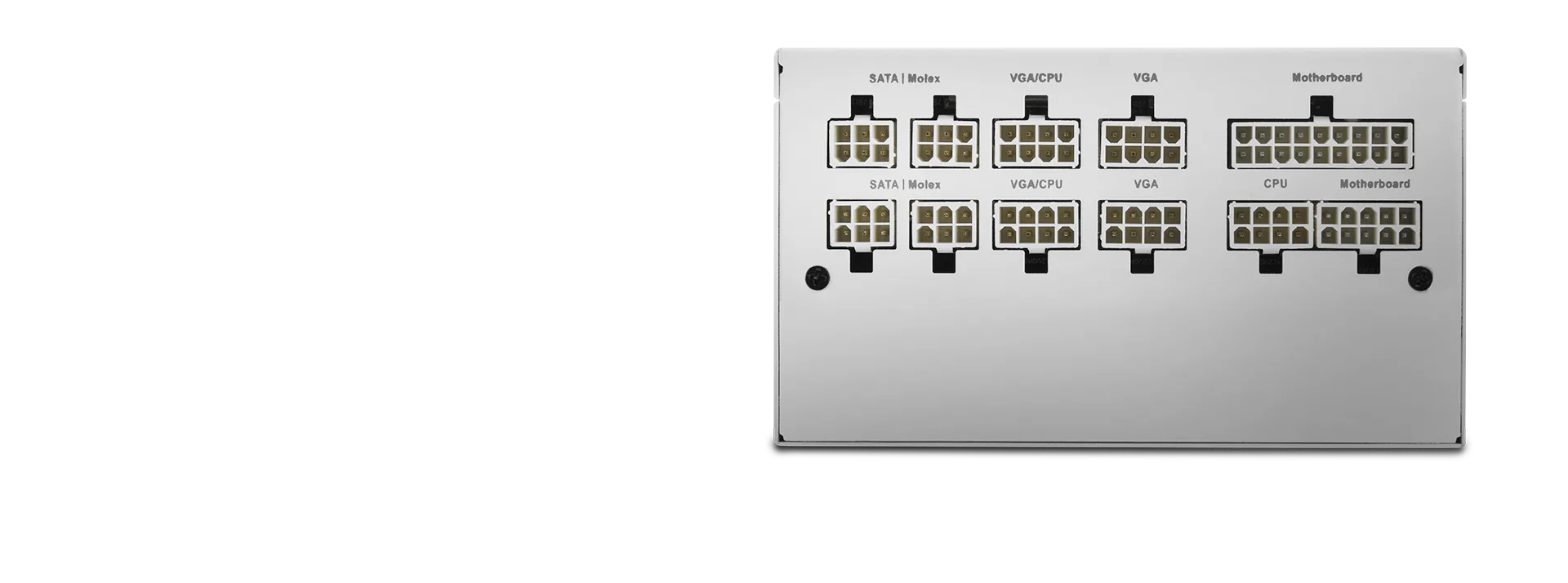

Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Main Power
Connector (20+4)Pin x 1
X1
4Pin
Peripheral x 2+SATA x 2
X2
Technical Spec
|
Model |
DQ750-M-V2L |
|
Type |
ATX 12V V2.4 |
|
Certifications |
80PLUS GOLD |
|
Dimension |
150×160×86mm (W × L × H) |
|
Output Capacity |
750W |
|
Input Voltage |
100-240V |
|
Input Current |
10.0A |
|
Input Frequency Range |
47-63Hz |
|
Fan Size |
120mm |
|
PFC |
Active |
|
Power Good Signal |
100-500ms |
|
Hold Up Time |
>16ms (80% Loading) |
|
Efficiency |
>90% Under Typical Load (50% Loading) |
|
Standby Efficiency |
ErP Lot 3 2014 |
|
Protection |
OVP/UVP/OCP/SCP/OPP/OTP |
|
Operation Temperature |
0-40°C |
|
Regulatory |
CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs/UKCA |
|
MTBF |
100,000 Hours |
|
EAN |
6933412798941 |
|
P/N |
DP-DQ750-M-V2L WH
|
