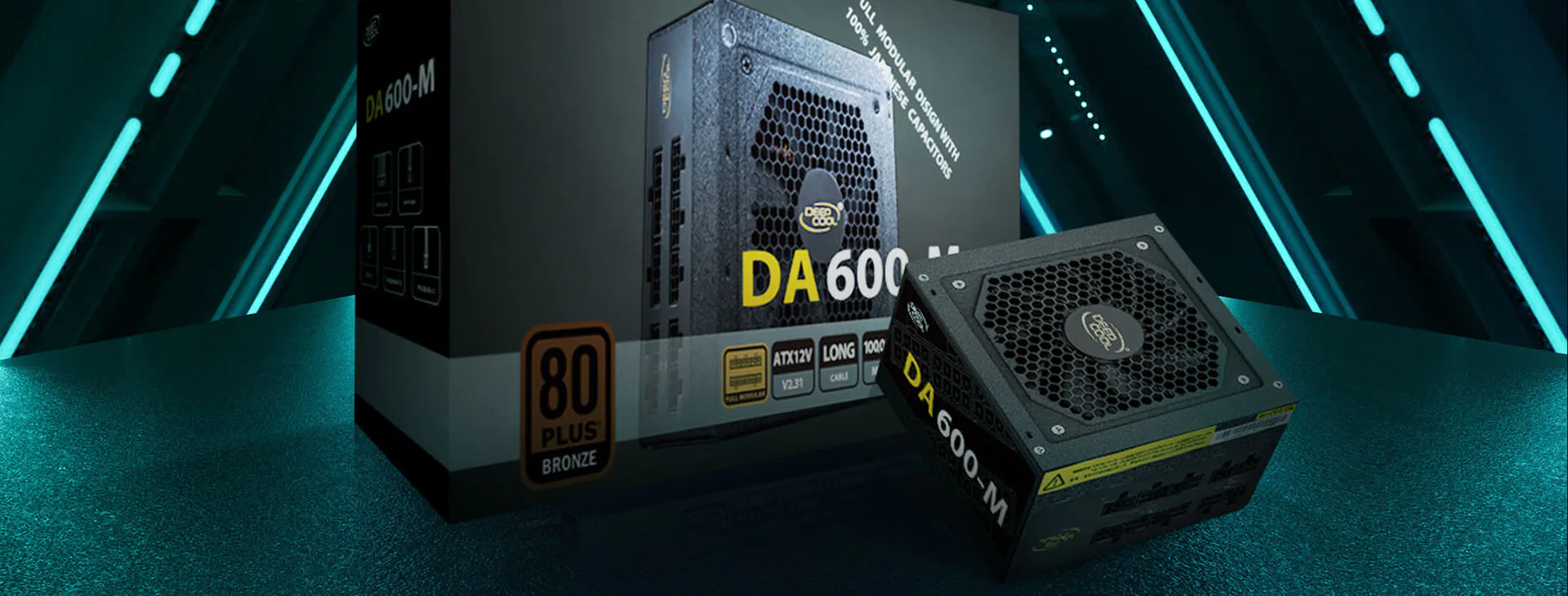

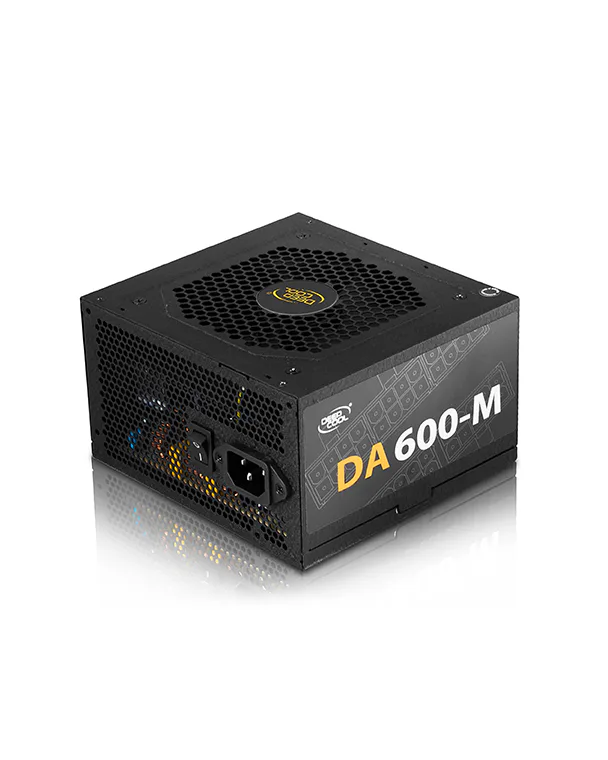

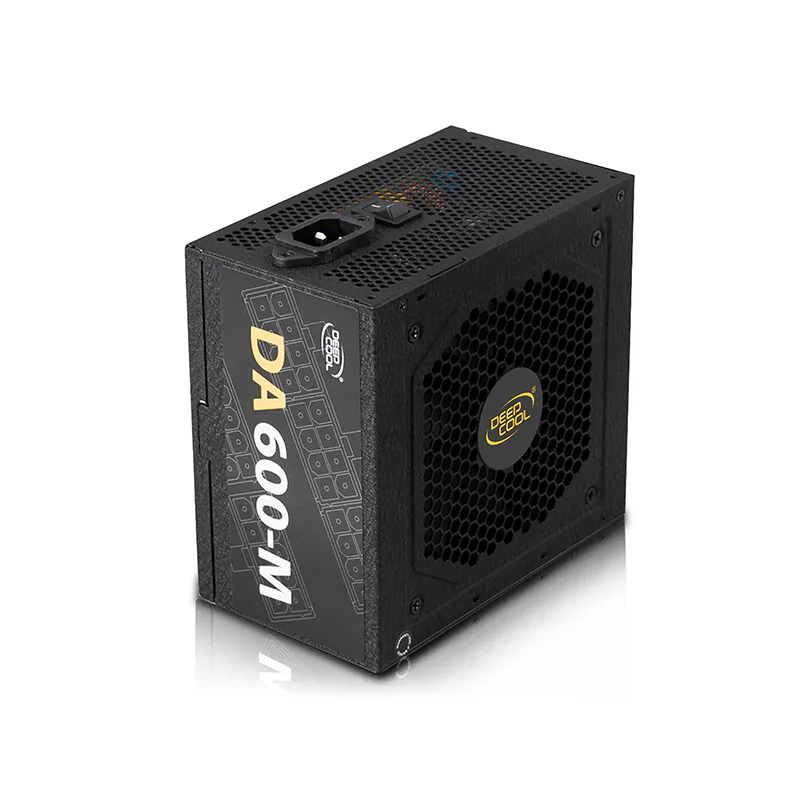

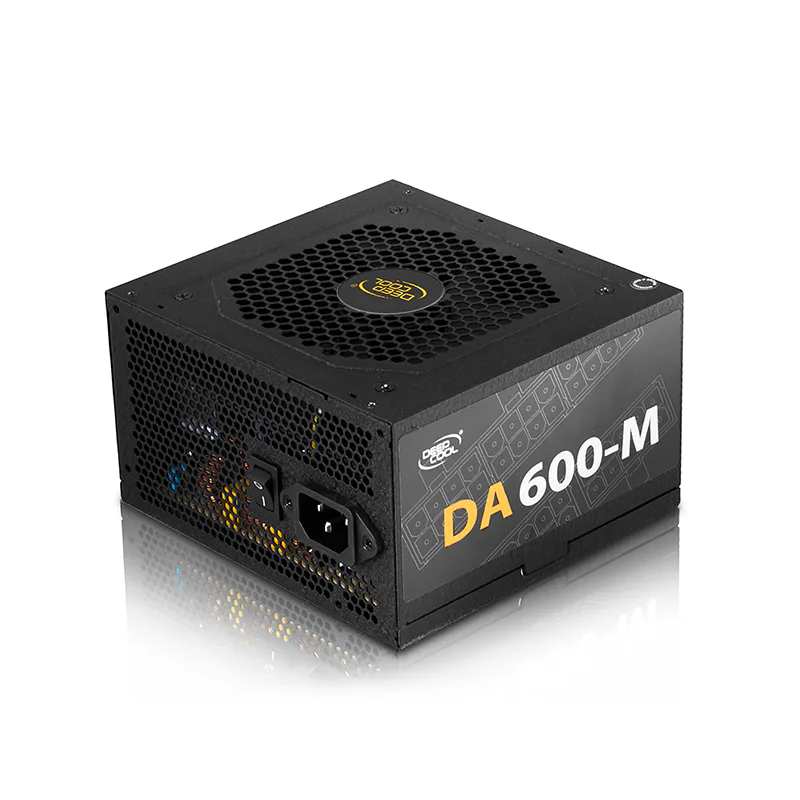

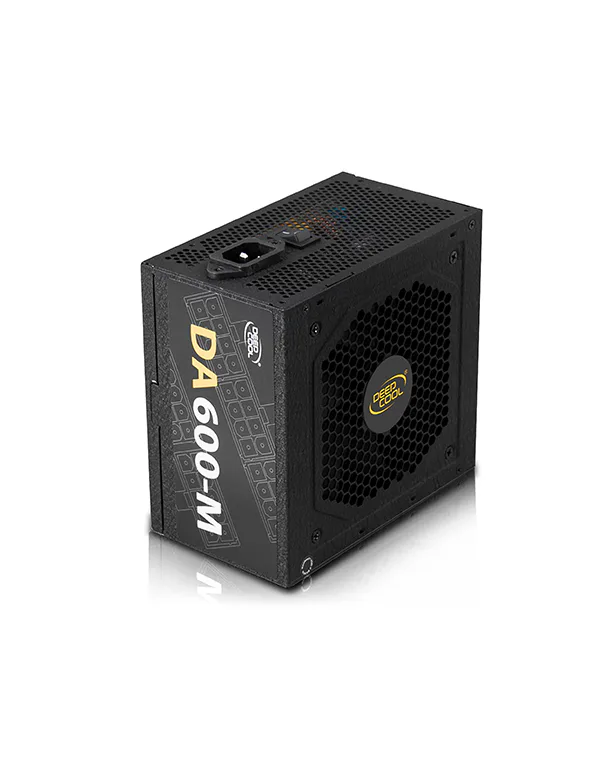

DA600-M
DA600-M built with Japanese 105℃capacitors, featured low impedance, low voltage and long life, the outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.
Colour
black
MODEL
DA600-M
Full Modular, Power-saving 80 PLUS Bronze Efficiency
Japanese 105℃ Capacitors
DA600-M is built with Japanese 105℃ capacitors, featuring low impedance, low voltage and long lifespan. Providing outstanding and stable performance, it's an ideal choice for a multi-purpose usage configuration.
Powerful Single+12V Rail Design
Powerful single+12V rail for superior load balancing and VGA compatibility.

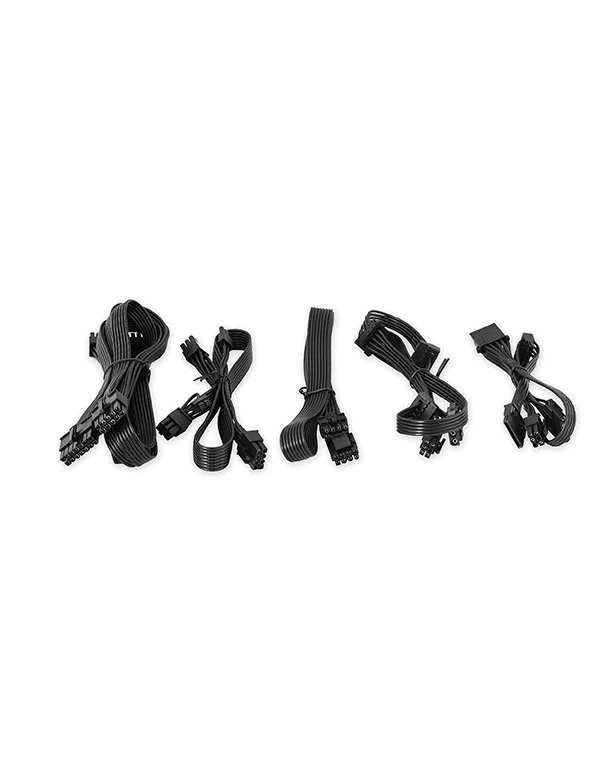

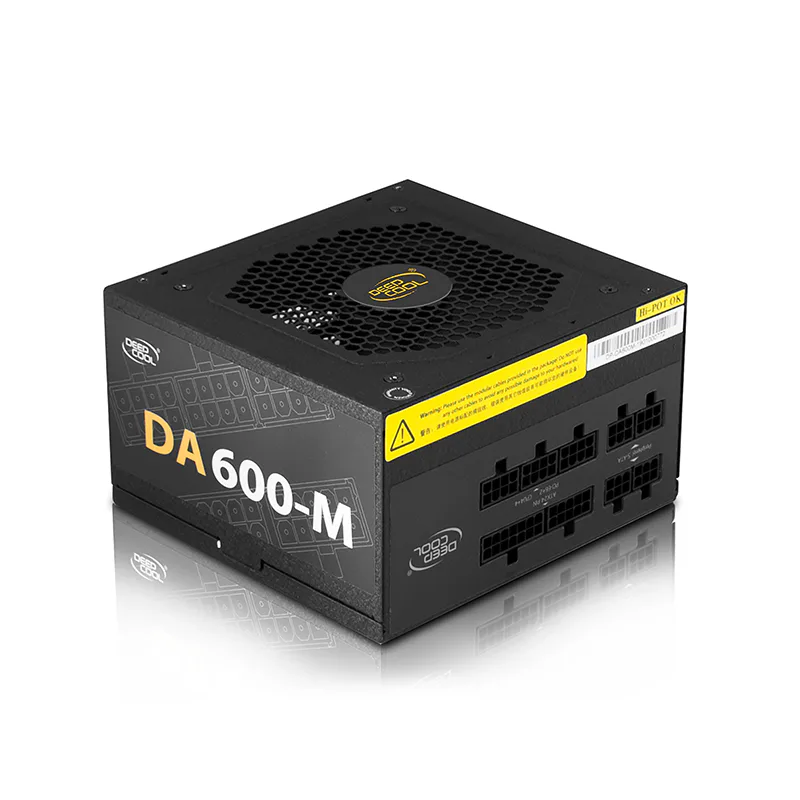

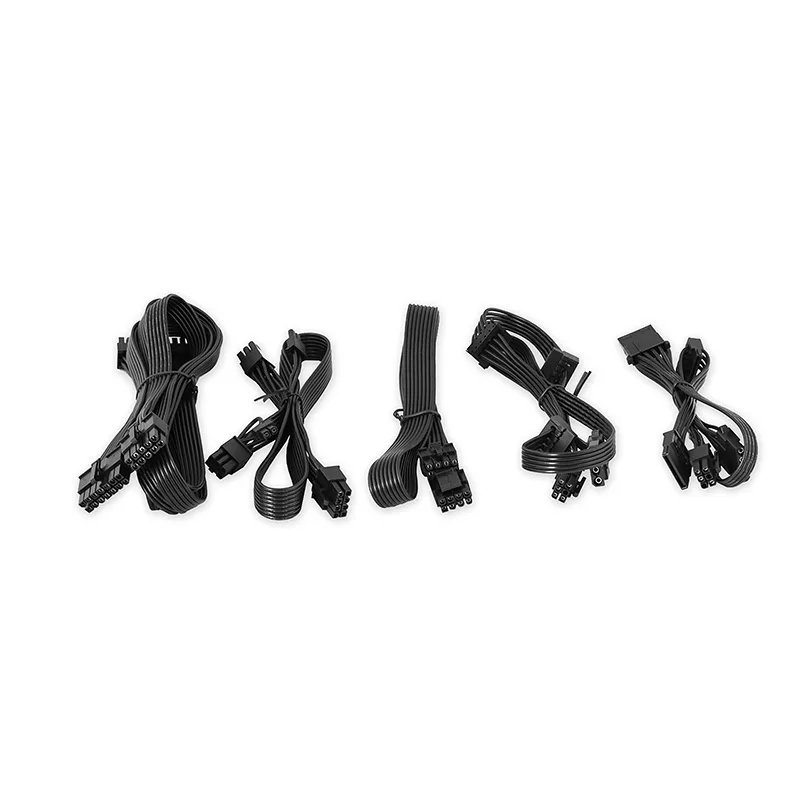

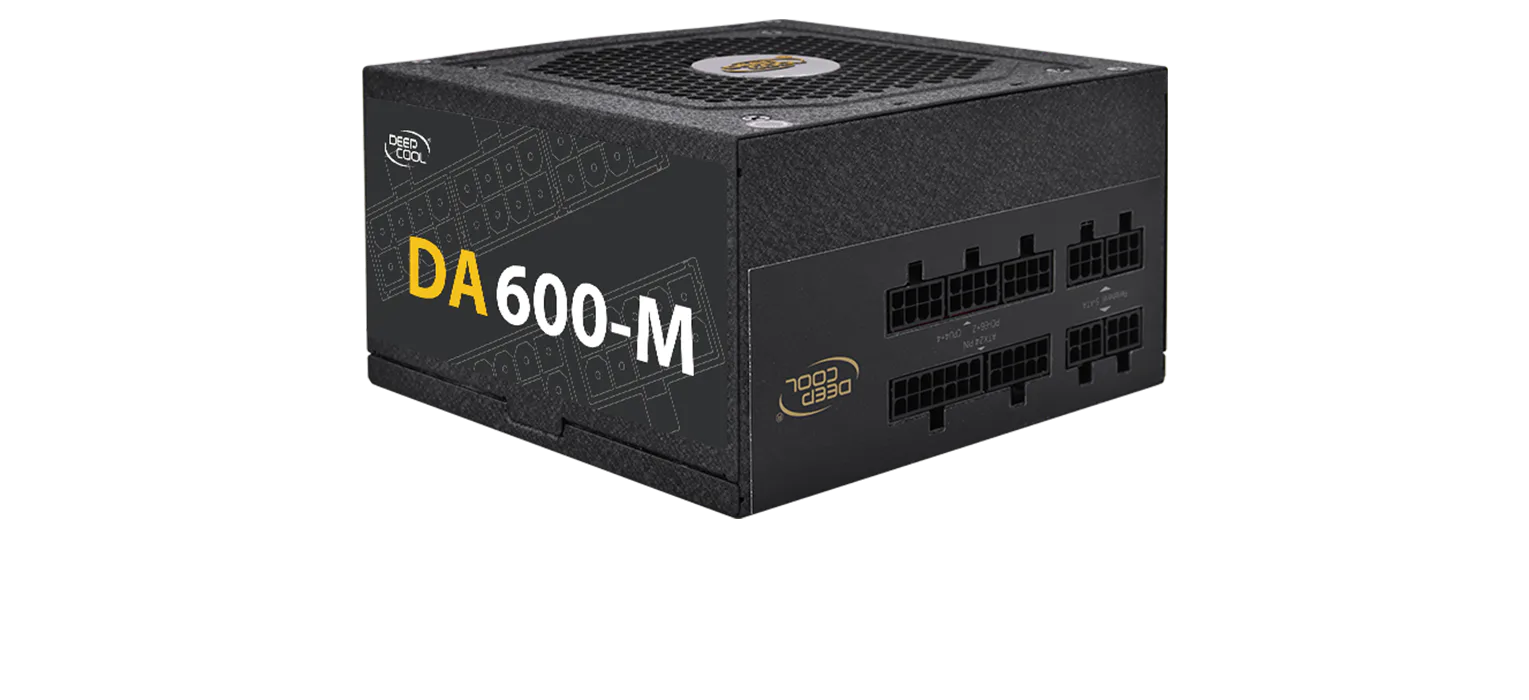

Full Modular Cable System
With full modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.

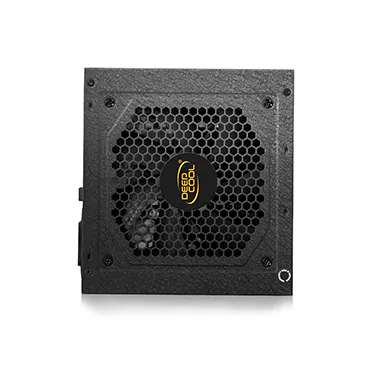

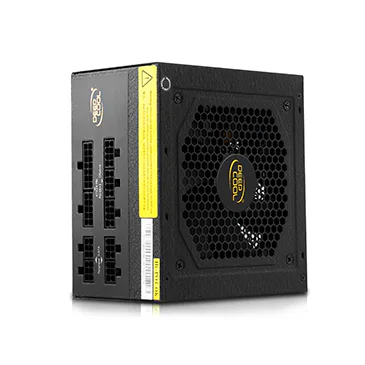

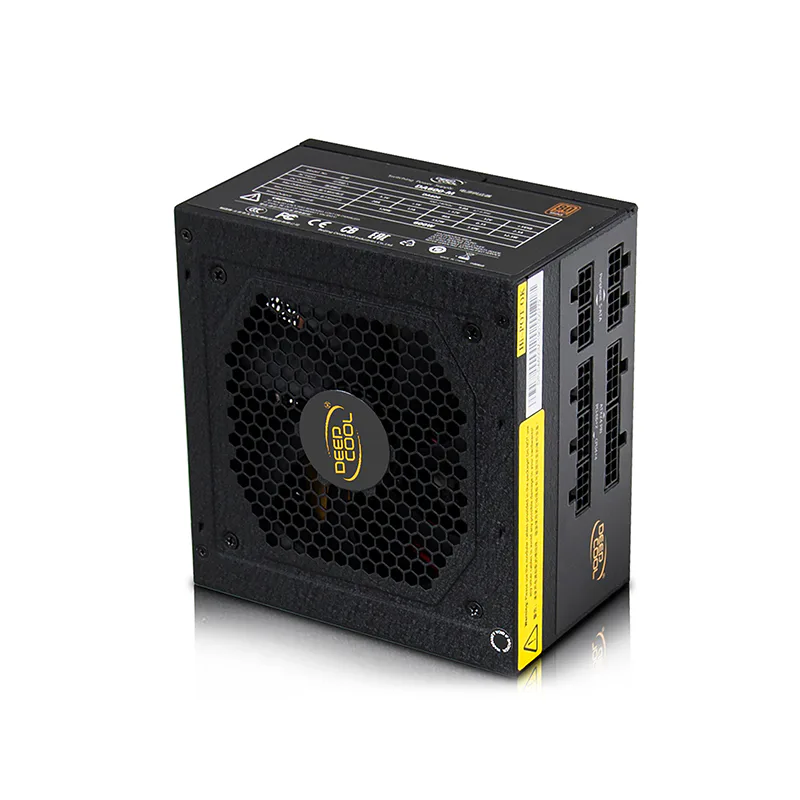

Silent and High Performance Fan
120mm silent fan with temperature function to provide incredible performance-noise ratio.
High Efficient Active PFC
Certified with 80 plus bronze with up to 82%-85% electrical efficiency enabling lower heat generation and lower operation cost.
Certification and Support
Technical Spec
Model DA600-M (Model No. DA600)
Type ATX 12V V2.4
Certifications 80PLUS Bronze
Dimension 150×140×86mm (W x L x H)
Output Capacity 600W
Input Voltage 100~240V
Input Current 9.0A
Input Frequency Range 47~63Hz
Fan Size 120mm Black Fan
PFC Active PFC
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 85% Under Typical Load
Protection OVP / UVP / SCP / OPP
Operation Temperature 0~40°C
Regulatory CE / FCC / CCC / CB / EAC
MTBF 100,000 Hours
EAN 6933412798583
P/N DP-BZ-DA600-MFM
