WIND PAL
COLOR
black
MODEL
WIND PAL
WIND PAL

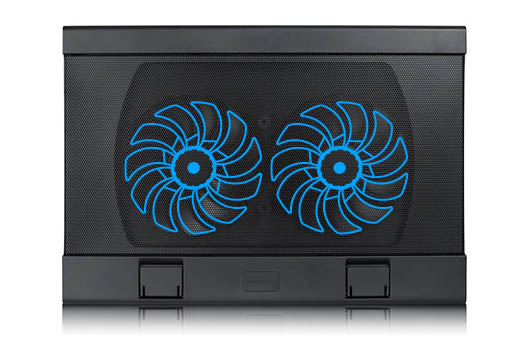

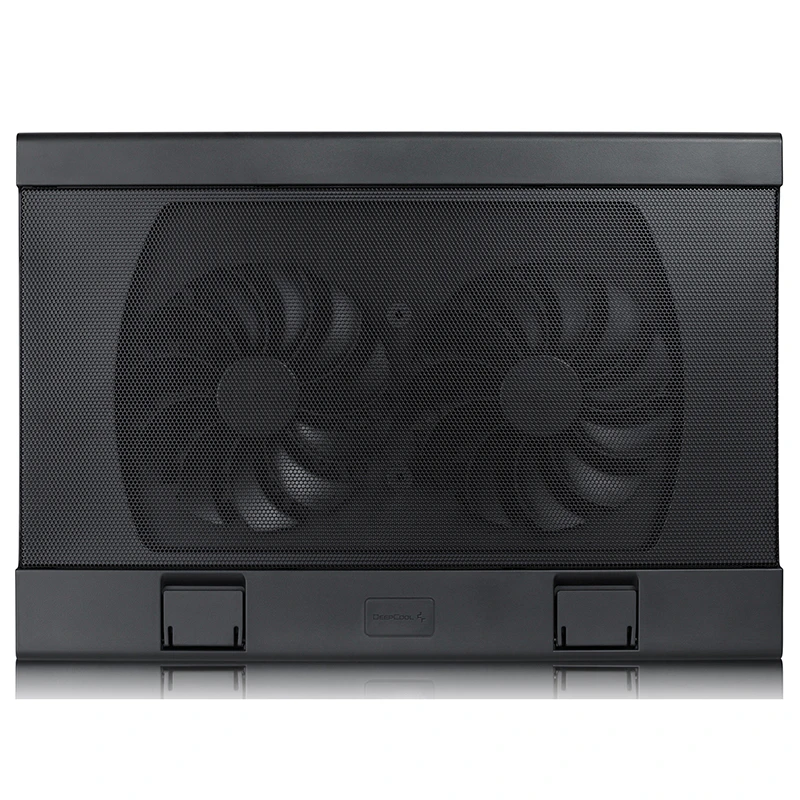

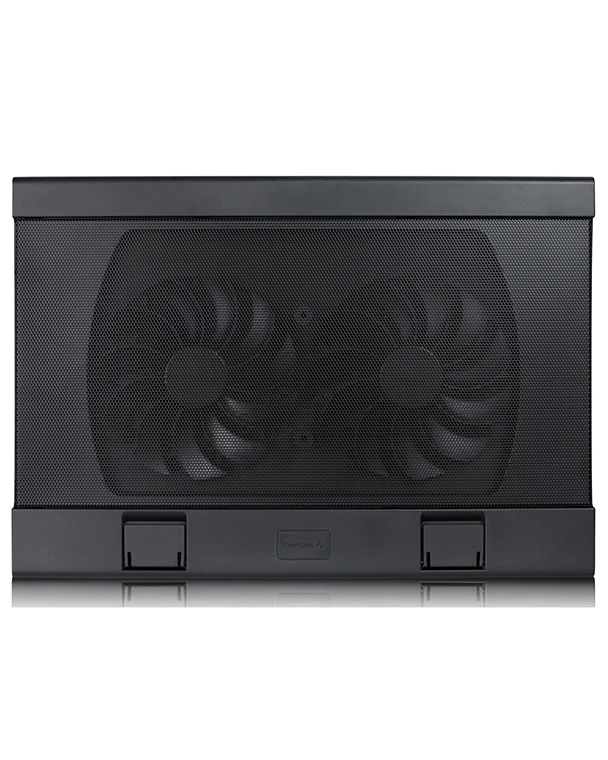

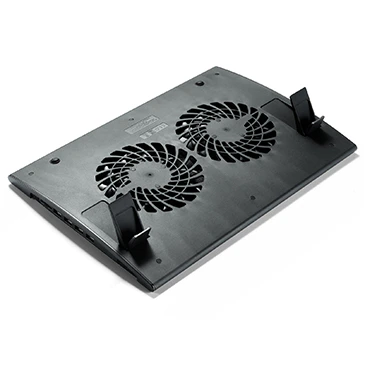

Twin 140 mm fans
There is no doubt that WIND PAL is the perfect functional component. Twin 140 mm fans allow WIND PAL to deliver powerful performances while enhancing its stunning visuals.

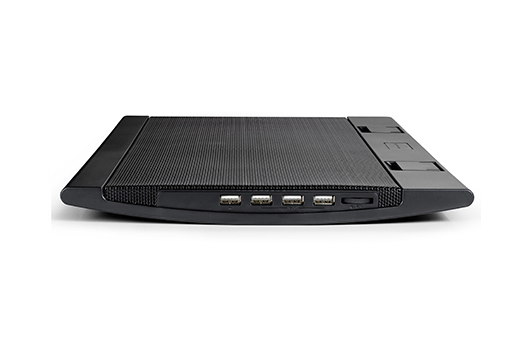

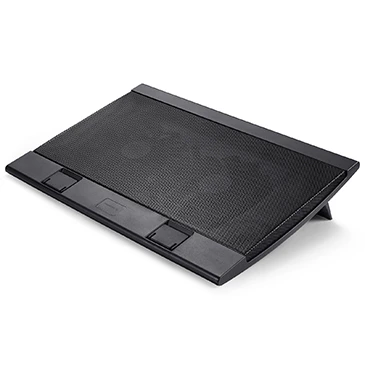

Slim
Crescent body cross-section and flat metal mesh provides beautiful contours for this masterwork of cooler engineering.

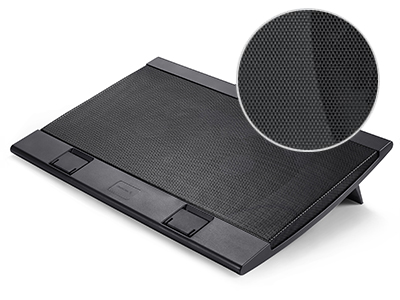

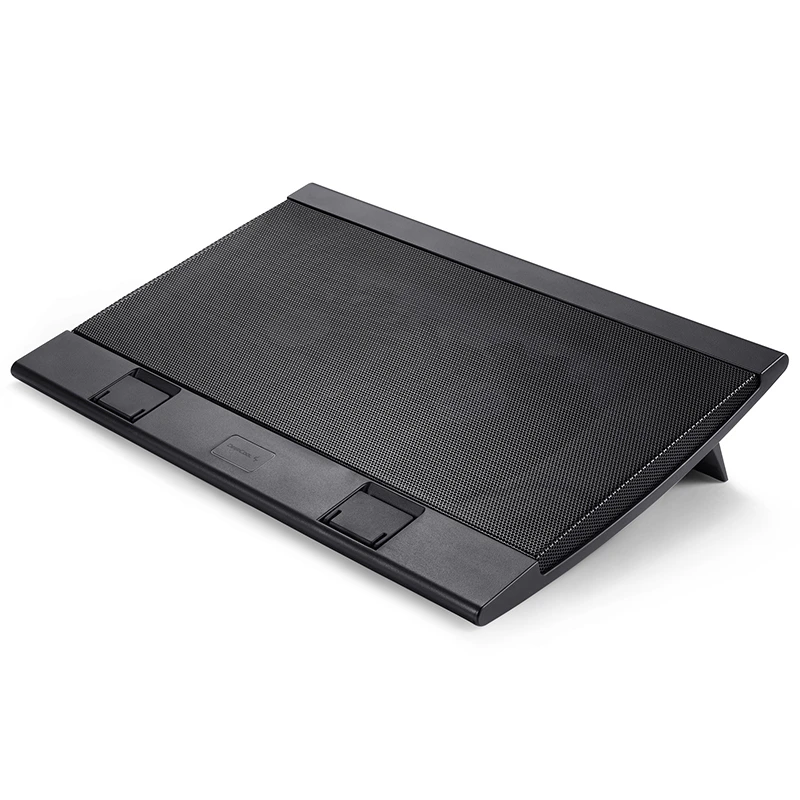

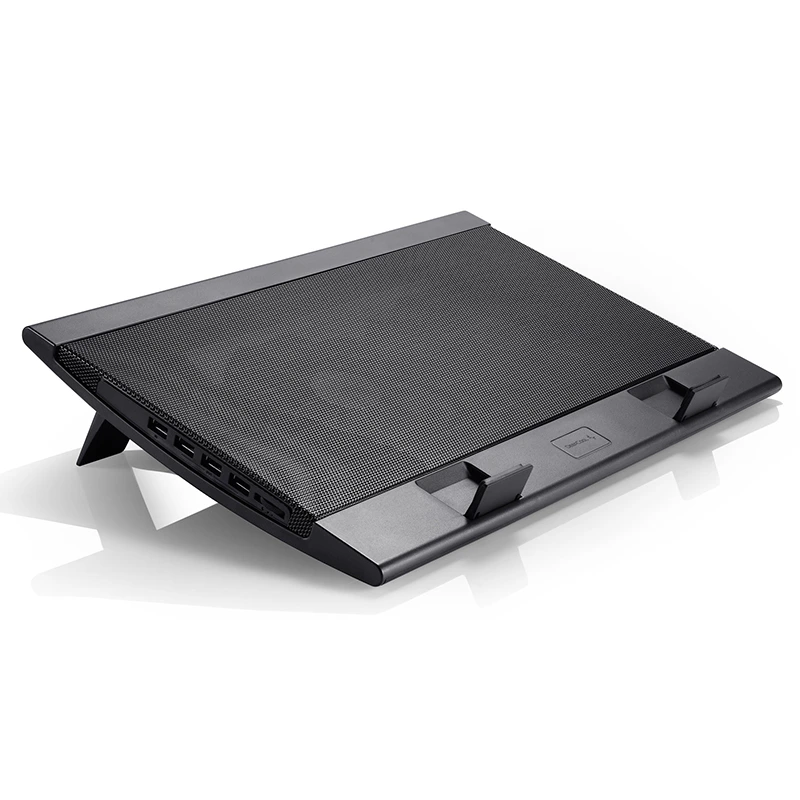

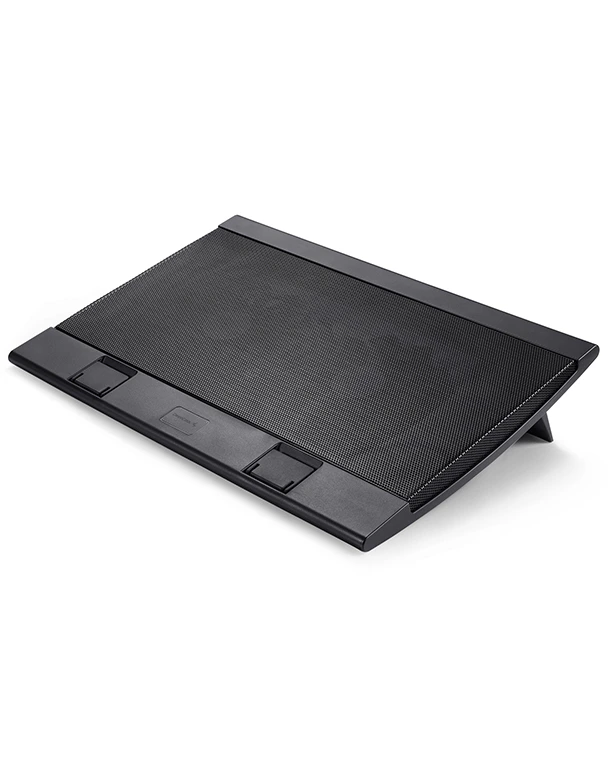

Metal Mesh Panel
Quality metal mesh front panel provides optimal airflow passage to achieve effective notebook cooling.

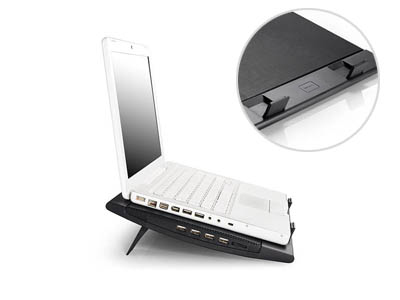

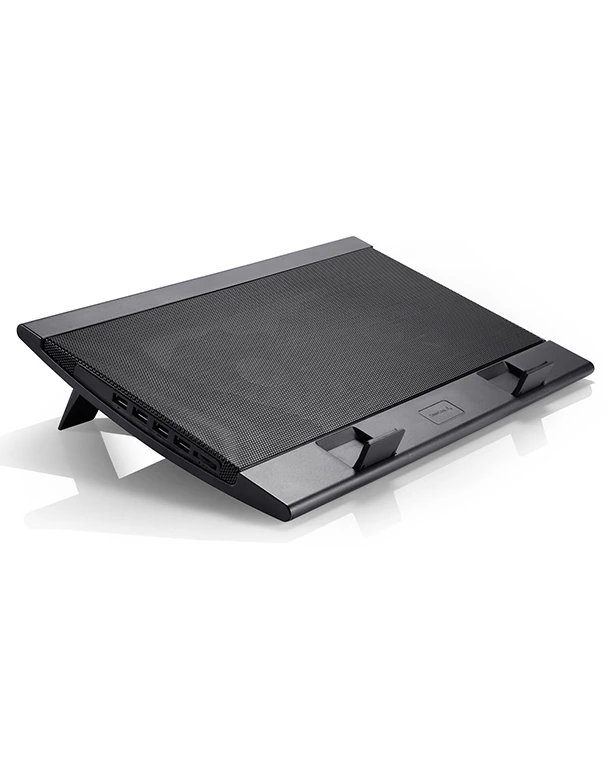

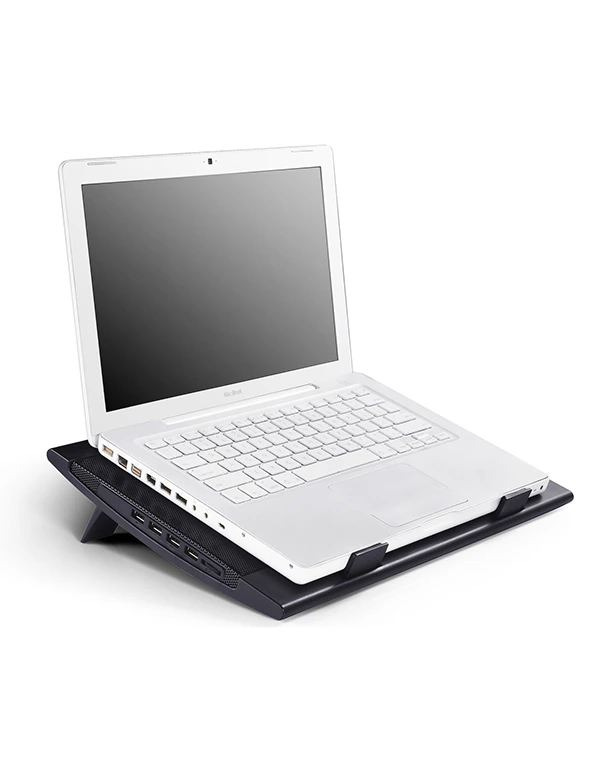

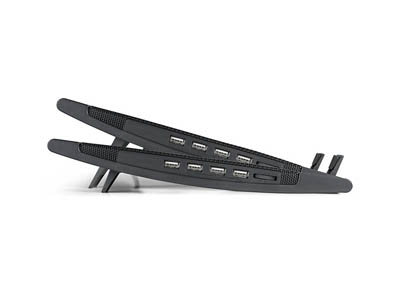

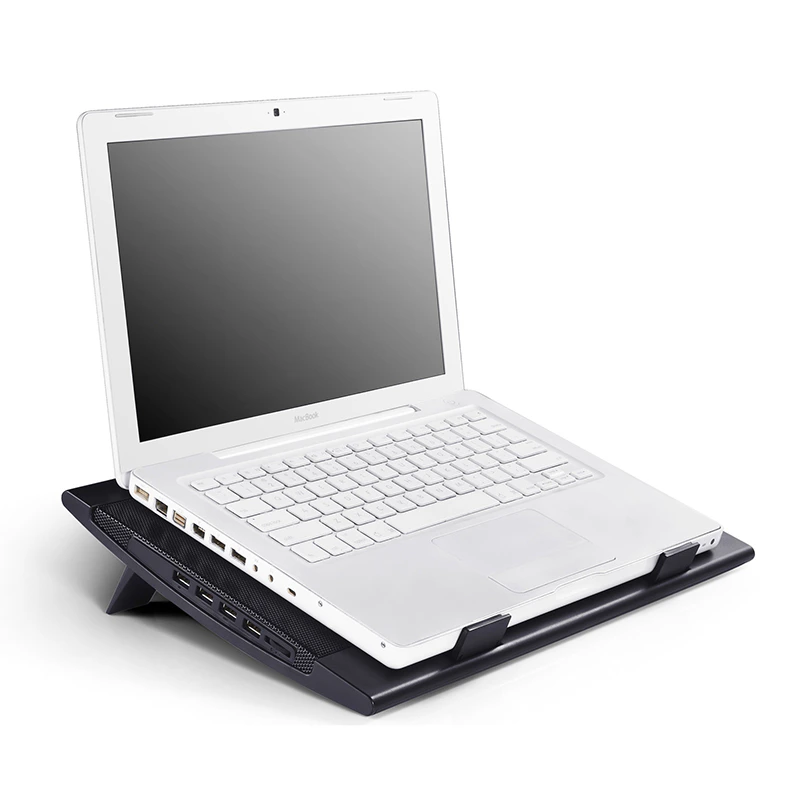

Two Viewing Angles
To improve user experience, WIND PAL provides 2 viewing angles to improve comfort when in use.

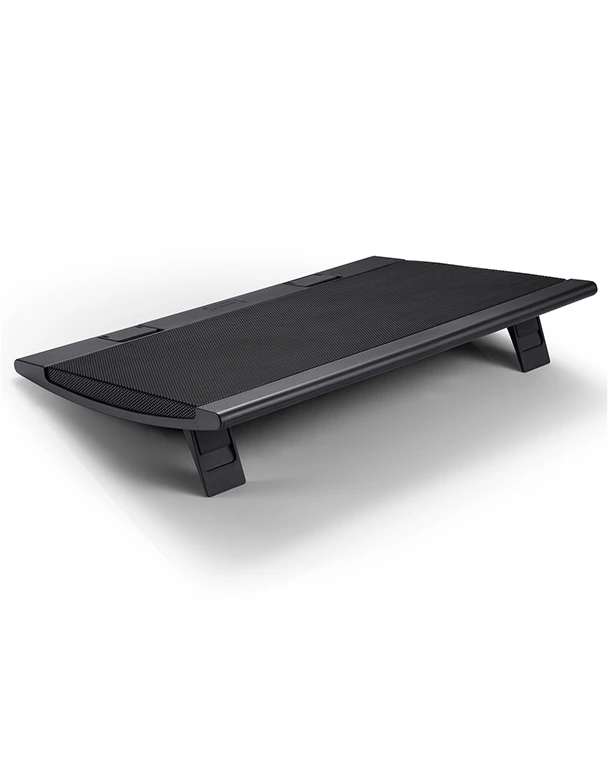

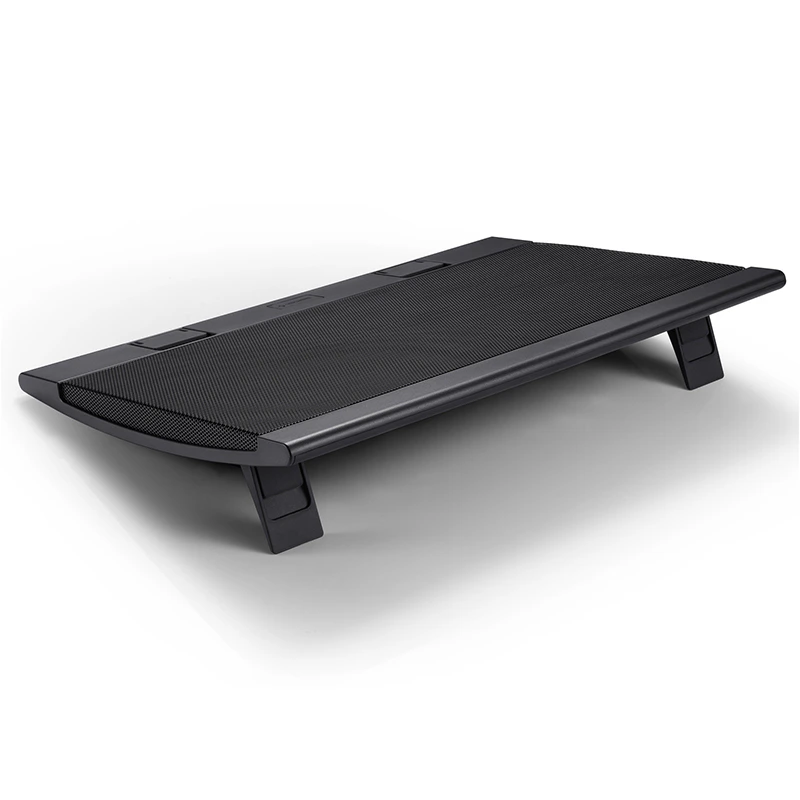

Anti-Slip
WIND PAL has small foldable feet provided with soft silica gel pads at the bottom of the panel. These feet prevent notebook slipping and protect notebook edges against scratches.

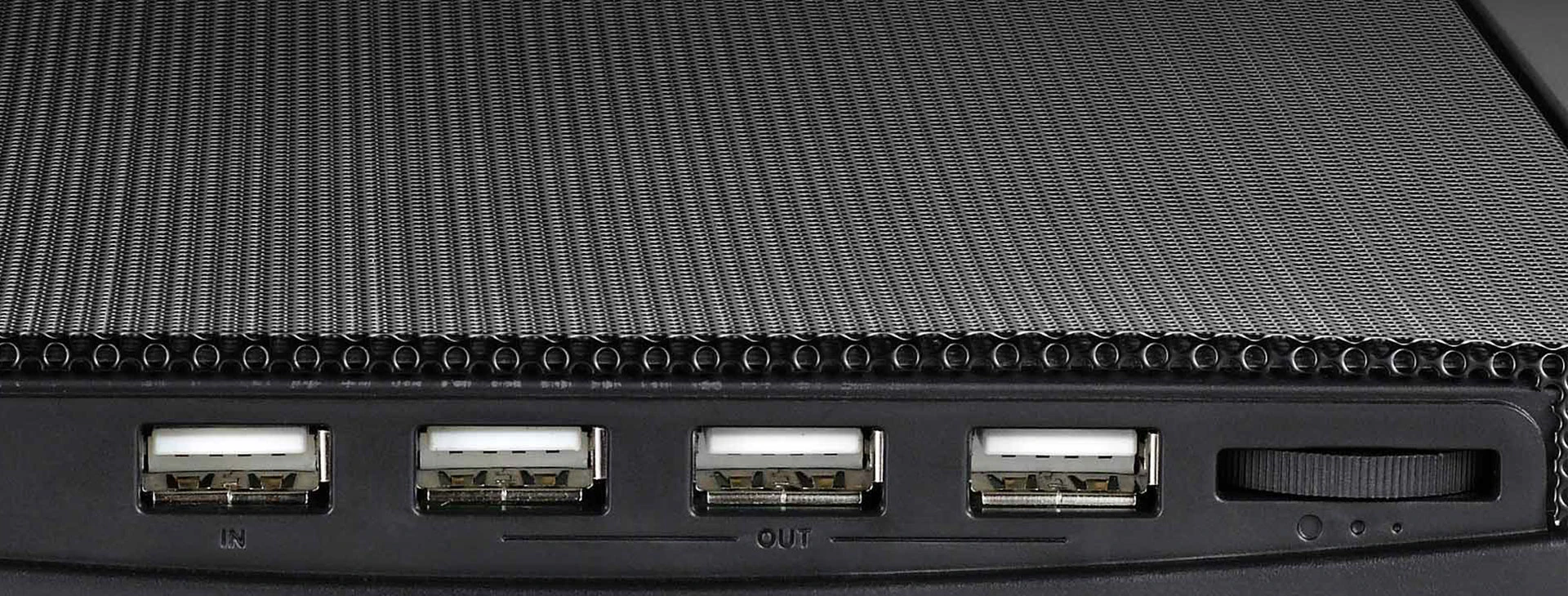

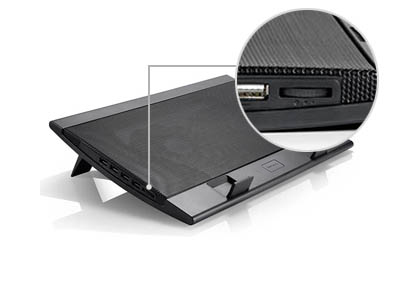

Adjustable Fan Speed
Fan speed control button allows users to adjust airflow rate to achieve perfect balance between noise and cooling performance.
Technical Spec
Overall Dimension 382X262X24mm
Fan Dimension 140X140X15mm
Net Weight 793g
Bearing Type Hydro Bearing
Rated Voltage 5VDC
Operating Voltage 4.5~5VDC
Started Voltage 4VDC
Rated Current 0.19±10%~0.32±10%A
Power Input 0.95~1.6W
Fan Speed 700±150~1200±10%RPM
Max. Air Flow 115CFM
Noise 21.5~26.5dB(A)
EAN 6933412708070
P/N DP-N242-WPALBK
Product Dimension

Download
WIND PAL Manual.pdf
