MF120 GT-3 IN 1
The DeepCool MF120 GT A-RGB PWM fan features 20 ultra-bright addressable LEDs across a unique X-Frame for a striking design that provides powerful cooling.
Colour
black
MODEL
MF120 GT-3 IN 1

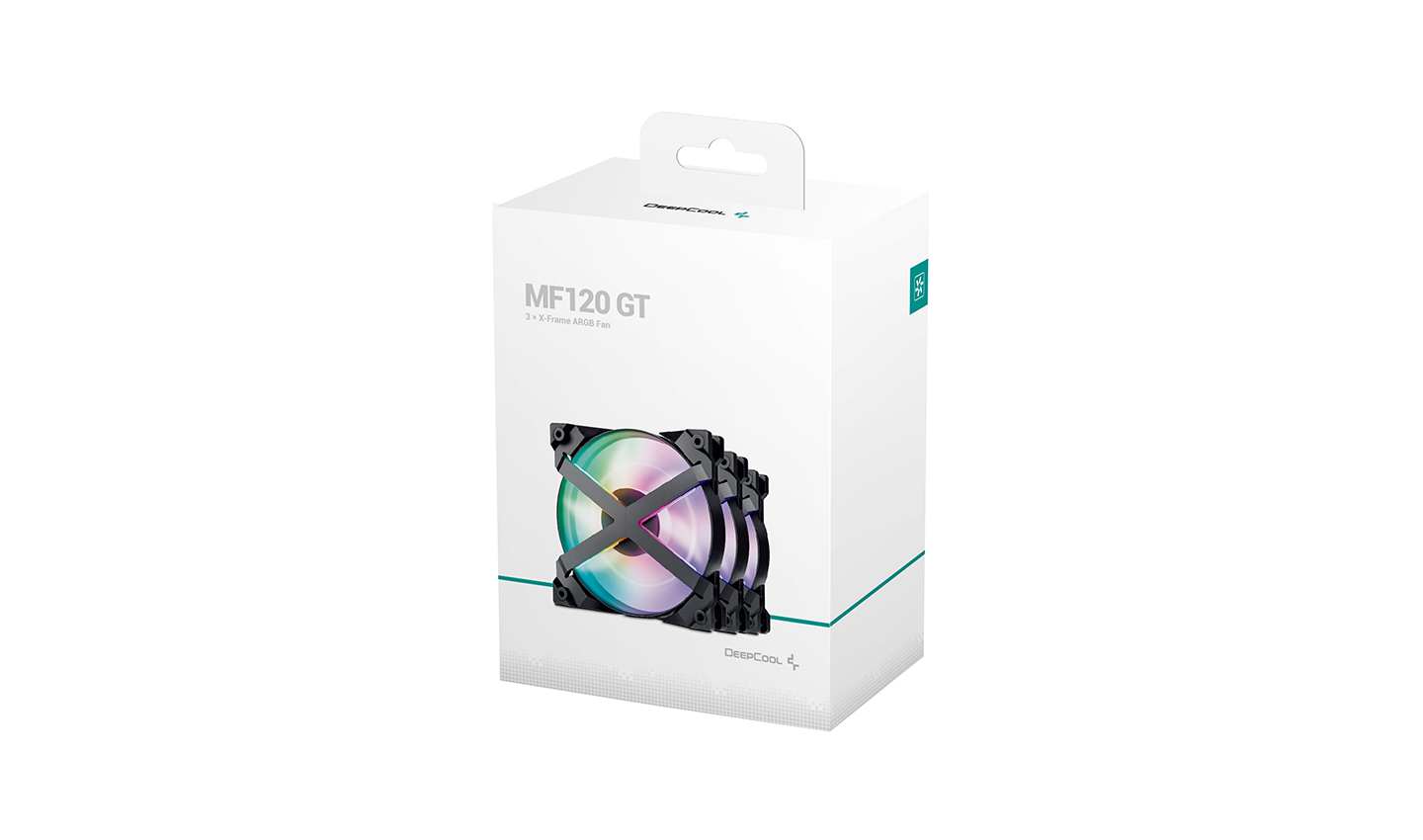

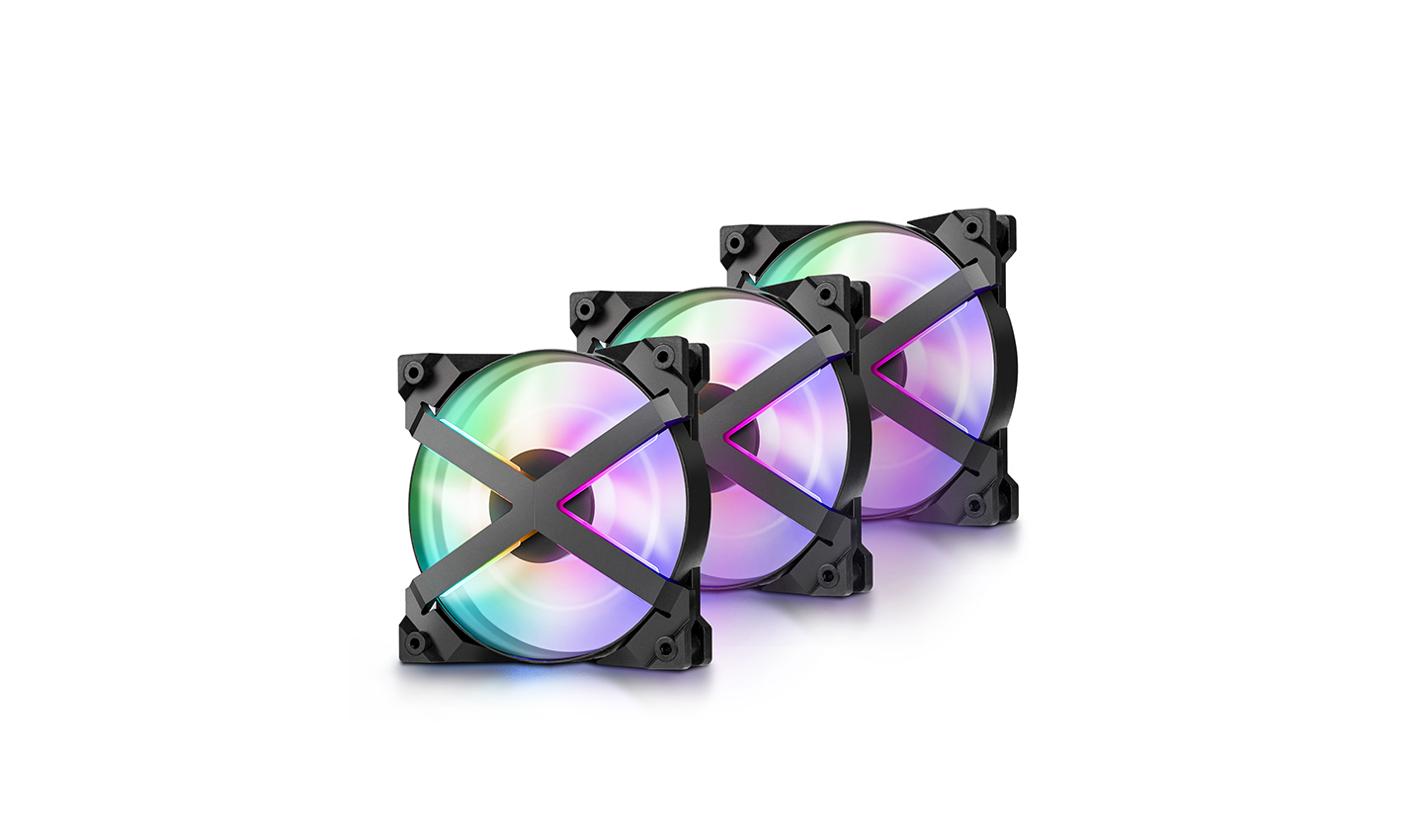

MF120 GT Comes In 3-IN-1 Pack

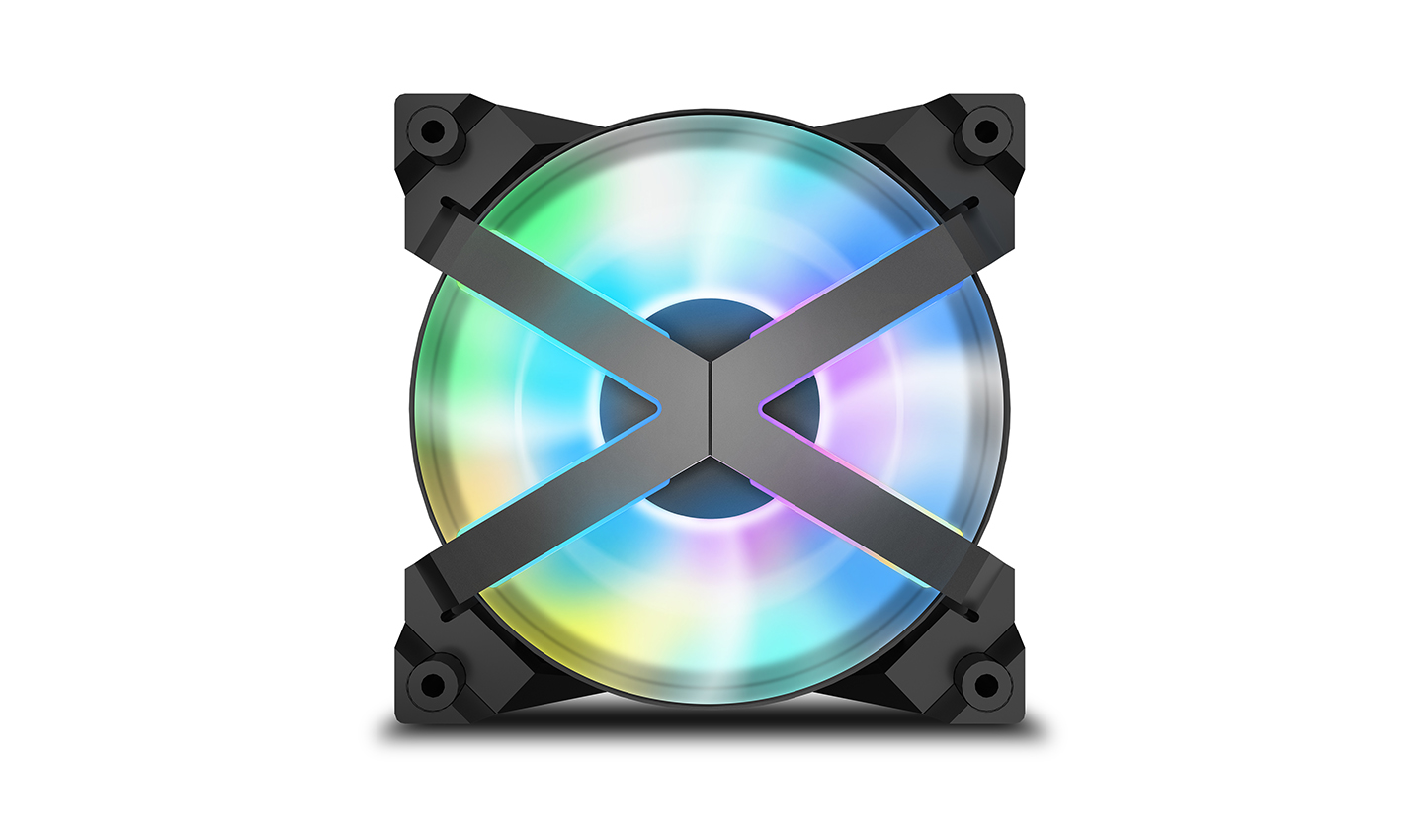

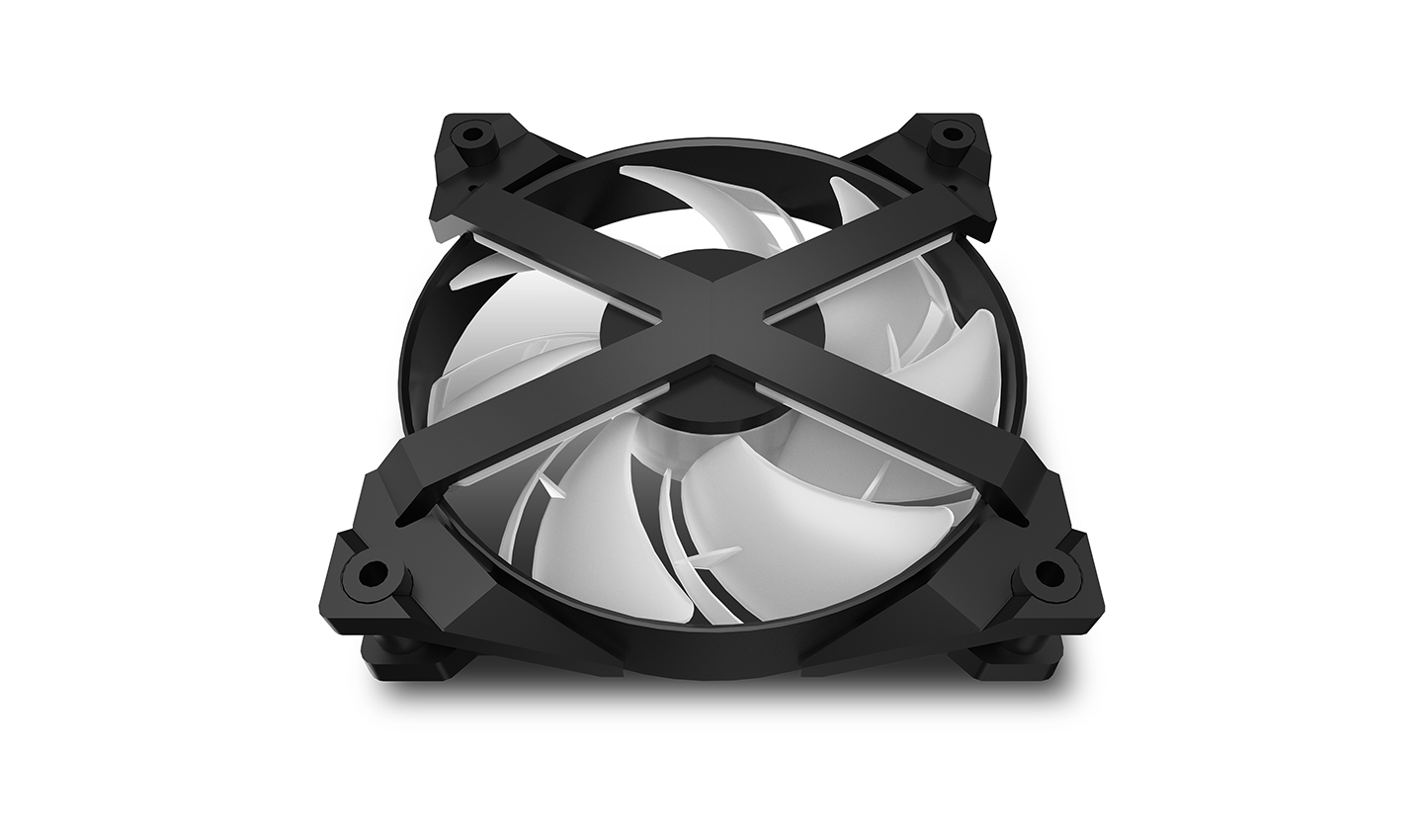

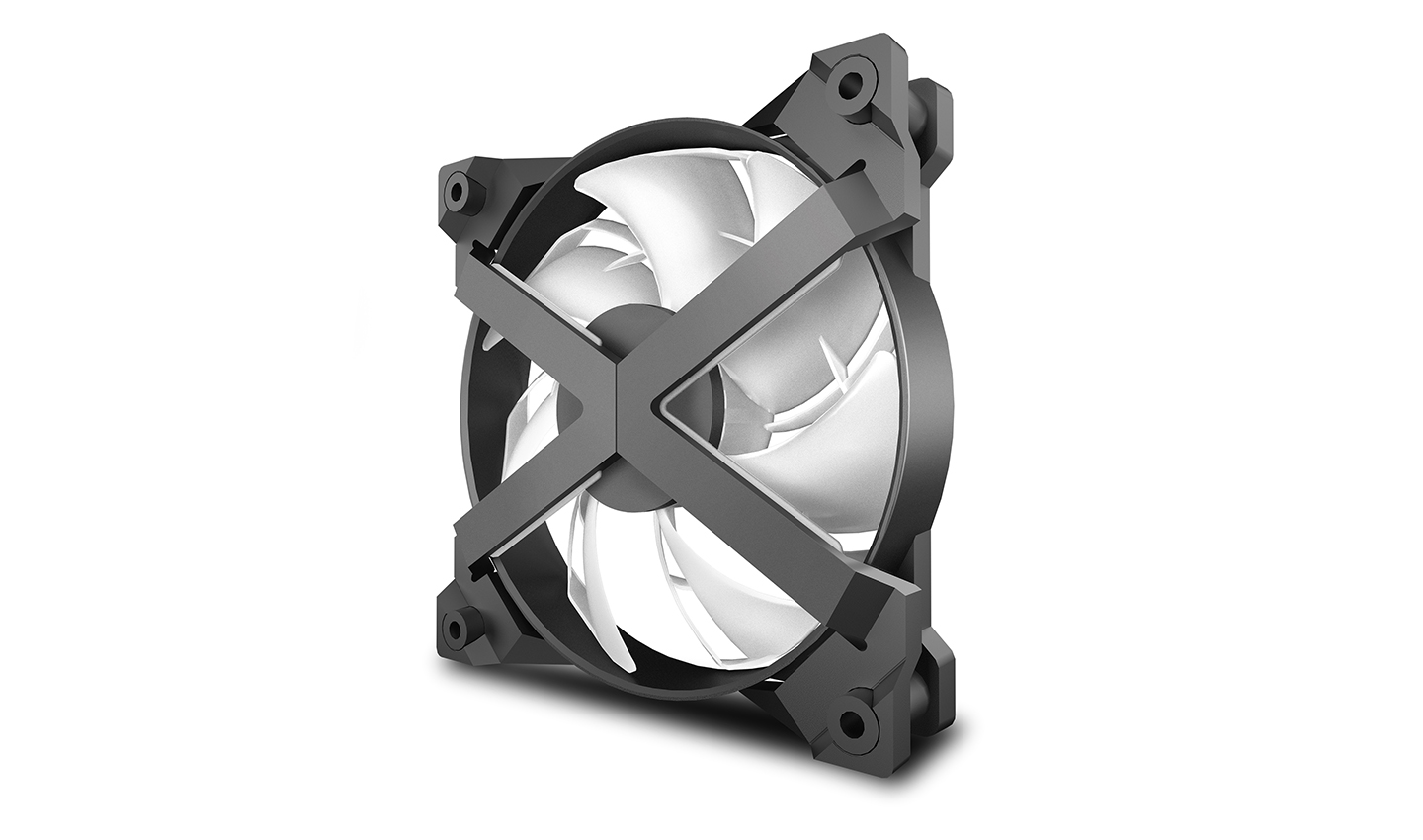

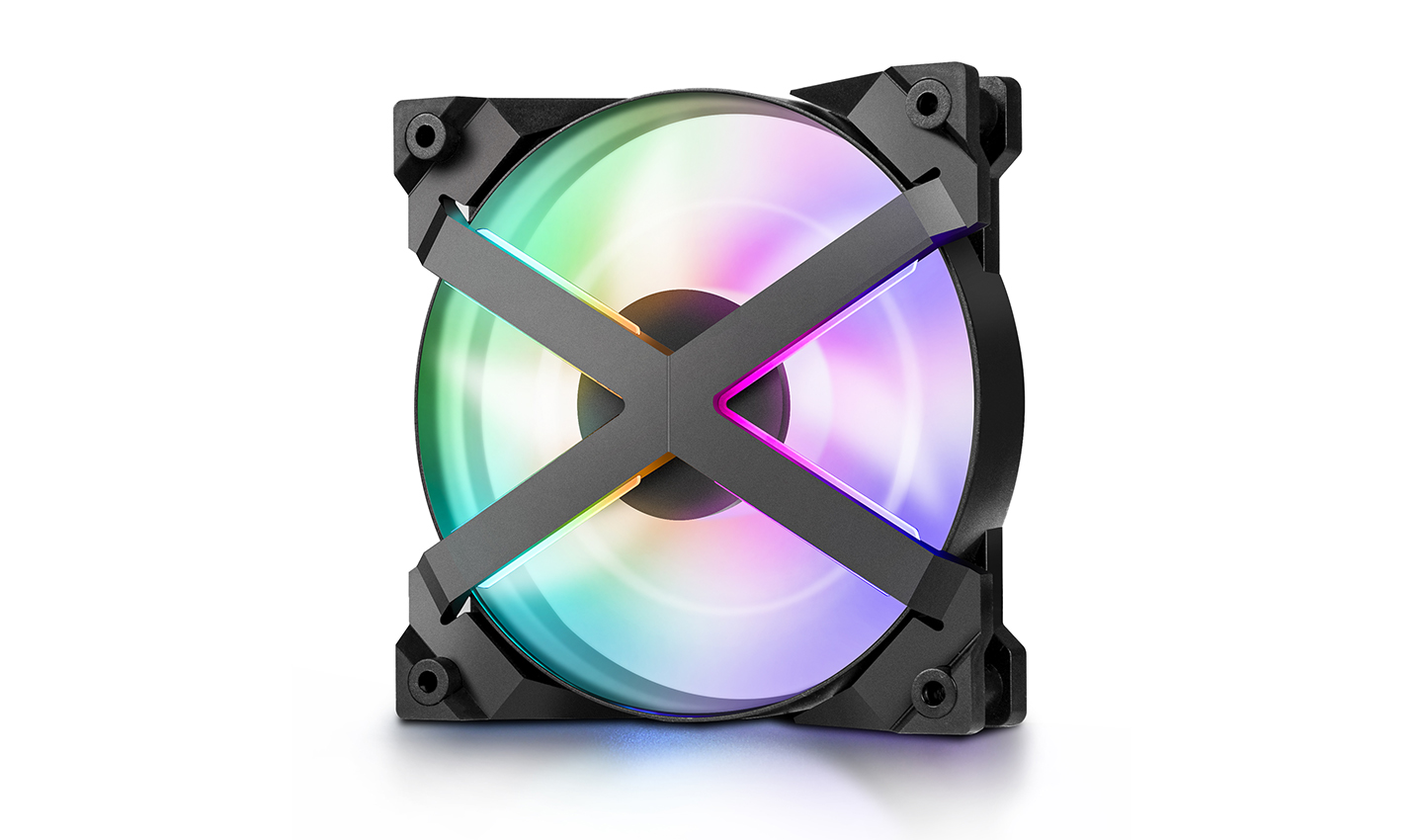

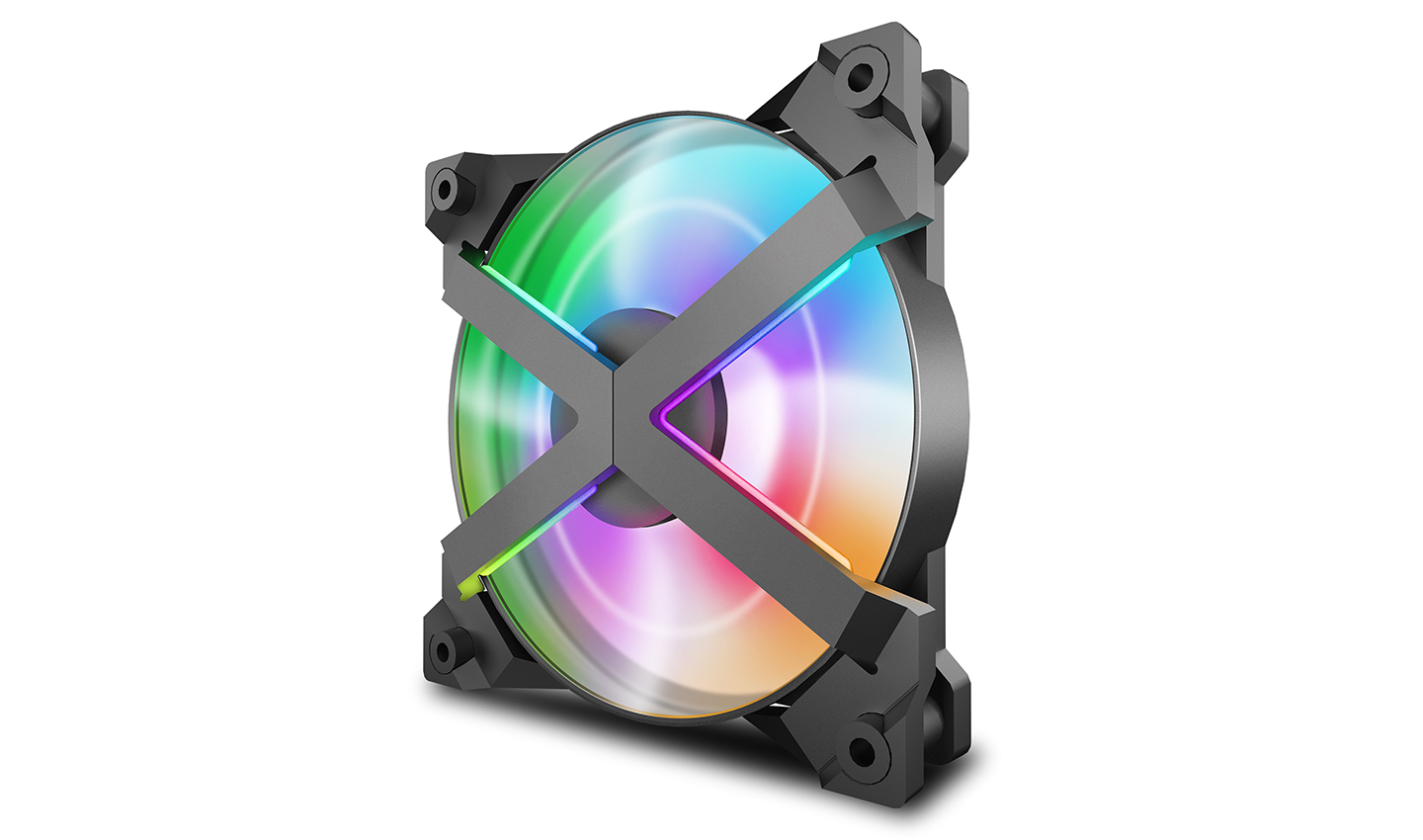

The X Factor
Stand out with a unique X frame aesthetic featuring addressable RGB lighting effects for a striking new look.
One touch lighting control
Adjusting colors is easy with direct control through motherboard software, A-RGB hubs or the included wire controller.

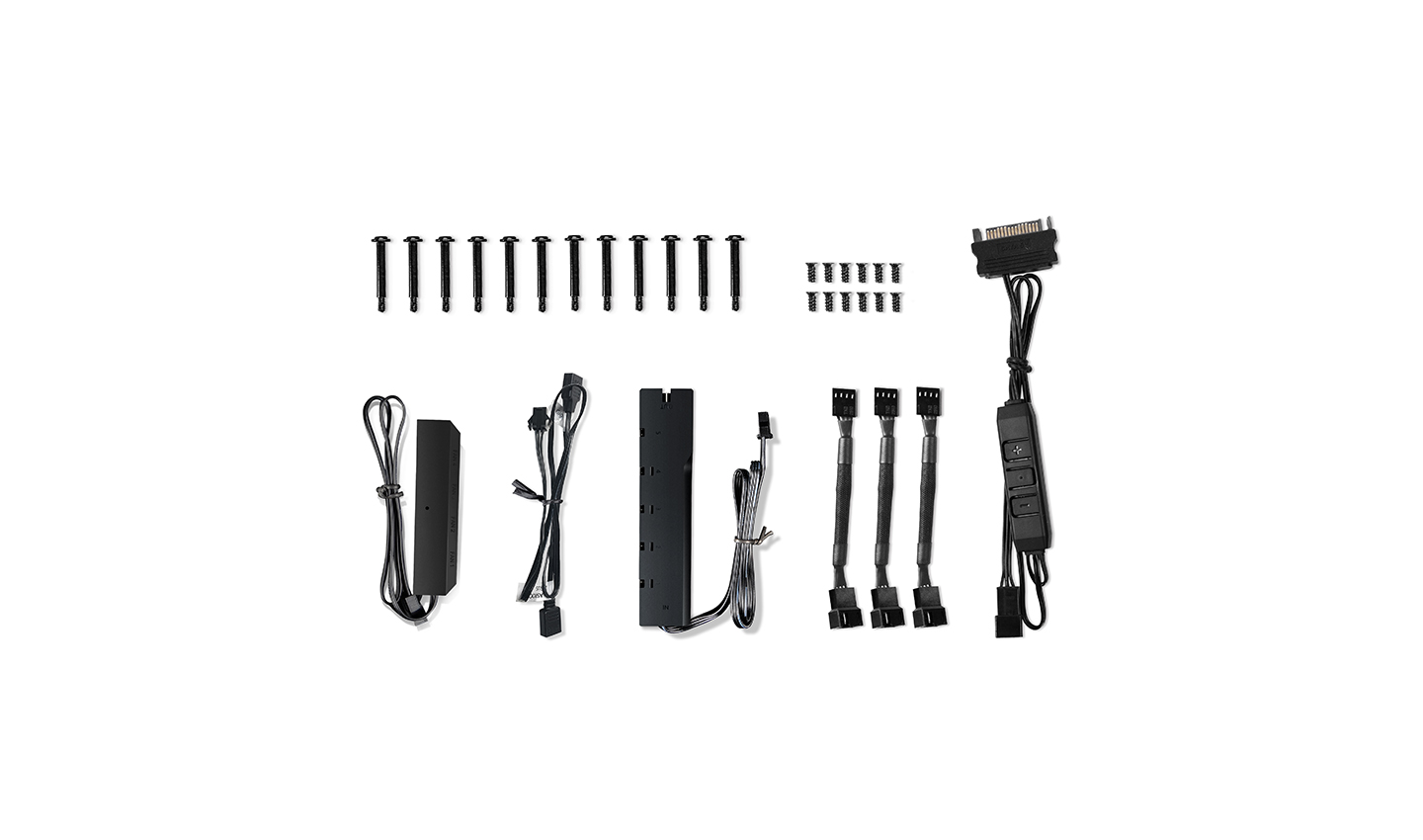

  • A-RGB Hub

    A-RGB Hub

  • Motherboard Extension Cable

    Motherboard Extension Cable

  • Wire Controller

    Wire Controller

Choose your side
Get creative with either intake or exhaust setups that deliver an impact.

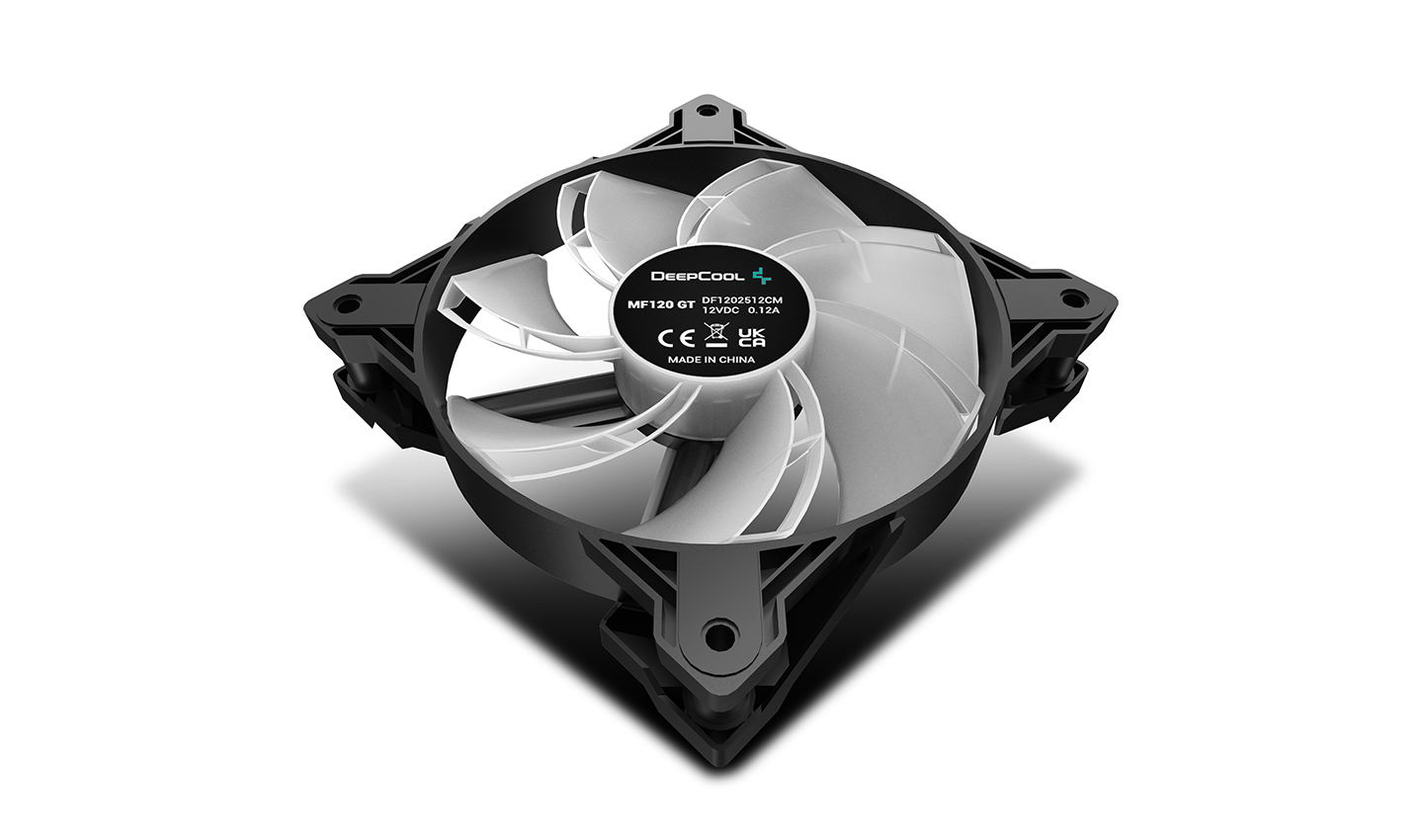

Better thermal performance
Dual-layer fan blades provide exceptional cooling and airflow to lower your system temperatures quickly. Achieve balance between performance and noise with precise PWM control.
500~1800 RPM±10%
Wide Speed Range
60.6 CFM
Ultra Airflow
Better thermal performance
Dual-layer fan blades provide exceptional cooling and airflow to lower your system temperatures quickly. Achieve balance between performance and noise with precise PWM control.
500~1800 RPM±10%
Wide Speed Range
60.6 CFM
Ultra Airflow
Technical Spec
Fan Dimensions120×120×27 mm(L×W×H)
Net Weight 488g
Fan Speed 500~1800 RPM±10%
Fan Airflow 60.6 CFM
Fan Air Pressure 1.73 mmAq
Fan Noise ≤35 dB(A)
Fan Speed (with LSP) 400~1450 RPM±10%
Fan Airflow (with LSP) 48.3 CFM
Fan Air Pressure (with LSP) 1.1 mmAq
Fan Noise (with LSP) ≤29.5 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.12 A±10%
Fan Power Consumption 1.44 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Rated Current 0.74 A±10%
LED Power Consumption 3.7 W
EAN 6933412710493
P/N DP-GS-F12-AR-MF120GT-3P
Product Dimension
Download
MF120 GT-3 IN 1 Manual.pdf
