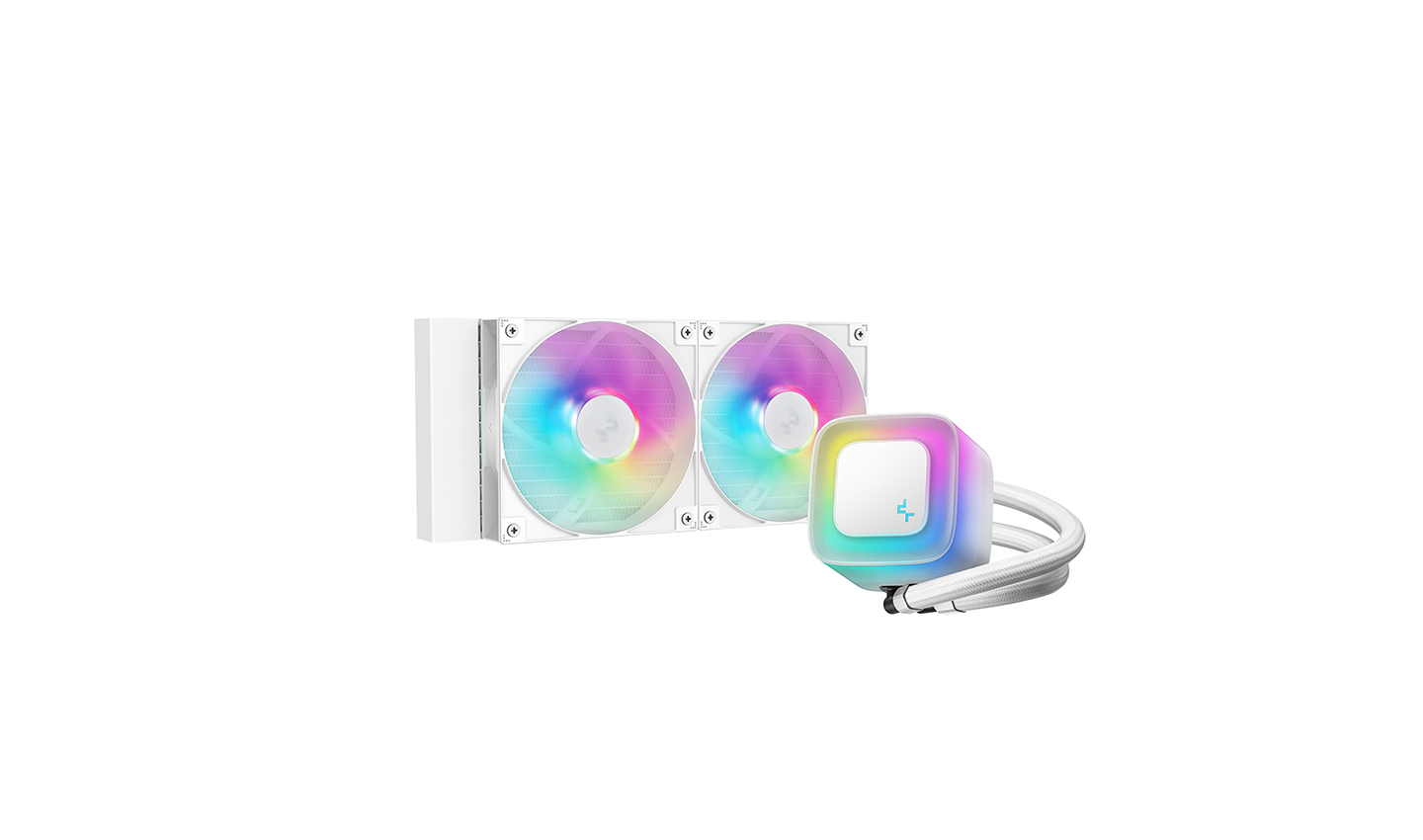

LE240 WH V2

NEW STANDARD IN ENTRY-LEVEL

FROSTED ELEGANCE

The frosted pump head design creates a soft, diffused glow for an elegant visual effect, blending seamlessly into any build. The logo plate features a minimalist design that can be customized or left blank to suit your personal style.

FROSTED ELEGANCE

COOL AND QUIET

The LE V2 series features an advanced water pump designed for efficient and quiet performance, powered by a 3-phase, 6-slot, 4-pole motor that rotates up to 3400 RPM.

With PWM intelligent speed control via a 4-PIN cable, users can now easily adjust pump speed for further reduce noise while maintaining reliable cooling.

COOL AND QUIET

The LE V2 series features an advanced water pump designed for efficient and quiet performance, powered by a 3-phase, 6-slot, 4-pole motor that rotates up to 3400 RPM.

With PWM intelligent speed control via a 4-PIN cable, users can now easily adjust pump speed for further reduce noise while maintaining reliable cooling.

EFFICIENCY AT ITS FINEST

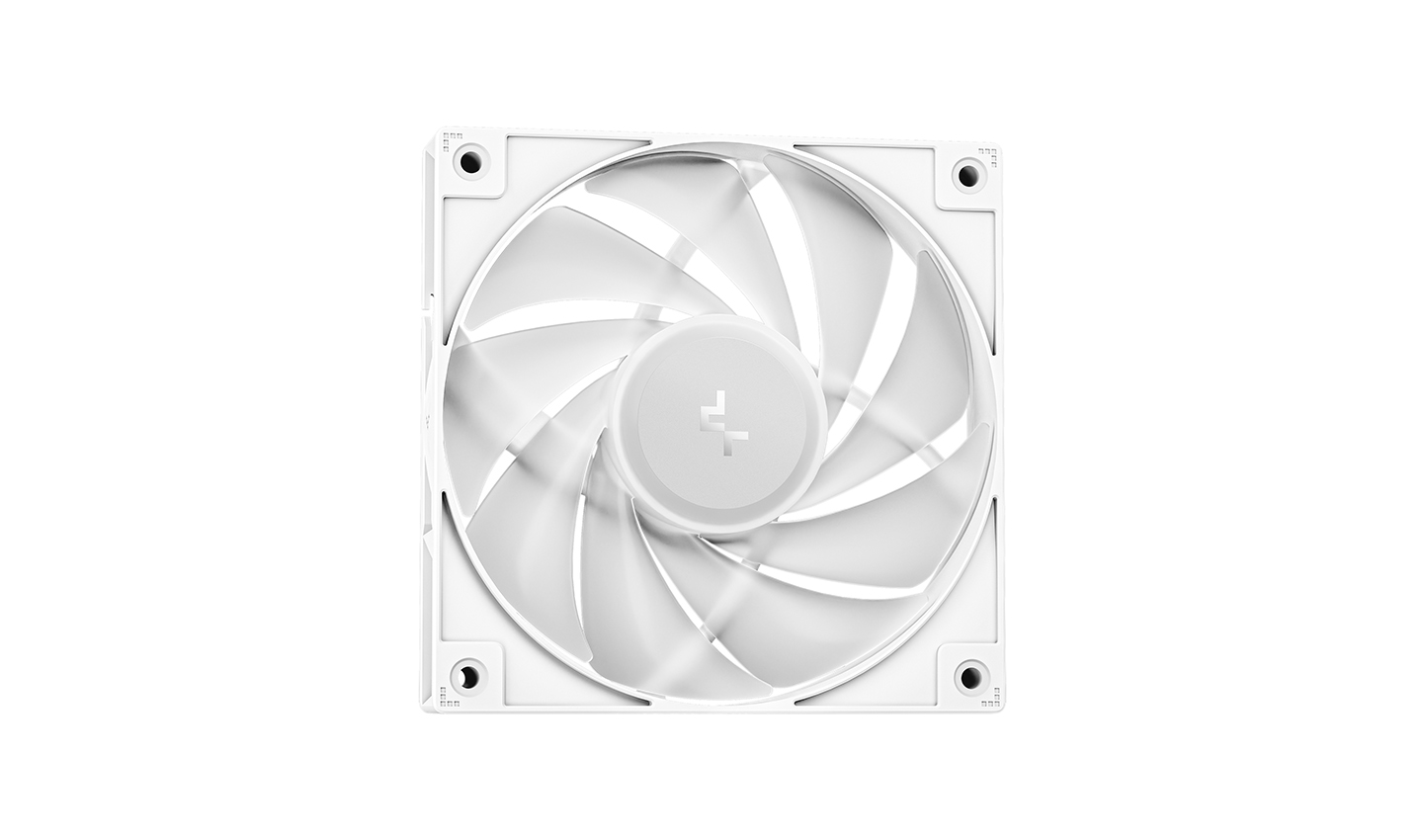

The included Hydro Bearing ARGB fans provide reliable cooling performance with vibrant lighting effects. Designed for durability and smooth operation, these fans maintain lower noise levels for everyday use.

EFFICIENCY AT ITS FINEST

TThe included Hydro Bearing ARGB fans provide reliable cooling performance with vibrant lighting effects. Designed for durability and smooth operation, these fans maintain lower noise levels for everyday use.

ANTI-LEAK TECHNOLOGY

The LE V2 liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

ANTI-LEAK TECHNOLOGY

SIMPLIFIED INSTALLATION

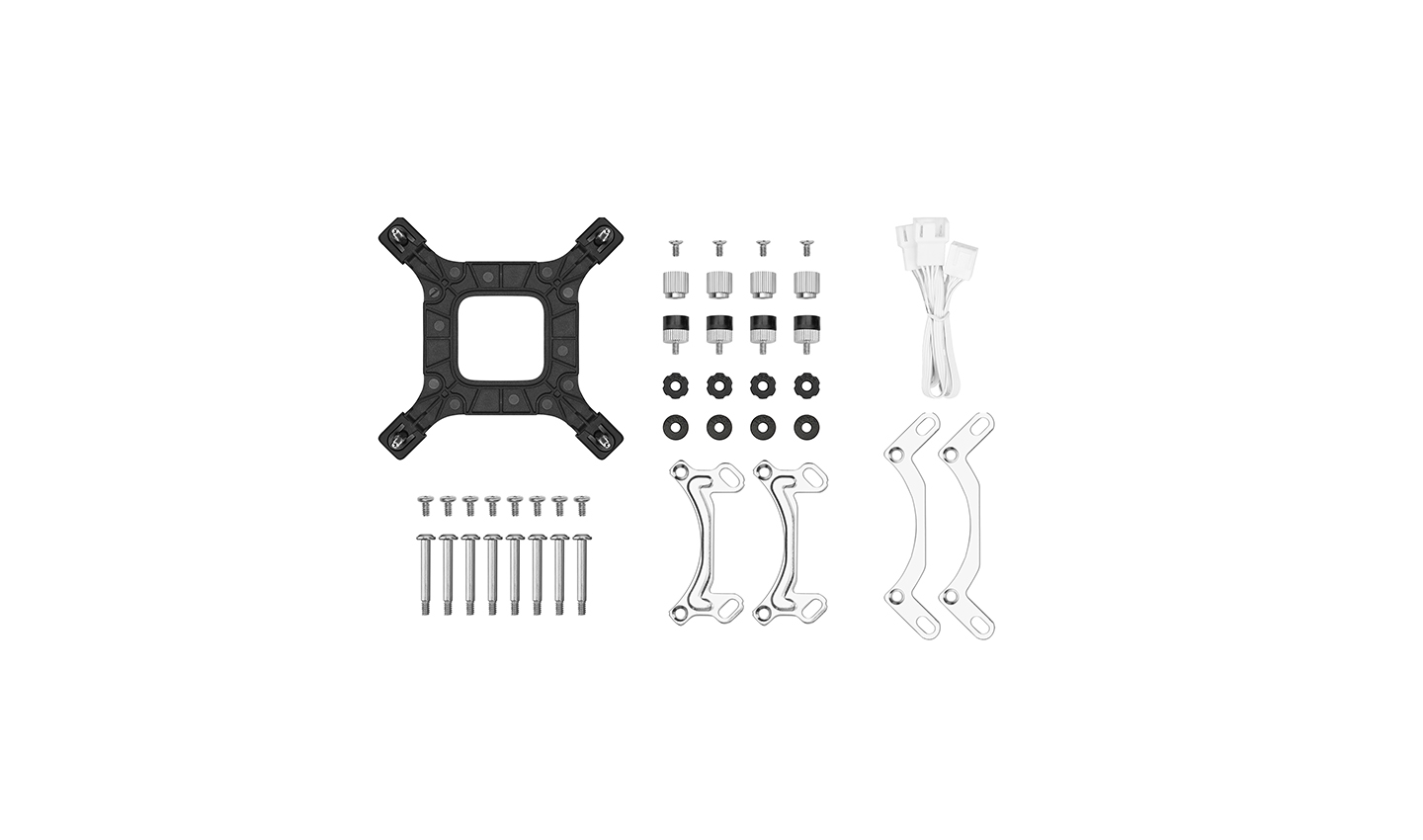

Pre-installed fans on the radiator streamline the setup process. Everything needed to mount the LE V2 to the latest mainstream CPUs is included in the box, so you are ready to go.

Intel: LGA1851/1700/1200/1151/1150/1155

AMD: AM5/AM4

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Net Weight	1359 g

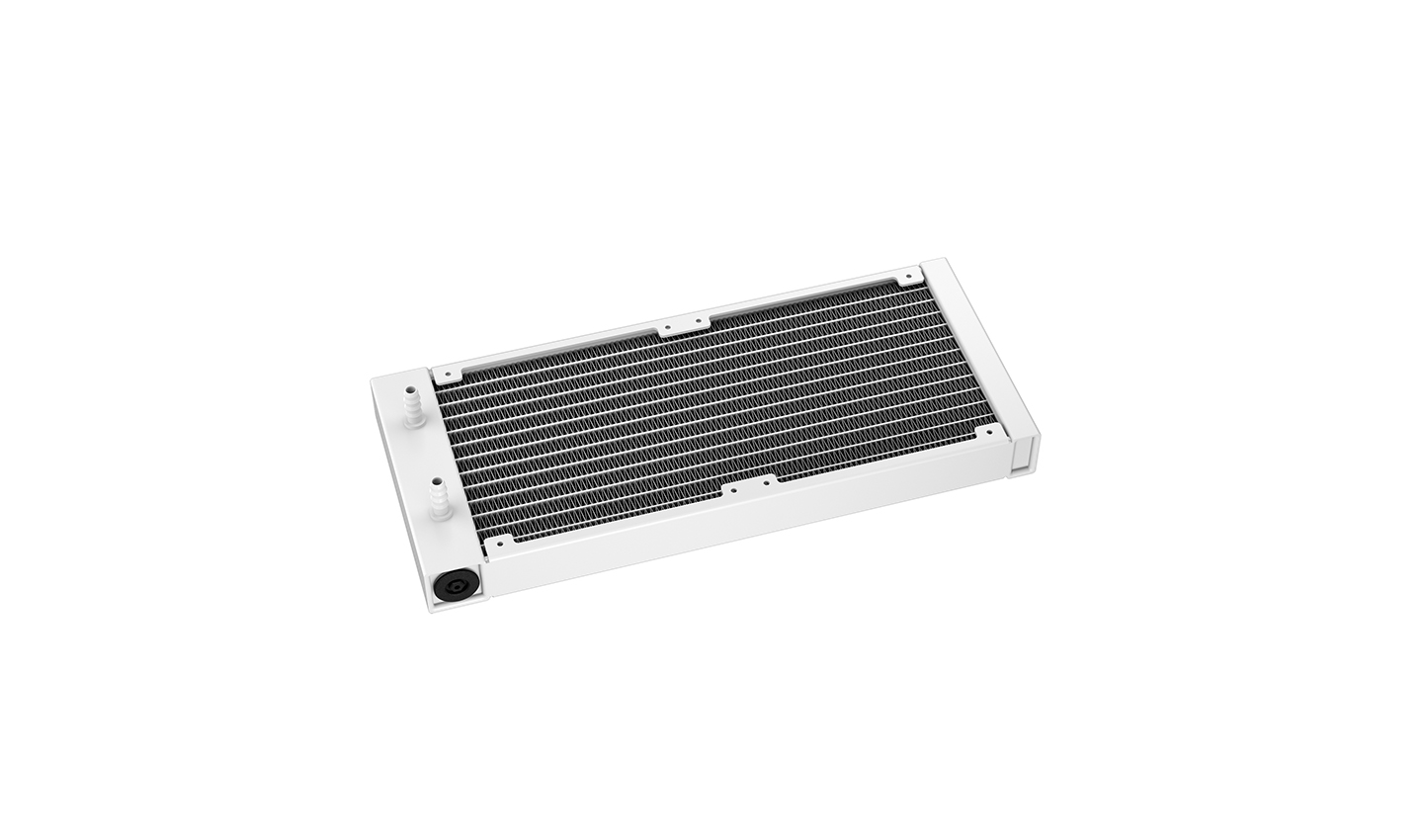

Radiator Dimensions	282×120×27 mm(L×W×H)
Radiator Material	Aluminum
Tube length	410 mm(L×W×H)

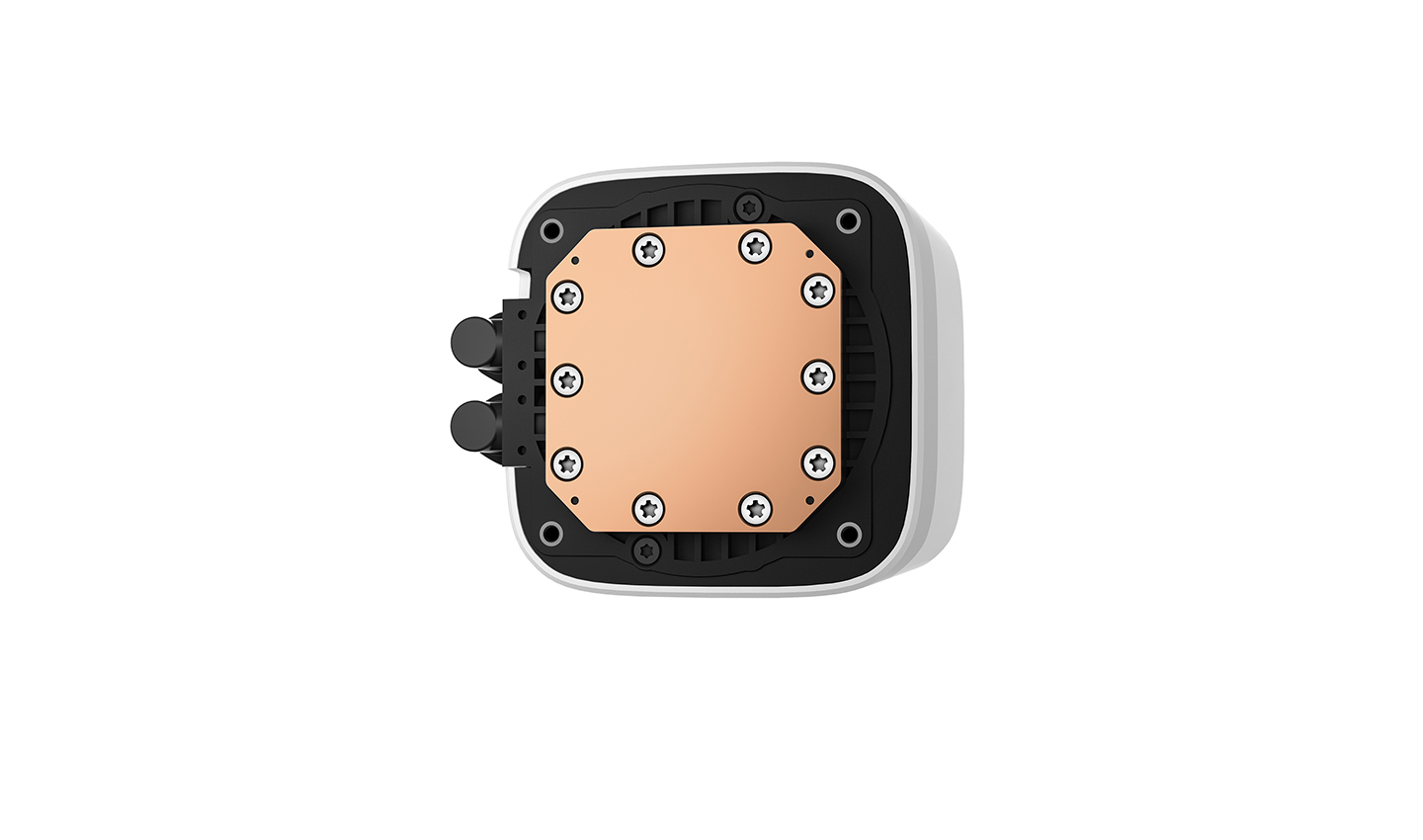

Pump Dimensions	91×78×65 mm(L×W×H)
Pump Speed	2500~3400 RPM±10%
Pump Connector	4-pin PWM
Pump Rated Voltage	12 VDC
Pump Rated Current	0.29 A
Pump Power Consumption	3.48 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~2100 RPM±10%
Fan Airflow	75.89 CFM
Fan Air Pressure	2.53 mmAq

Fan Noise	≤31.6 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.17 A
Fan Power Consumption	2.04 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.8 W（PUMP）/ 2.1 W（FAN×2）
EAN	6933412729297
P/N	R-LE240-WHAMMN-G-2
