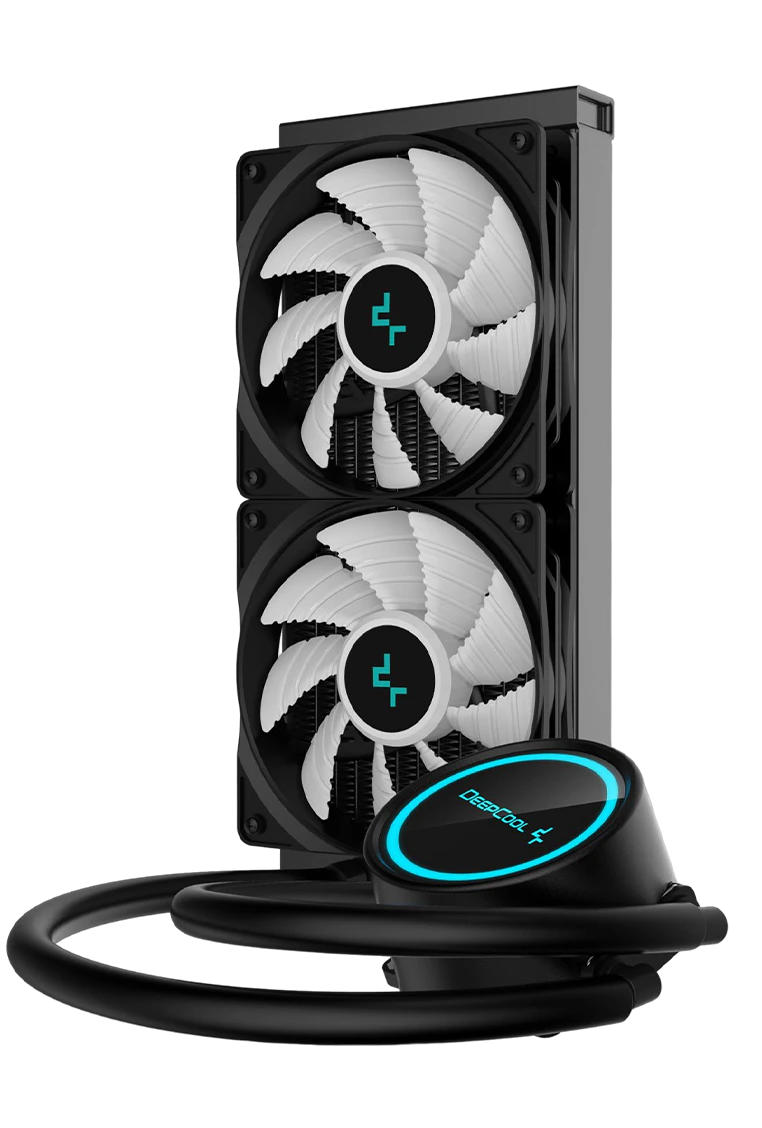

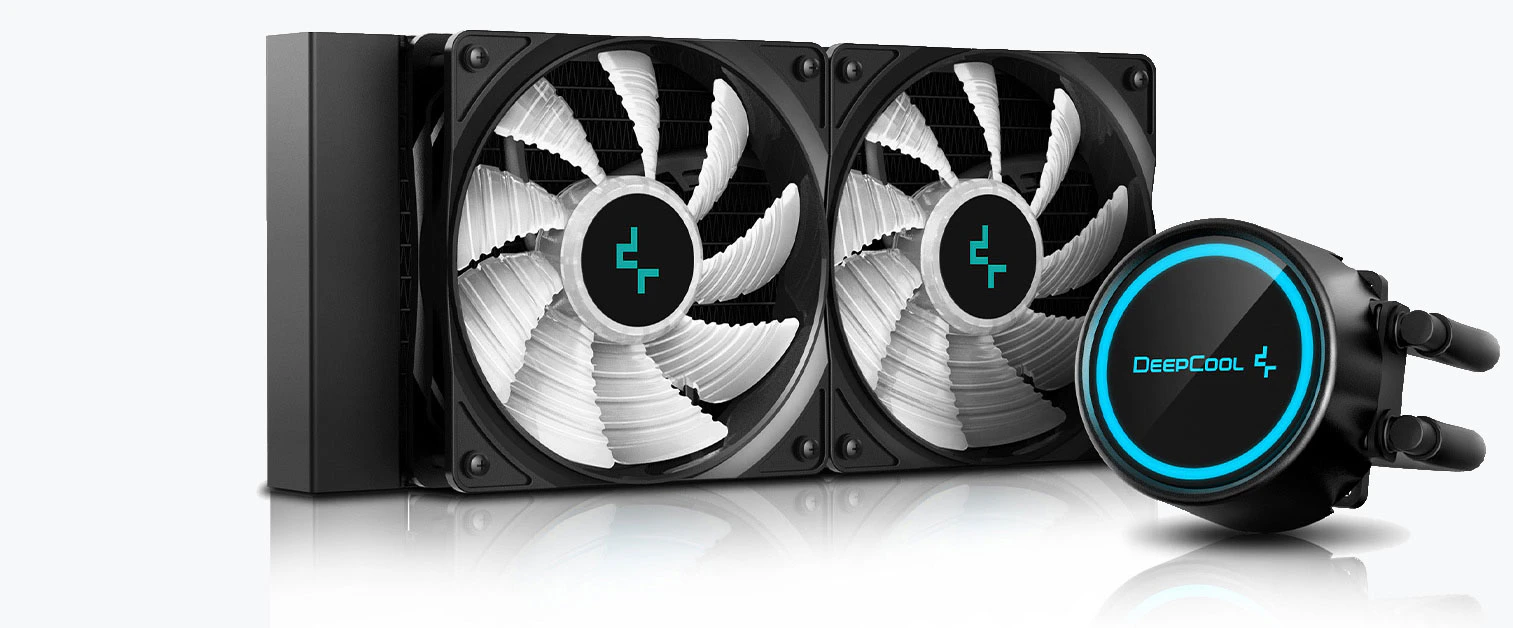

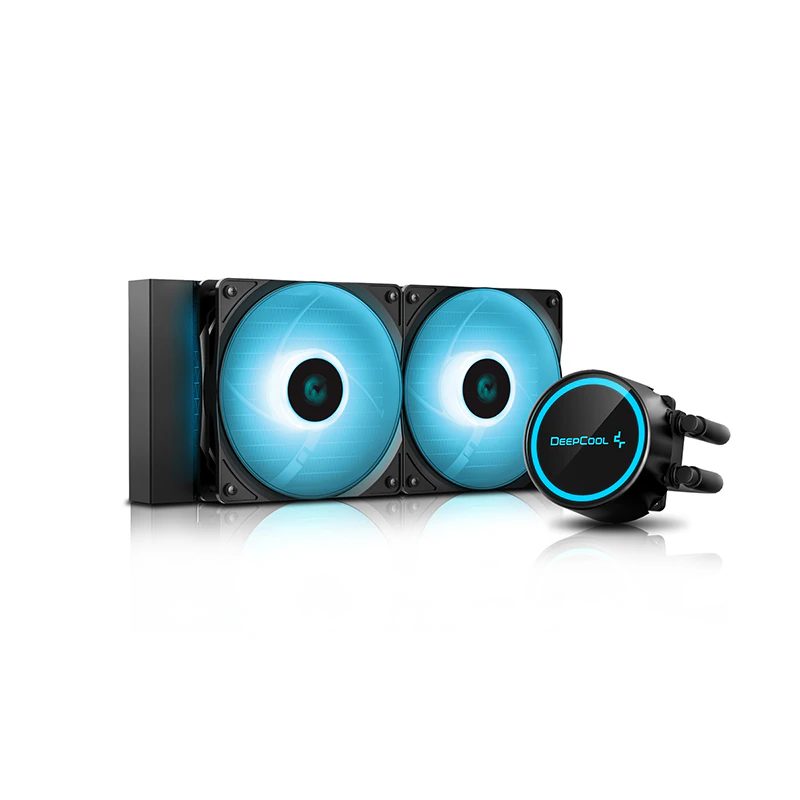

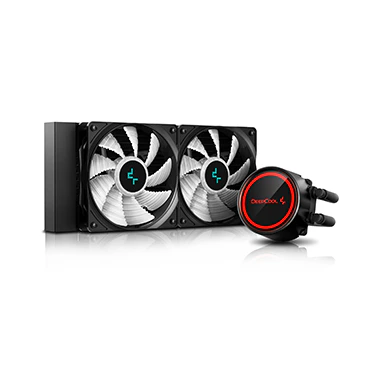

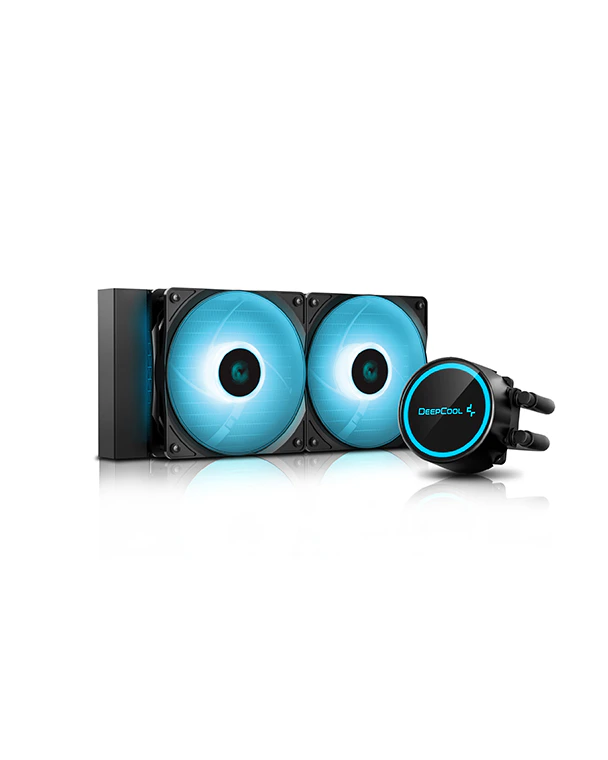

GAMMAXX L240 V2
The GAMMAXX L240 V2 upgraded its reliability with “Anti-leak Tech Inside” system, so users can enjoy extreme processor performance without any leakage concerns.
Colour
black
MODEL
GAMMAXX L240 V2
Reliable & Viable

GAMMAXX L240 V2
GAMMAXX L series AIO coolers are known for their high performance, neat appearance, and cost efficiency.
The GAMMAXX L240 V2 upgraded its reliability with “Anti-leak Tech Inside” system, so users can enjoy extreme processor cooling performance without any leakage concerns.
About Anti-leak Tech Inside
After 3 years of R&D, DeepCool launched the new standard of liquid cooling system - The Anti-leak Tech.
This technology helps your system balance its pressure, significantly improving operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.
Learn more about Anti-leak Tech Inside
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.

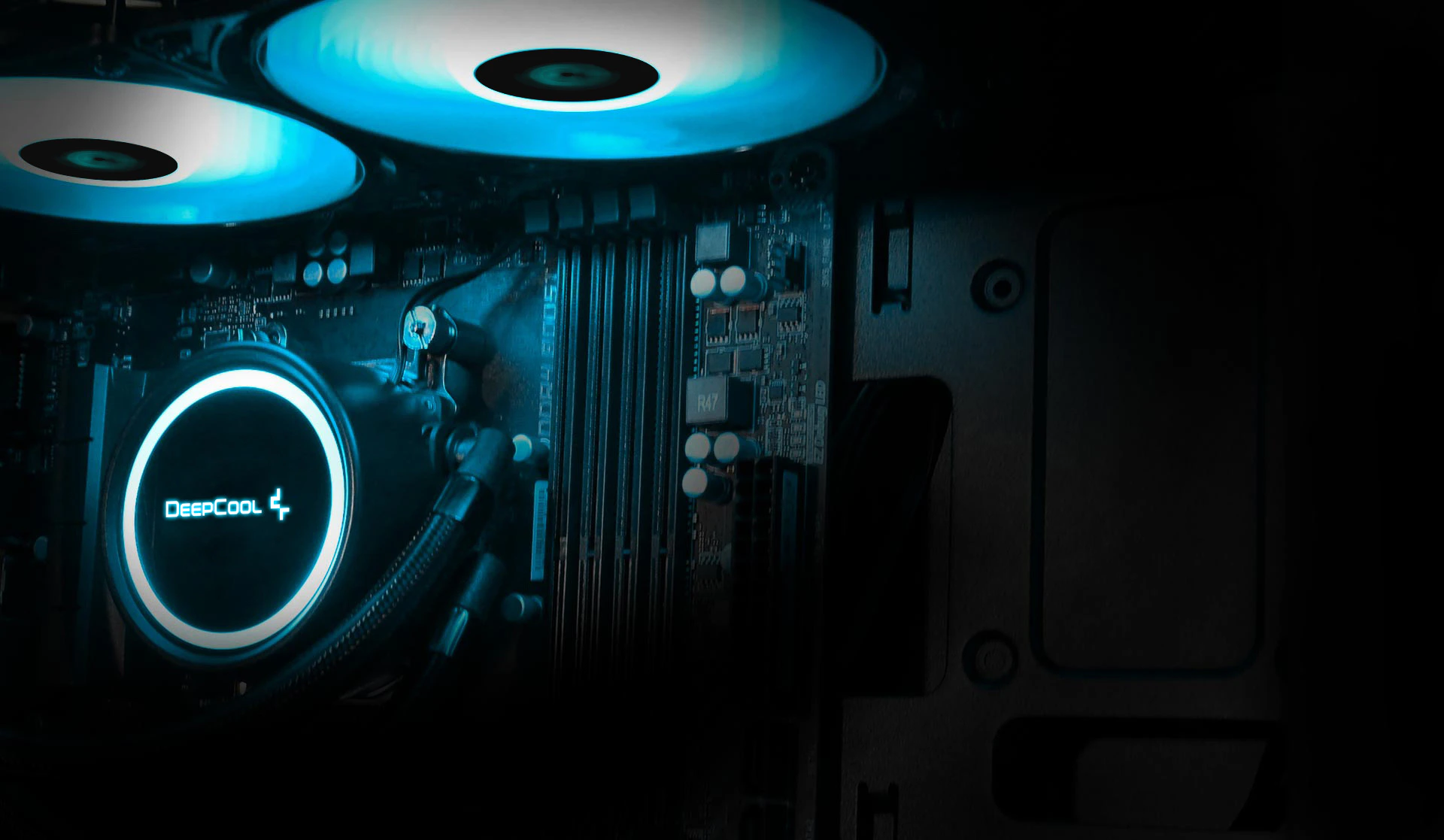

Motherboard Control RGB SYNC
The brand new water block and fans built-in 12V RGB lighting system gives you the possibility to customize your lighting through mainstream motherboards with synchronized lighting control.

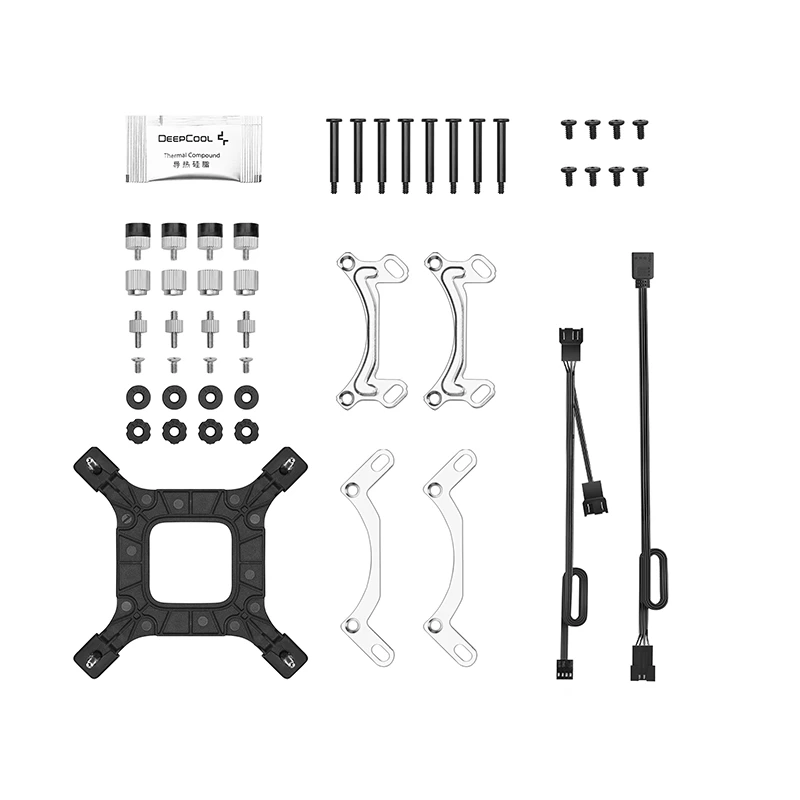

Support Mainstream Intel & AMD Socket
Ready for easy mounting and unrestricted direction installation on mainstream sockets of Intel/AMD.

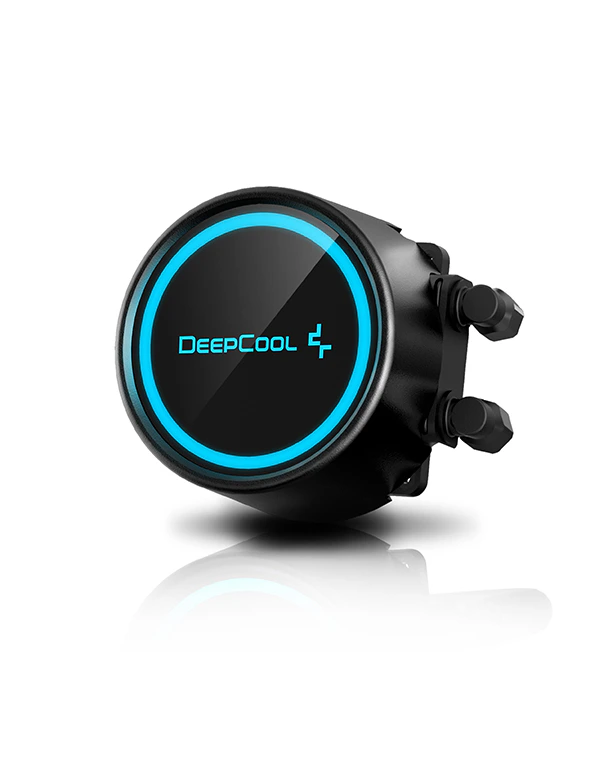

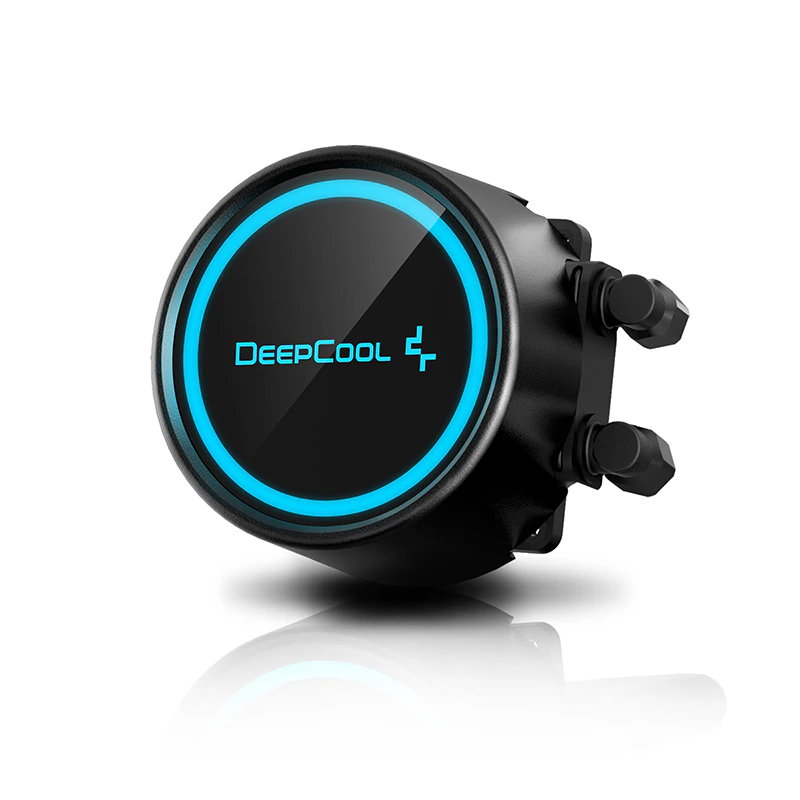

1Motor:High efficient induction motors deliver stronger liquid flow and pressure.
2Impeller:Closed impellers are designed to enhance liquid pressure.
1Motor:High efficient induction motors deliver stronger liquid flow and pressure.
2Impeller:Closed impellers are designed to enhance liquid pressure.
3Axle:The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4Copper Base:An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
3Axle:The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4Copper Base:An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.

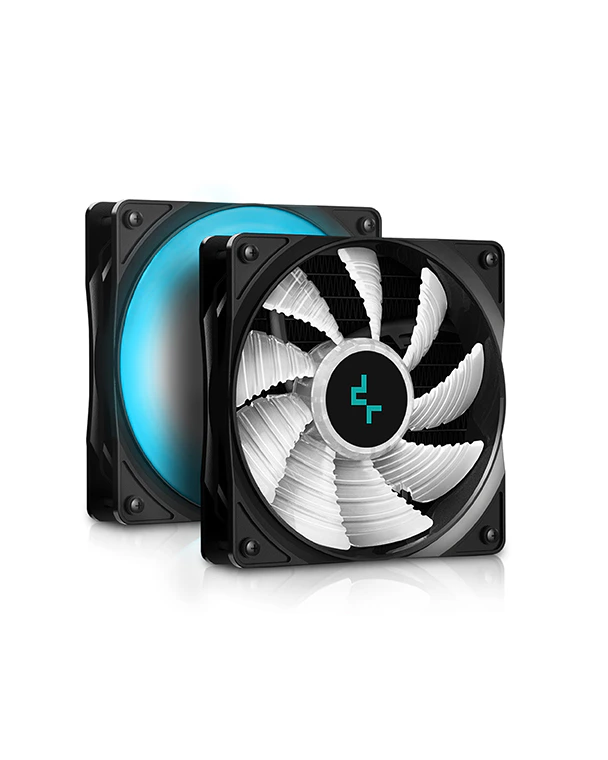

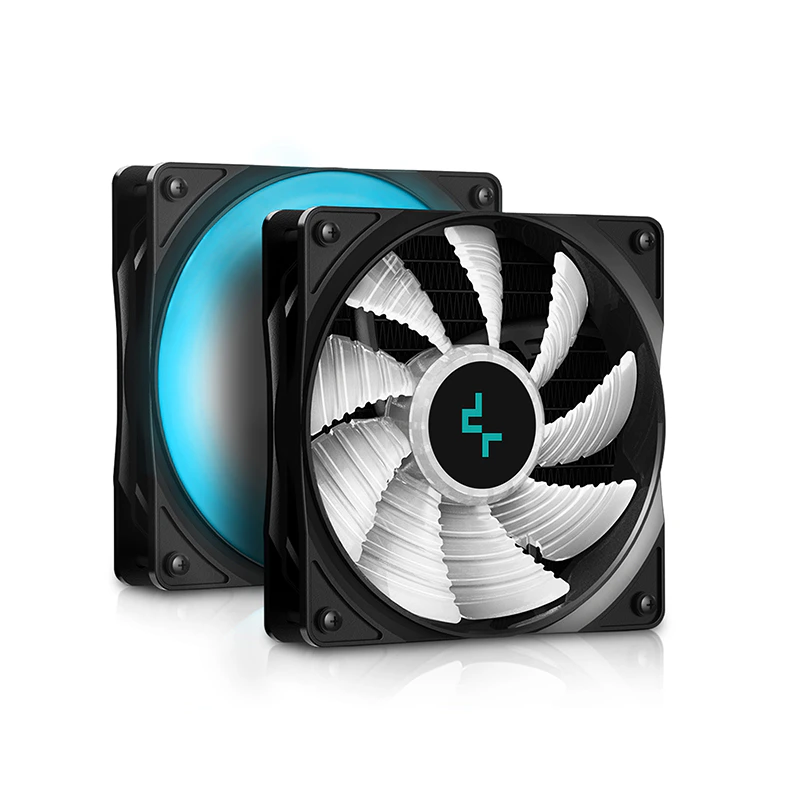

The 2 included 120mm RGB fans come with 6 ultra-bright RGB LED lights and PWM control with super silent performance.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight1320 g

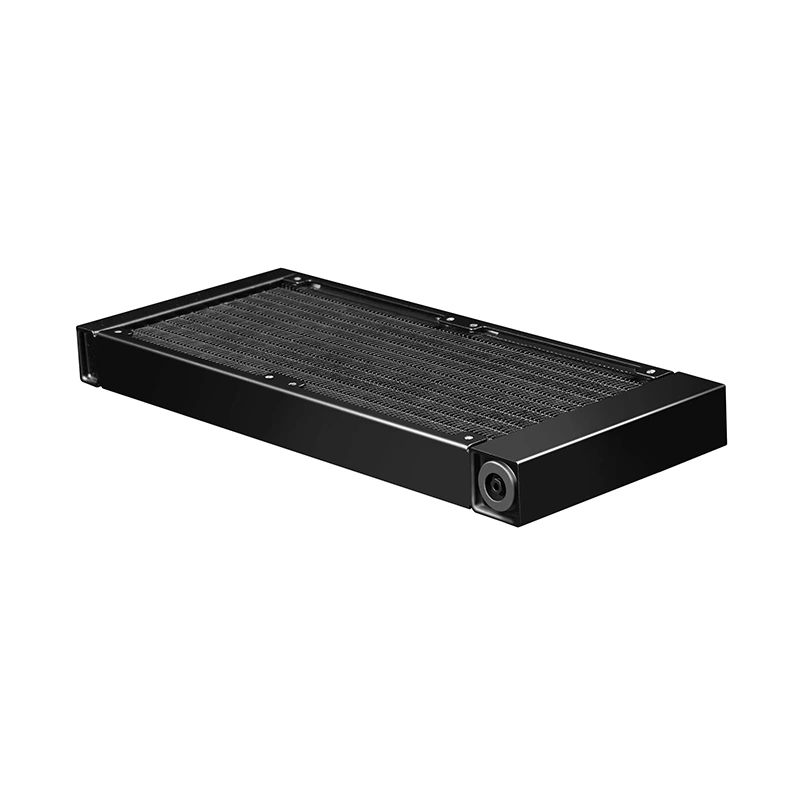

Radiator Dimensions282×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube Length380 mm(L×W×H)
Pump Dimensions91×79×47 mm(L×W×H)
Pump Speed2400 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.2 A
Pump Power Consumption2.4 W
Fan Dimension120×120×25 mm(L×W×H)
Fan Speed500-1800 RPM±10%
Fan Airflow69.34 CFM
Fan Air Pressure2.42 mmAq
Fan Noise≤30 dB(A)
Fan Connector4-pin
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.17 A
Fan Power Consumption2.04 W
LED TypeRGB LED
LED Connector4-pin(+12V-G-R-B)
LED Rated Voltage12 VDC
LED Power Consumption0.84 W（PUMP）/ 2.88 W（FAN×2）
EAN6933412726623
P/NDP-H12RF-GL240V2
Product Dimension

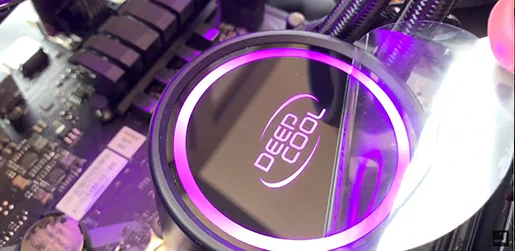

DeepCool Gammaxx L240 V2 Review
Today we take a look at the DeepCool Gammaxx L240 V2 and see if this cooler is actually any good.
View More
Date:2019/04
Media:Eteknix
Download
GAMMAXX L240 V2 Manual.pdf
