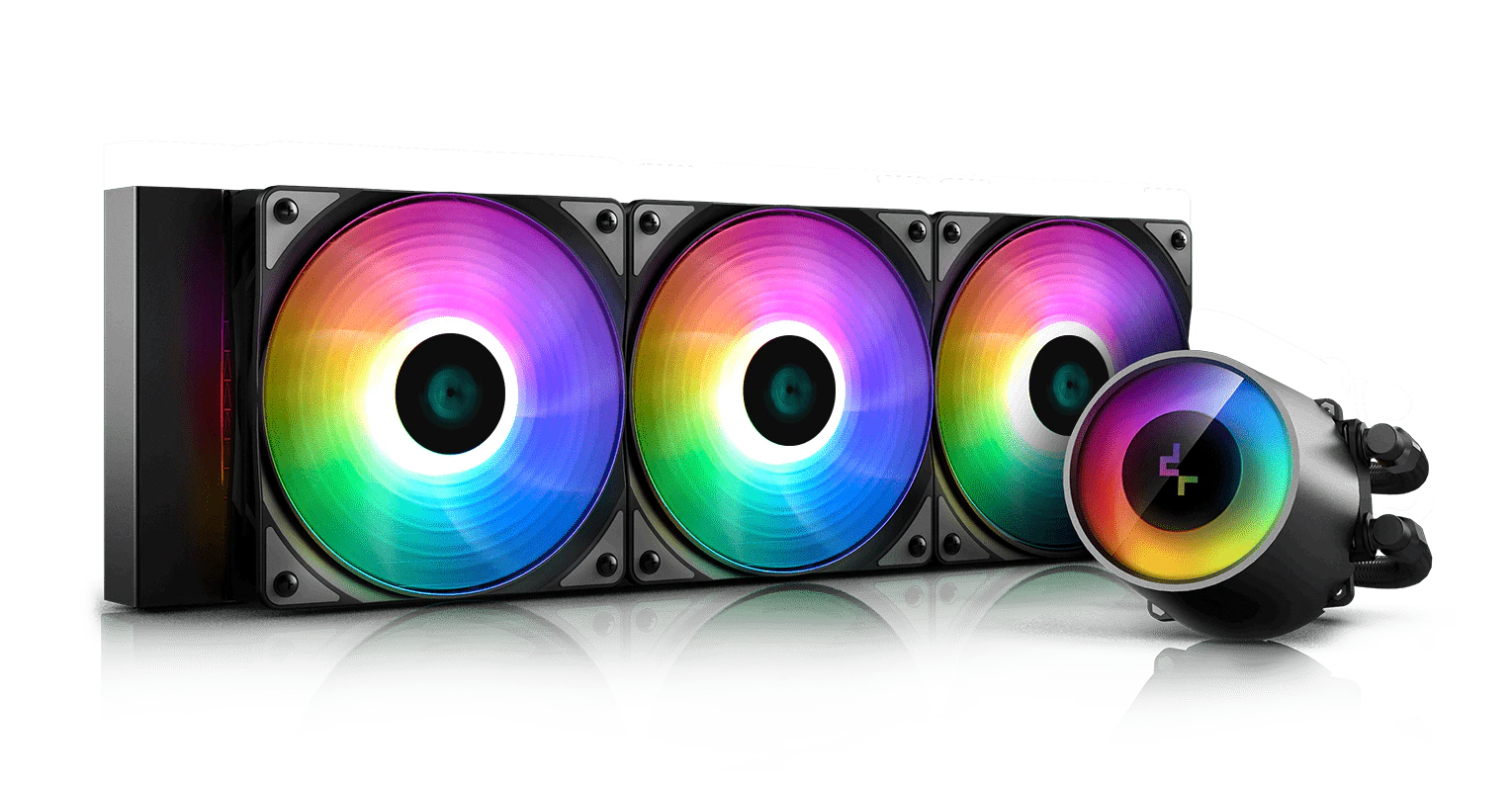

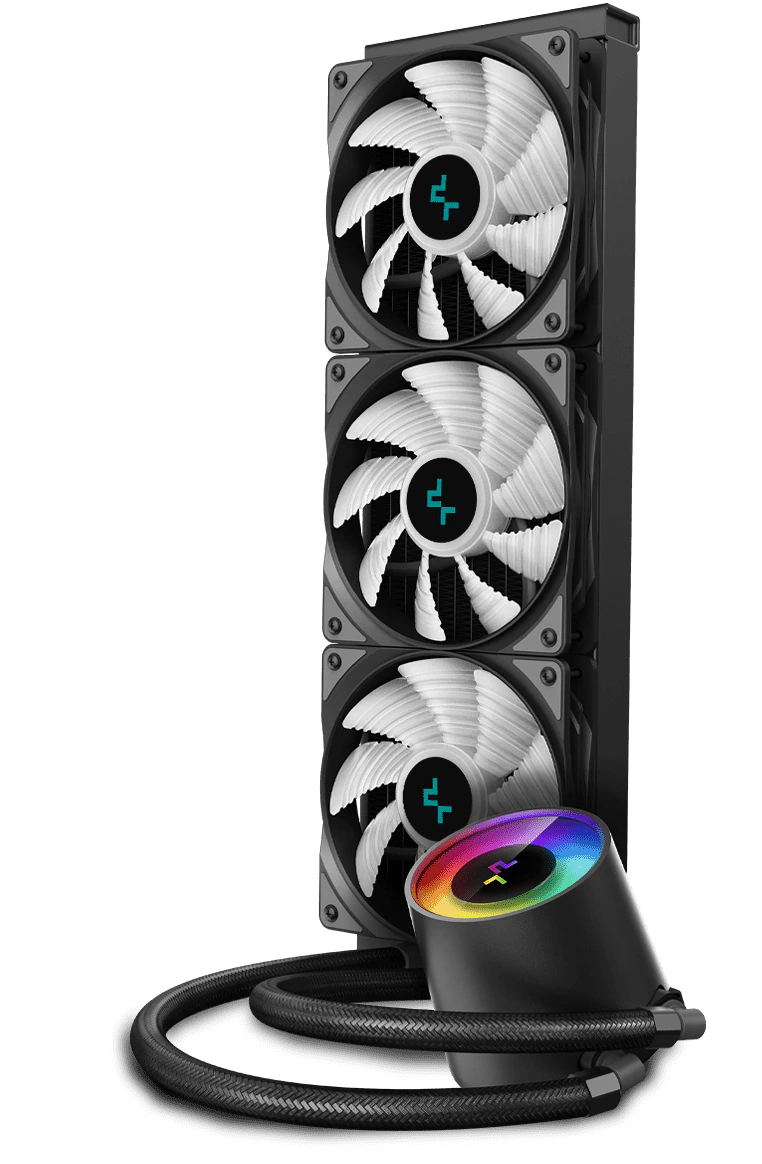

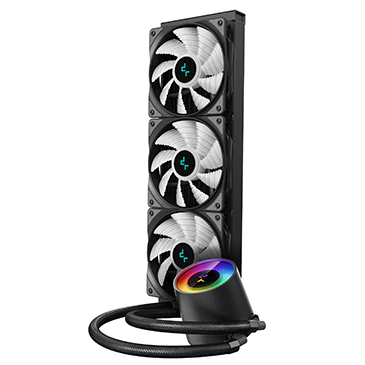

CASTLE 360RGB V2

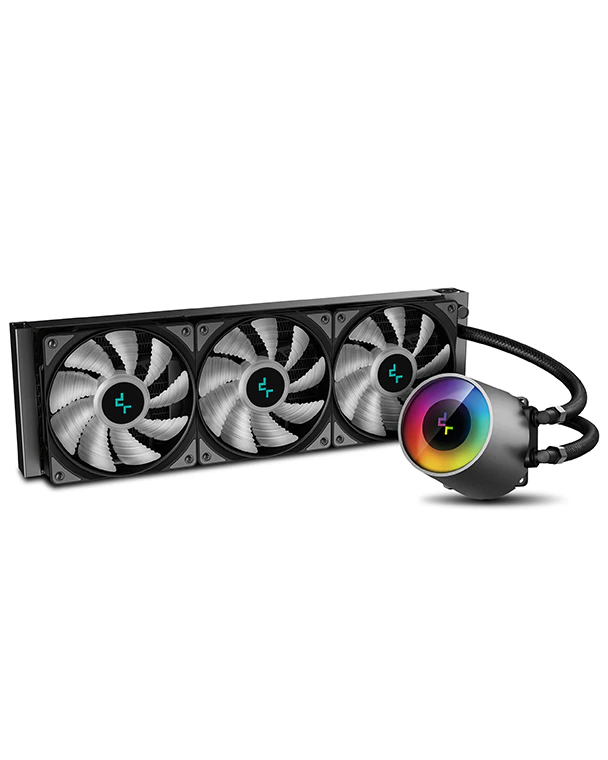

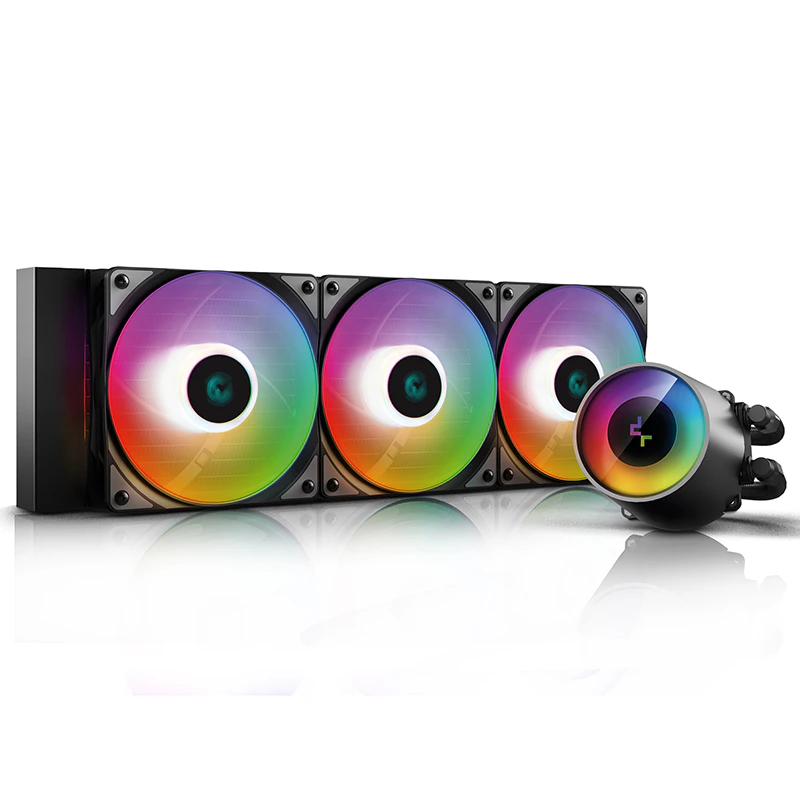

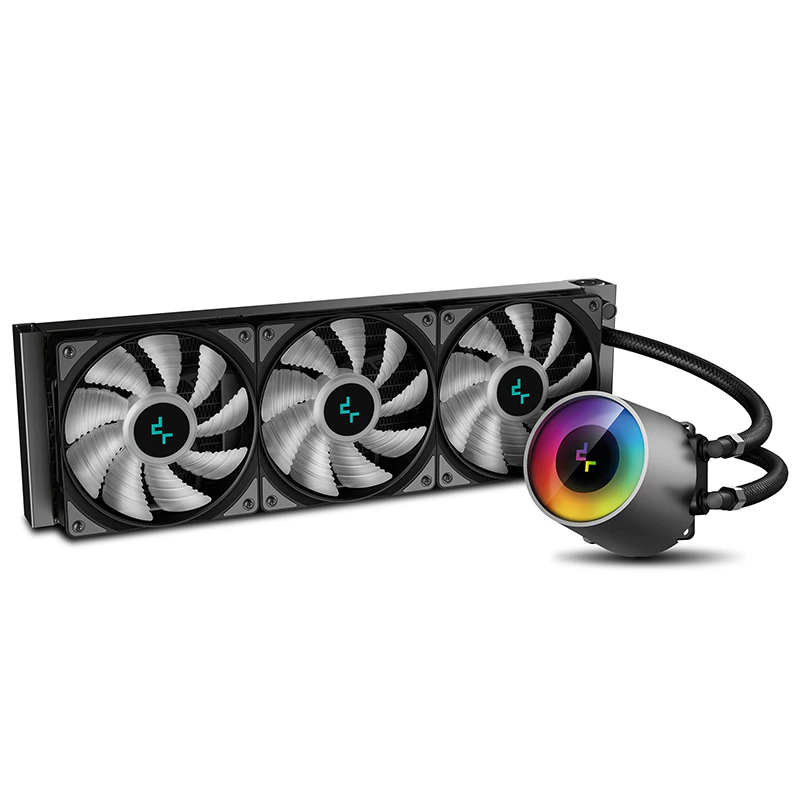

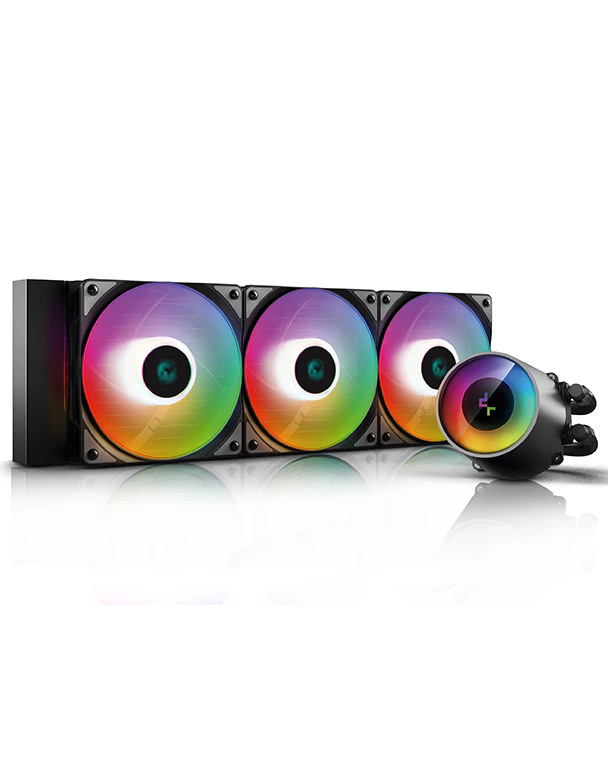

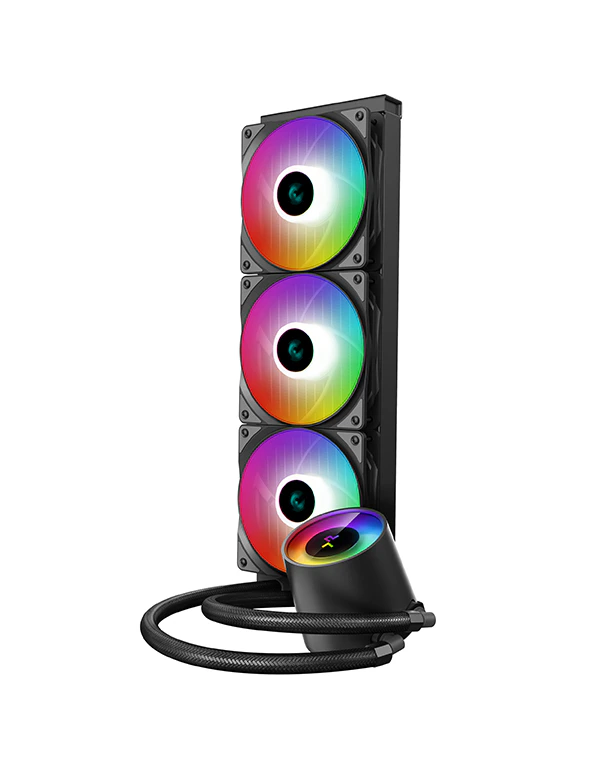

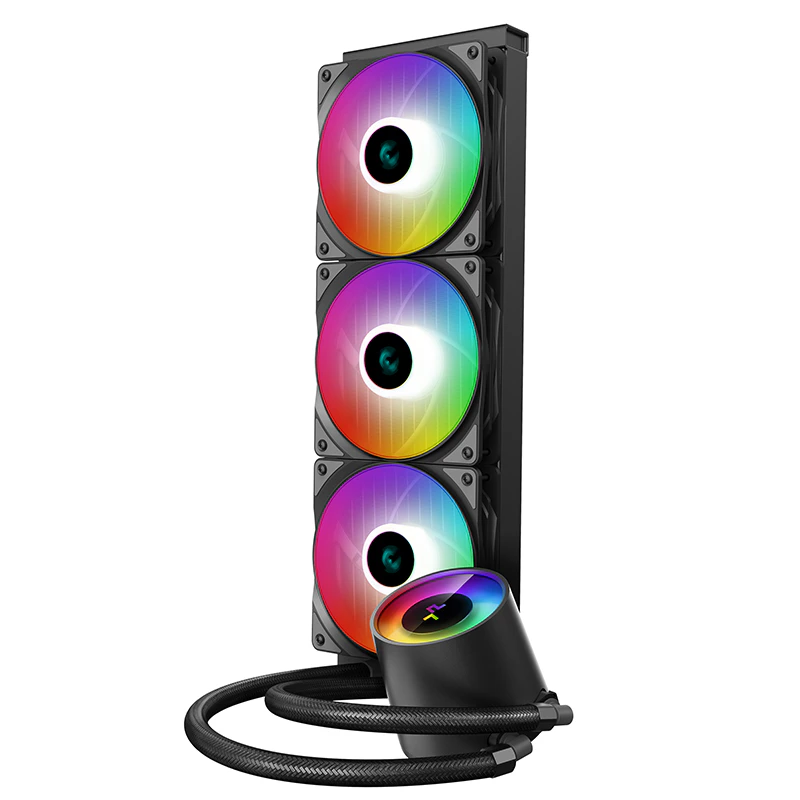

The CASTLE 360RGB V2 AIO liquid CPU cooler features Anti-leak tech to help keep systems safe and cool including a redesigned pump, 360mm radiator and RGB lighting support.
Colour
black
MODEL
CASTLE 360RGB V2
Advanced Extreme Cooling
About Anti-leak Tech Inside
After 3 years of R&D, DeepCool launched the new standard of liquid cooling system - The Anti-leak Tech. This technology helps your system balance its pressure, significantly improving operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.
Fabulous Aesthetics Inherited

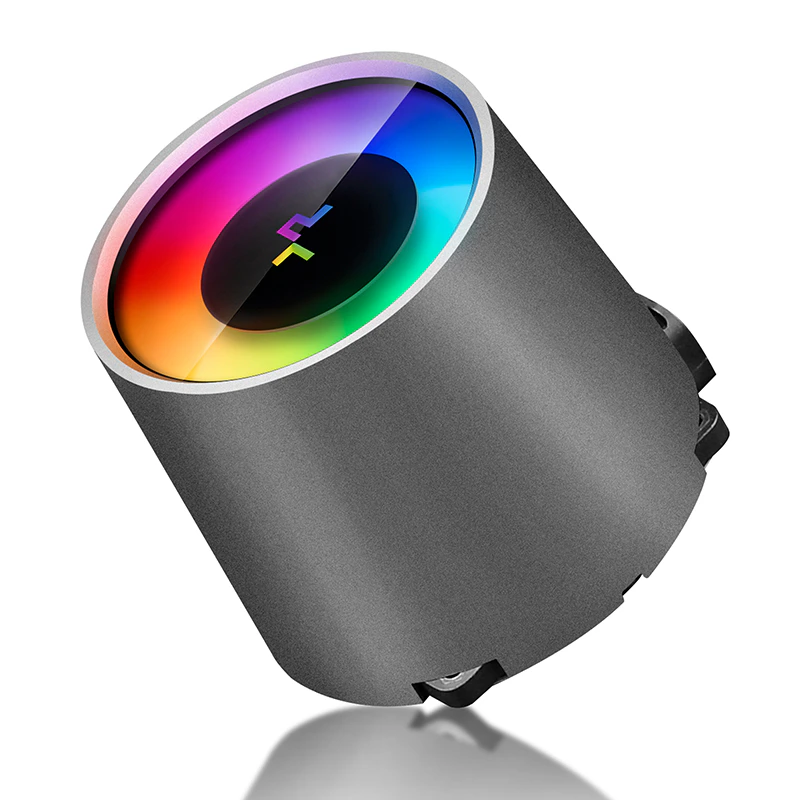

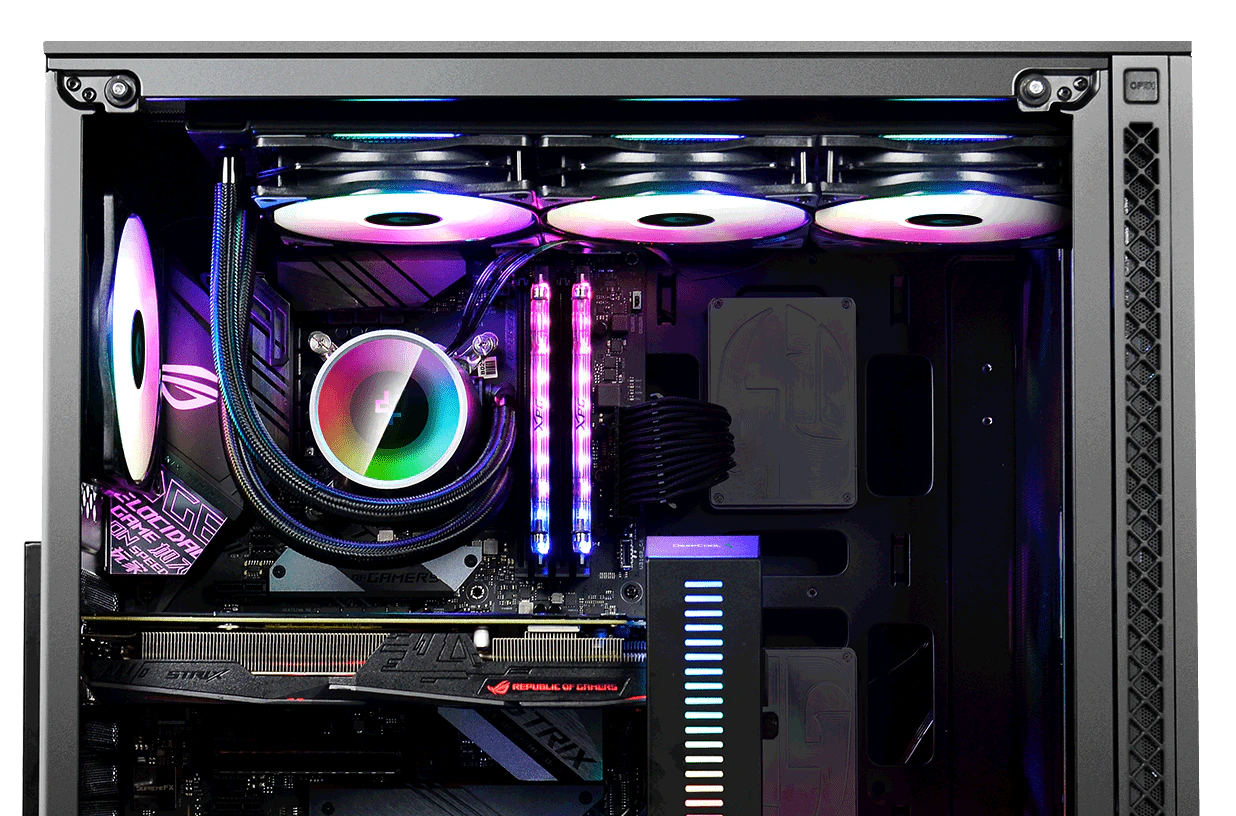

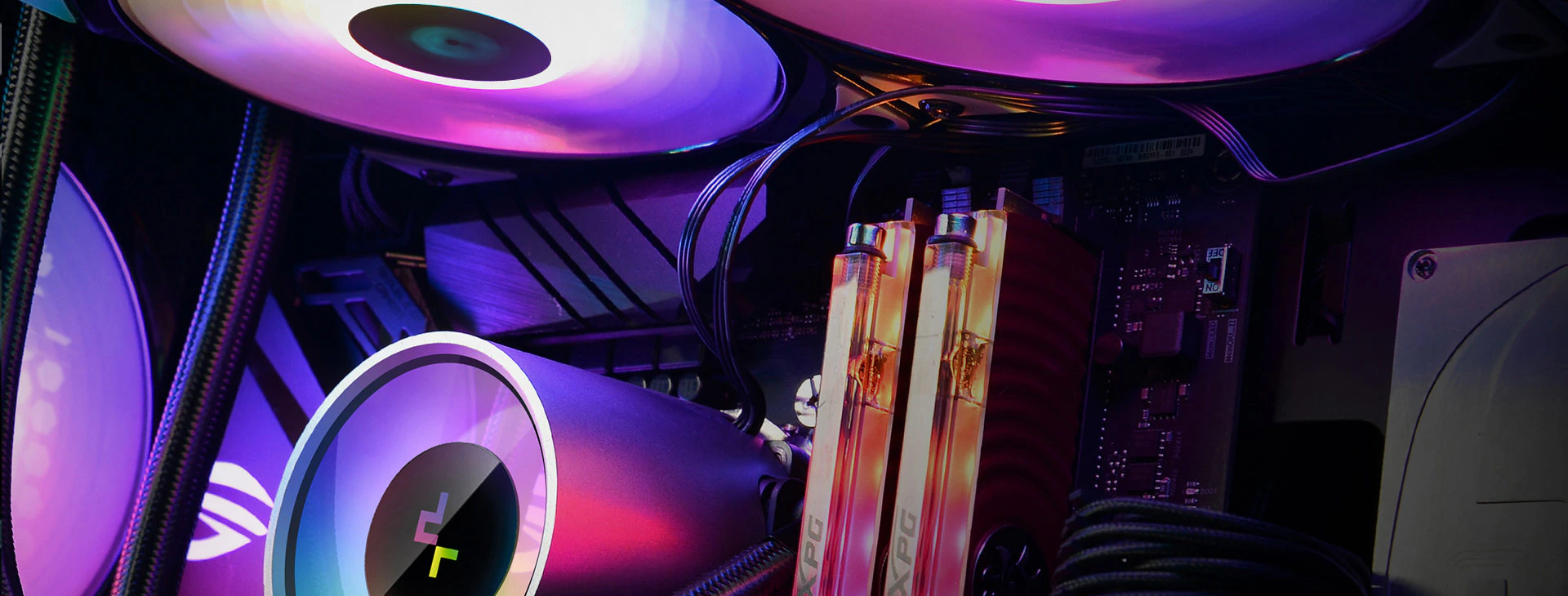

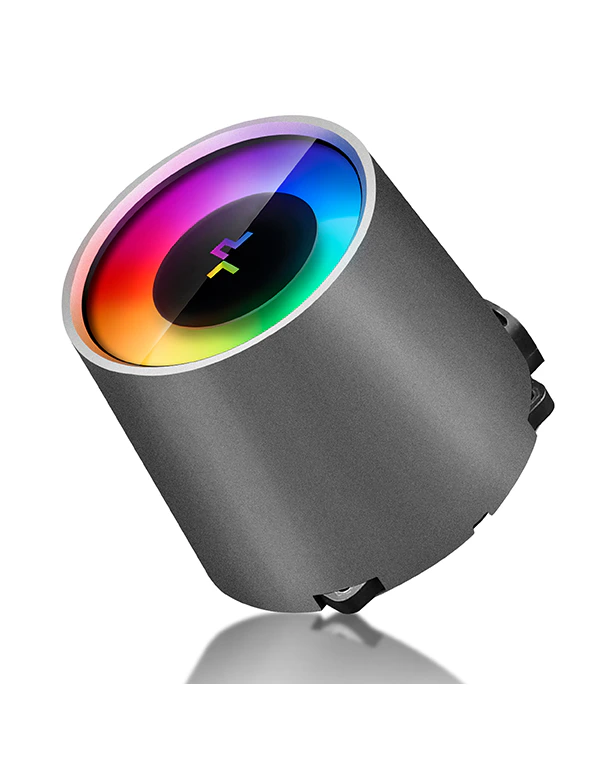

The CASTLE 360RGB V2 inherited its design from its original version, pushing your rig's aesthetics to the next level with a mirror finish and immersive ambient lighting on the pump.
Mode+
Speed (Hold for 3 seconds to switch on/off)
Mode-
The 16.7M true color flowing RGB system can be easily synchronized and controlled by the included wired controller.
The lighthing system has 5 built-in effects (dynamic, static, breathing, comet, and fashion collision) and 36 interchangeable lighting modes. It also supports SYNC control by motherboards*.
Dynamic
Static
Breathing
Comet
Fashion Collision
Supports Motherboard 3 Pin Addressable RGB Software Control
1Motor:High efficient induction motor deliver stronger liquid flow and pressure.
2Impeller:Closed impellers are designed to enhance liquid pressure.
1Motor:High efficient induction motor deliver stronger liquid flow and pressure.
2Impeller:Closed impellers are designed to enhance liquid pressure.
3Axle:The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4Copper Base:An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
3Axle:The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4Copper Base:An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
Intel and AMD (AM4/TR4) compatible.
The optimized E-shaped micro water channel design effectively enhances heat circulation efficiency and enlarges heat contact areas.

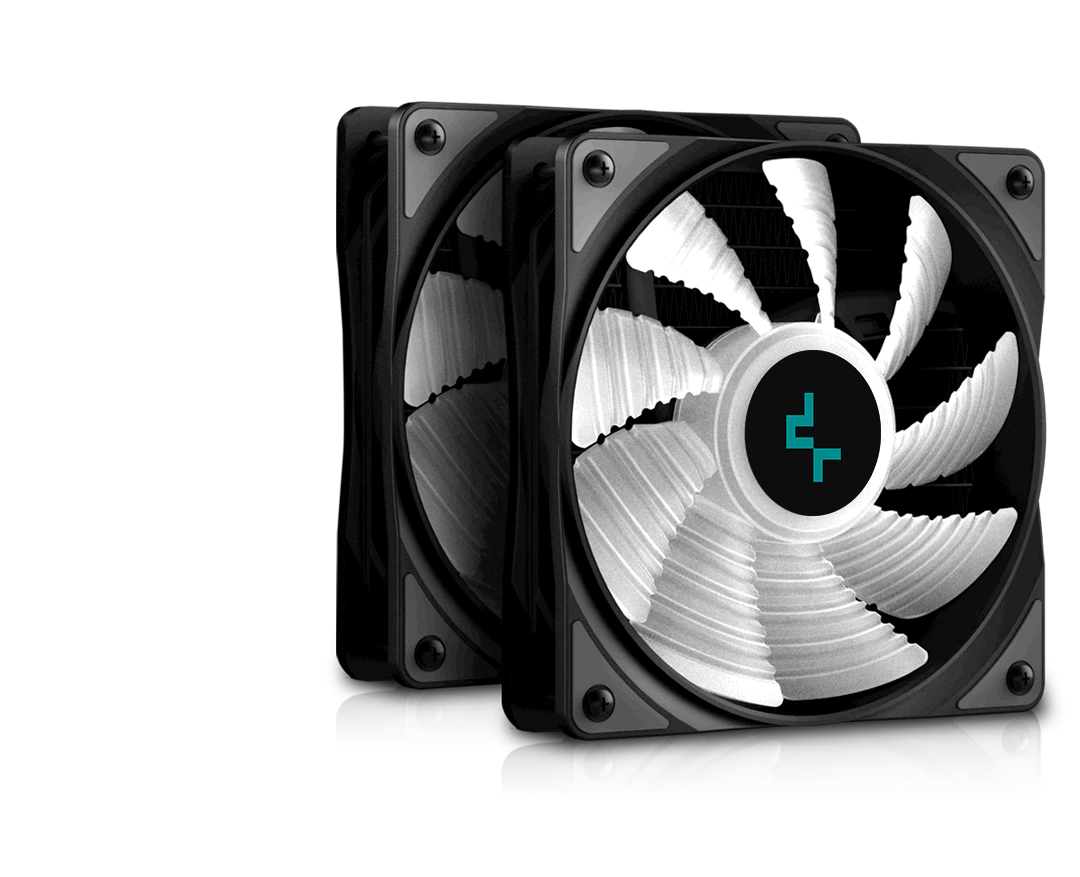

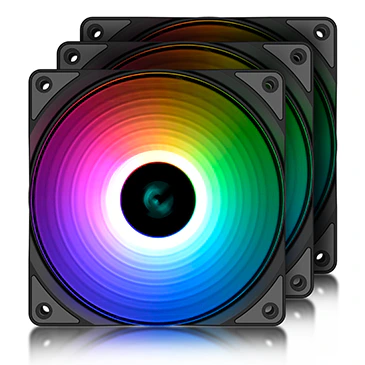

The 3 included CF 120 fans are 120mm ADD-RGB fans with flowing lighting effects.
The exhaustive damping technologies on the fans can vastly lower noise while maximizing airflow.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM4
Technical Spec
Pump Dimensions91×79×71 mm
Radiator Dimensions402×120×27 mm
Radiator MaterialAluminum
Net Weight1768 g
Tube length465 mm
Pump Speed2550 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.21 A
Pump Power Consumption2.52 W
Fan Dimensions120×120×25 mm
Fan Speed500~1800 RPM±10%
Fan Airflow69.34 CFM
Fan Air Pressure2.42 mmAq
Fan Noise≤30 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.17 A
Fan Power Consumption2.04 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.25 W(PUMP)/6.6 W(FAN×3)
EAN6933412726616
P/NDP-GS-H12AR-CSL360V2
Product Dimension
Download
CASTLE 360RGB V2 Manual.pdf
