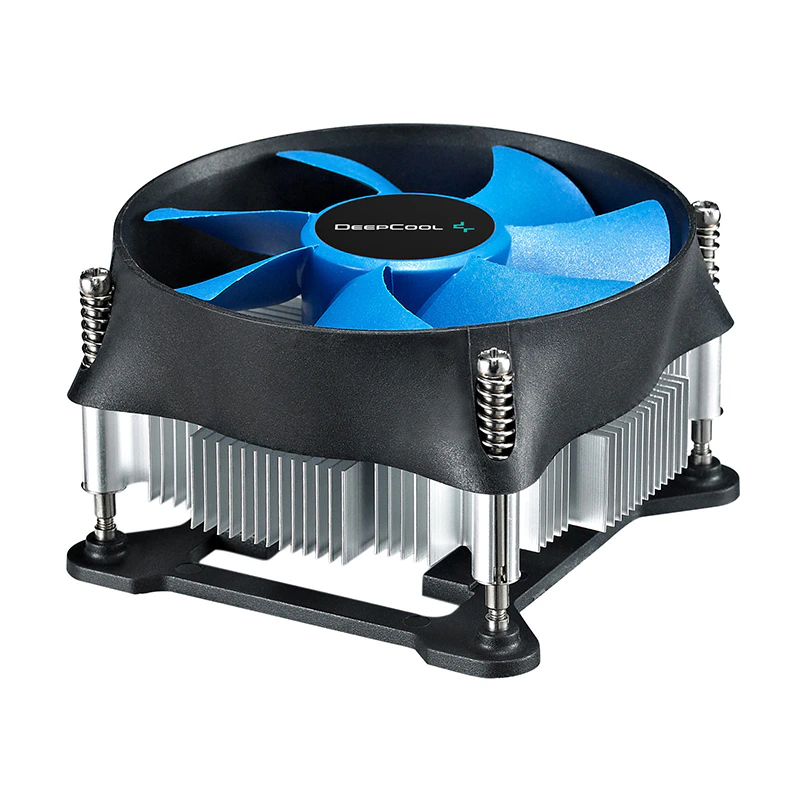

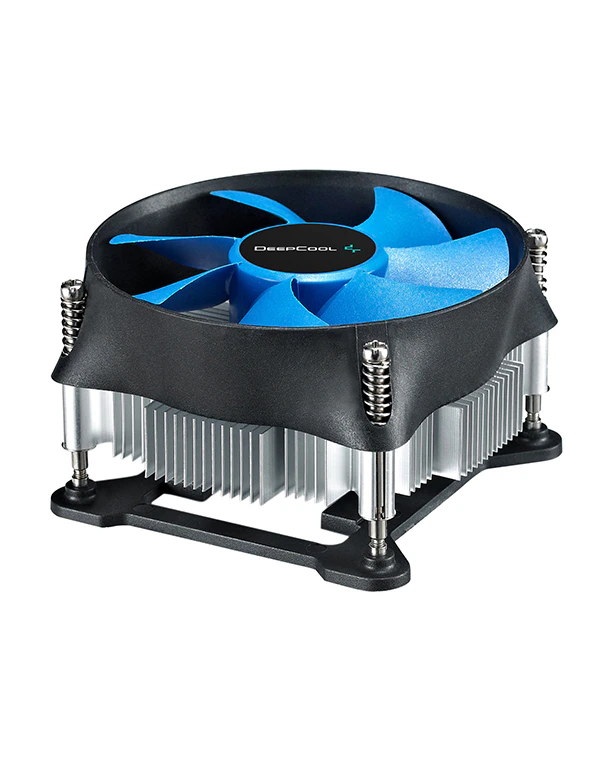

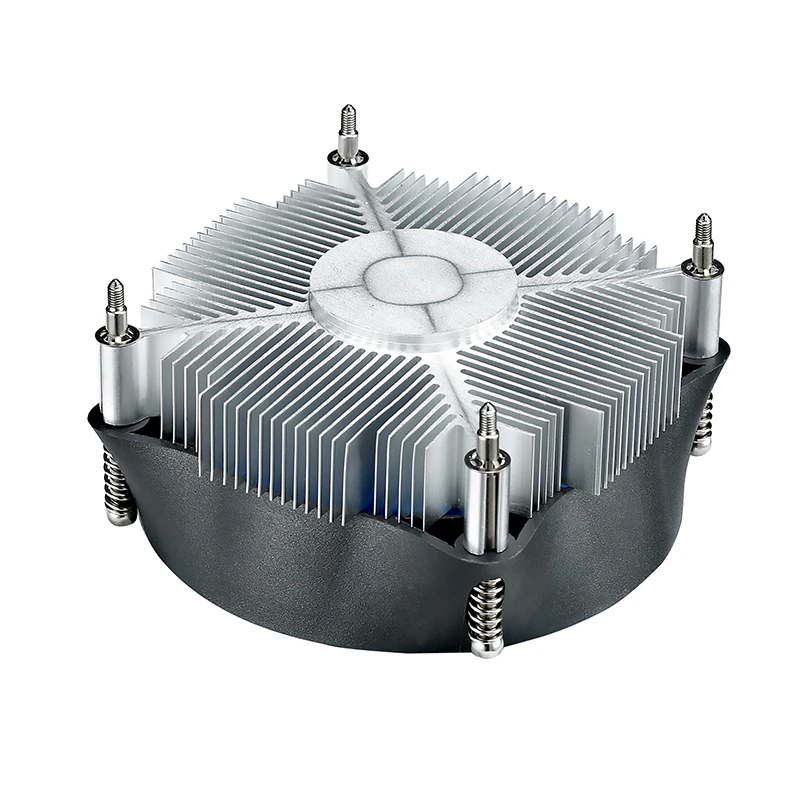

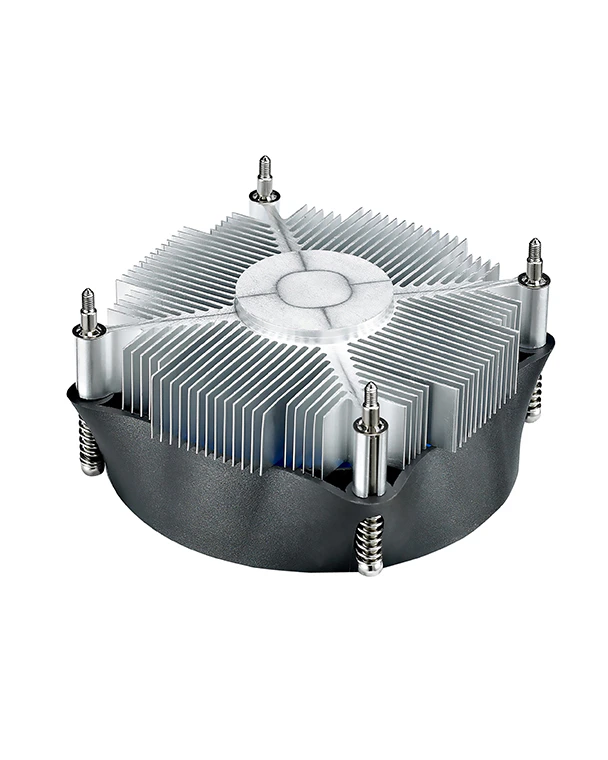

THETA 15 PWM
MODEL
Low profile cooling solution with up to 65W cooling performance designed for LGA1150/1155/1156.
Ф100 X 25 mm PWM-capable fan offers a perfect balance between airflow and noise.
Screw and Back Plate installation provides a safe and secure mounting.
Application For
Intel
LGA1200/1151/1150/1155
Technical Spec
Product Dimensions 97.5X97.5X46 mm(L×W×H)
Net Weight 290 g
Fan Dimensions Φ100×25 mm
Fan Speed 800~2800 RPM±10%
Fan Airflow 50.25 CFM
Fan Air Pressure 4.26 mmAq
Fan Noise ≤36 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.16 A
Fan Power Consumption 1.92 W
EAN 6933412705222
P/N DP-ICAS-T15P
