AN600

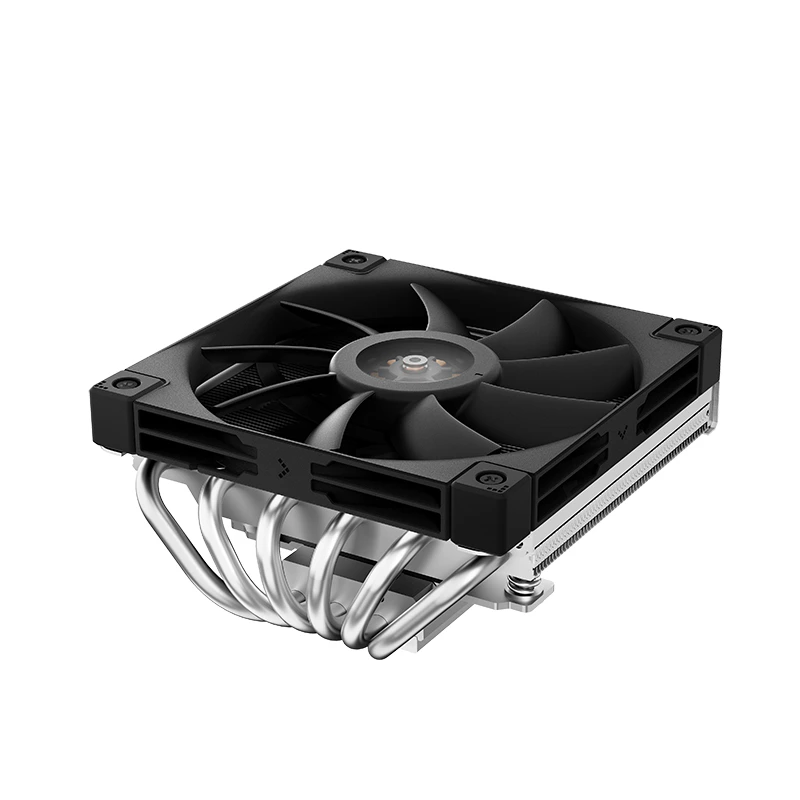

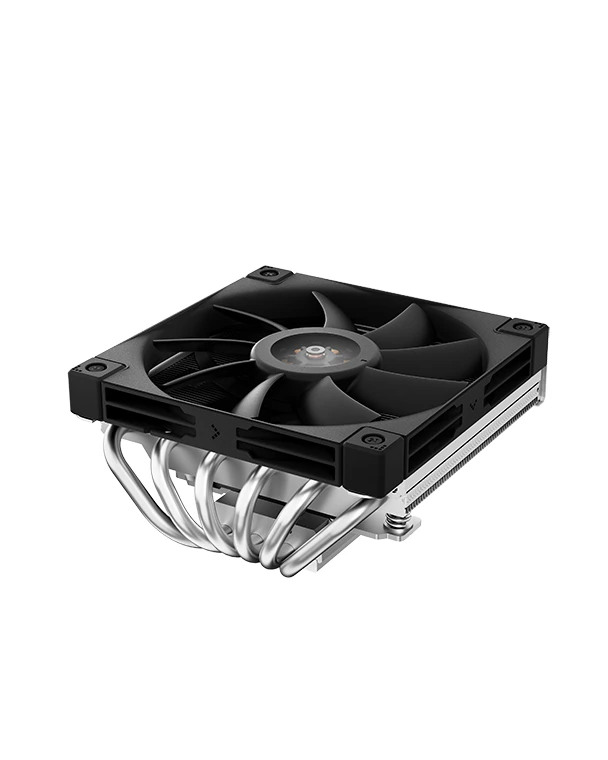

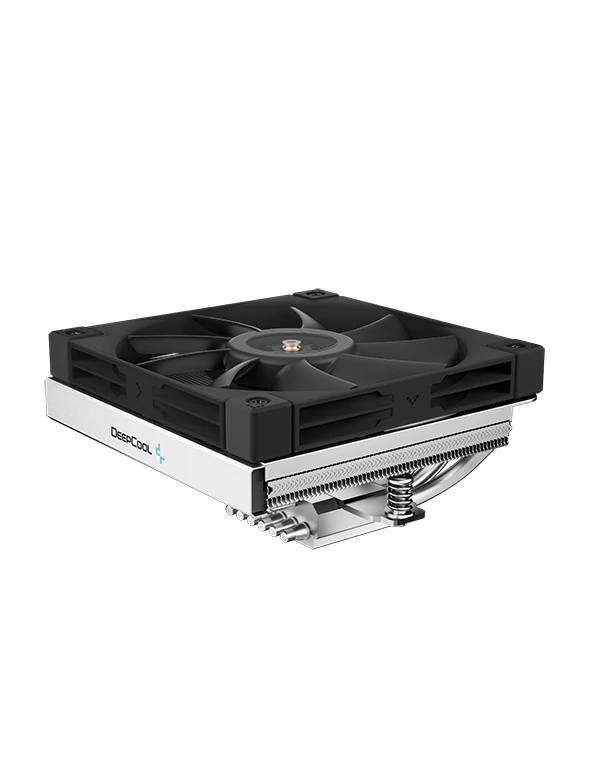

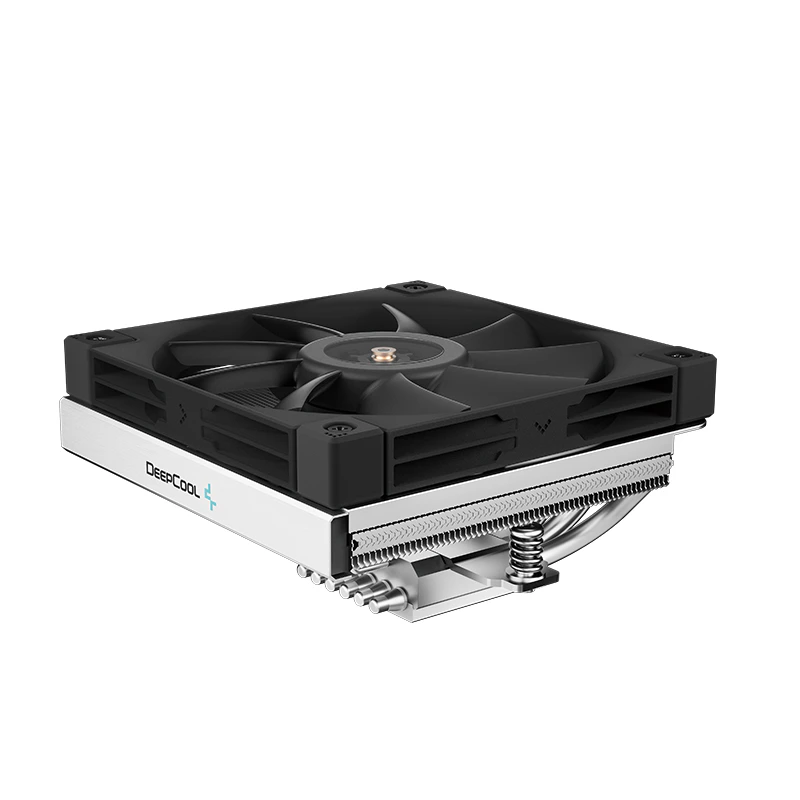

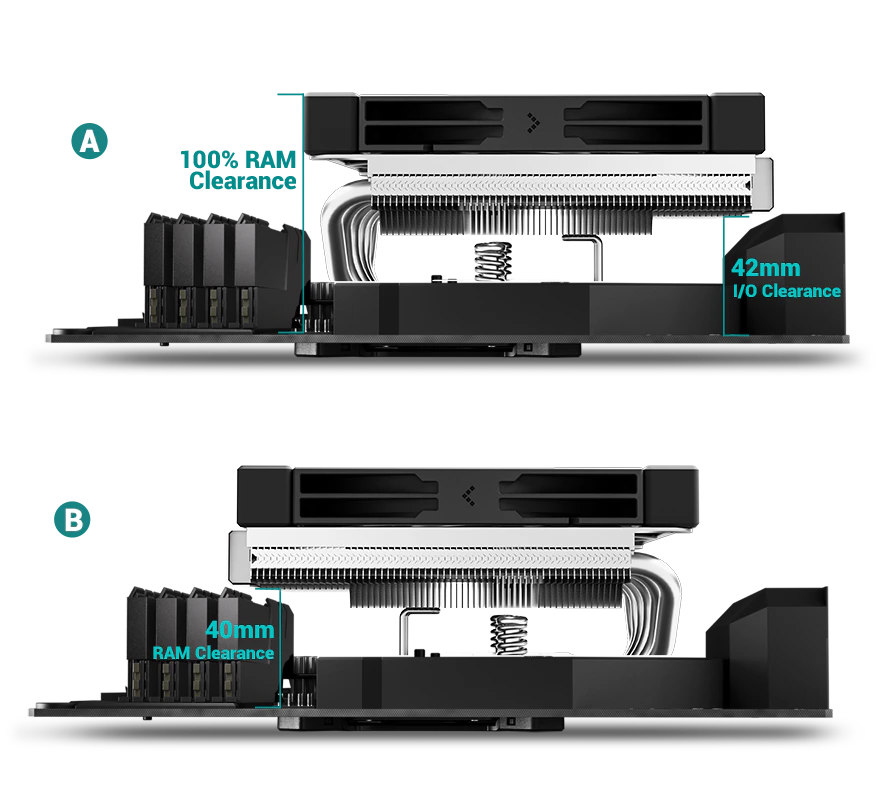

The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.

MODEL

AN600

Top Flow Low Profile Cooler

Keeping Things Cool

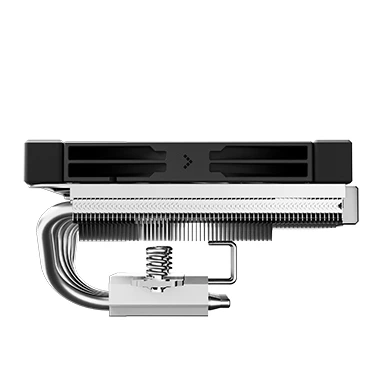

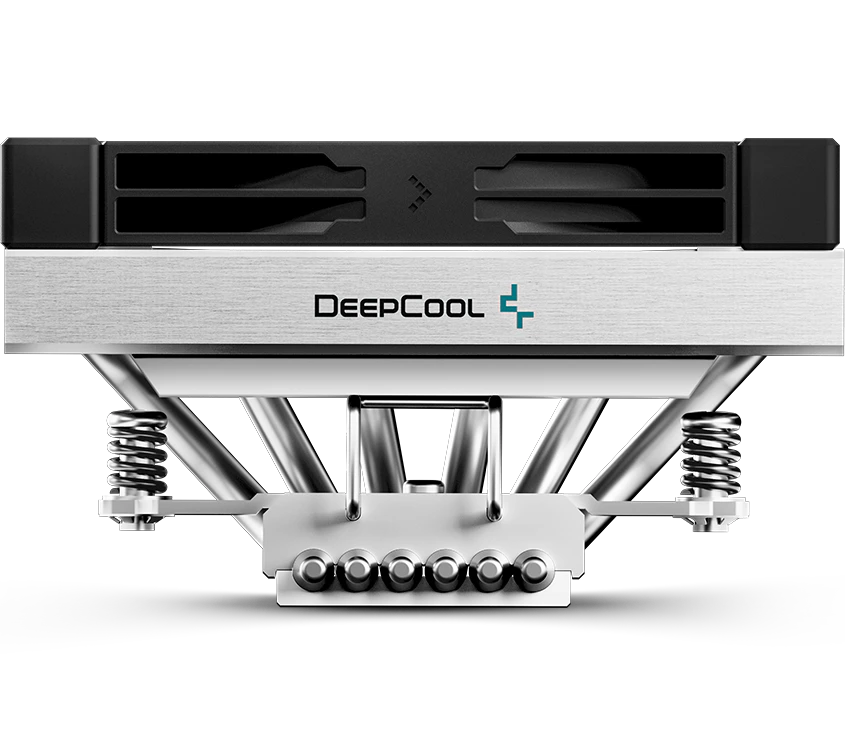

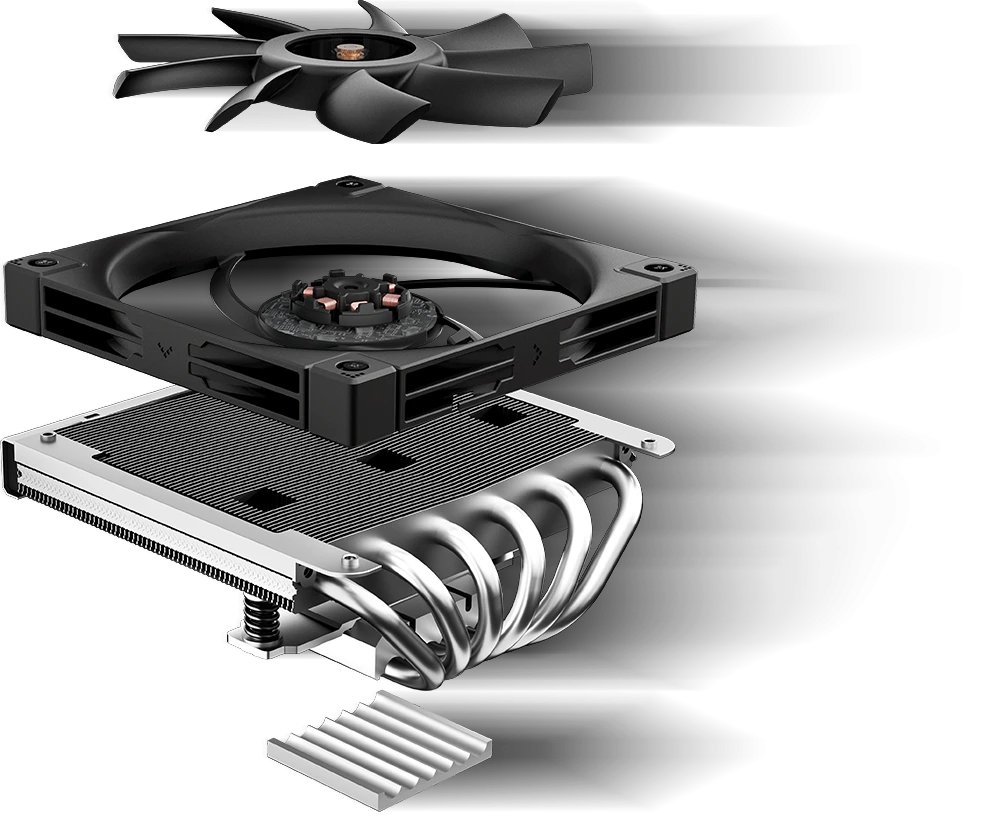

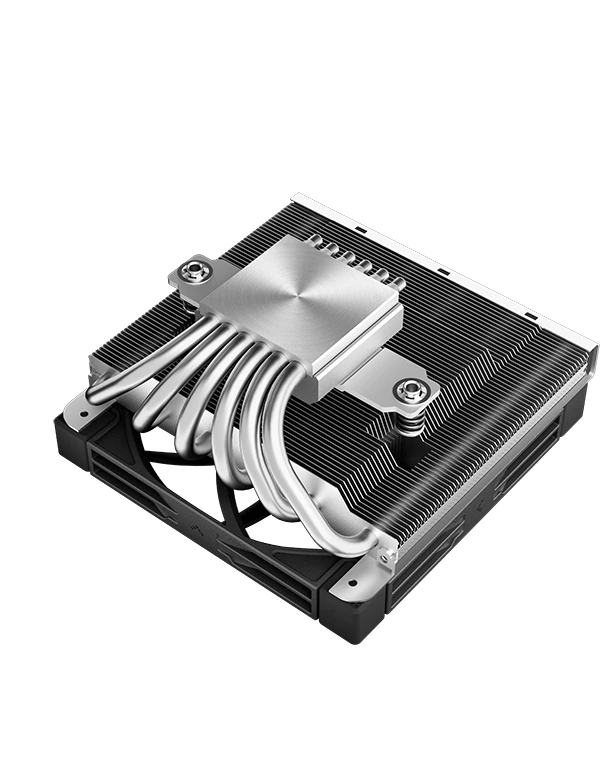

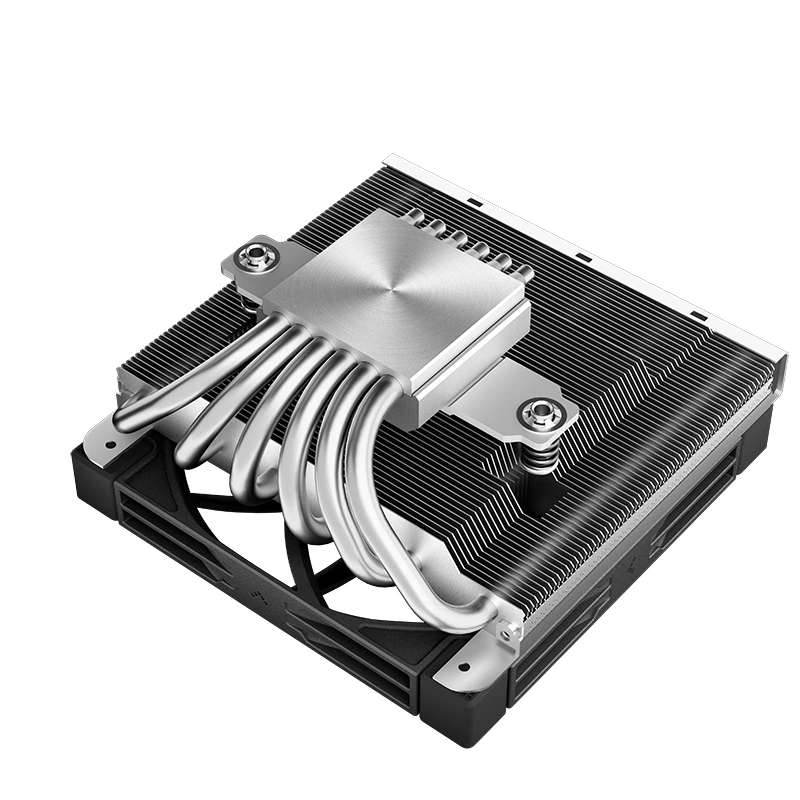

Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.

More Than
A CPU Cooler

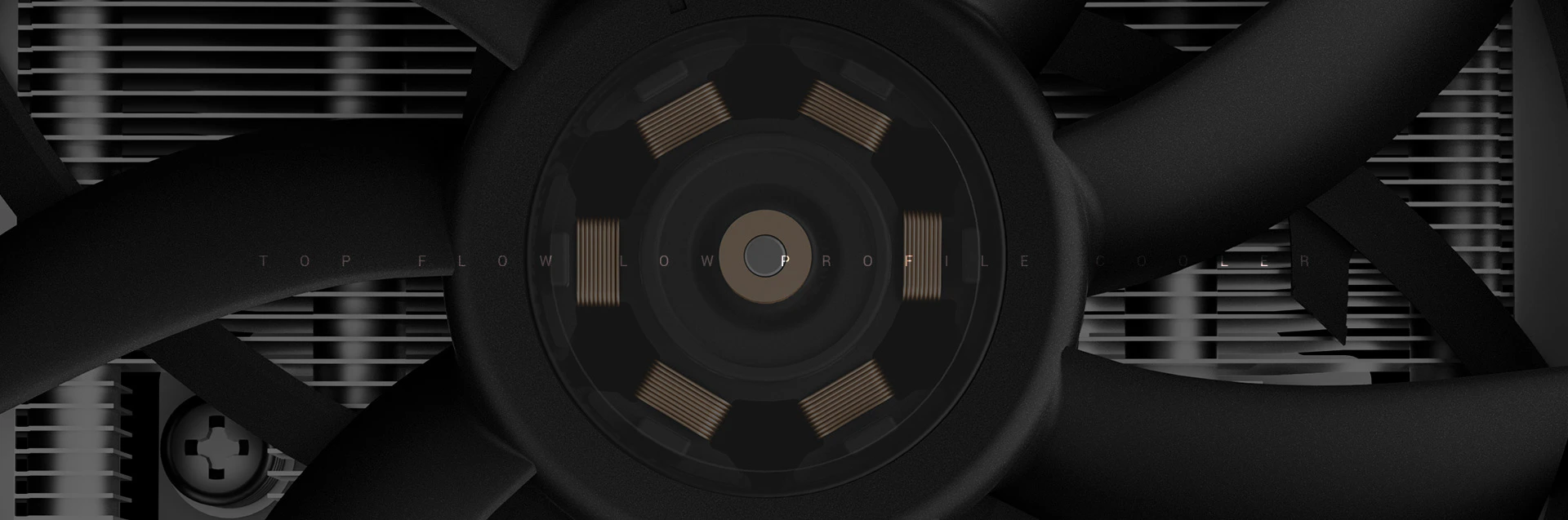

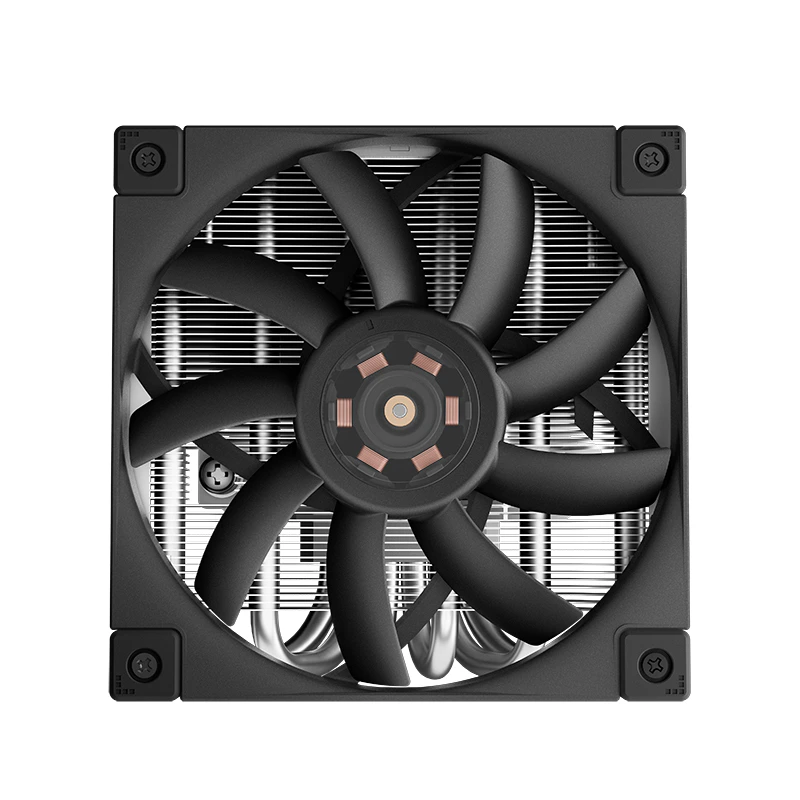

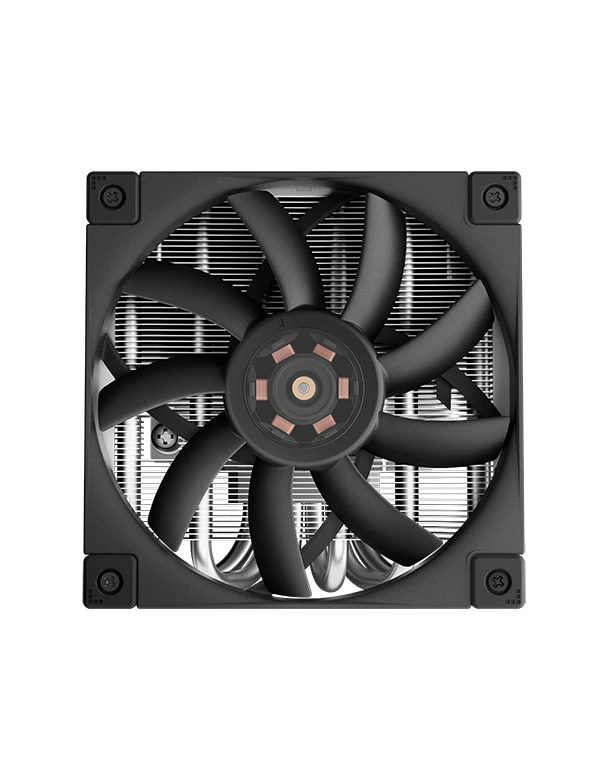

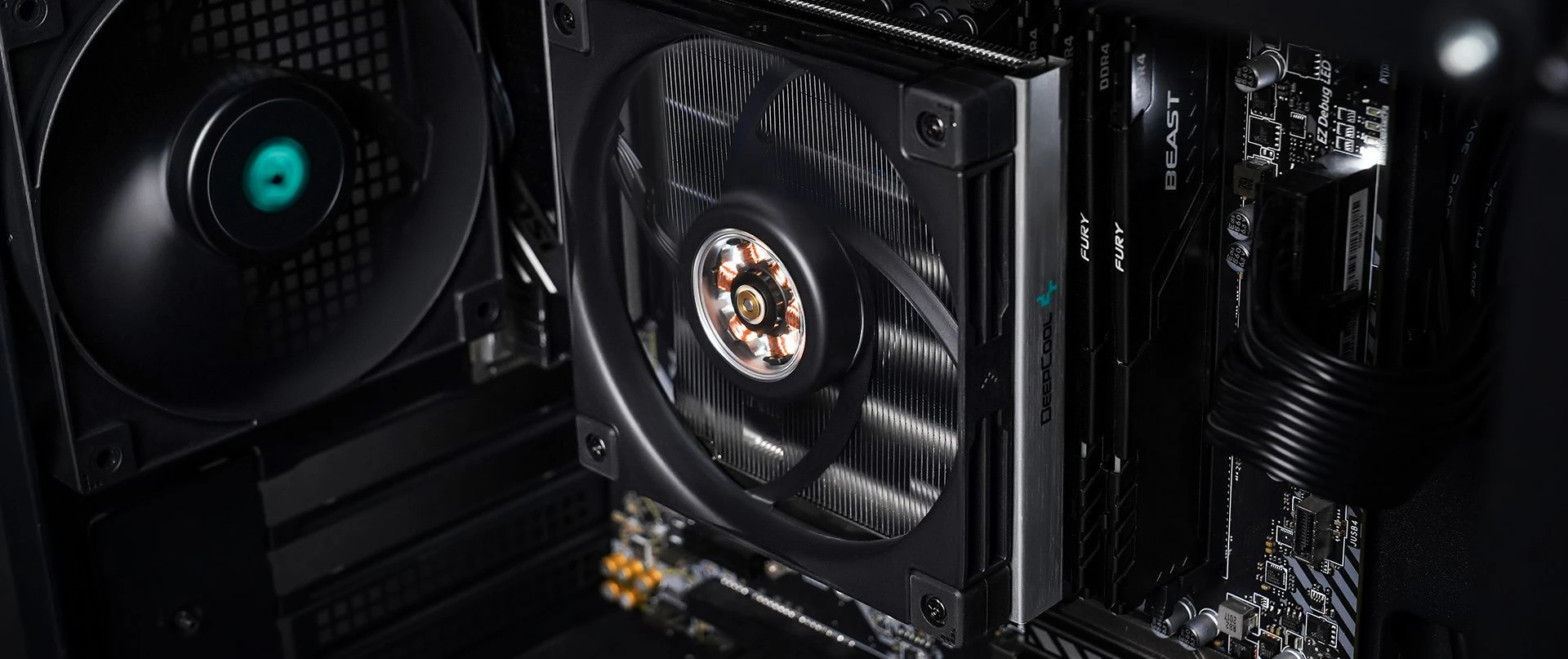

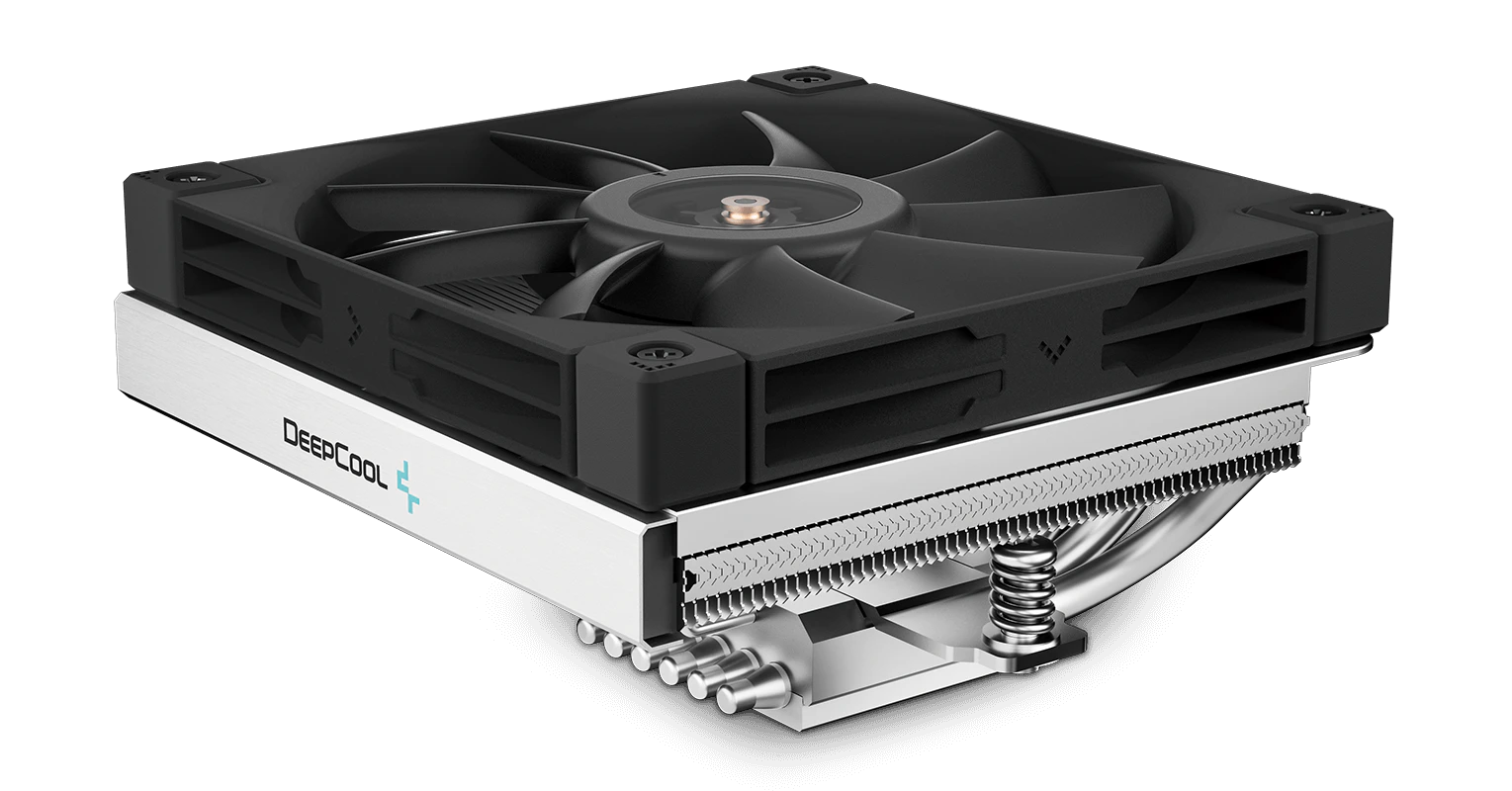

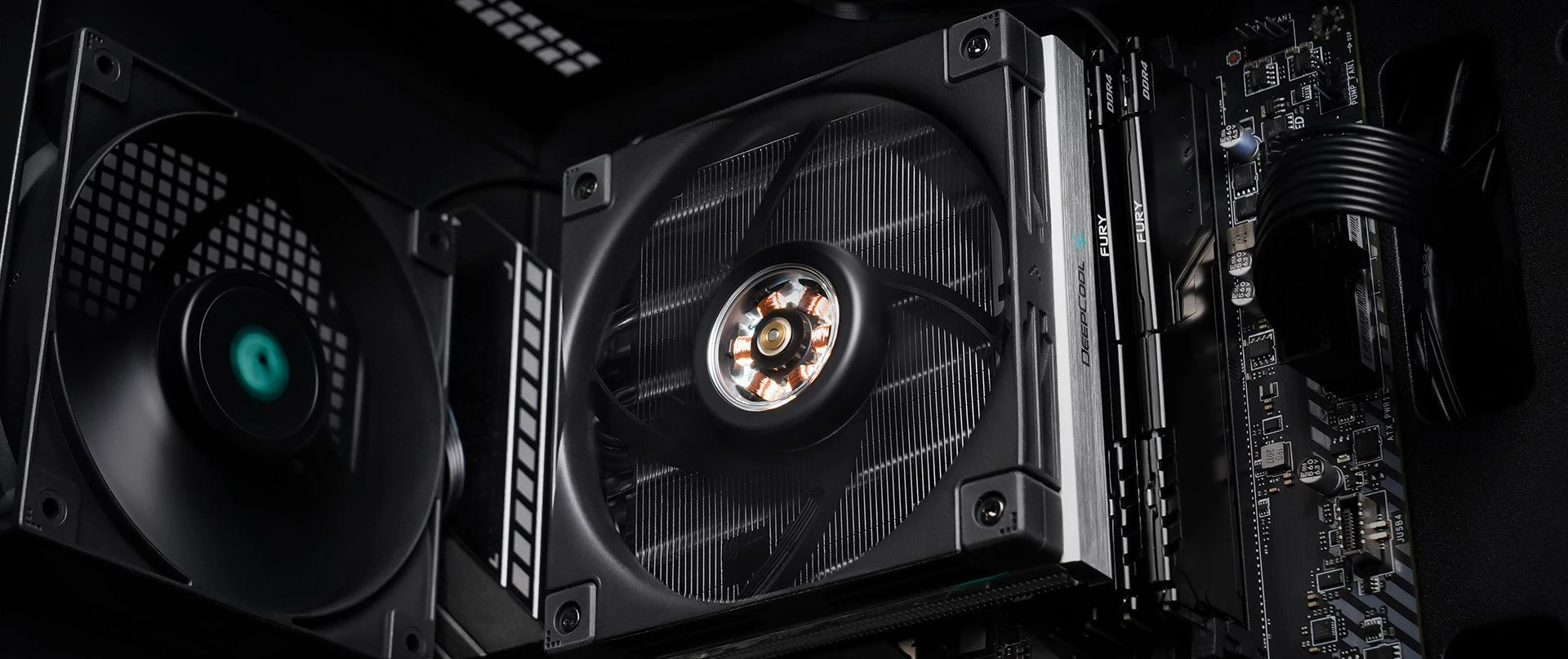

Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible three-phase, six-slot, four pole fan motor ensures all of this is accomplished while staying under 24.4 dB(A).

Simplified Support

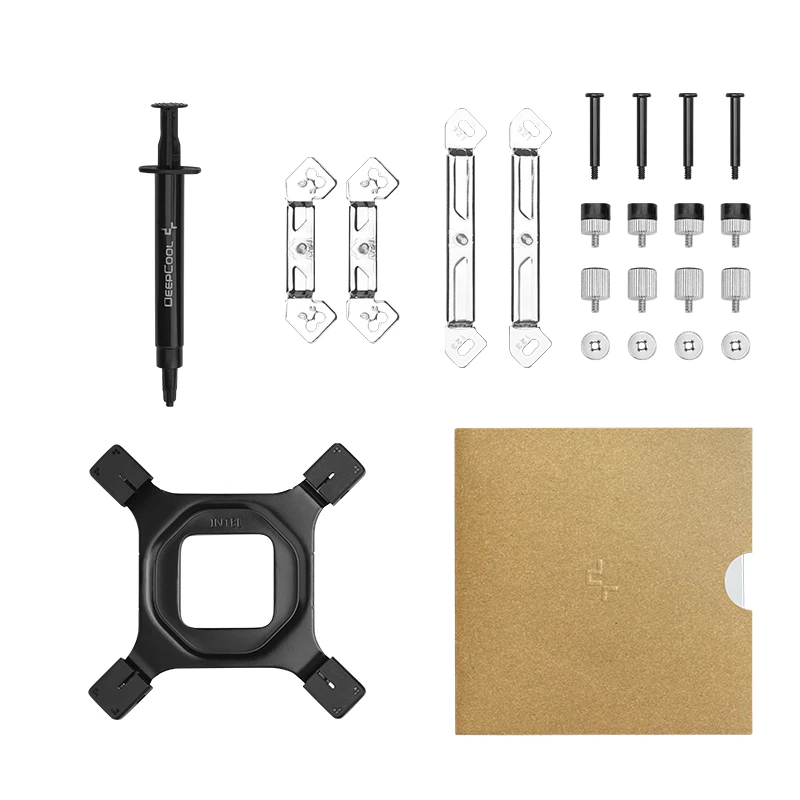

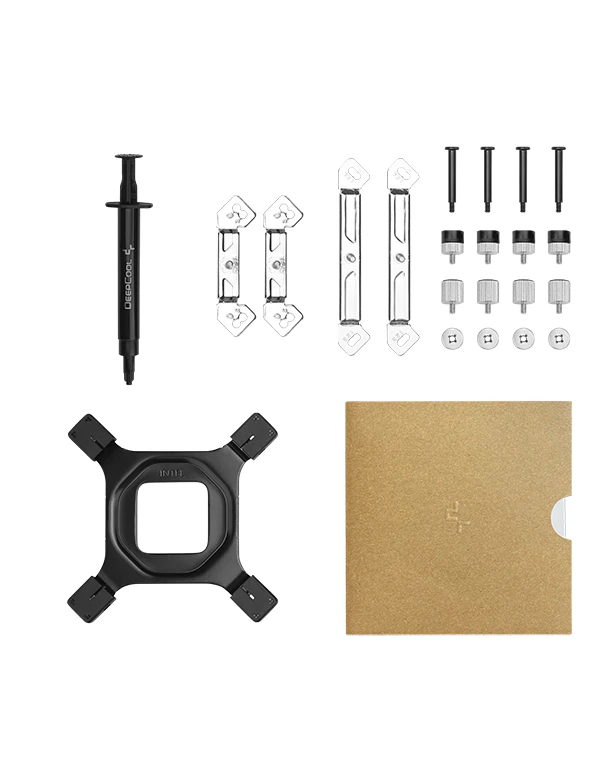

The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.

Application

INTEL: LGA1700/1200/1151/1150/1155

AMD: AM5/AM4

Application For

Intel

LGA1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions	122×120×67 mm(L×W×H)
Heatsink Dimensions	121×120×52 mm(L×W×H)
Net Weight	628 g
Heatpipe	Ø6 mm×6 pcs
Fan Dimensions	120×120×15 mm(L×W×H)
Fan Speed	500~1850 RPM±10%
Fan Airflow	61.56 CFM
Fan Air Pressure	1.97 mmAq
Fan Noise	≤24.4 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Fluid Dynamic Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.7 A
Fan Power Consumption	8.4W
LED Type	White LED
EAN	6933412728146
P/N	R-AN600-BKNNMN-G

Download

AN600 Manual.pdf
