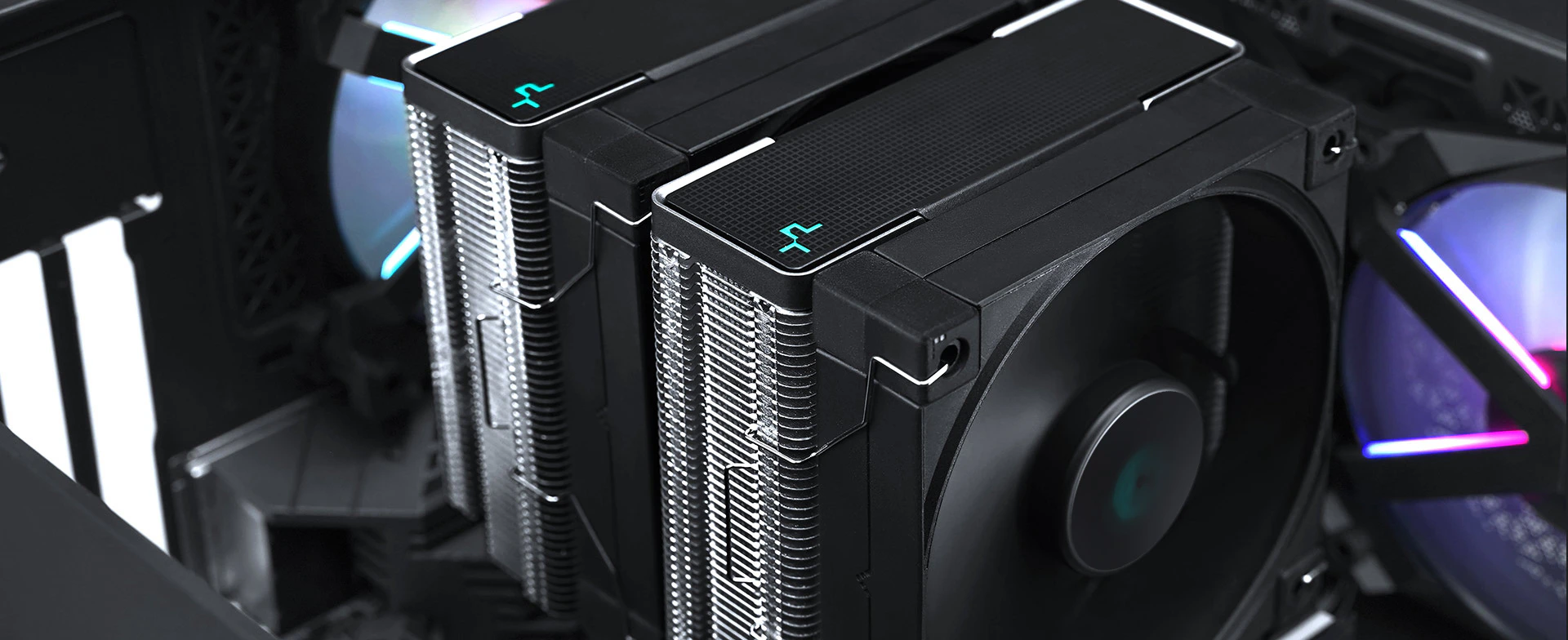

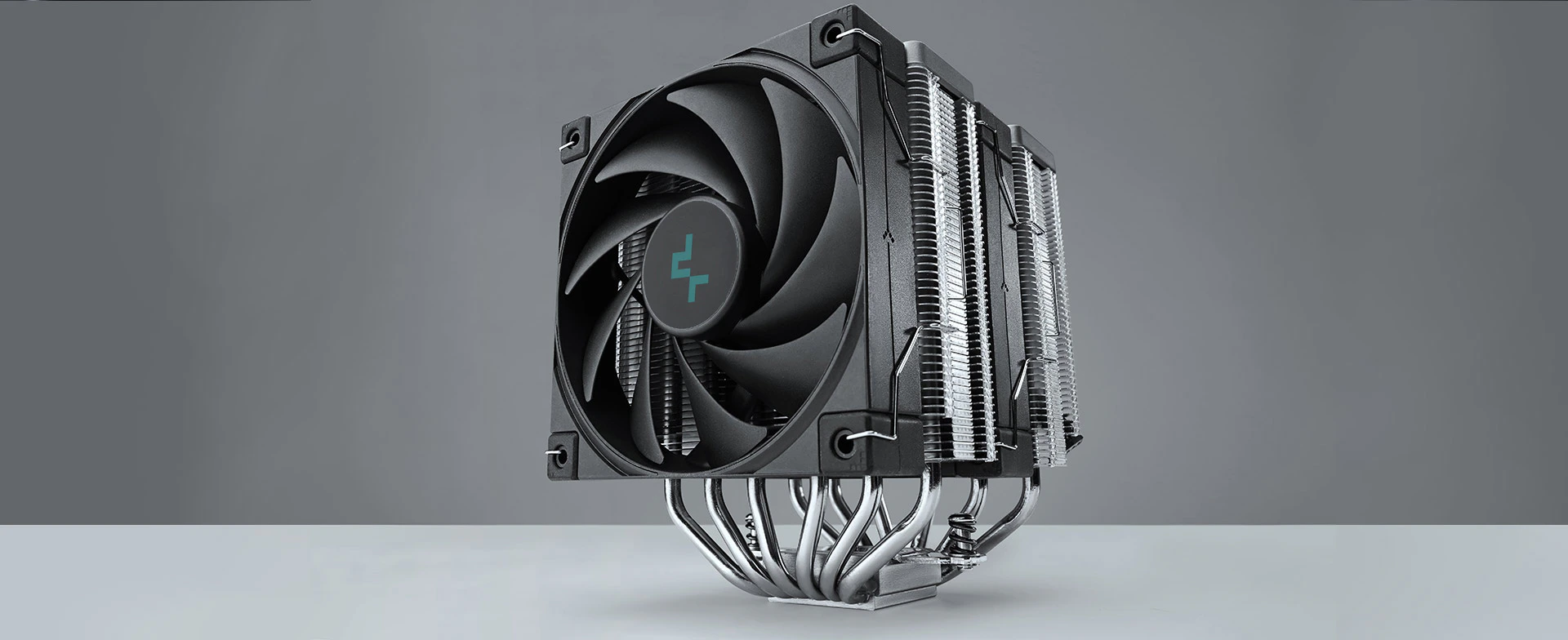

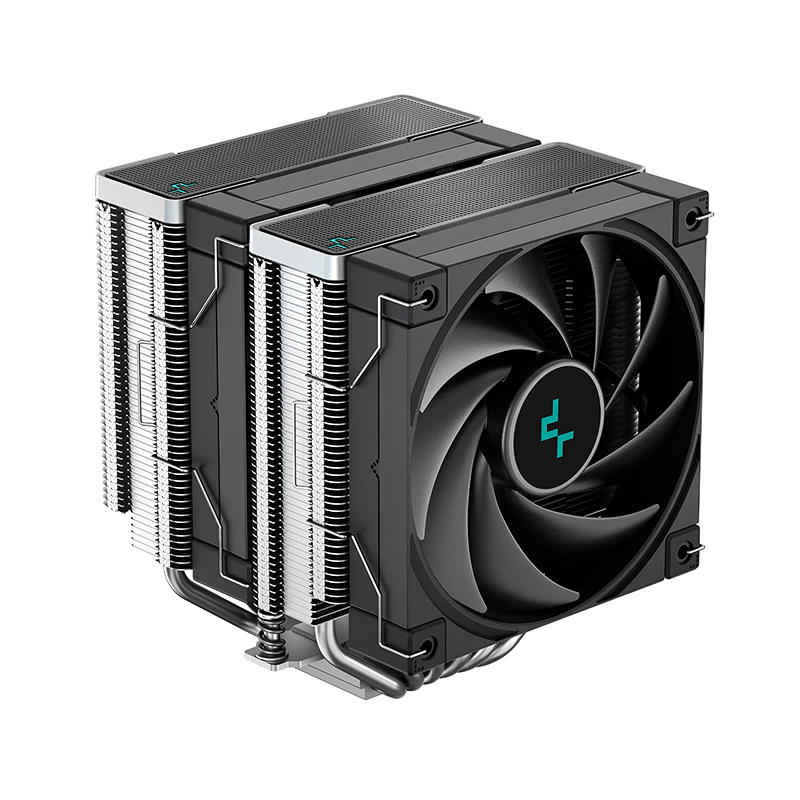

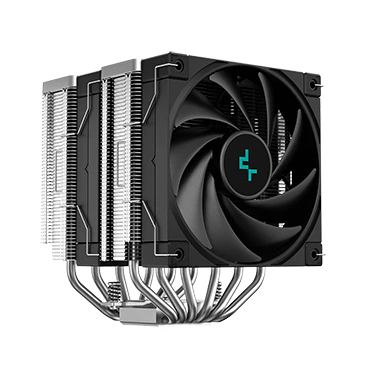

AK620

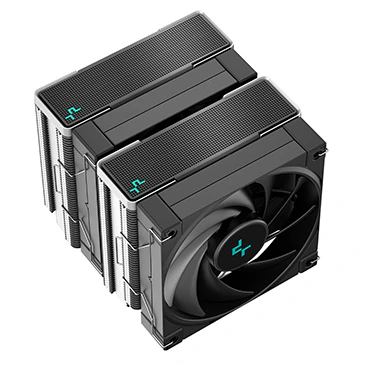

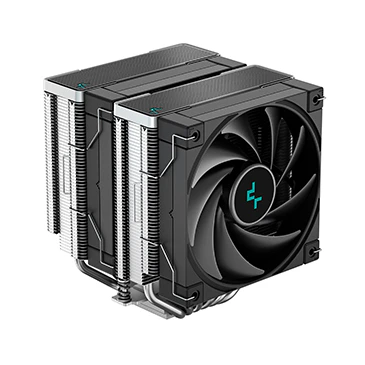

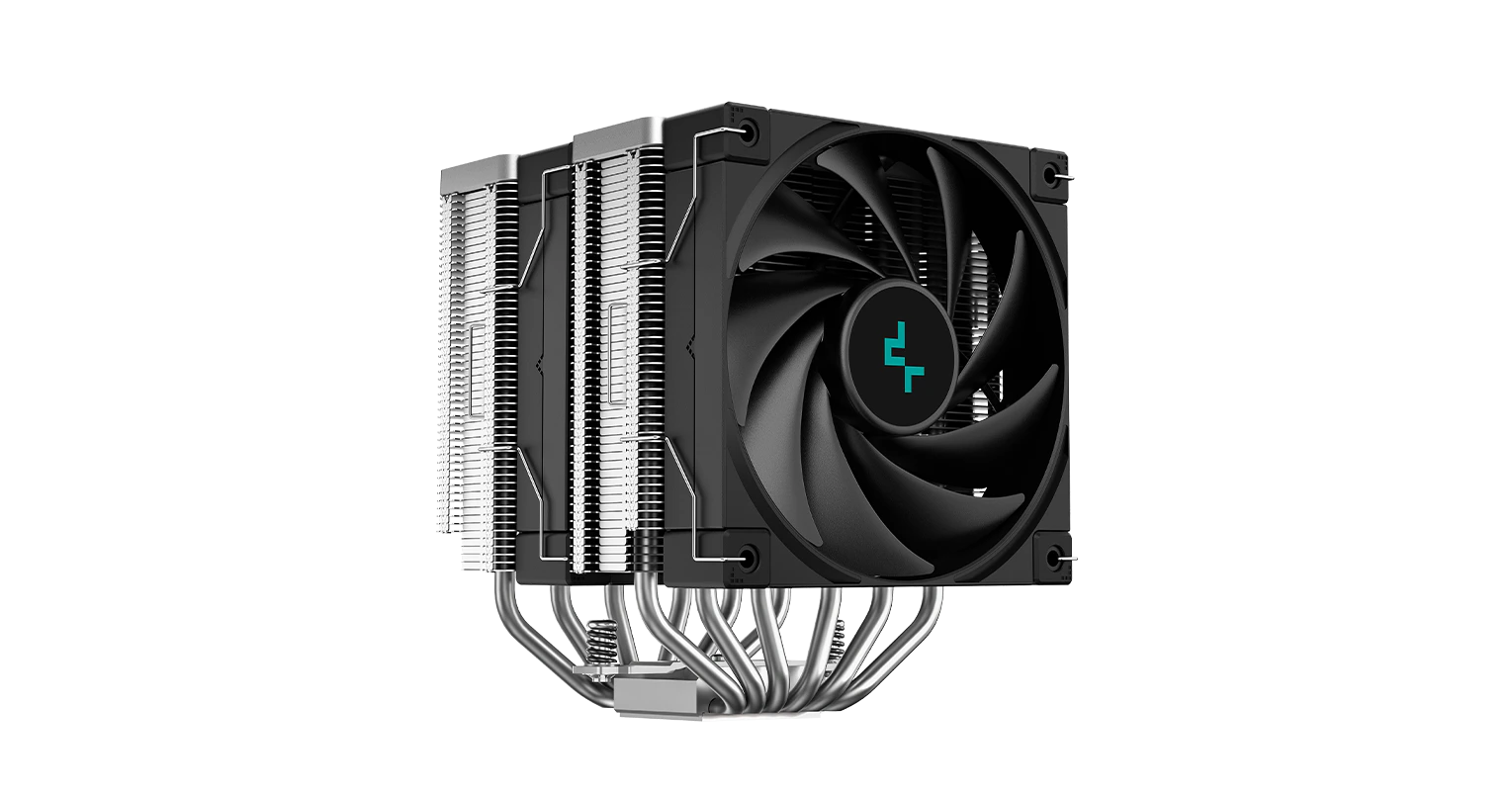

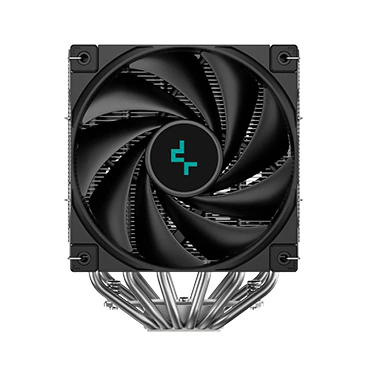

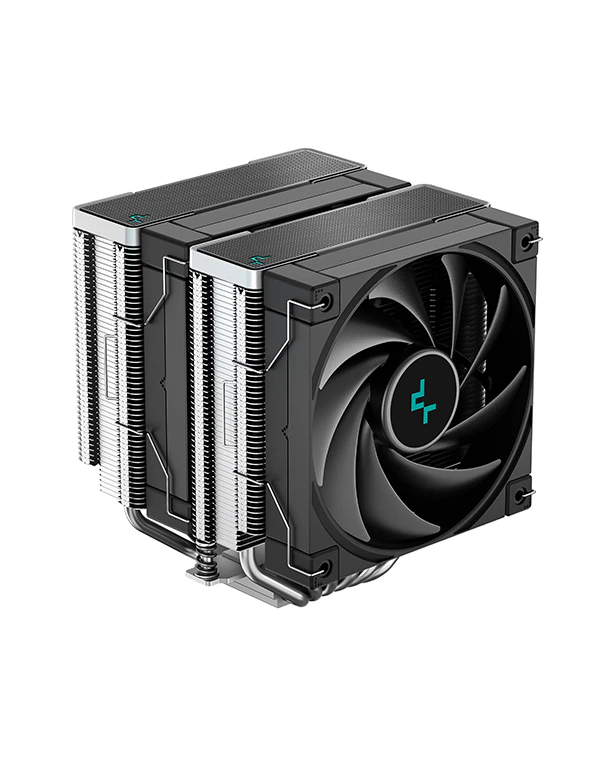

Achieve dominant cooling and silent efficiency with the DeepCool AK620 High Performance CPU Cooler equipped with six copper heat pipes stacked with a dense dual-tower fin array and two 120 FDB fans.
MODEL
AK620
High Performance Dual Tower CPU Cooler
Unlocked potential

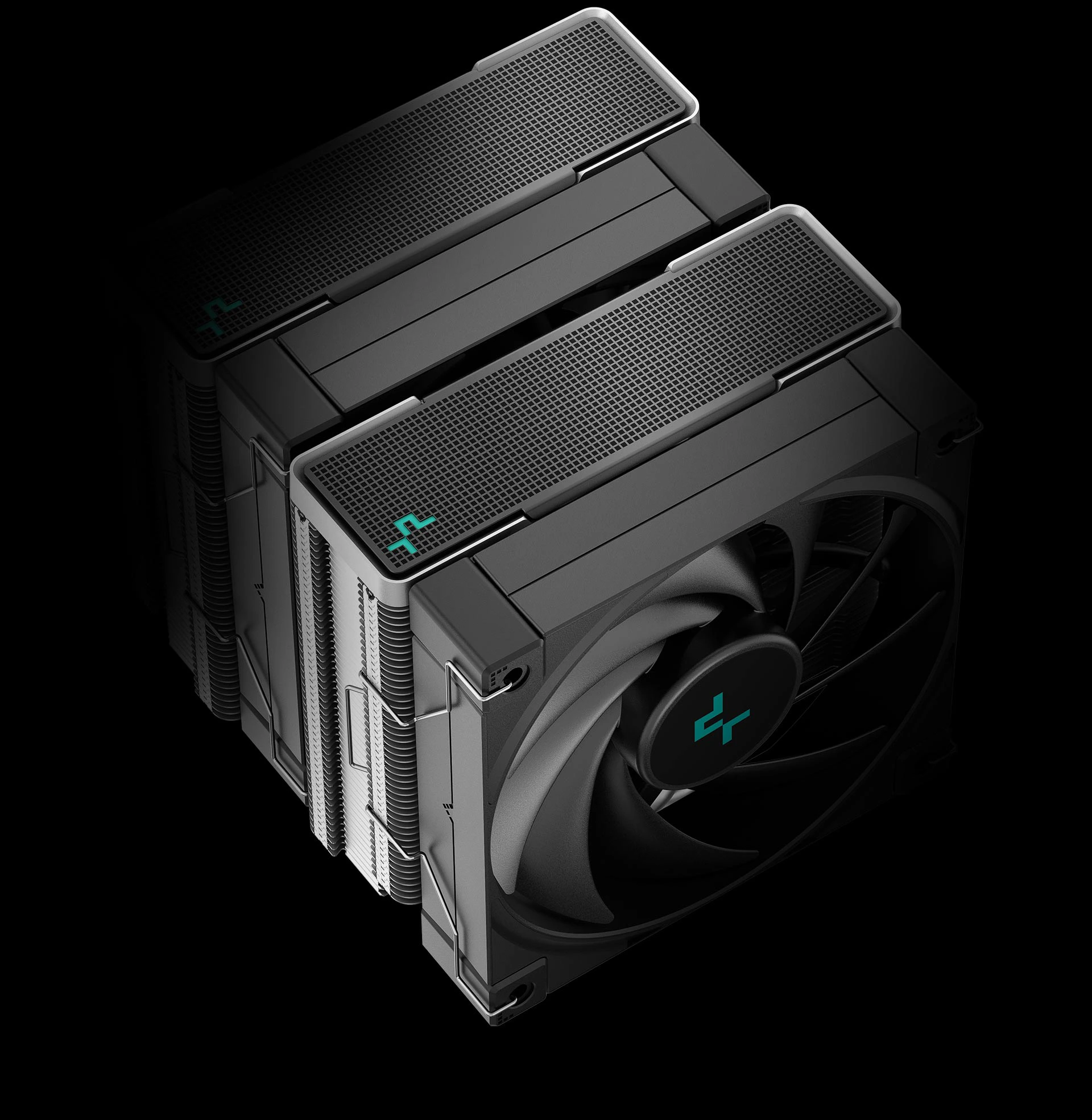

Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.
Fan Specs
―
-28 dBA
Full load noise
-500-1850 RPM
Dynamic PWM Range
-50,000 hours
Long operational lifespan
Cool,
quiet,
and powerful

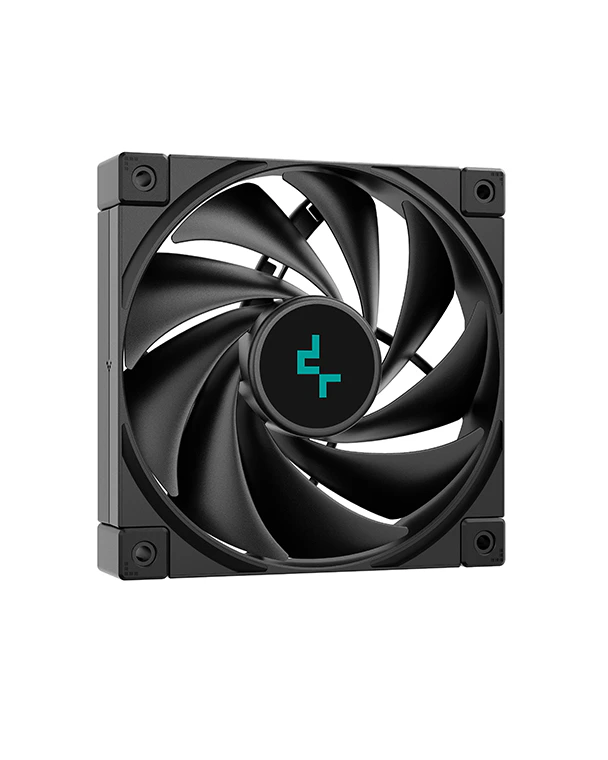

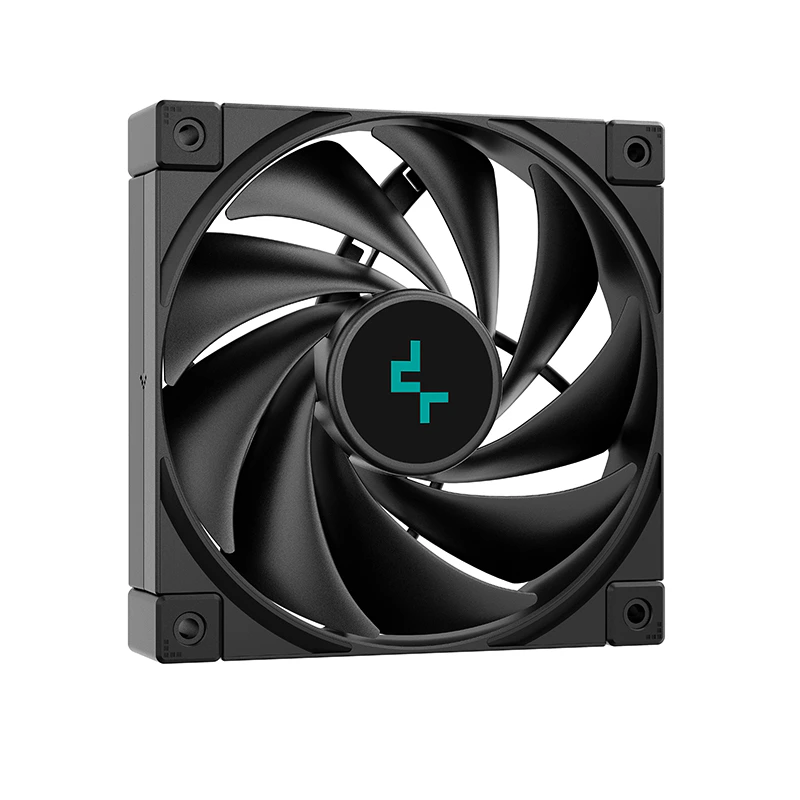

Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
Fan Specs
―
-28 dBA
Full load noise
-500-1850 RPM
Dynamic PWM Range
-50,000 hours
Long operational lifespan
Cool,
quiet,
and powerful
Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.

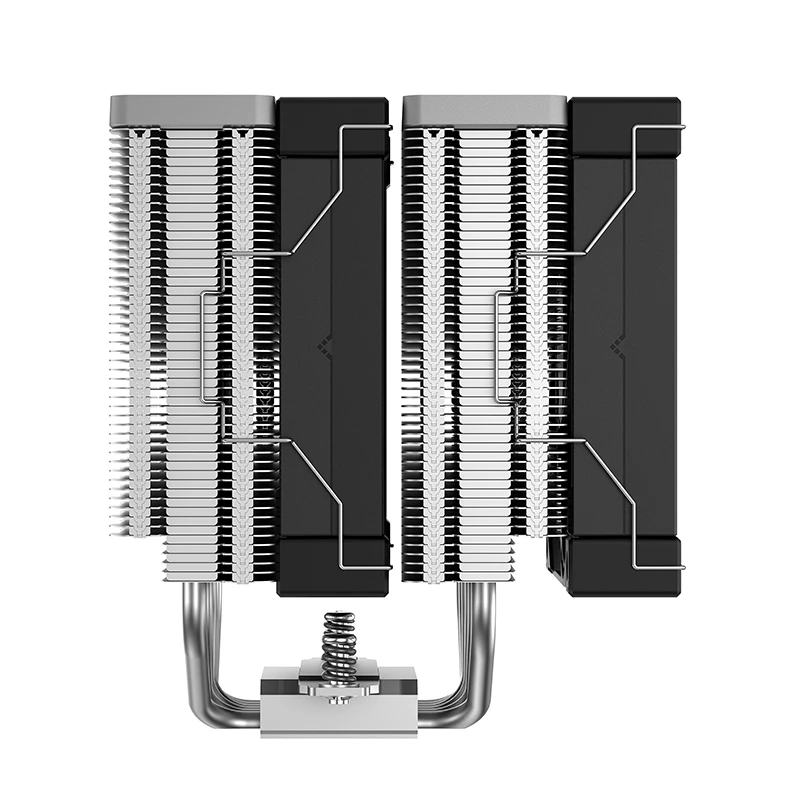

Exceptional cooling by design

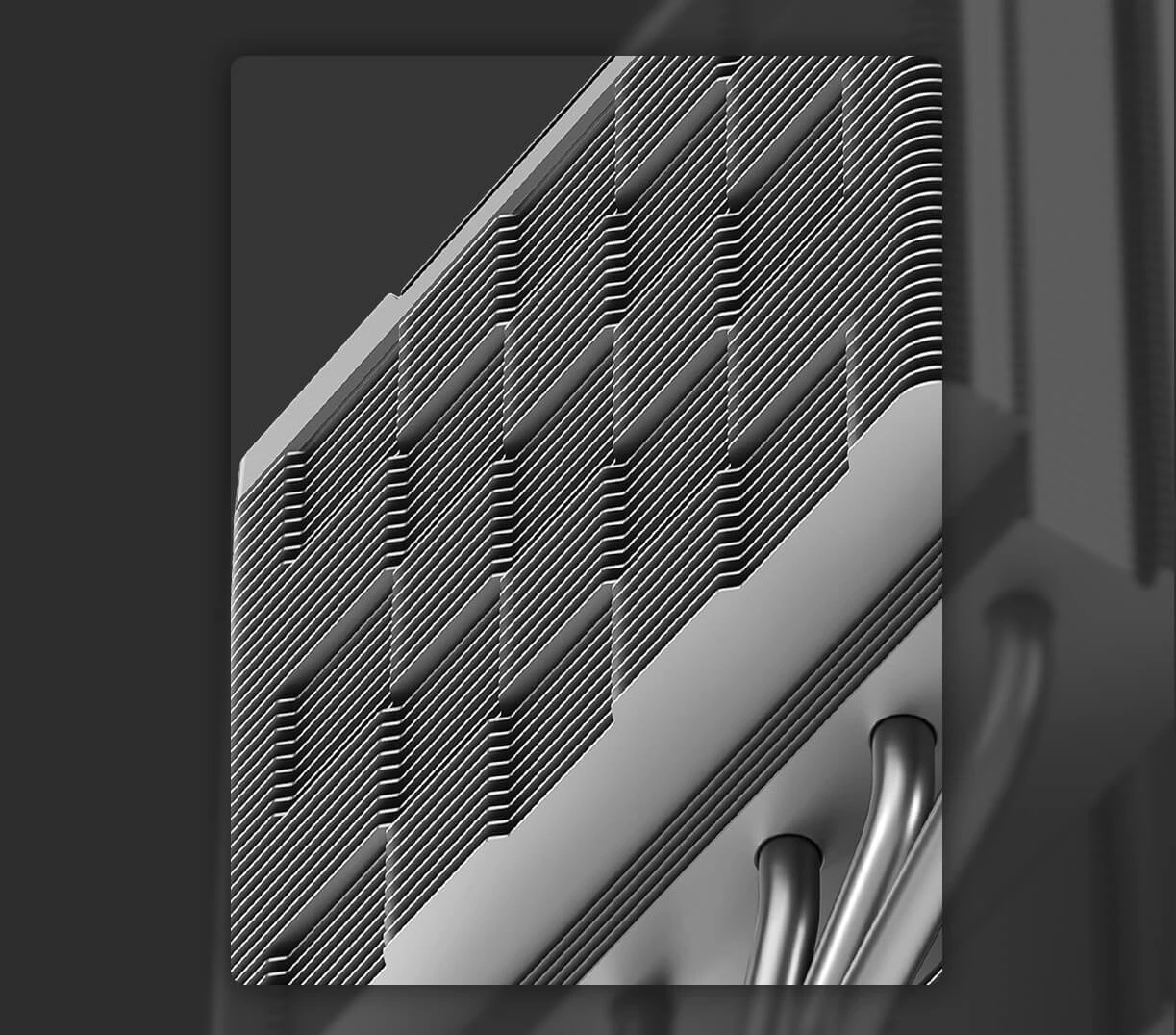

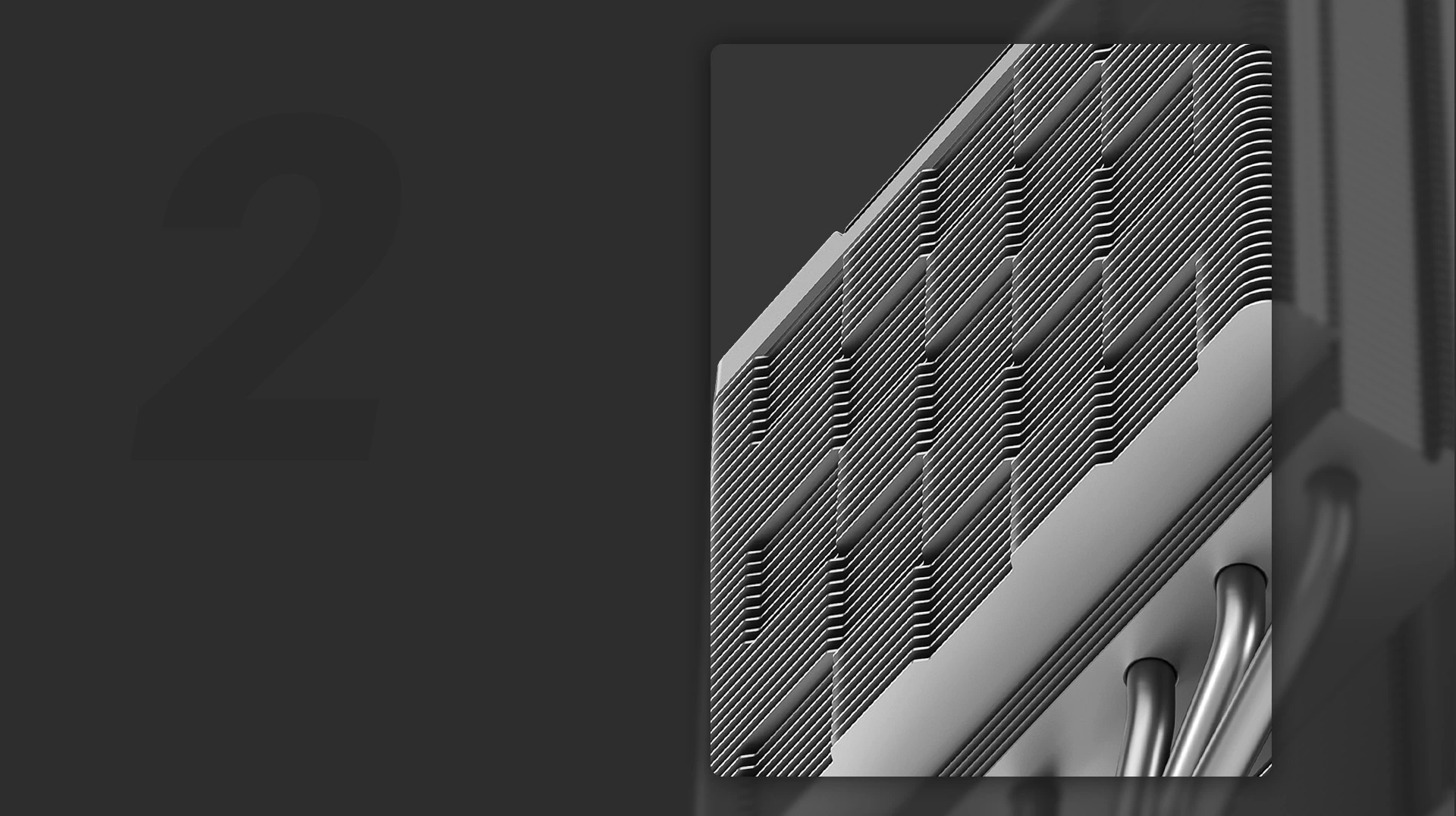

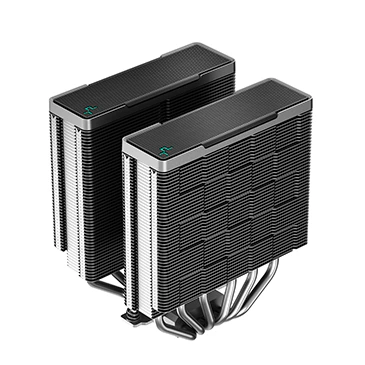

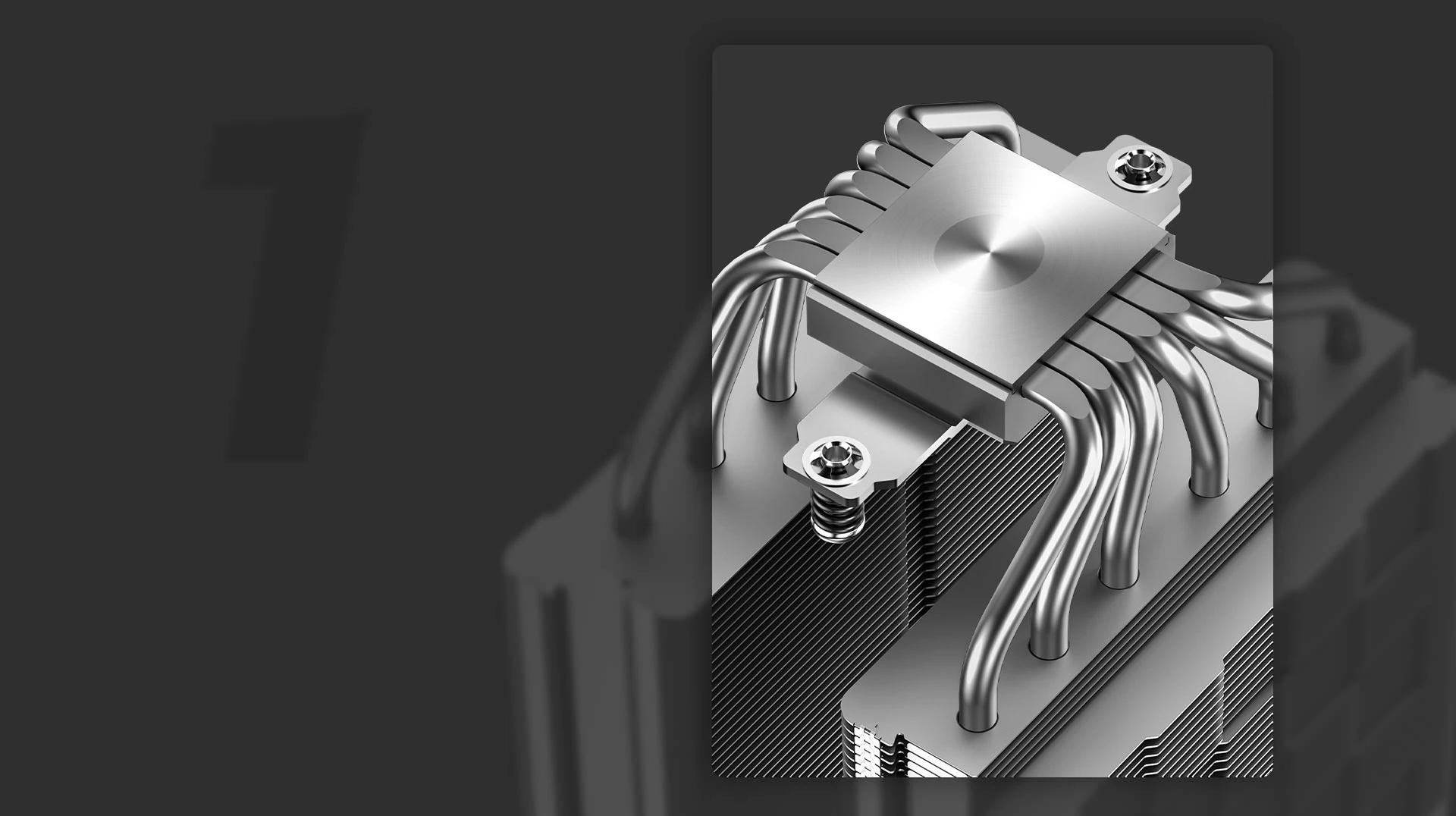

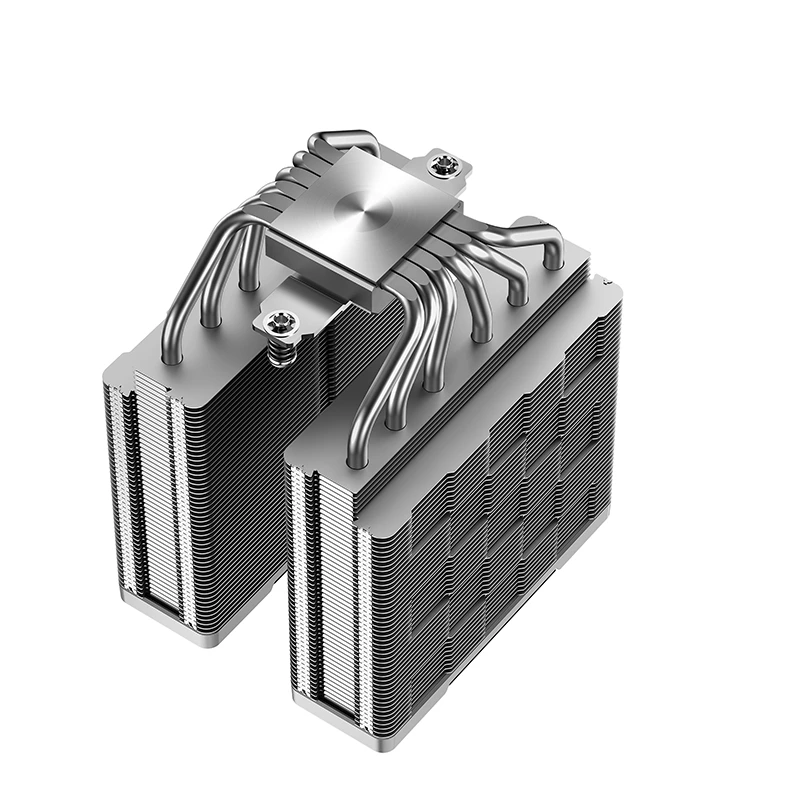

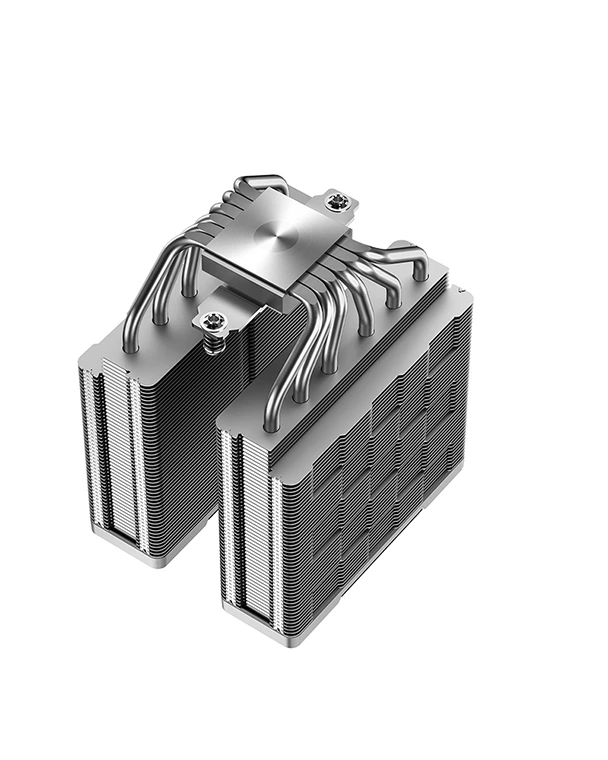

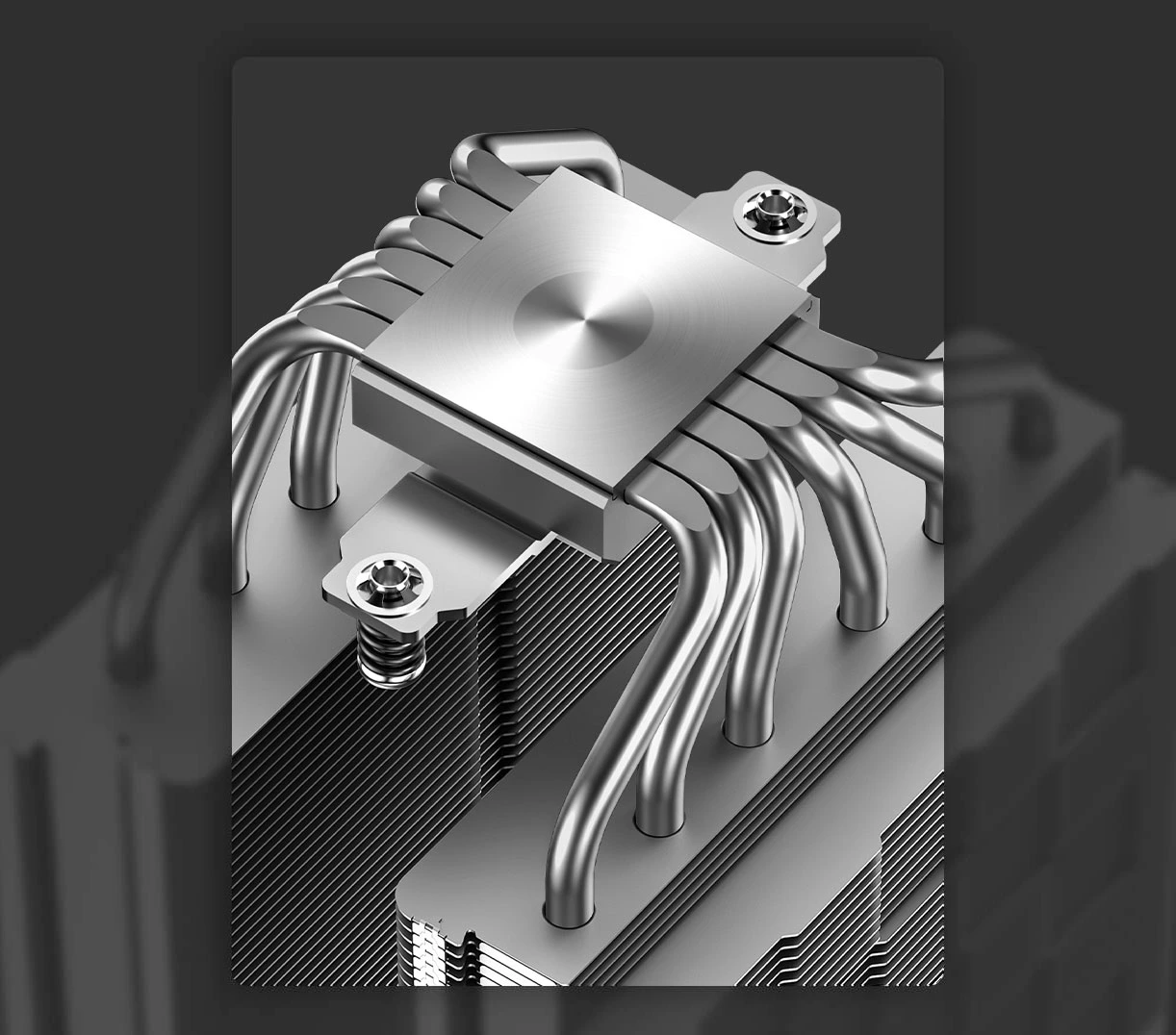

The AK620 features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
160mm Cooler height compatibility
43mm RAM height clearance*
(*59mm in single fan configurations)
Exceptional cooling by design
The AK620 features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
160mm Cooler height compatibility
43mm RAM height clearance*
(*59mm in single fan configurations)
Multi-platform simplicity

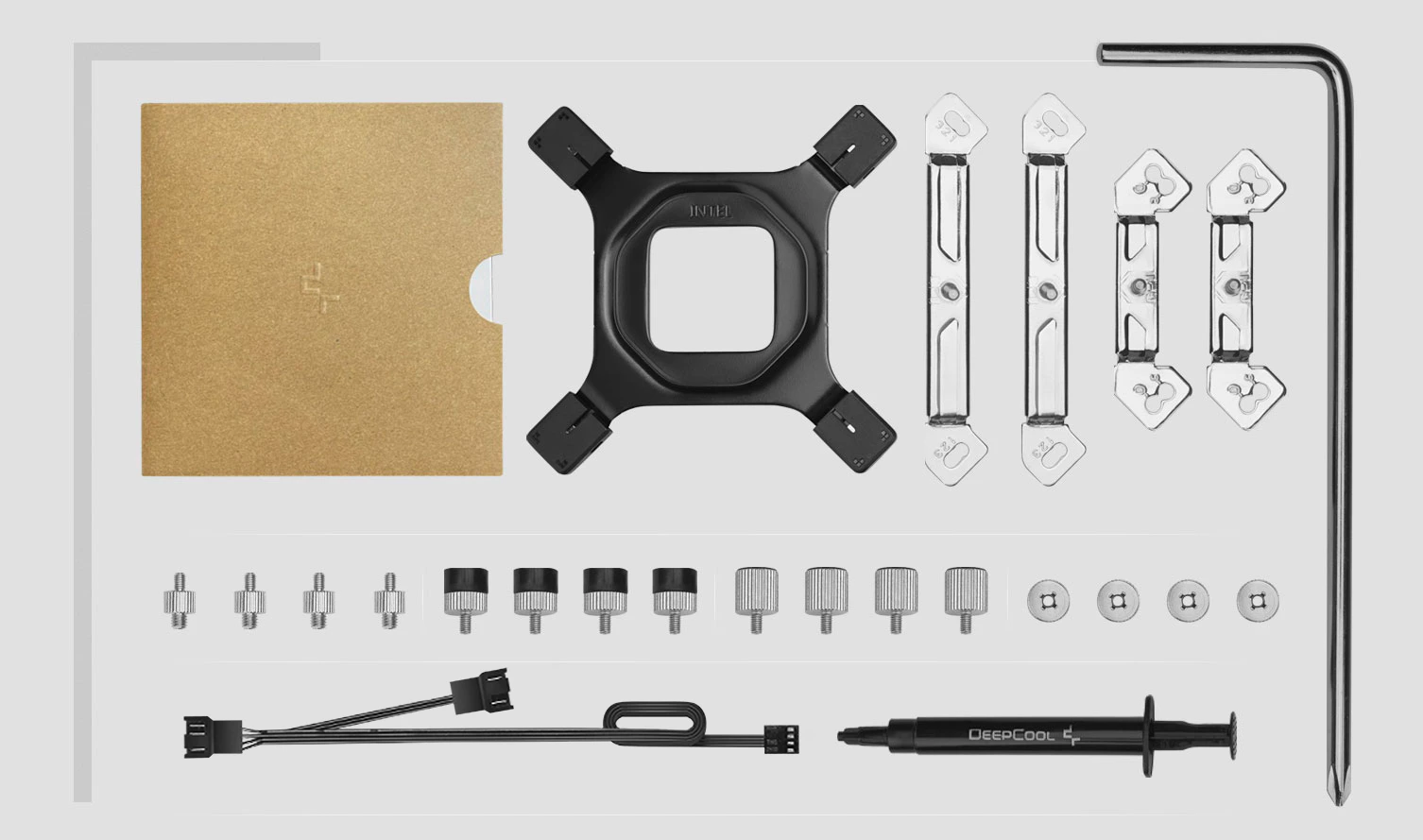

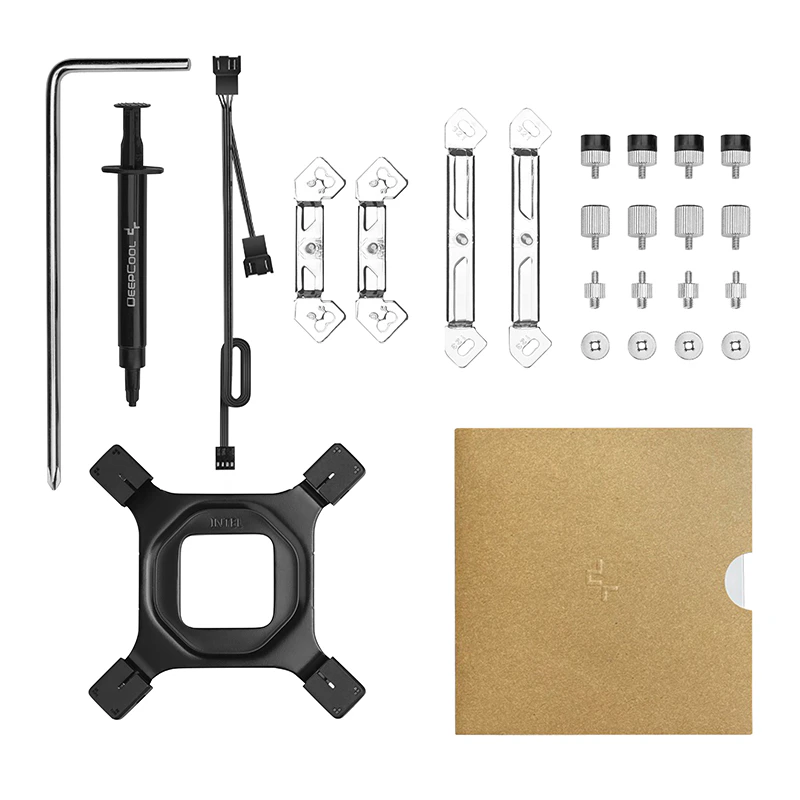

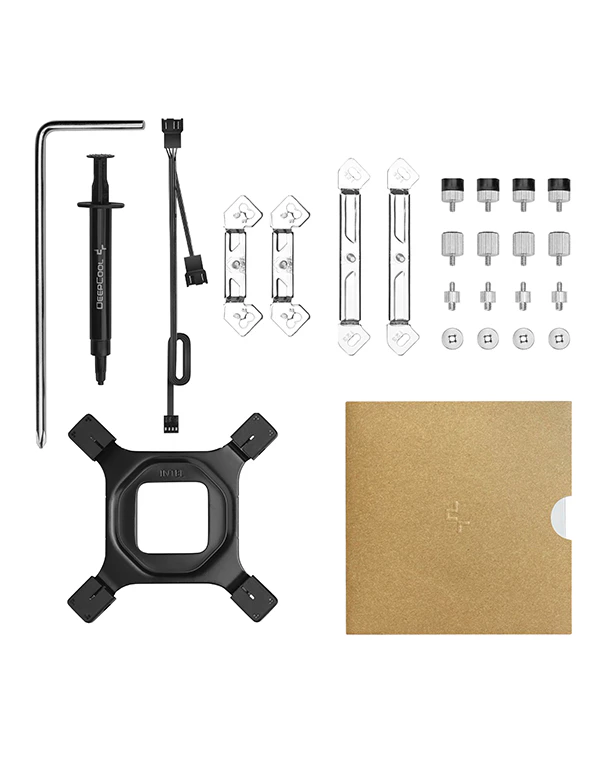

The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions129×138×160 mm(L×W×H)
Heatsink Dimensions127×110×157 mm(L×W×H)
Net Weight1456 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~1850 RPM±10%
Fan Airflow68.99 CFM
Fan Air Pressure2.19 mmAq
Fan Noise≤28 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.12 A
Fan Power Consumption1.44 W
EAN6933412727316
P/NR-AK620-BKNNMT-G

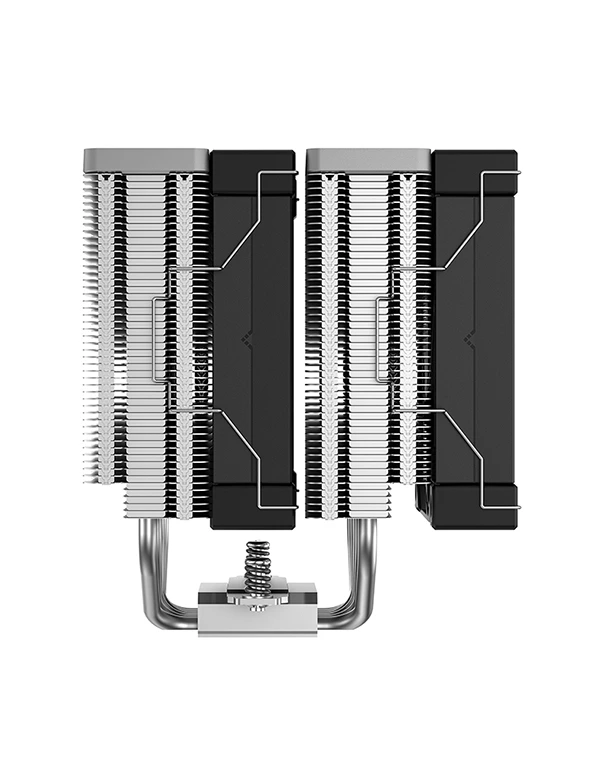

Product Dimension
