AK620 DIGITAL
The era of digital air coolers has arrived, and DeepCool is proud to introduce the AK620 DIGITAL. Everything you loved about the AK620 ZERO DARK, but with a sleek low-profile magnetic status display and ARGB LED strips.
MODEL
AK620 DIGITAL
WELCOME TO THE DIGITAL ERA

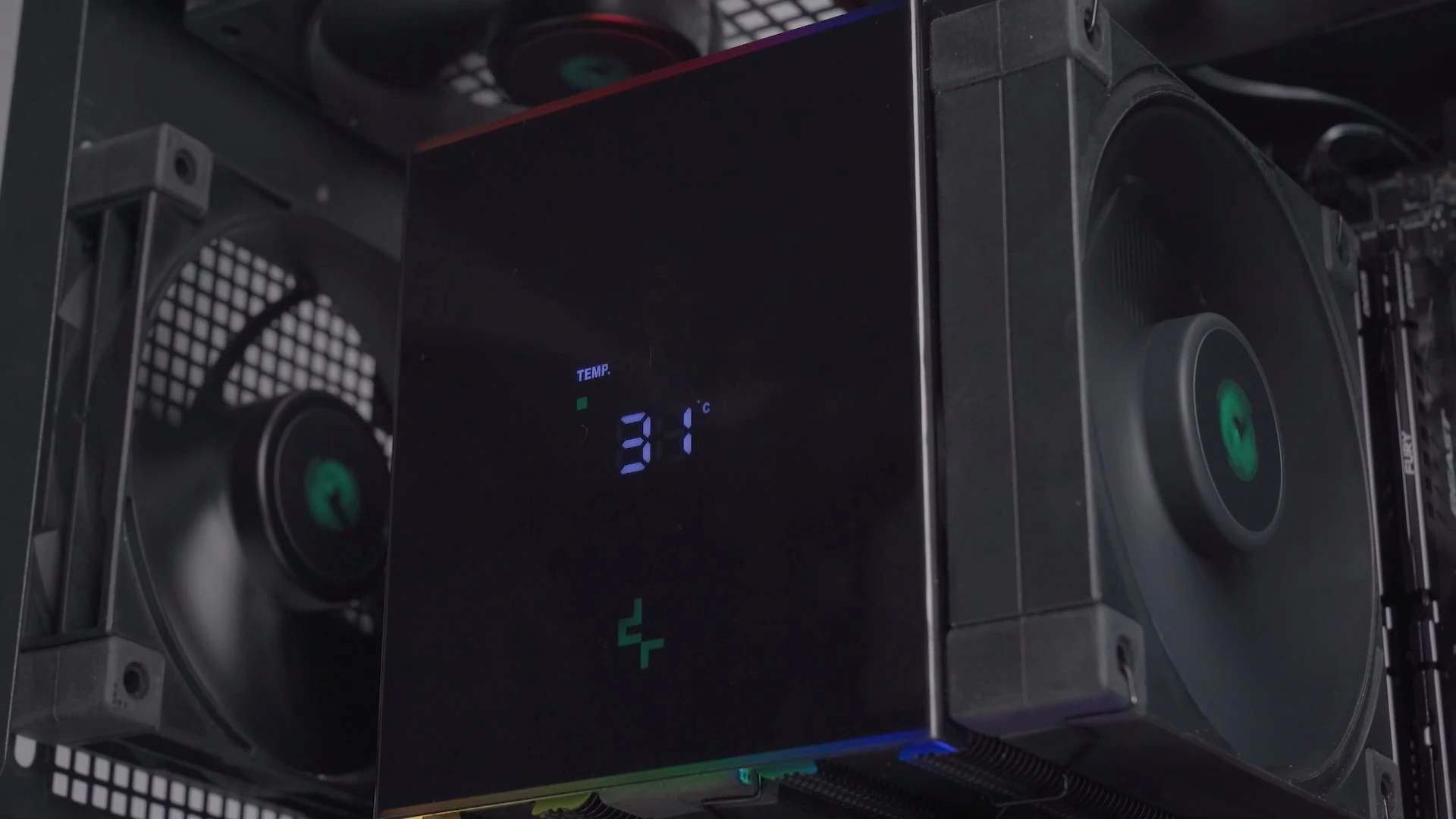

REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
PROVEN AK ZERO DARK DESIGN
An all-black edition of the dominant AK620 high-performance CPU cooler. The same premium quality materials, featuring six advanced copper heat pipes, a pure copper coldplate, a dense dual-tower heat sink, and two silent FDB fans, produce a powerful winning formula for high performance cooling in a ZERO DARK raven design.
UNLOCKED
POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 DIGITAL features maximum heat dissipation power and improved airflow to lower temperatures during demanding system applications.
FAN SPECS
28 dBA
Full load noise
500-1850 RPM
Dynamic PWM Range
3 Years
Limited Warranty Coverage
COOL, QUIET,
AND POWERFUL
Two powerful PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
SIMPLE AND SECURE INSTALLATION
The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Application For
Intel
LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions129×138×162 mm(L×W×H)
Heatsink Dimensions127×110×157 mm(L×W×H)
Net Weight1486 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~1850 RPM±10%
Fan Airflow68.99 CFM
Fan Air Pressure2.19 mmAq
Fan Noise≤28 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.12 A
Fan Power Consumption1.44 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage5 VDC
LED Power Consumption4.75 W
EAN6933412728221
P/NR-AK620-BKADMN-G
