AG620 BK ARGB
The DeepCool AG620 BK ARGB is a dual-tower 120mm CPU cooler that boasts impressive 260W cooling power performance that's been stripped down and optimized for terrific efficiency throughout.
MODEL
GAMMAXX SERIES
AG620 BK ARGB
Dual-Tower CPU Cooler with 260W TDP
The DeepCool AG620 BK ARGB is a dual-tower 120mm CPU cooler that boasts impressive 260W cooling power performance that's been stripped down and optimized for terrific efficiency throughout.
Substantial Cooling Power
Keep things cool with up to 260W of heat dissipation power to ensure your system is performing at its peak without a sweat.
Balanced Bidirectional Heat Pipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.
High Efficiency Fans
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
300-1850 RPM
≤29.4 dB(A)
67.88 CFM
Matrix Fins Array
High-quality aluminum fins on the heat sink are densely stacked for ideal heat dissipation and which also features a unique "checkerboard" design aesthetic.
OPTIMIZED COOLING

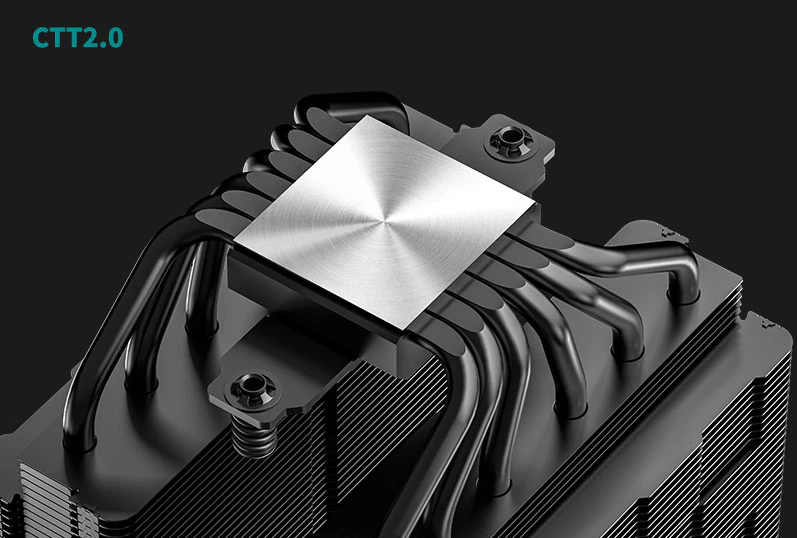

An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.
Simple and Secure
The included all-metal mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure.
Application For
Intel
LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions129×136×157 mm(L×W×H)
Heatsink Dimensions127×110×157 mm(L×W×H)
Net Weight1300 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed300~1850 RPM±10%
Fan Airflow67.88 CFM
Fan Air Pressure2.04 mmAq
Fan Noise≤29.4 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.14 A
Fan Power Consumption1.68 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption1.05 W
EAN6933412727828
P/NR-AG620-BKANMN-G-2
Product Dimension
Download
AG620 BK ARGB Manual.pdf
