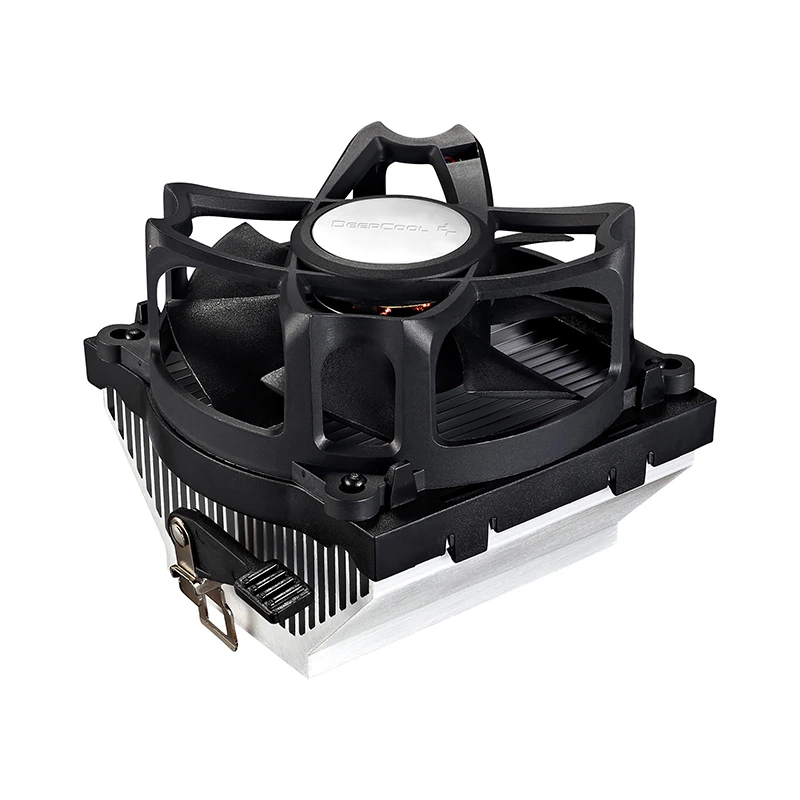

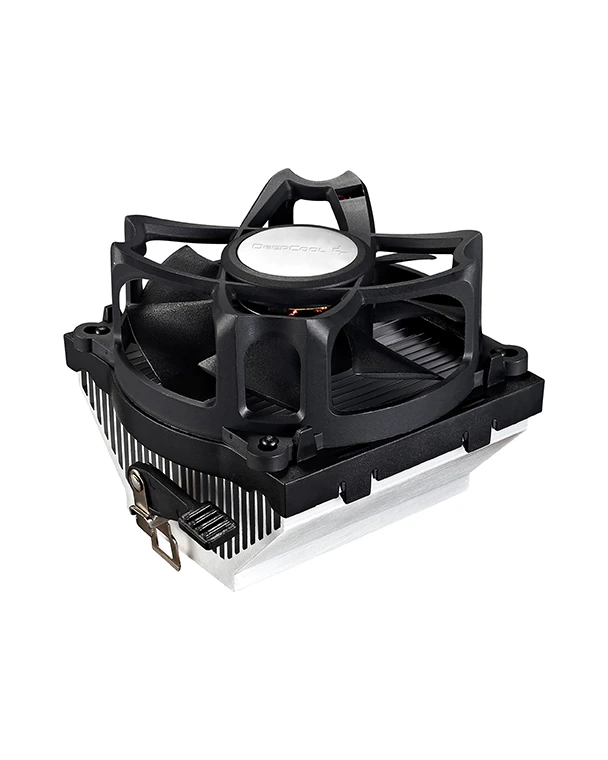

BETA 10
MODEL
AMD AM5/AM4 Ready.
Patented Ф92 x 32 mm inverted fan offers a perfect balance between airflow and noise.

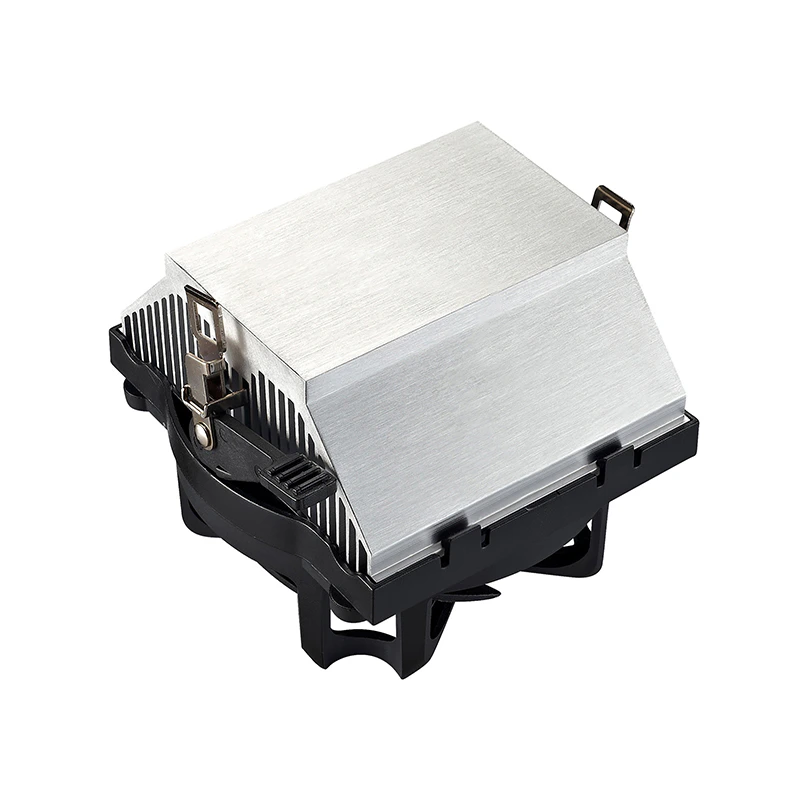

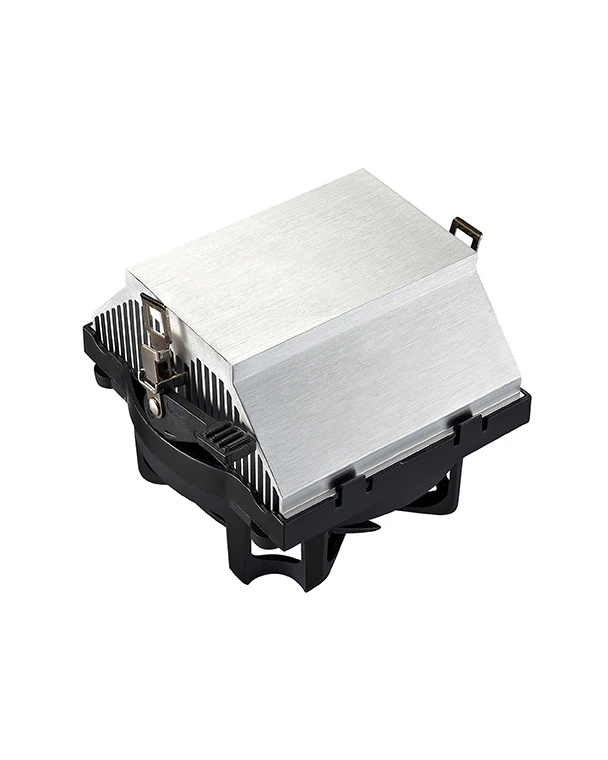

Aluminum heatsink offers effective heat dissipation.
Highly-polished base provides perfect contact between the CPU and the heatsink.
Application For
AMD
AM5/AM4
Technical Spec
Overall Dimension95X105X76 mm(L×W×H)
Fan DimensionФ92X32 mm
Net Weight 307g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Started Voltage 7VDC
Rated Current 0.22±10%A
Power Input 2.64W
Fan Speed 2200±10%RPM
Max. Air Flow 40.9CFM
Noise 25dB(A)
EAN 6933412703495
P/N DP-ACAL-B10
