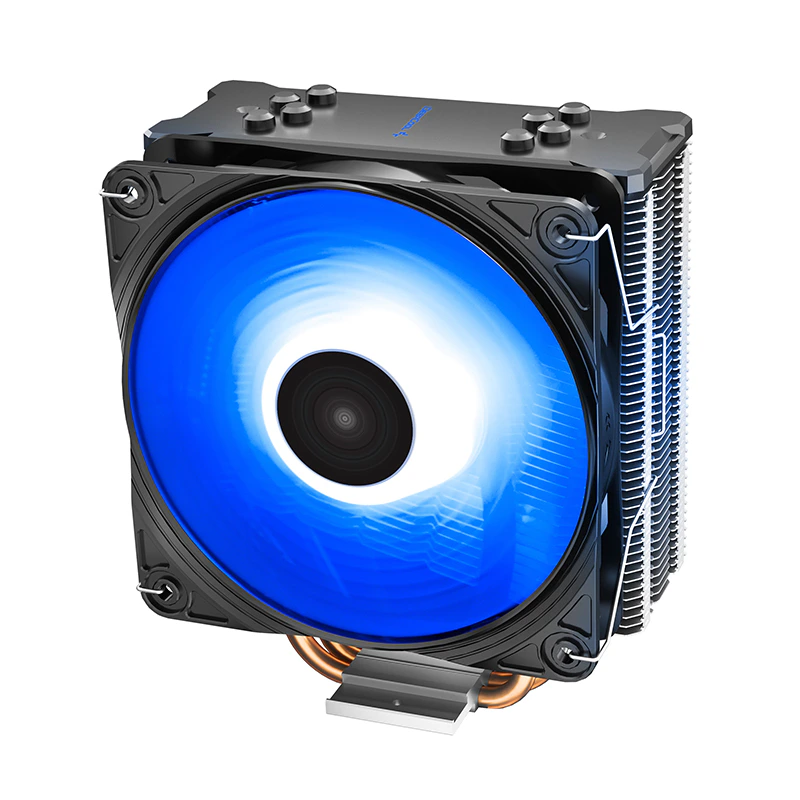

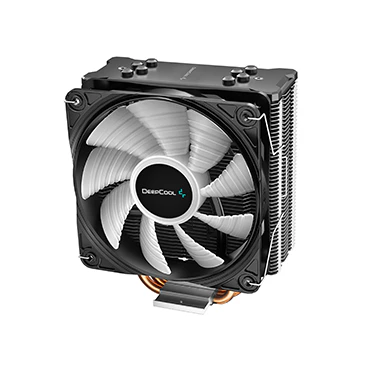

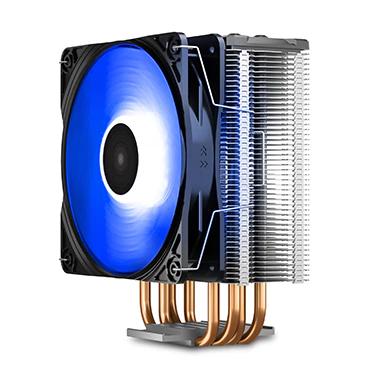

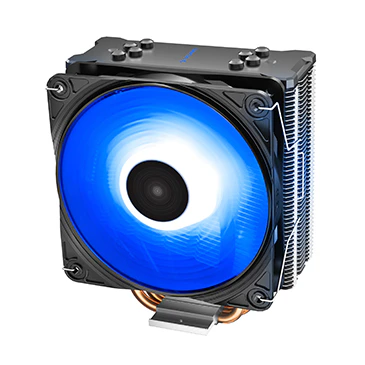

GAMMAXX GT V2

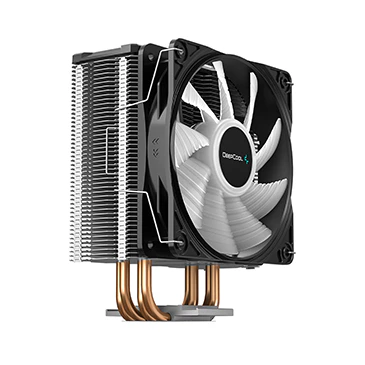

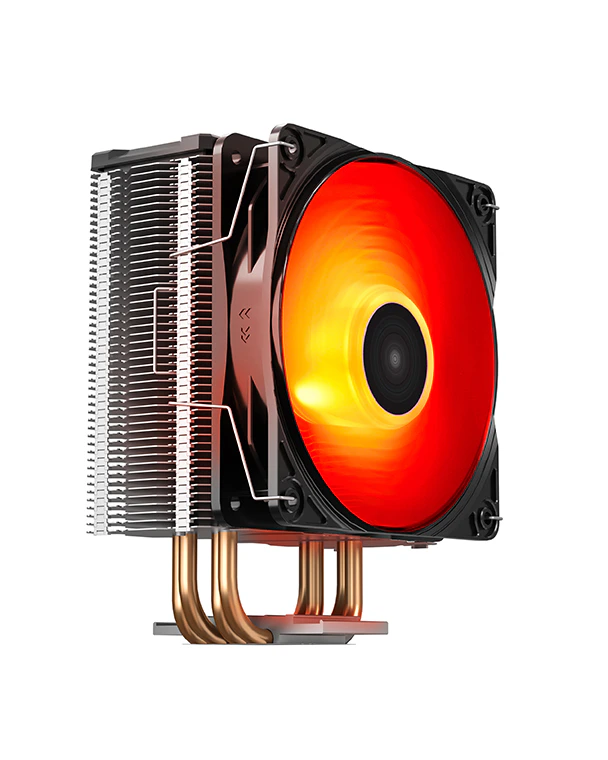

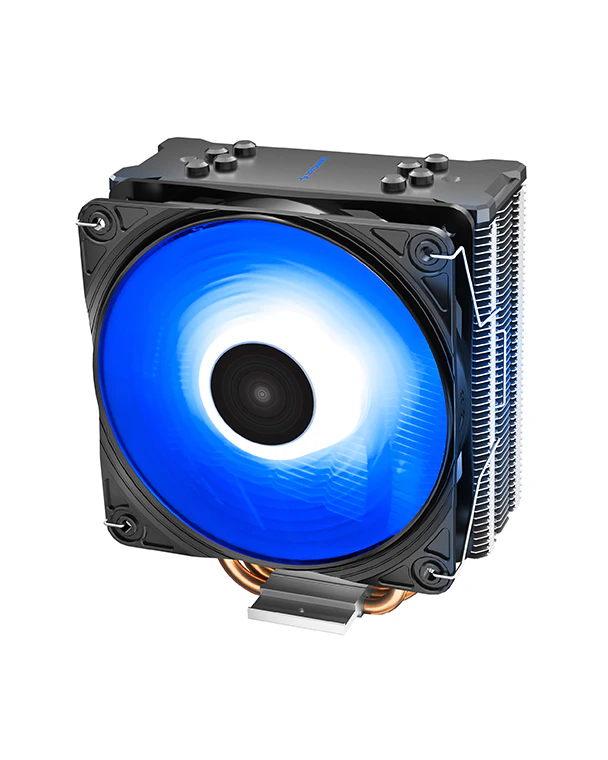

GAMMAXX GT V2 is a new model of the renowned GAMMAXX GT series. With an upgraded PWM & RGB fan, and the new mounting tools, GAMMAXX GT V2 is apt to provide better and safer cooling performance.
MODEL
GAMMAXX GT V2

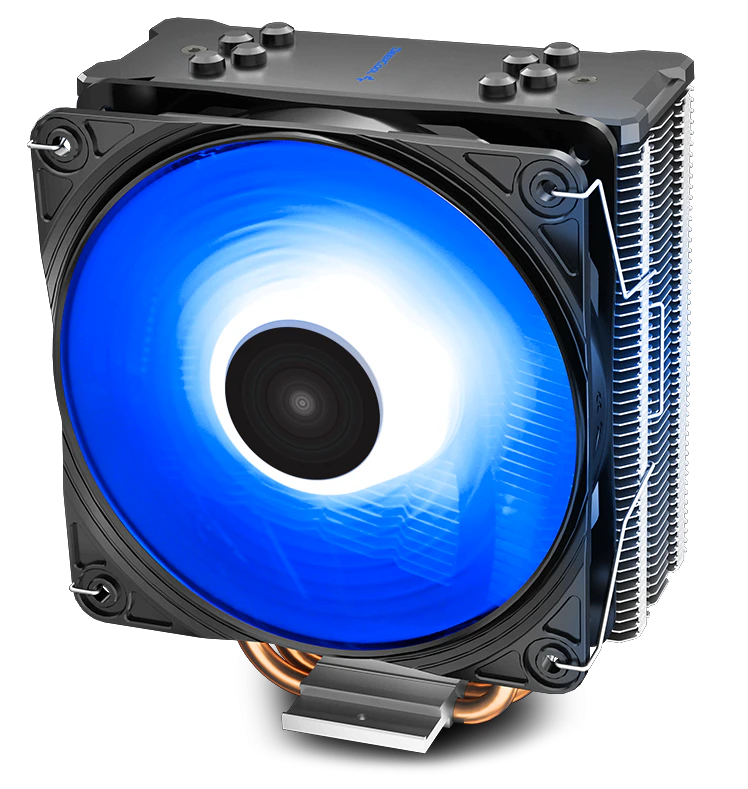

Legendary Cooling

GAMMAXX GT V2 is a new model of the renowned GAMMAXX GT series.
With an upgraded PWM fan, A-RGB lighting system and mounting tools, GAMMAXX GT V2 provides better cooling performances, with style.

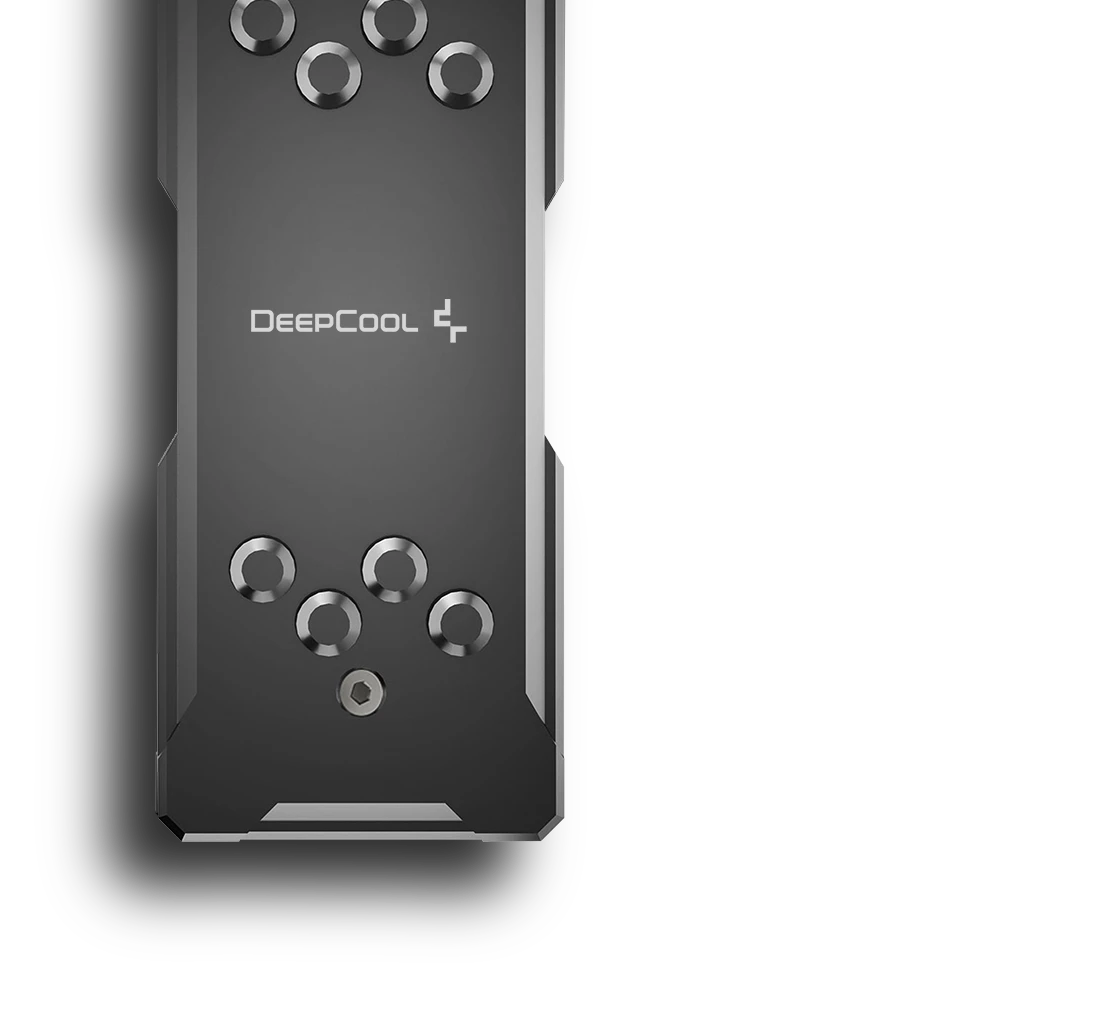

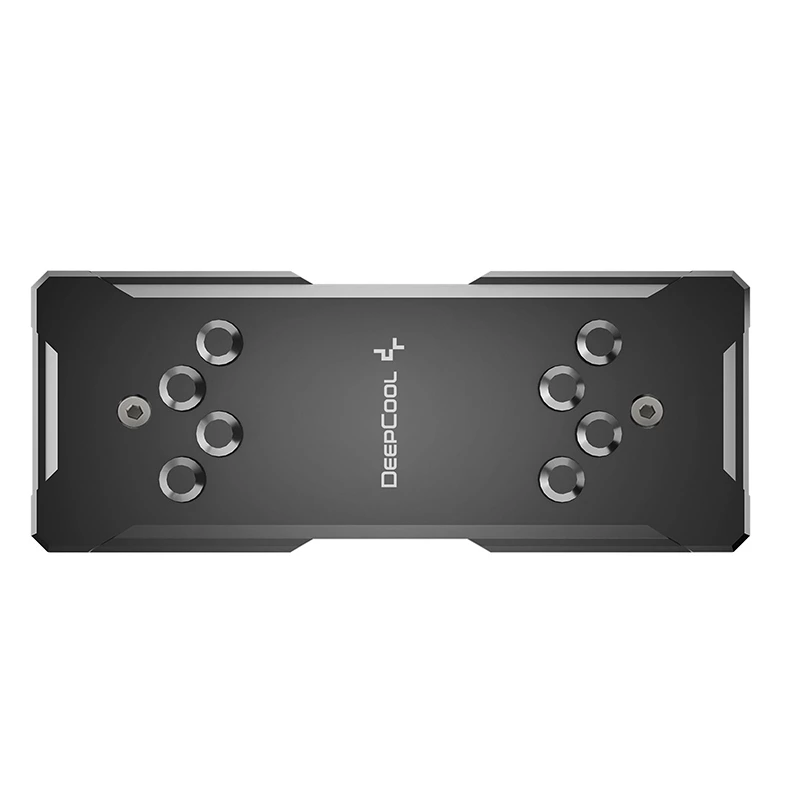

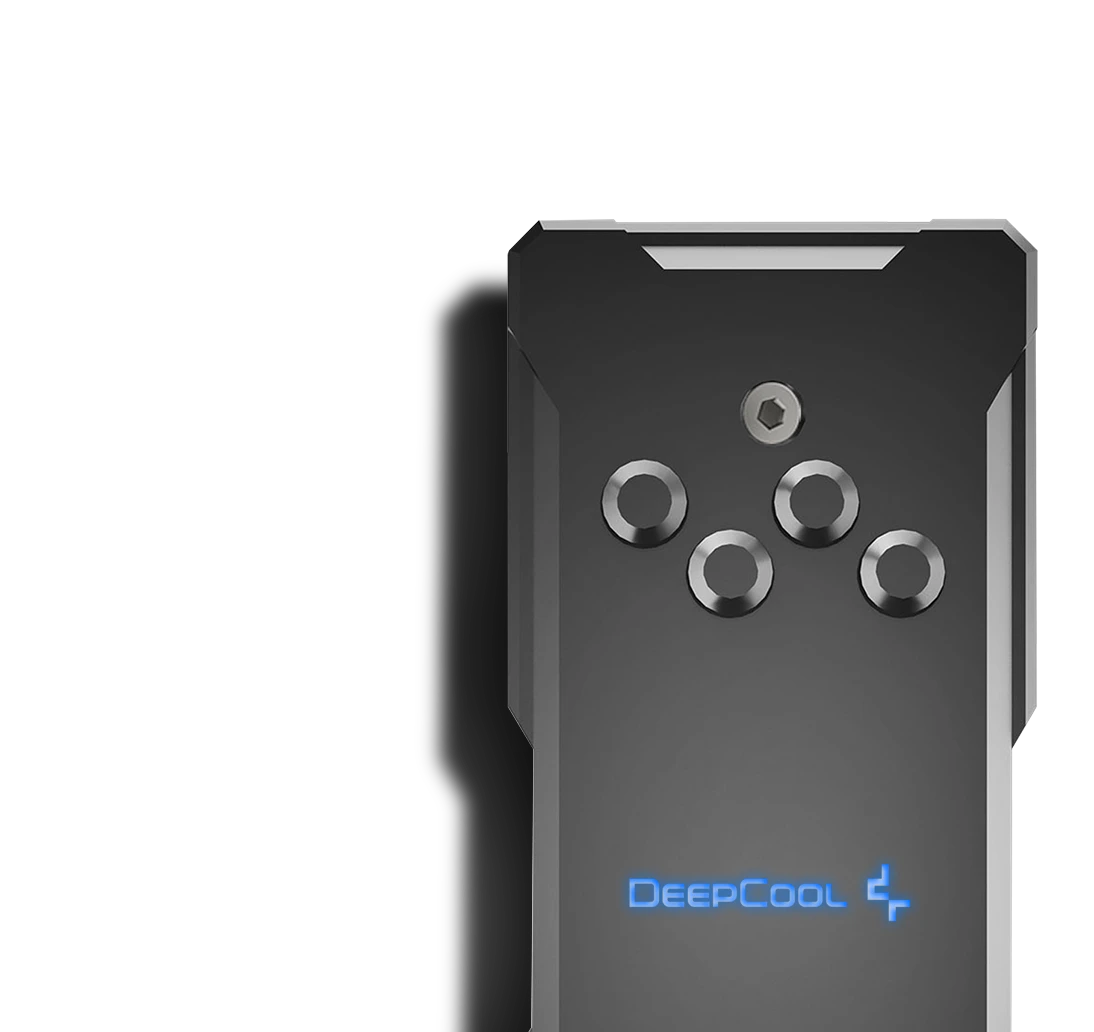

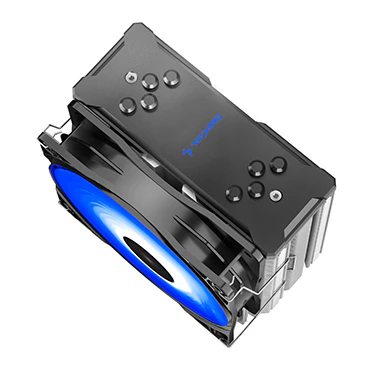

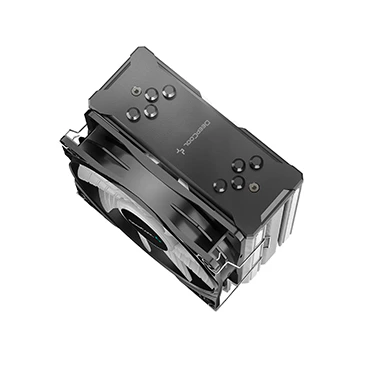

DARK LIGHTED TOP COVER
The dark paint on top cover provides a premium touch, while the A-RGB logo brings some light to your build.
CONVENIENT RGB CONTROL
A wire controller is included to control the lighting system of GAMMAXX GT V2.Extension cables are also in the package for motherboard control.
NEW PROCESS, BETTER DISSIPATION
The new fin-mounting process ensures smoother ventilation and more efficient heat dissipation.

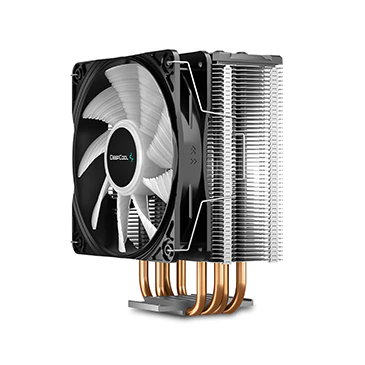

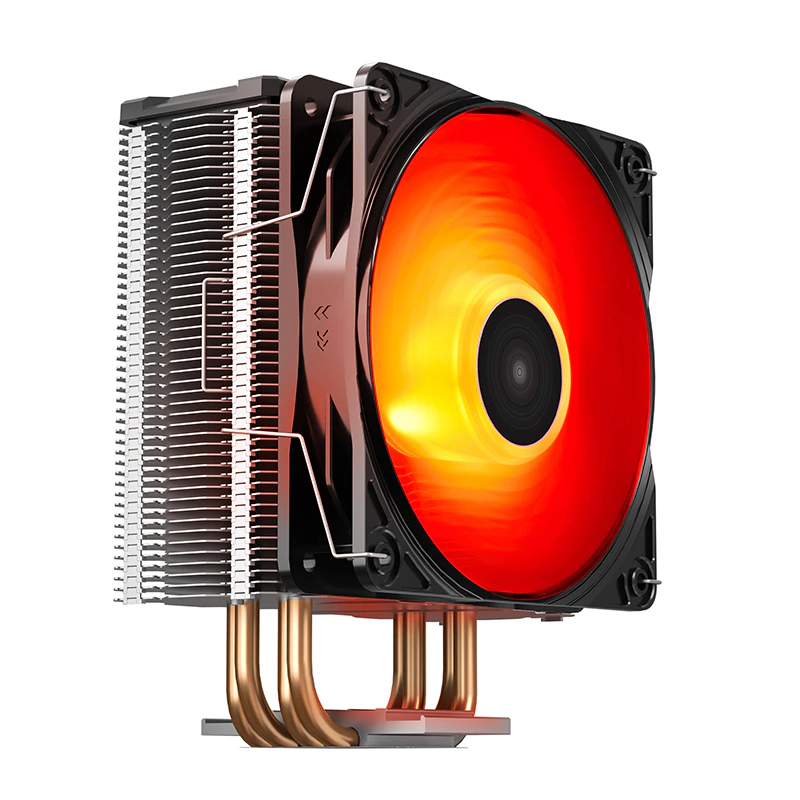

UPGRADED HEAT PIPES
With a direct-touch technology, the 4 copper heatpipes will dissipate CPU heat with maximum efficiency.
UPGRADED HEAT PIPES
With a direct-touch technology, the 4 copper heatpipes will dissipate CPU heat with maximum efficiency.

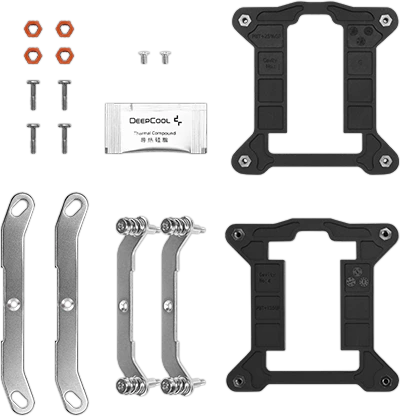

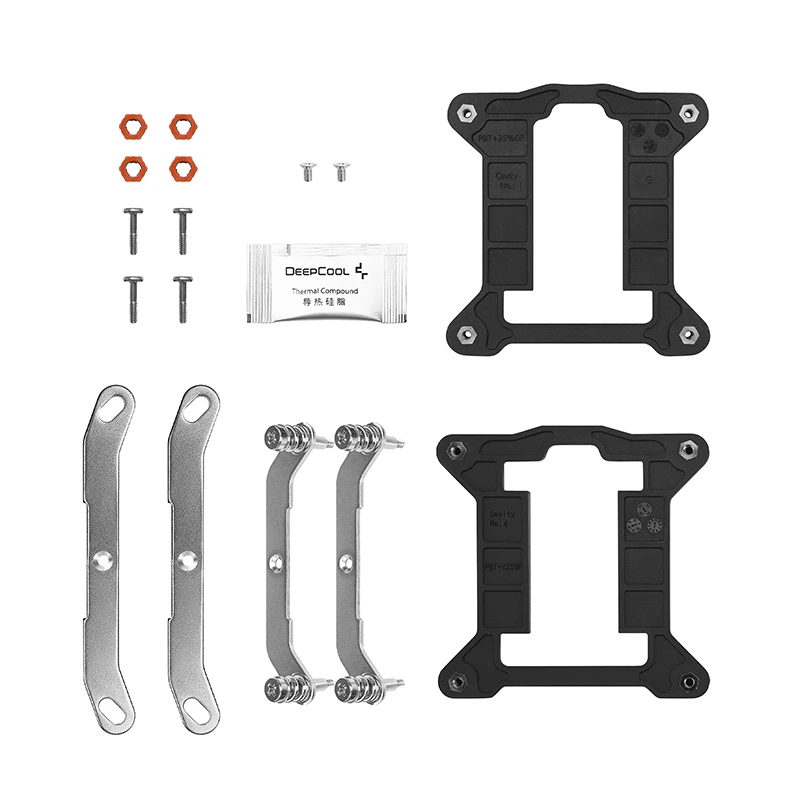

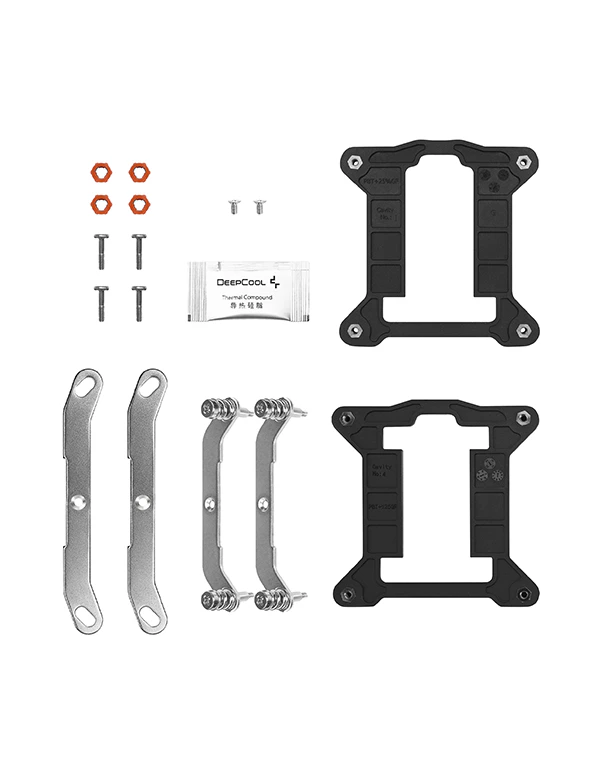

EASY TO INSTALL
The brand-new foolproof mounting kit supports multiple mainstream chipsets, making GAMMAXX GT V2 easier and safer to use.
EASY TO INSTALL
The brand-new foolproof mounting kit supports multiple mainstream chipsets, making GAMMAXX GT V2 easier and safer to use.

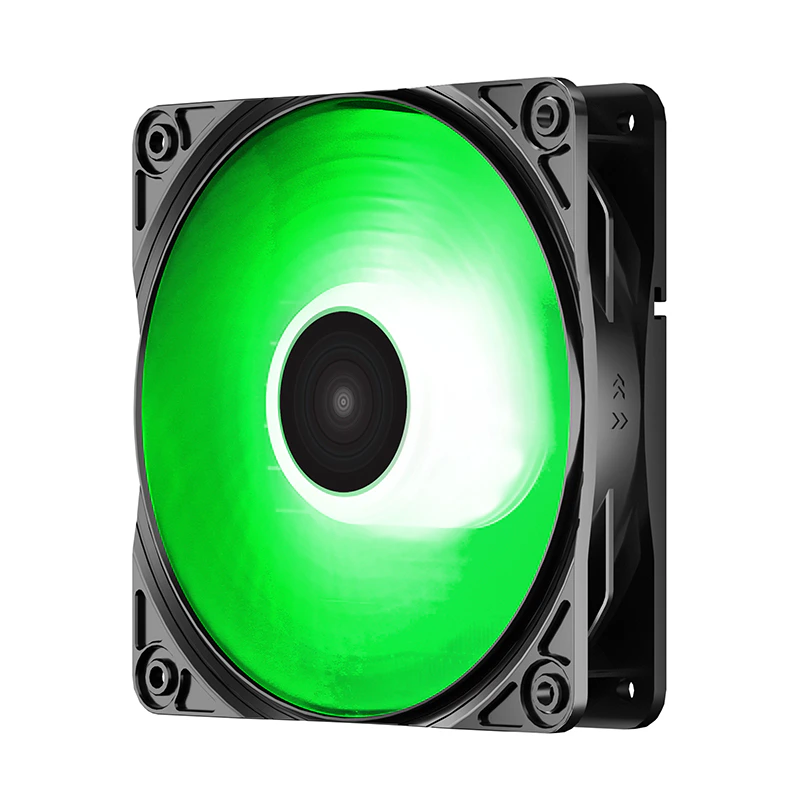

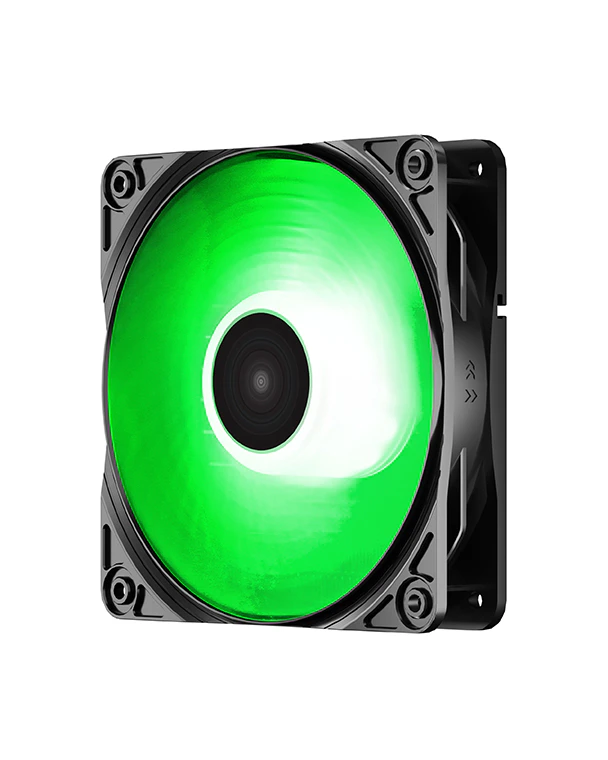

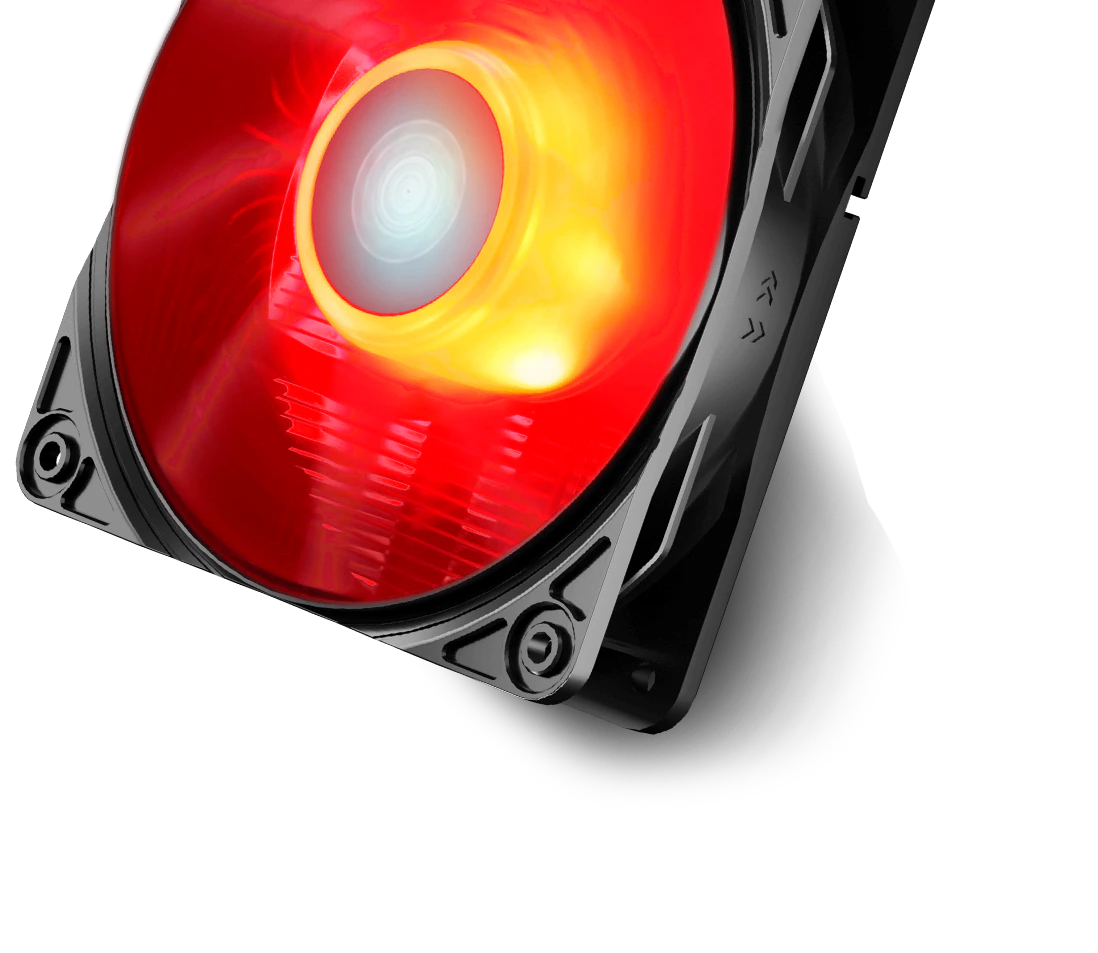

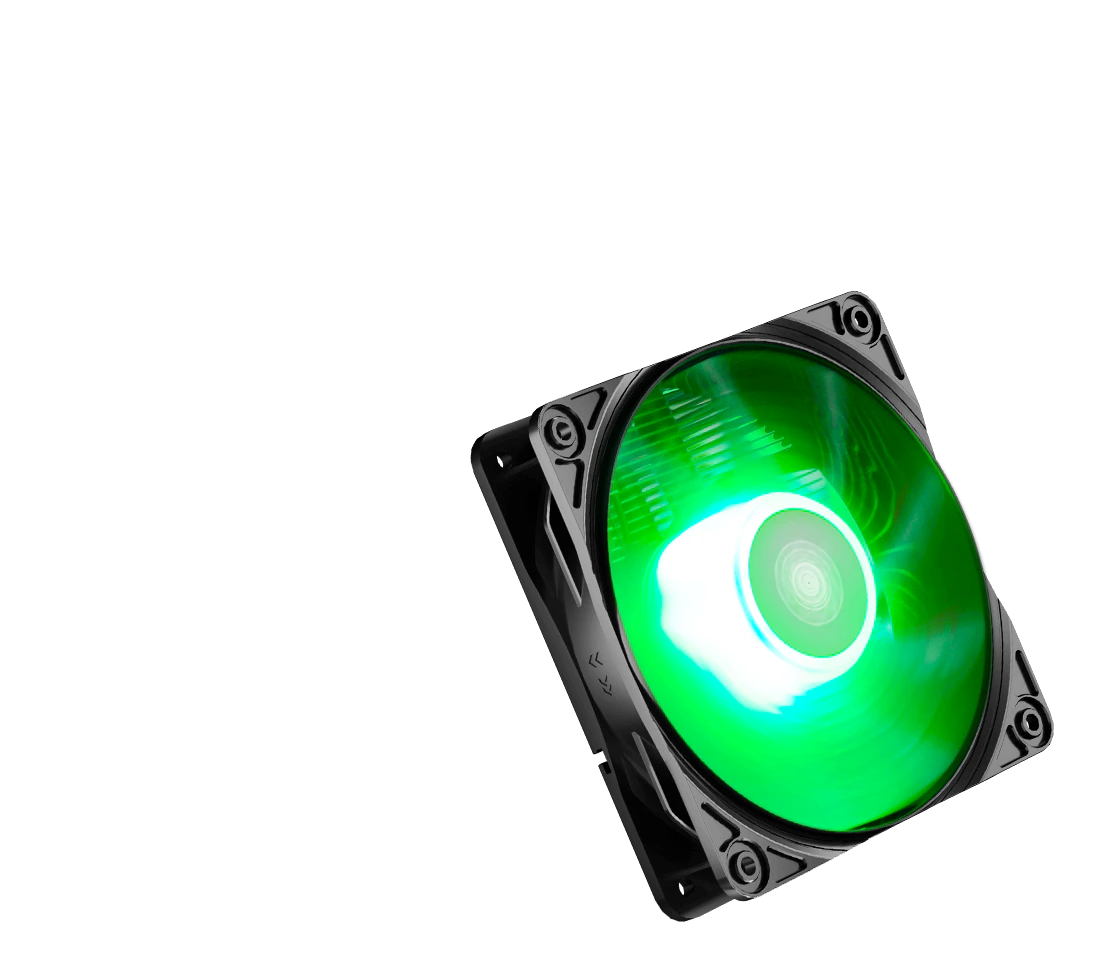

PWM & RGB FAN
The 120mm PWM fan is finely tuned to maintain perfect noise-performance balance. Its 12V RGB LEDs are ready to be synced with top cover and motherboards.
Application For
Intel
LGA2066/2011-v3/2011/1700/LGA1200/1151/1150/1155/1366
AMD
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
Product Dimensions 129×77×157.5 mm
Heatsink Dimensions 127×50×155 mm
Net Weight 676 g
Heatpipe Ø6 mm×4 pcs
Fan Dimensions 120×120×25mm
Fan Speed 500~1650 RPM±10%
Fan Airflow 64.5 CFM
Fan Air Pressure 2.1 mmAq
Fan Noise ≤27.8 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.14 A
Fan Power Consumption 1.68 W
LED Type RGB LED
LED Connector 4-pin(+12V-G-R-B)
LED Rated Voltage 12 VDC
LED Power Consumption 1.56W
EAN 6933412726913
P/N DP-MCH4-GMX-GTV2
