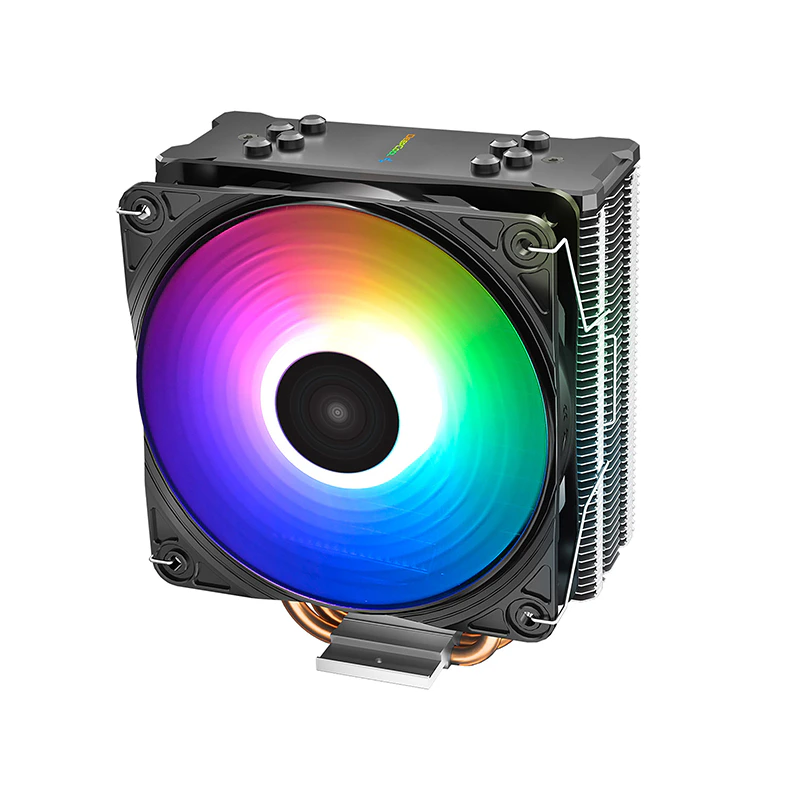

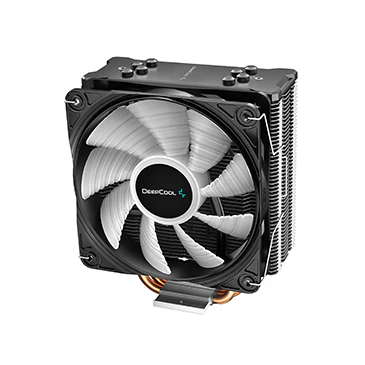

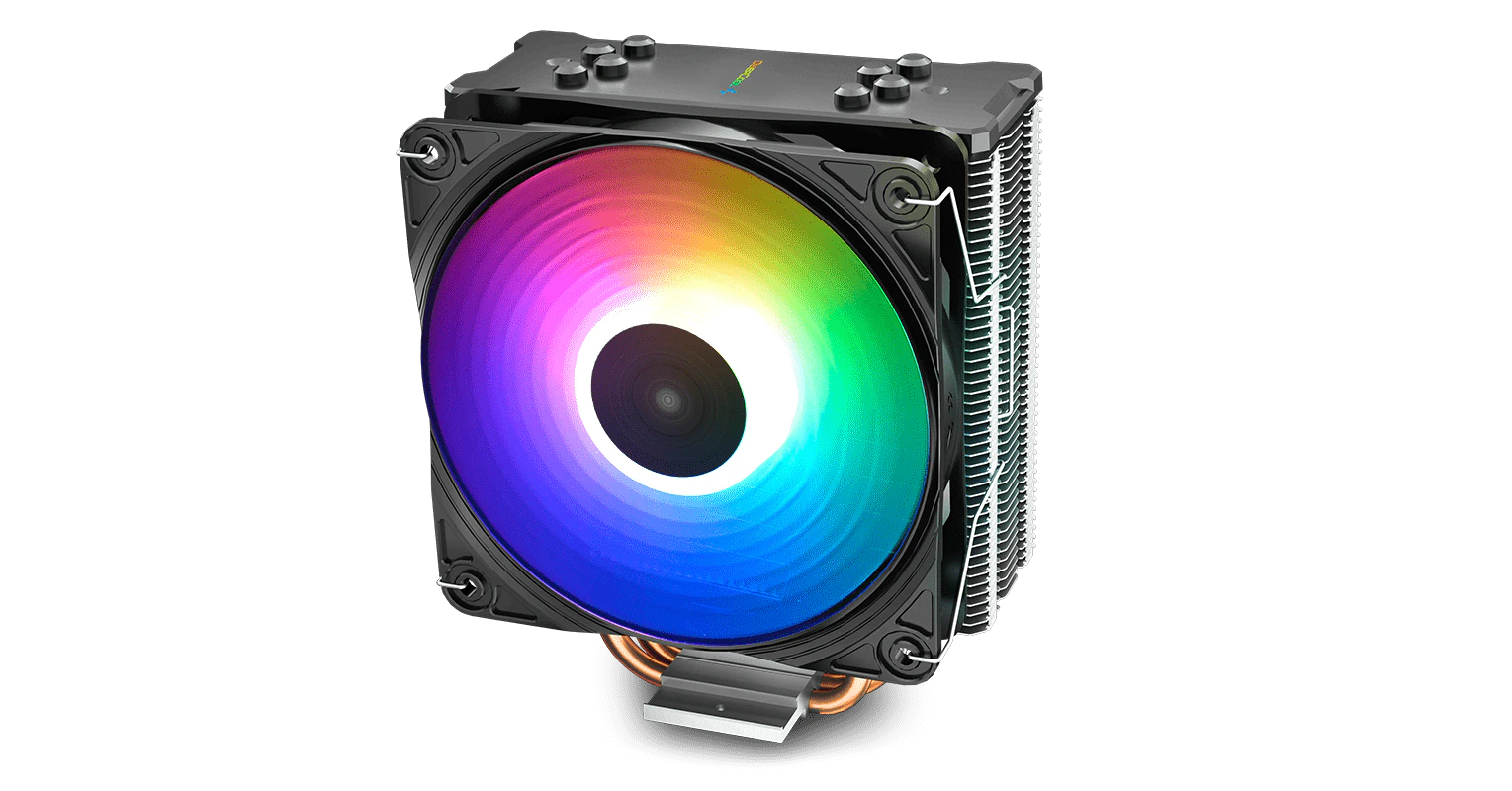

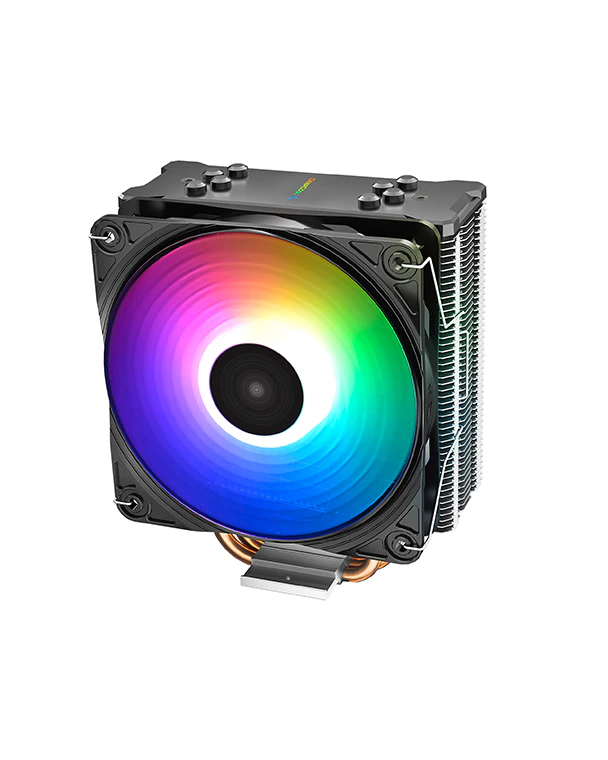

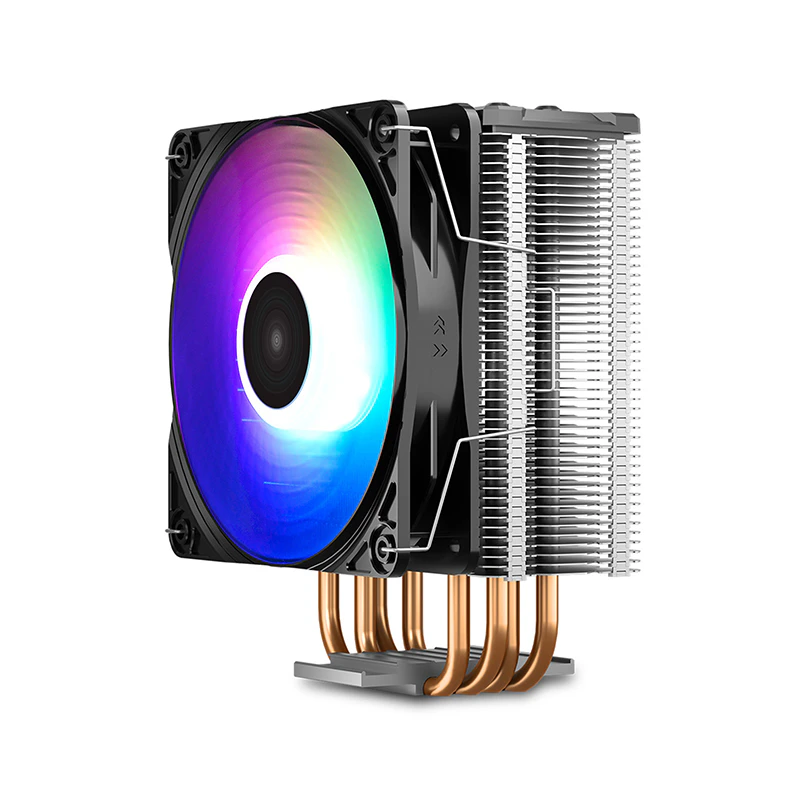

GAMMAXX GT A-RGB
GAMMAXX GT A-RGB is a new model of the renowned GAMMAXX GT series. With an upgraded PWM fan, A-RGB lighting system and mounting tools, GAMMAXX GT A-RGB is apt to provide better and safer cooling performance.
MODEL
GAMMAXX GT A-RGB

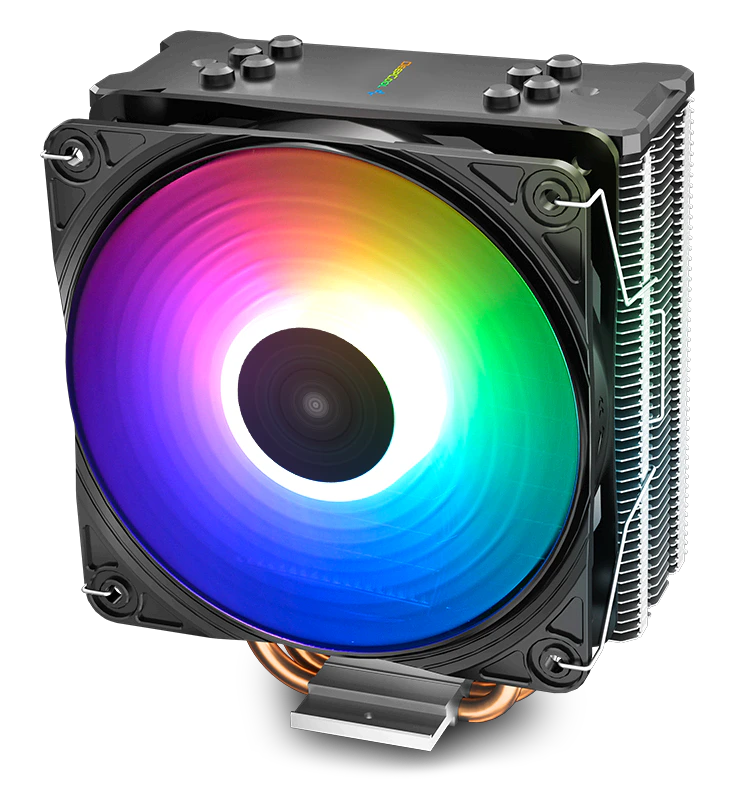

Legendary Cooling

GAMMAXX GT A-RGB is a new model of the renowned GAMMAXX GT series.
With an upgraded PWM fan, A-RGB lighting system and mounting tools, GAMMAXX GT A-RGB provides better cooling performances, with style.

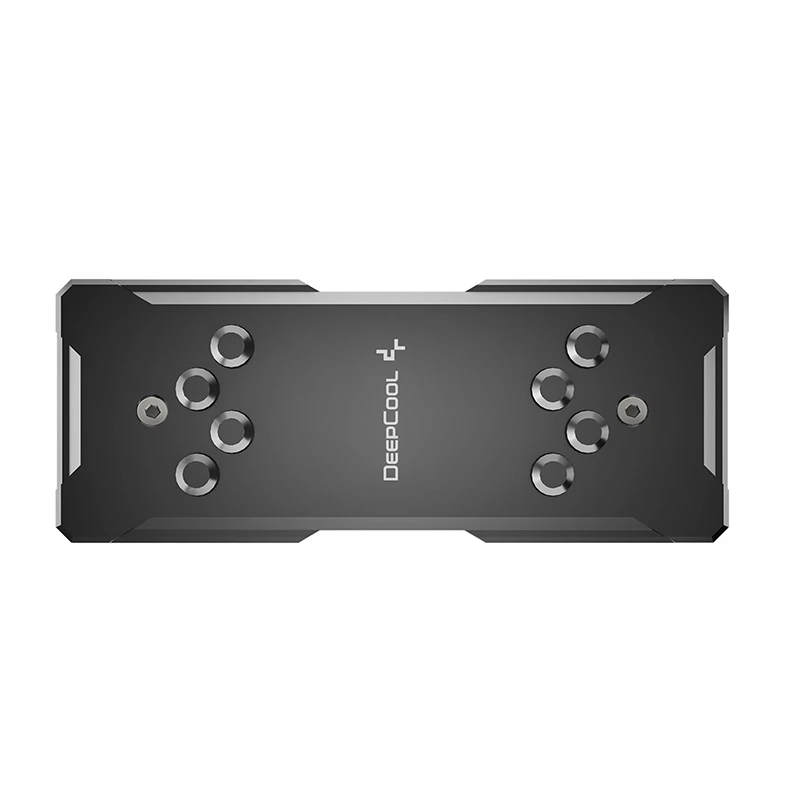

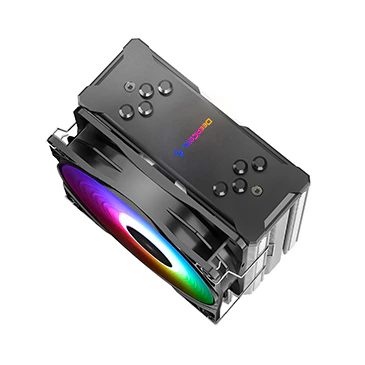

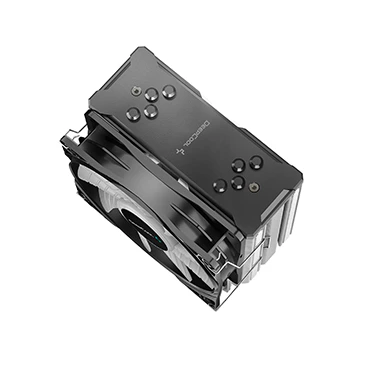

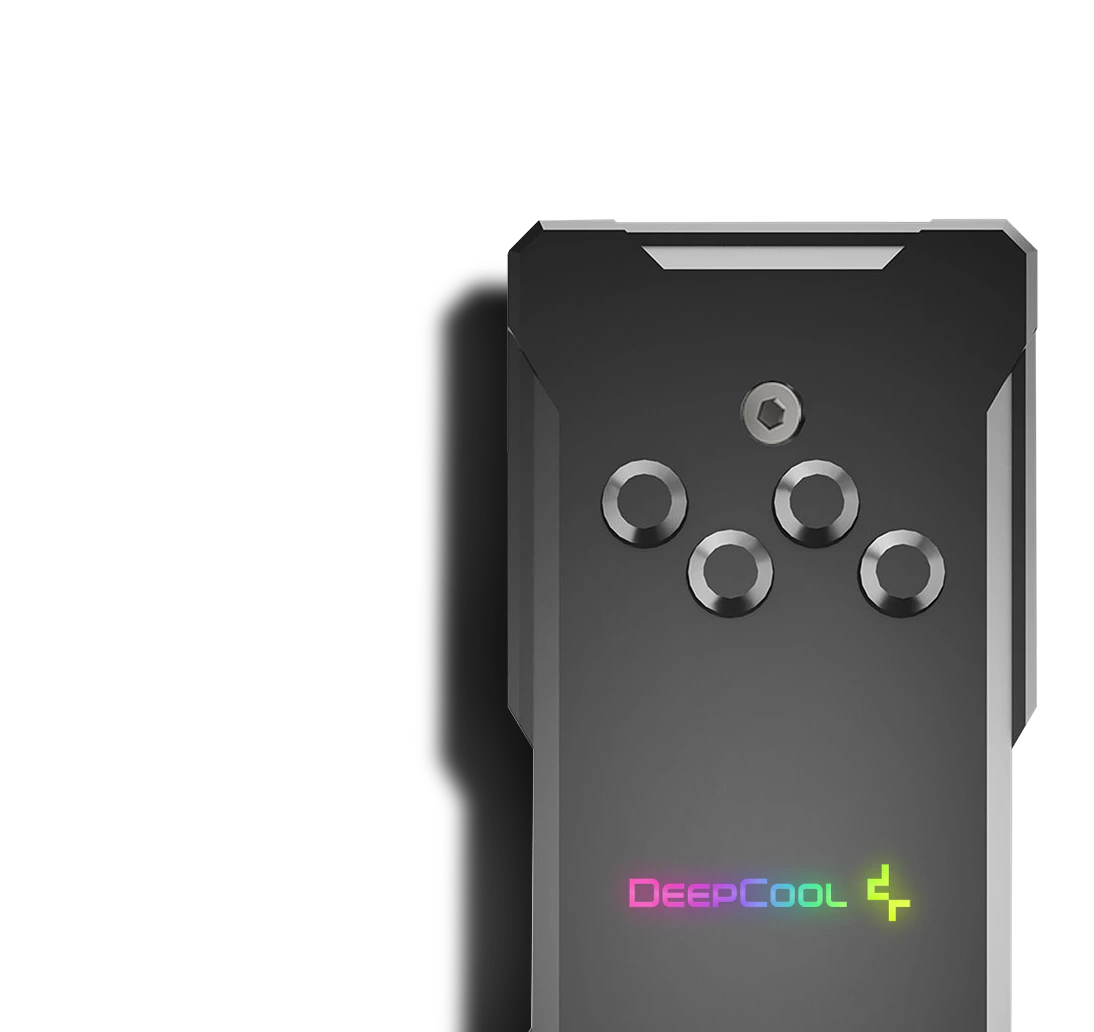

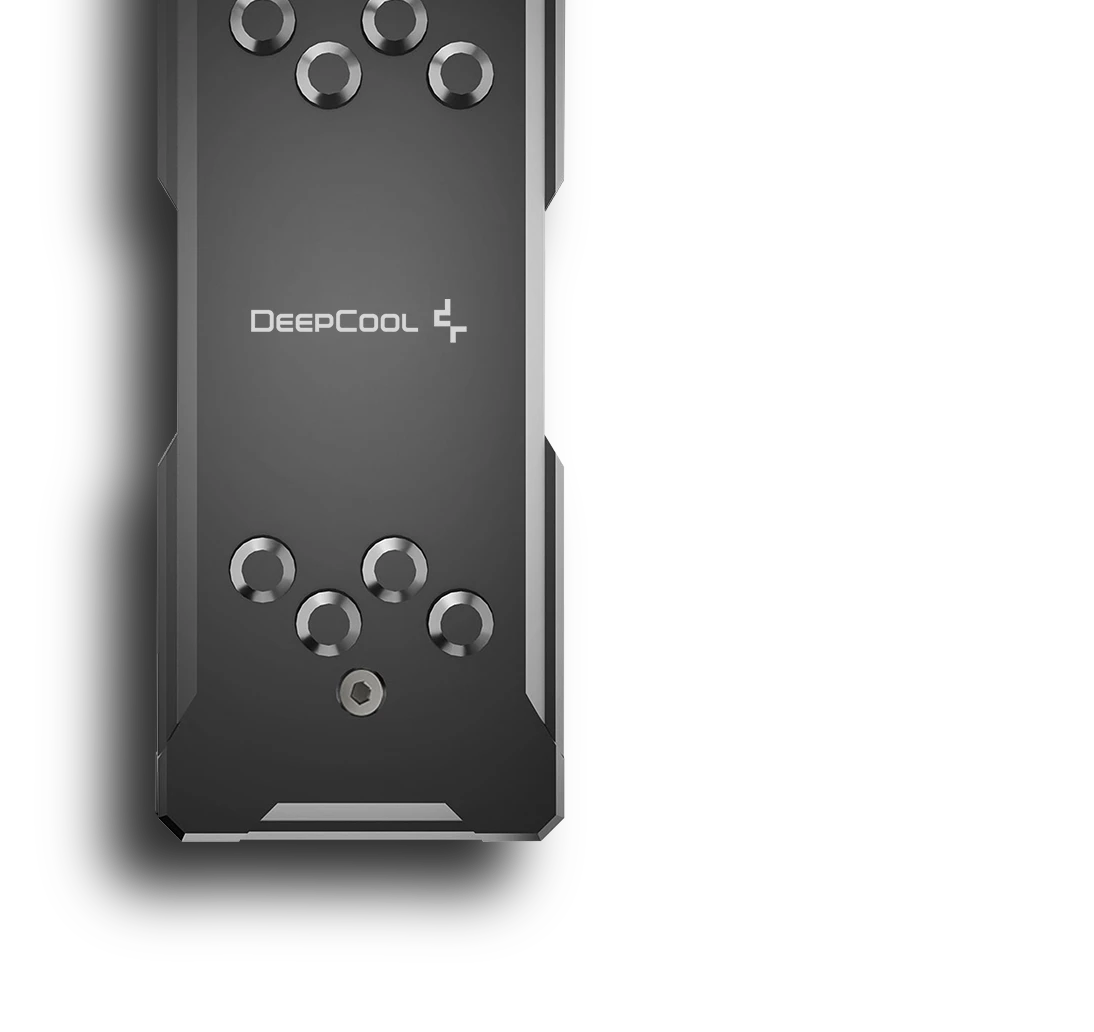

DARK LIGHTED TOP COVER
The dark paint on top cover provides a premium touch, while the A-RGB logo brings some light to your build.
CONVENIENT A-RGB CONTROL
A wire controller is included to control the lighting system of GAMMAXX GT A-RGB.Extension cables are also in the package for motherboard control.

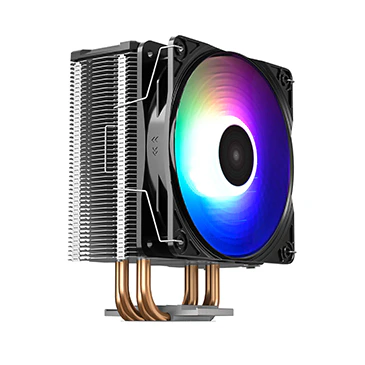

NEW PROCESS, BETTER DISSIPATION
The new fin-mounting process ensures smoother ventilation and more efficient heat dissipation.

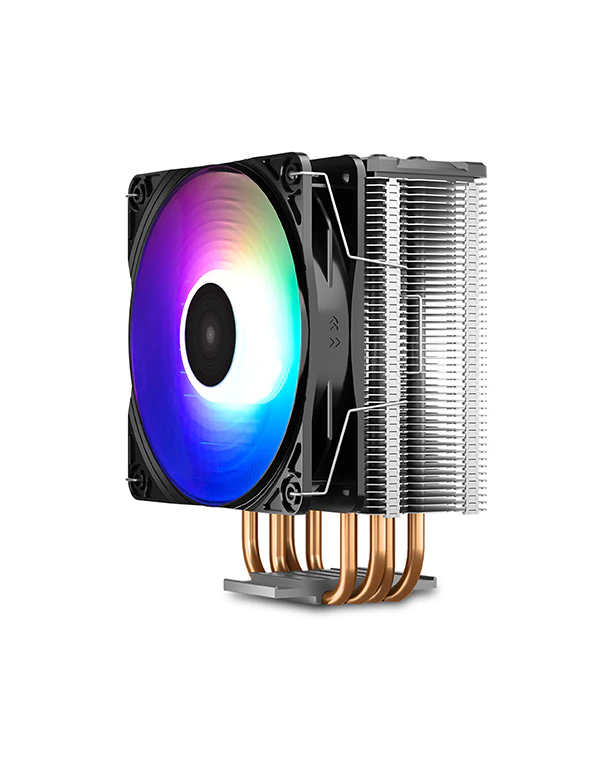

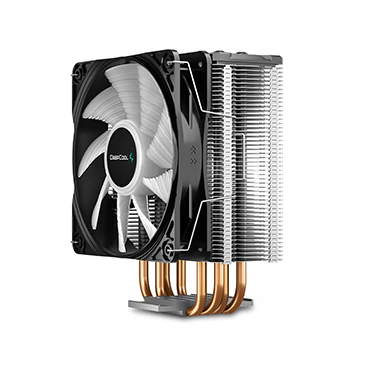

UPGRADED HEAT PIPES
With scientific layout and upgraded technology, the 4 copper heat pipes will dissipate CPU heat with maximum efficiency.
UPGRADED HEAT PIPES
With scientific layout and upgraded technology, the 4 copper heat pipes will dissipate CPU heat with maximum efficiency.

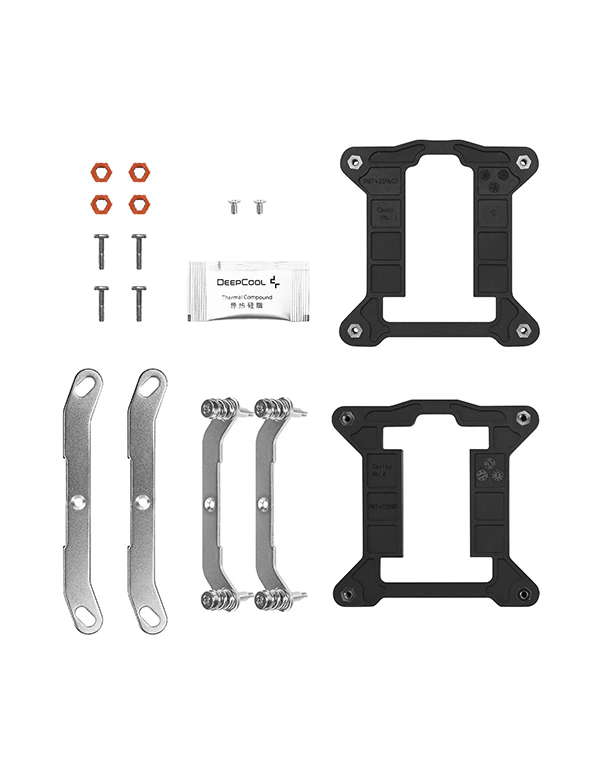

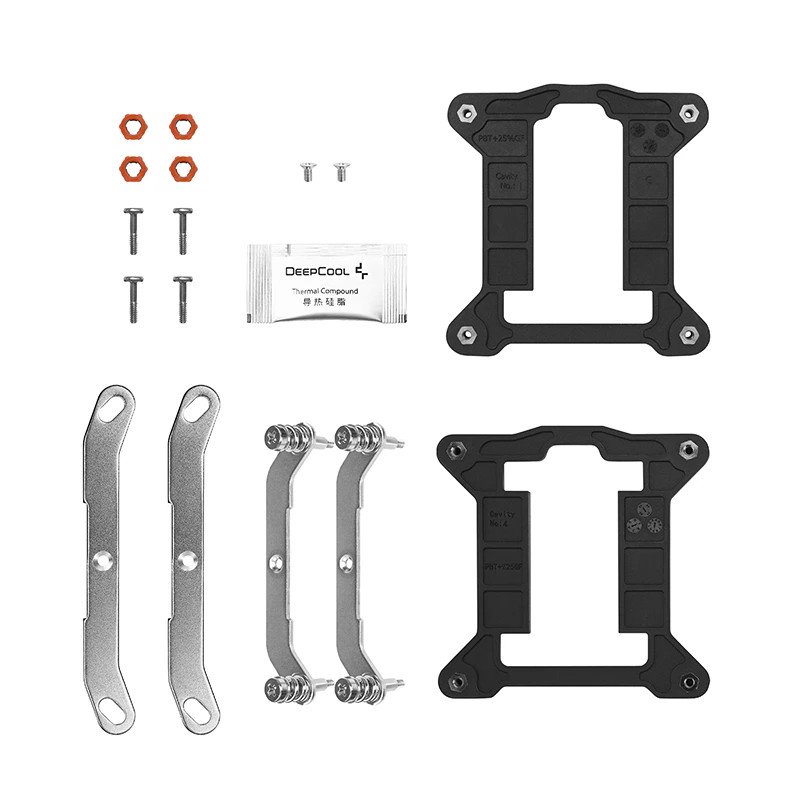

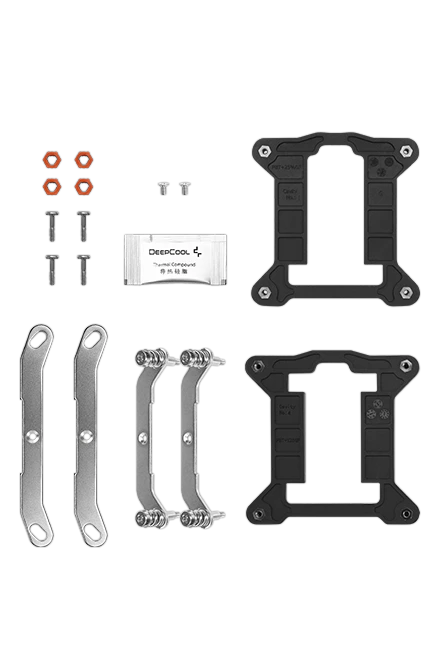

EASY TO INSTALL
The brand-new foolproof mounting kit supports multiple mainstream chipsets, making GAMMAXX GT A-RGB easier and safer to use.
EASY TO INSTALL
The brand-new foolproof mounting kit supports multiple mainstream chipsets, making GAMMAXX GT A-RGB easier and safer to use.

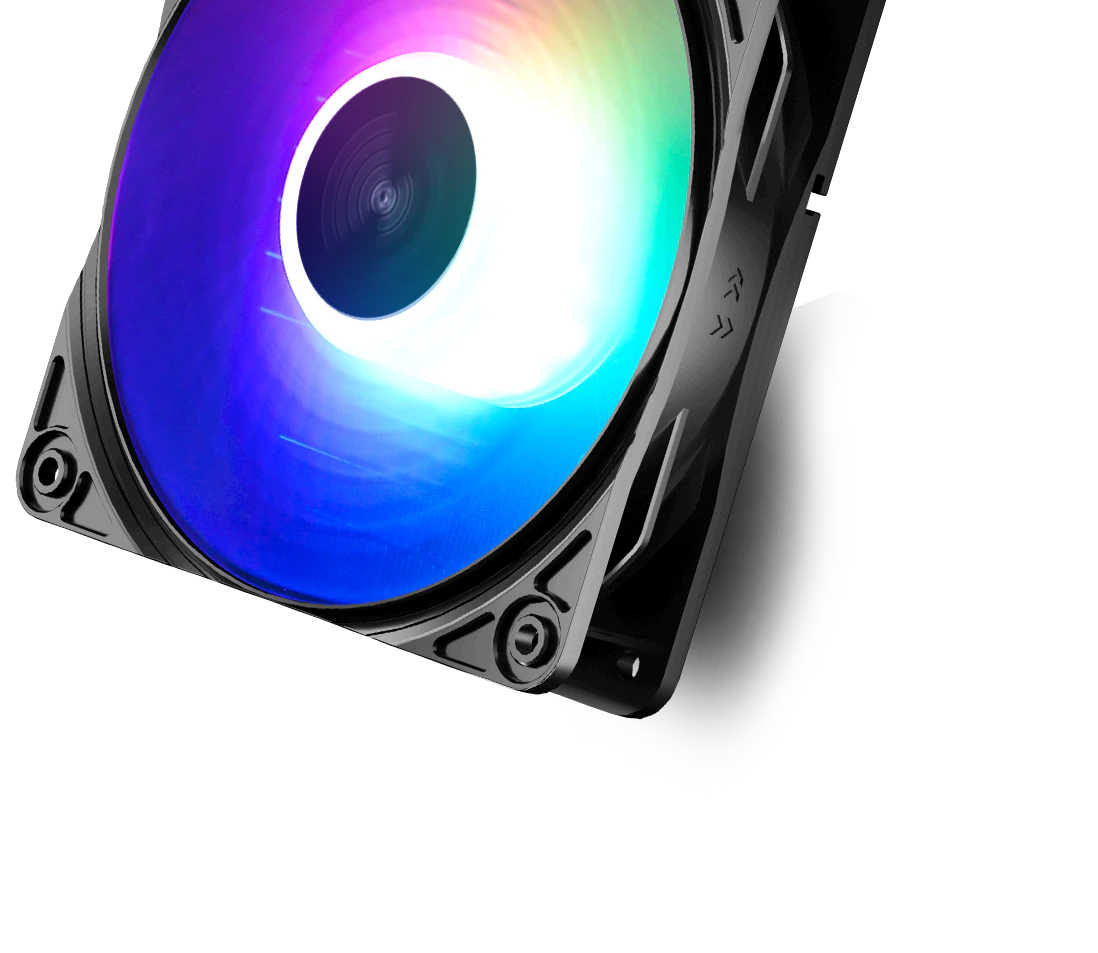

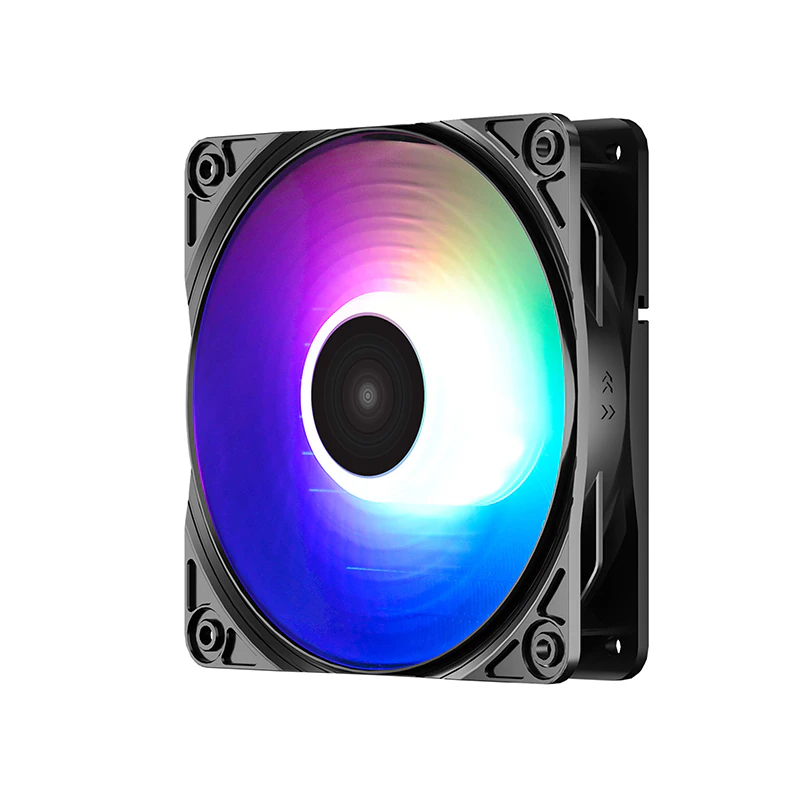

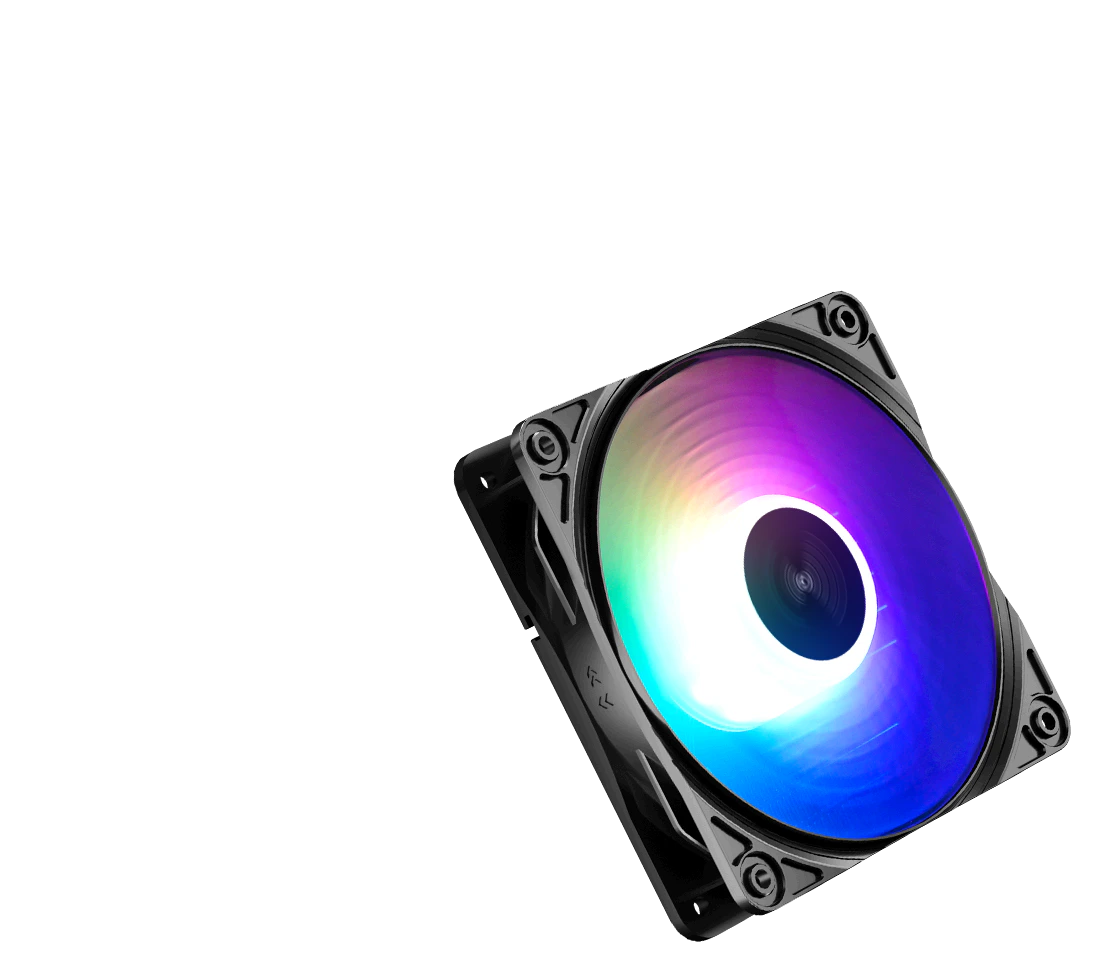

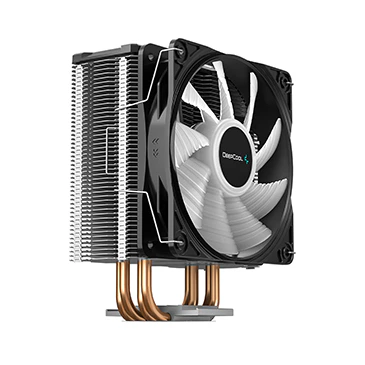

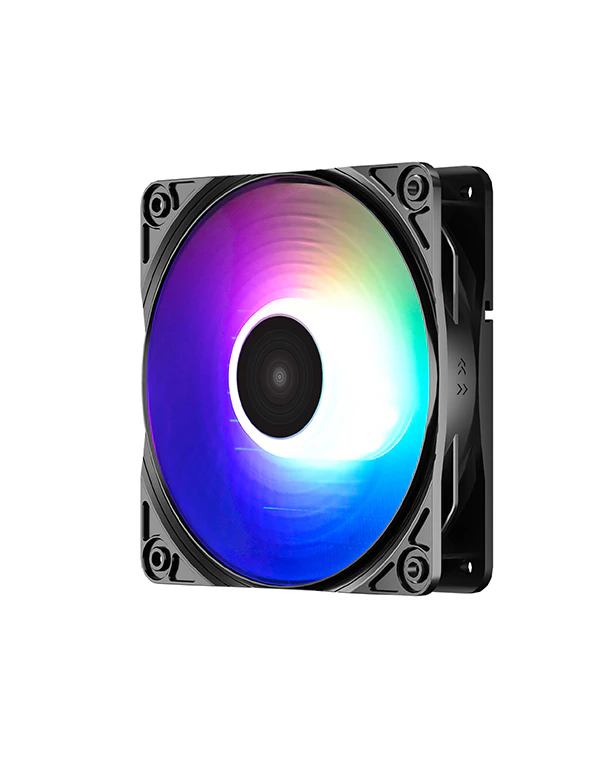

PWM & A-RGB FAN
The 120mm PWM fan is finely tuned to maintain perfect noise-performance balance. Its 5V A-RGB LEDs are ready to be synced with top cover and motherboards.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions129×86×158 mm(L×W×H)
Heatsink Dimensions127×50×155 mm(L×W×H)
Net Weight 676 g
Heatpipe Ø6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed 500~1650 RPM±10%
Fan Airflow 64.5 CFM
Fan Air Pressure 2.1 mmAq
Fan Noise ≤27.8 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.14 A
Fan Power Consumption 1.68 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.2 W
EAN 6933412726838
P/N DP-MCH4-GMX-GT-ARGB
