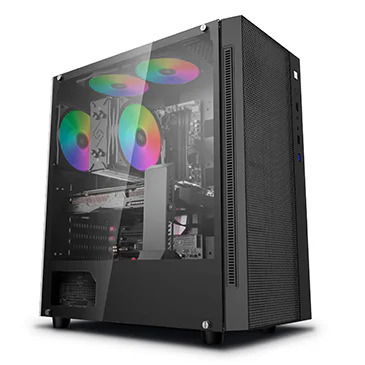

MATREXX 55 MESH
As a mid-tower case, the Matrexx 55 Mesh offers abundant space that supports up to an E-ATX motherboard and has optimized airflow keeps your components cool.
Colour
black
MODEL
MATREXX 55 MESH
The Clear Choice
High Airflow Design

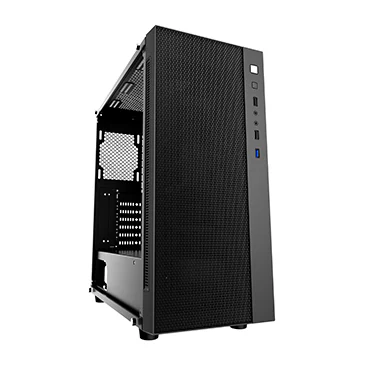

The MATREXX 55 Mesh features a mesh front panel as well as a dust filter.With a meshed front panel, the intake channel provides abundant airflow for your system and maintains your entire build at a steady, sustainable temperature. Matrexx 55 Mesh solves all your thermal issues

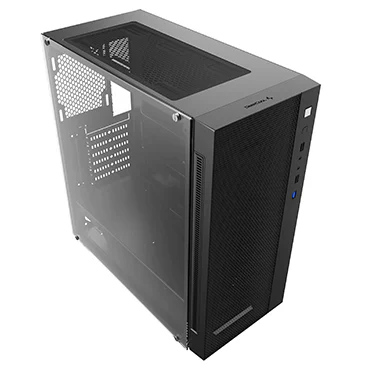

4mm Tempered Glass
Full sized 4mm thickness tempered glass side panel give the case a unique look to perfectly show off your configuration
Massive Cooling Compatibility
Optimized airflow is guaranteed with large air intakes both sides of the front panel and an air exhaust in the back and on top, to keep your components cool
Cooling Compatibility:
Supports the installation of liquid cooler :
1
120/240mm radiator liquid cooling system on the top
2
120mm radiator liquid cooling system at the rear
3
120/140/240/280/360mm radiator liquid cooling system at the front
Supports the installation of cooling fans :
1
2×120/ 2×140mm fan on the top
2
1×120mm fan at the rear
3
3×120mm/2×140mm fan at the front
PSU Shroud Added
The Matrexx 55 Mesh version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy
PSU Shroud Added
The Matrexx 55 Mesh version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy

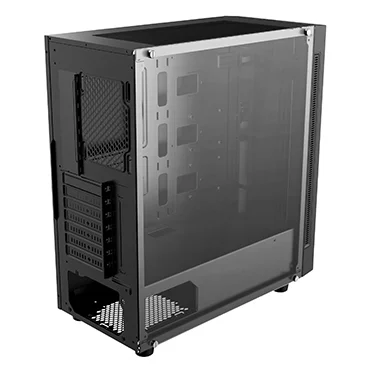

Easy Cable Management
Cable managing is now easy with a 210mm wide tower compartment (23mm clearance)
Supports motherboards up to E-ATX
Power Supply: ATX PS2 (Length less than 170mm)
Supports 370mm (Max) graphic cards installation
The large area of air-intake at two sides of the front panel ensures sufficient airflow for the systems
The magnet-mounted dust filter provided at the front panel, offers users easy removal and cleaning
1×USB3.0/2×USB2.0/1×Audio (HD)/1×Mic
Technical Spec
MotherboardMini-ITX/Micro-ATX/ATX/E-ATX
Case TypeMiddle Tower
MaterialsABS+SPCC+Tempered Glass
Product Dimensions435×210×478mm(L×W×H)
Carton Dimensions523X277X514mm
Net Weight6.59Kg
Gross Weight7.6Kg
5.25" Drive Bays0
3.5" Drive Bays2
External 3.5'' Drive Bays0
2.5" Drive Bays4
I/O PortsUSB2.0×2、USB3.0×1、Audio×1、Mic×1
Expansion Slots7 Slots
Power Supply TypeATX PS2 （Length less than 170mm）
Cable Management23mm clearance
CPU Cooler Height Limit165 mm
VGA Length Limit370mm
Cooling Fans SupportOptional: Front:140mm×2/120mm×3; Top:140mm×2/120mm×2; Rear:1×120mm; Pre-installed:none
Liquid Cooler SupportFront:120/140/240/280/360mm;Top:120/240mm; Rear:120mm
EAN6933412714057
P/NDP-ATX-MATREXX55-MESH
Product Dimension
Download
MATREXX 55 MESH Manual.pdf
Download
