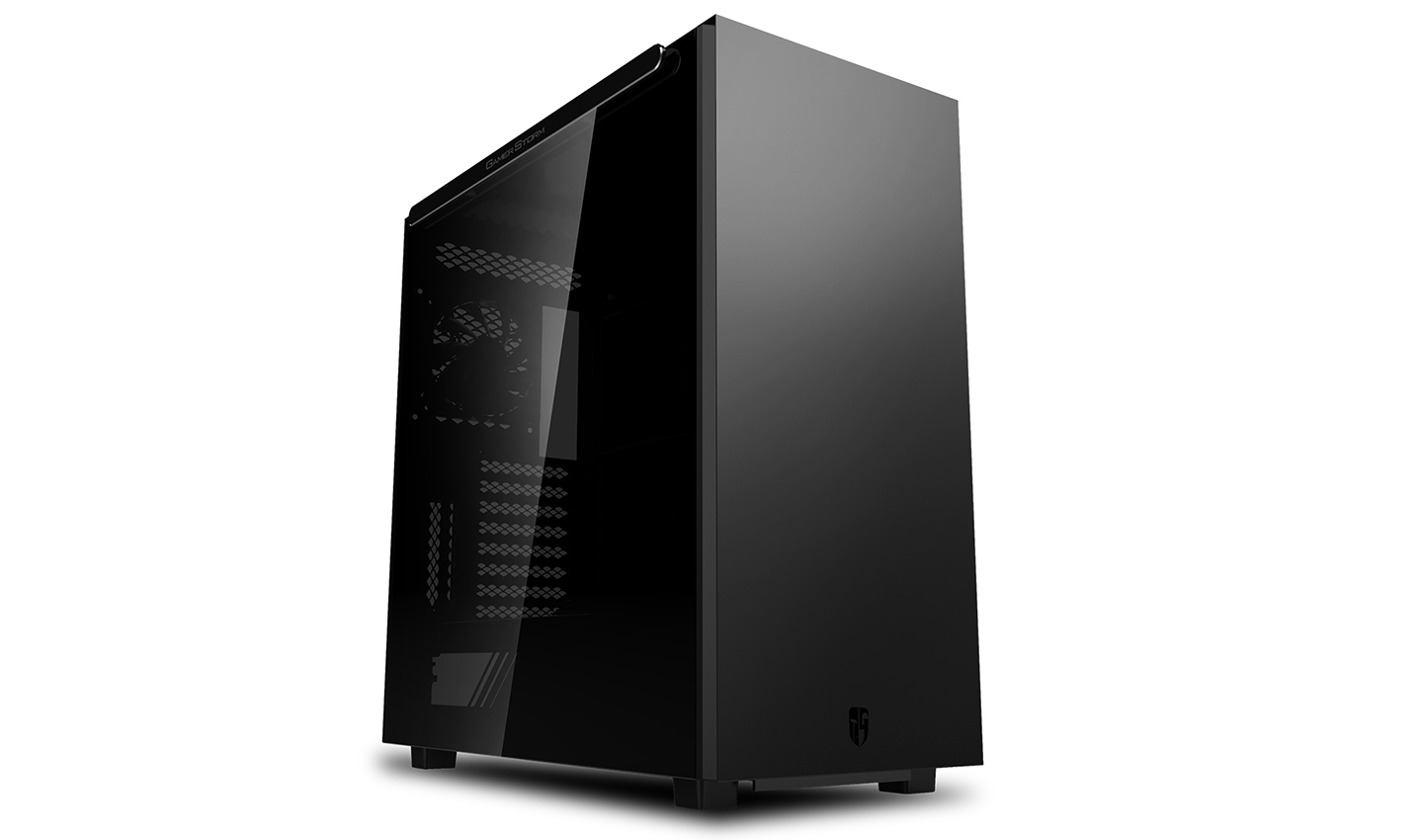

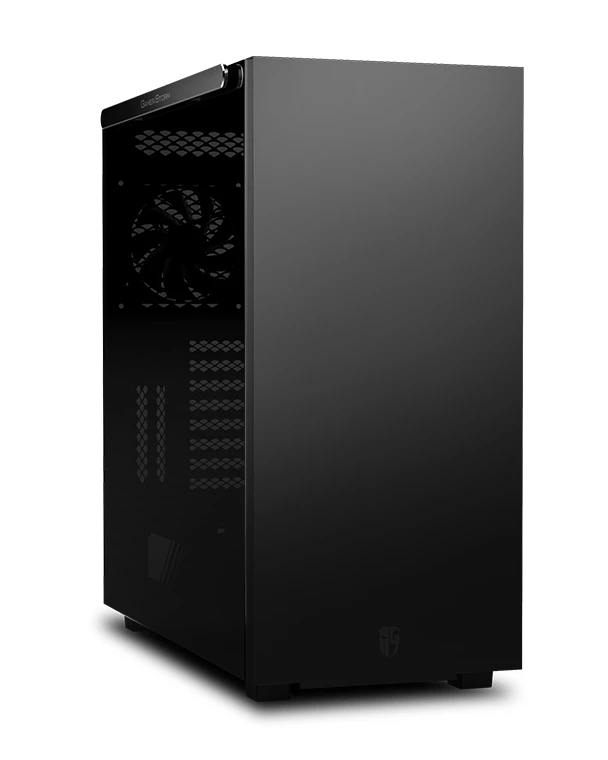

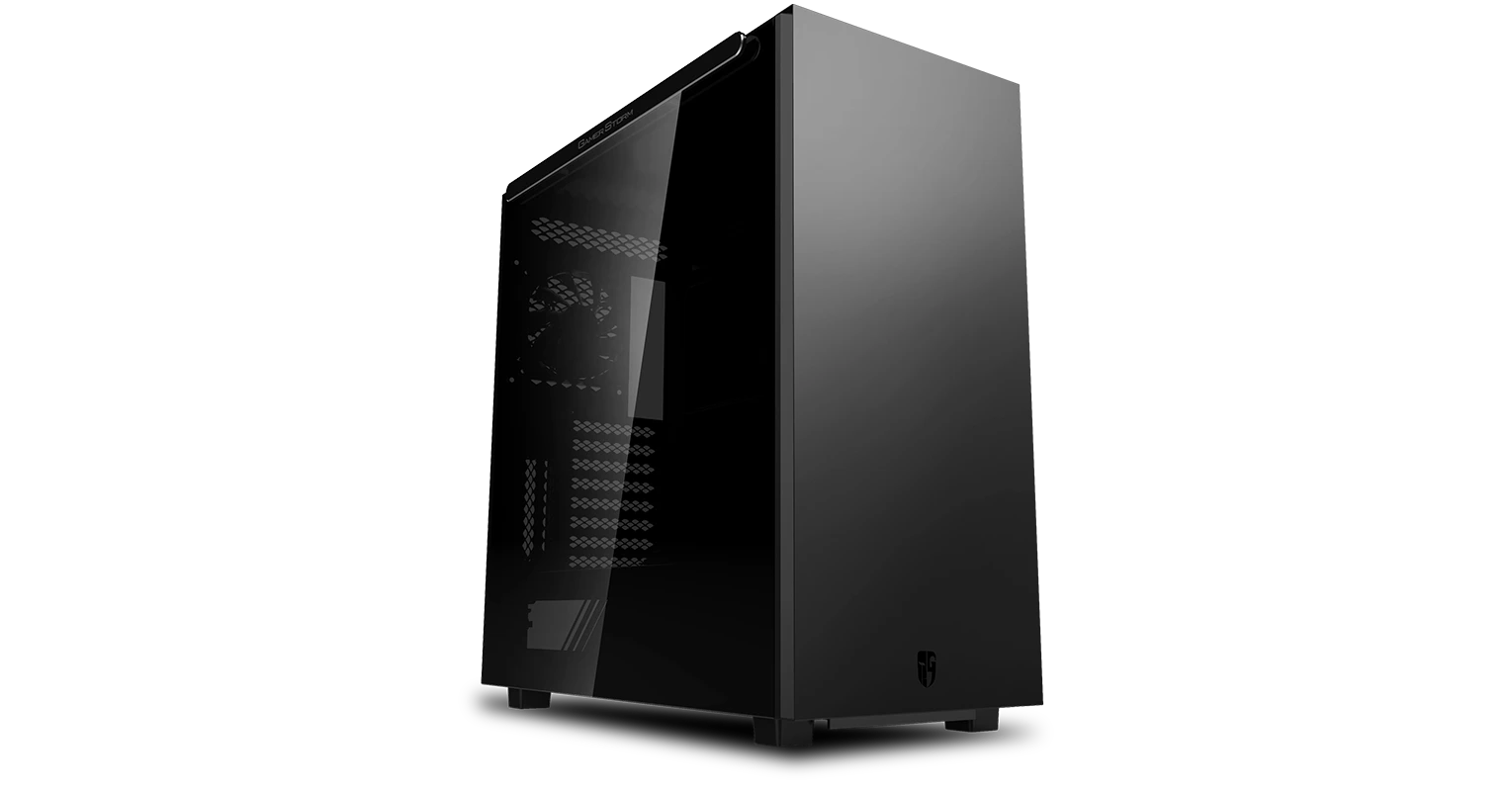

MACUBE 550
MACUBE 550 comes with a modern and concise look. We kept everything simple, eliminated the unnecessary and designed it to be functional with hidden air inlets and a magnetic glass panel.
Colour
black
MODEL
MACUBE 550
Modern Full-Tower
MODERN & CONCISE
MACUBE 550 comes with a modern and concise look. We kept everything simple, eliminated the unnecessary and designed it to be functional with hidden air inlets and a magnetic glass panel.
UNCONVENTIONAL SIDE PANELS

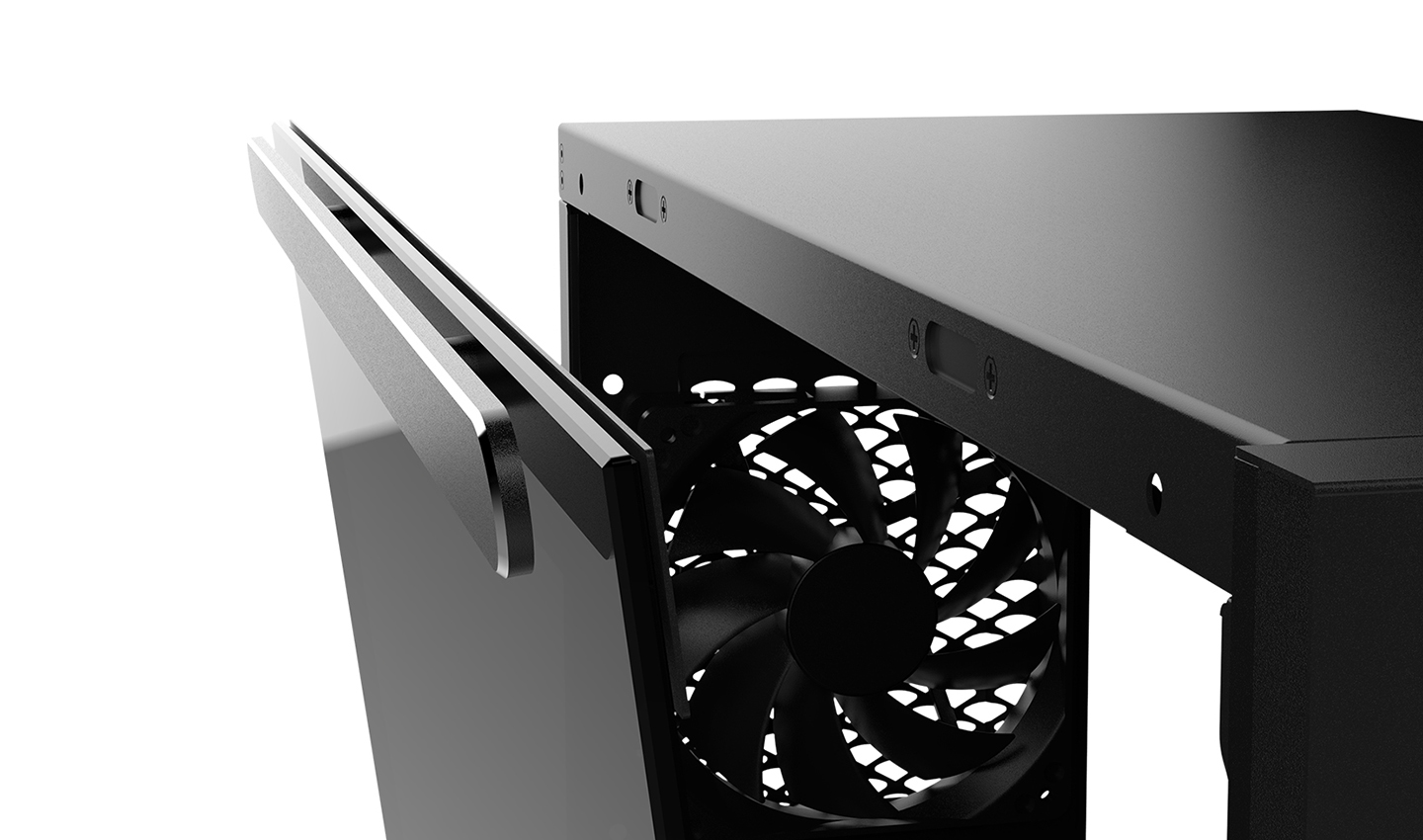

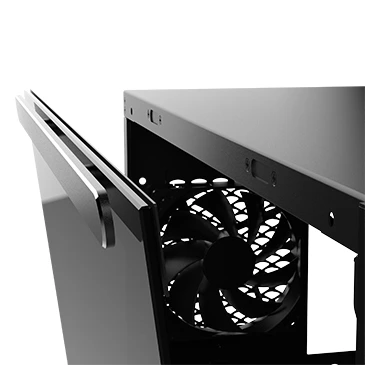

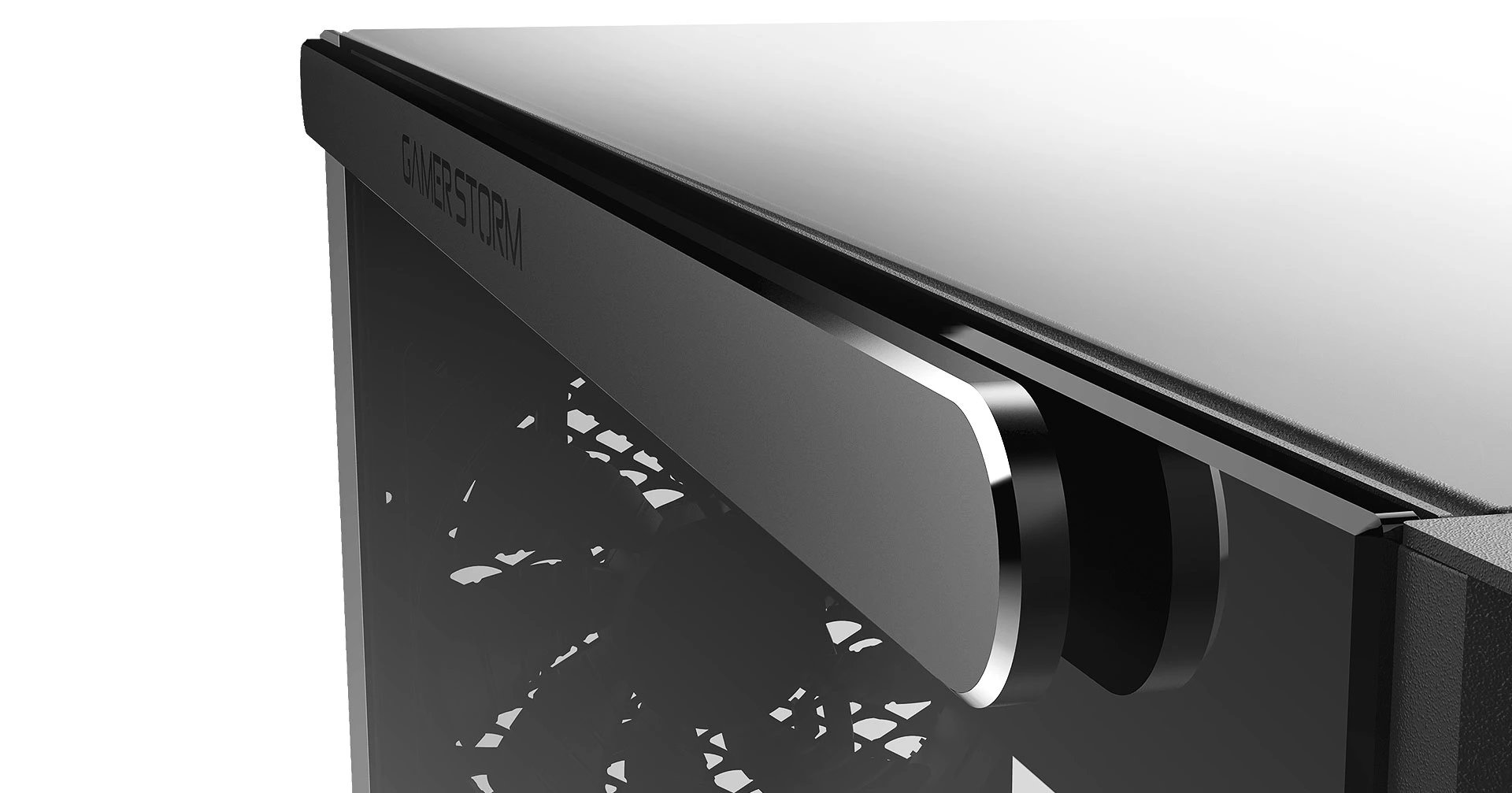

With its diamond-machined edge, the anodized aluminium bar is fixed across the tempered glass panel making it convenient to open your side panel.
UNCONVENTIONAL SIDE PANELS

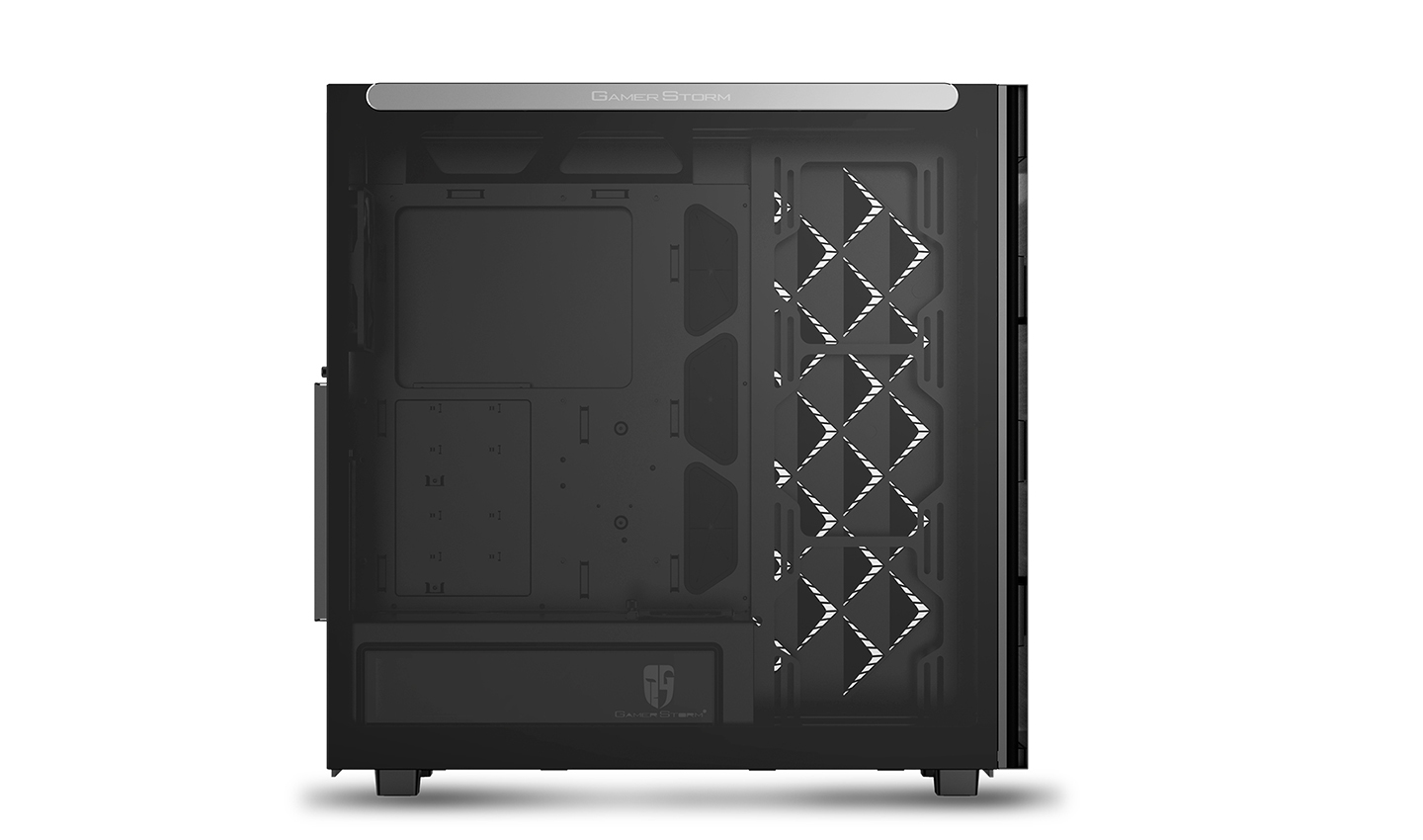

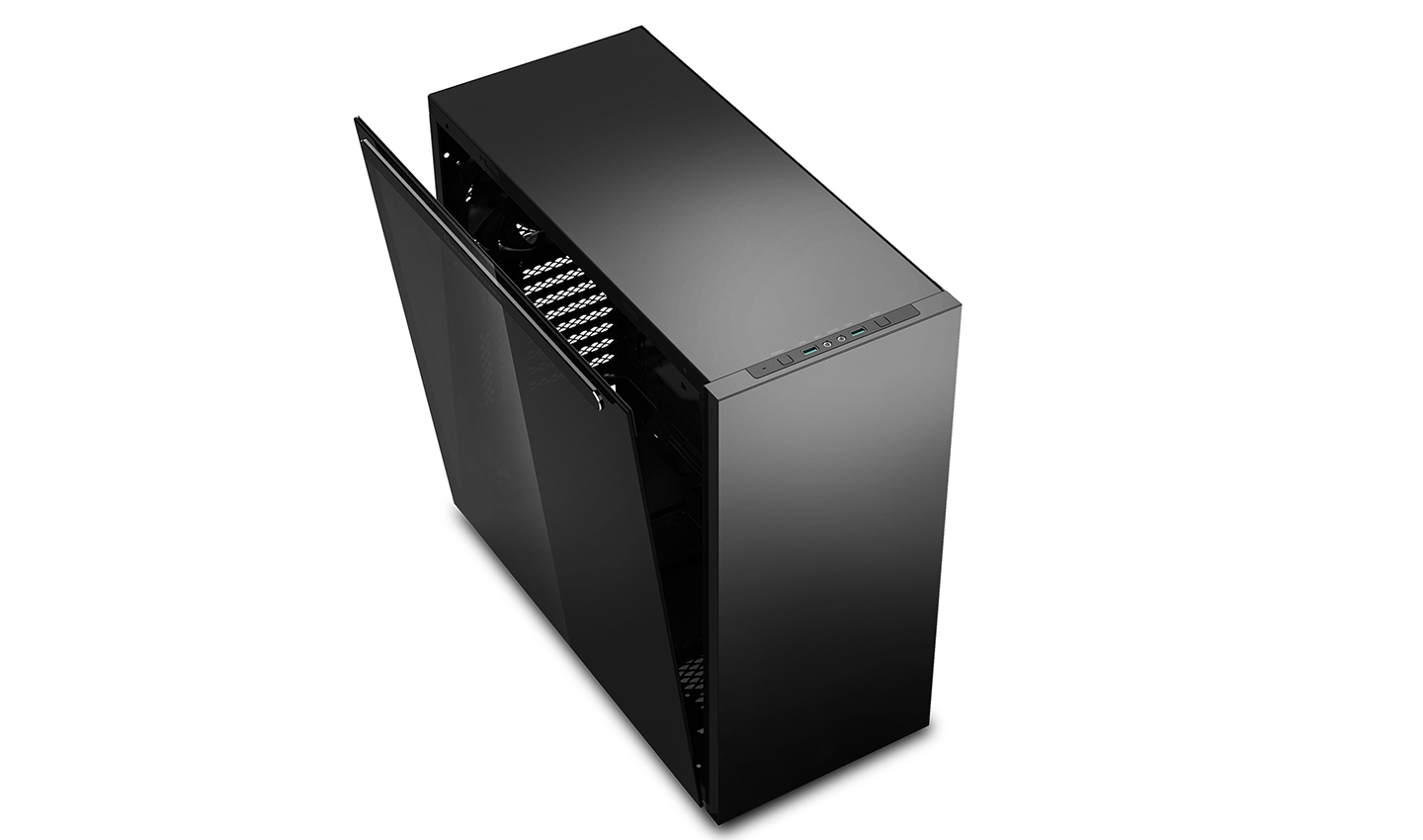

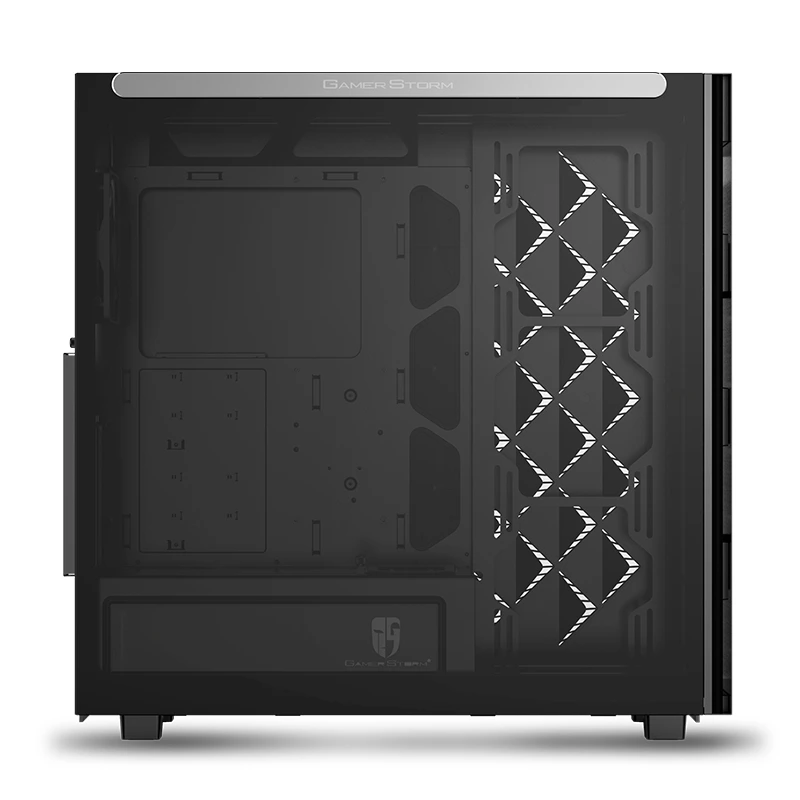

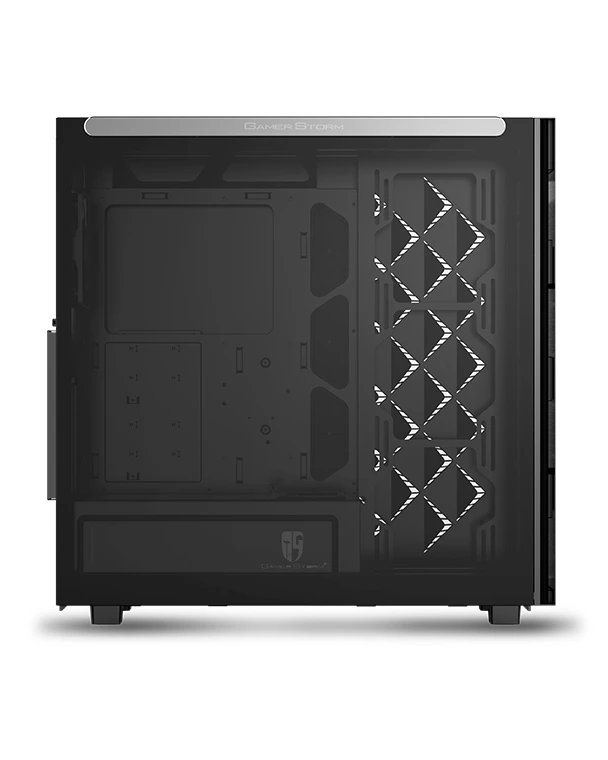

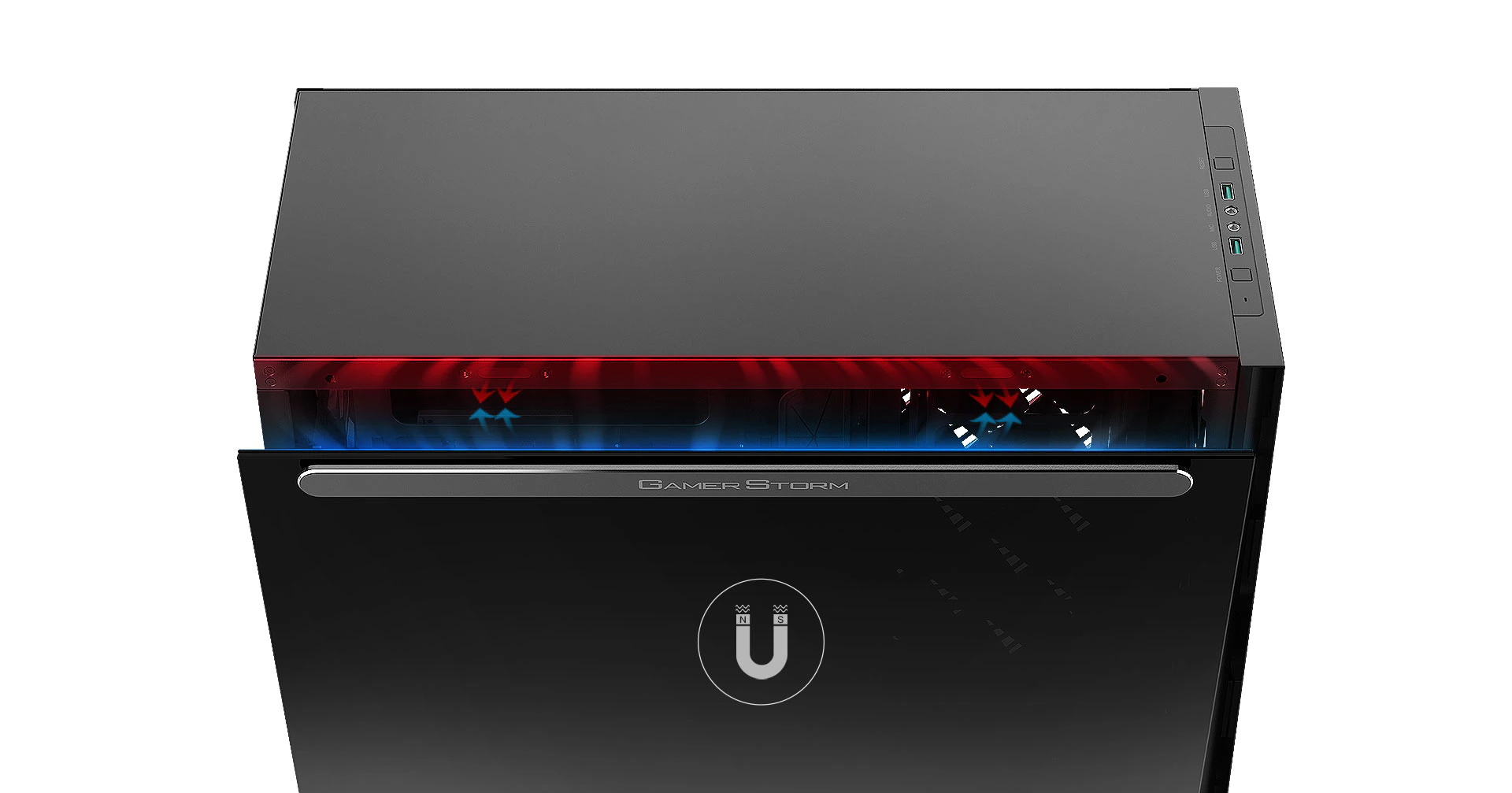

Left side panel is made of gray transparent tempered glass, mounted by permanent magnetic material that provides up to 24.5N of attraction force (approximately the gravity of 2.5Kg).
Up to 24.5N of Attraction Force
UNCONVENTIONAL SIDE PANELS

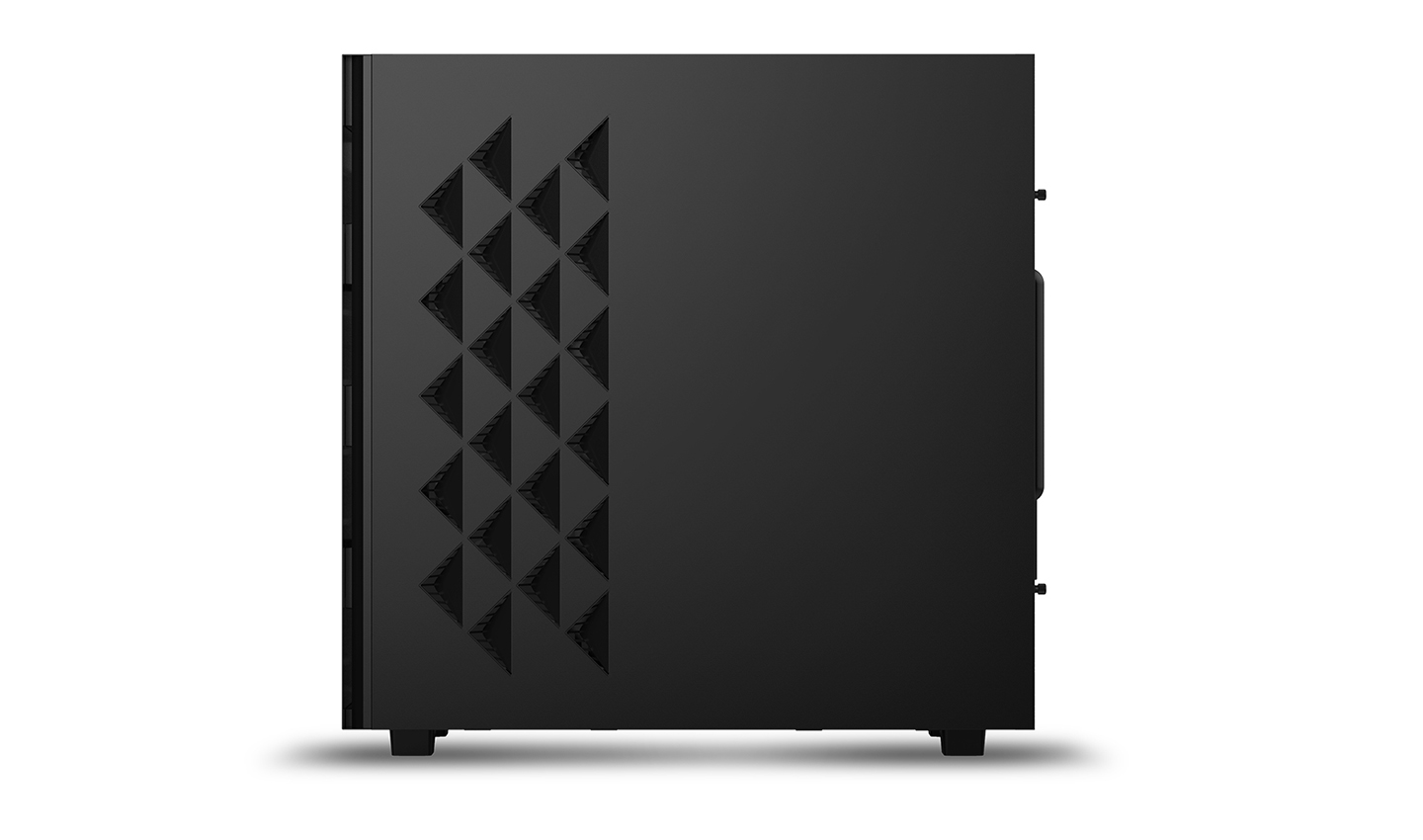

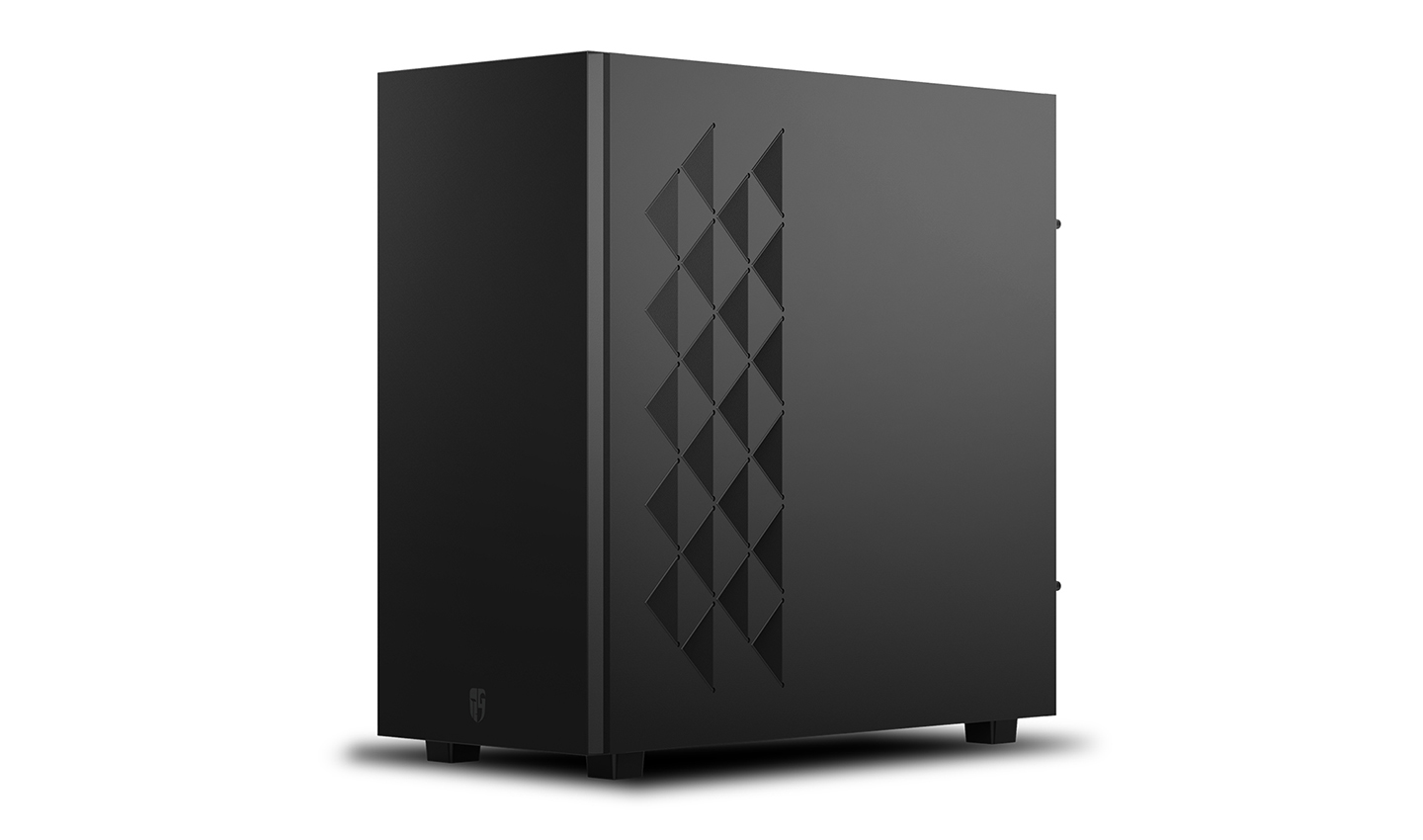

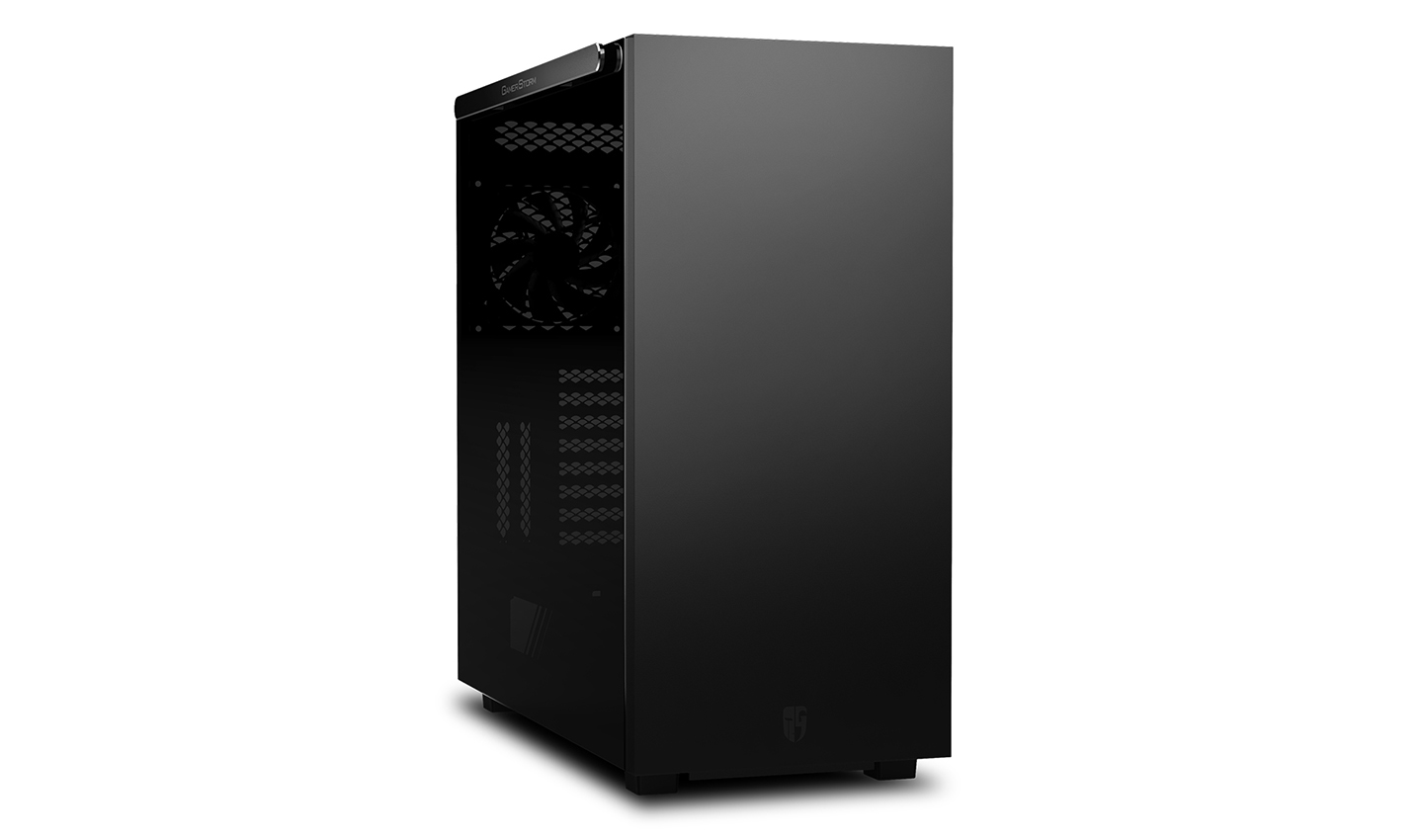

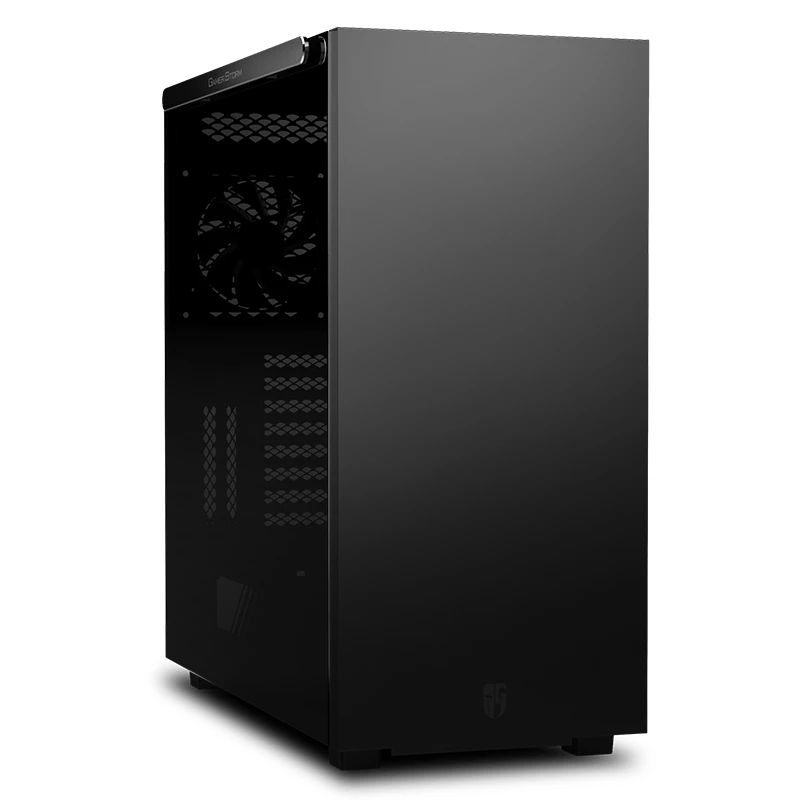

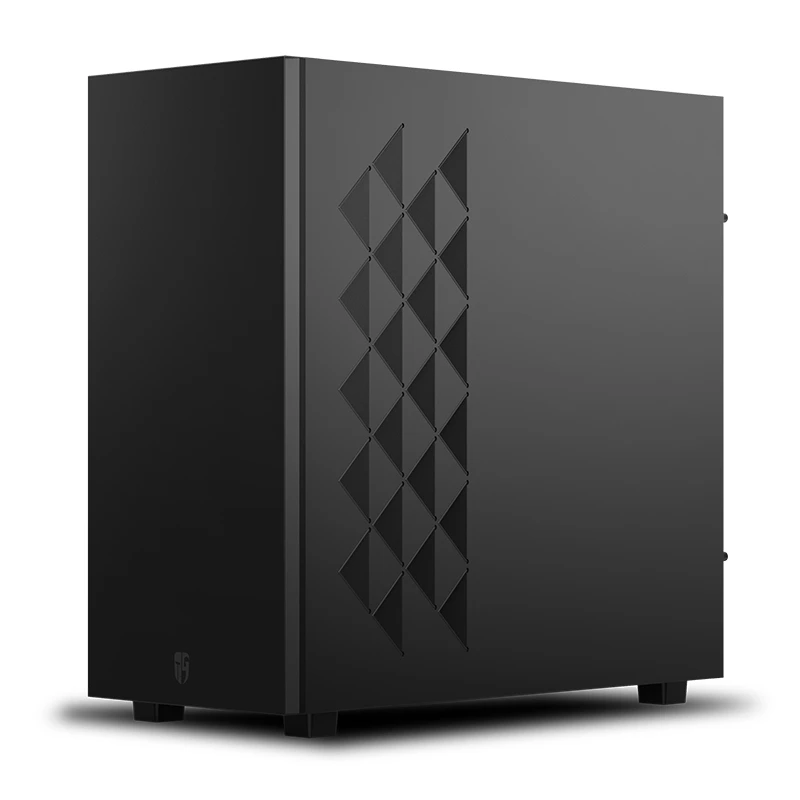

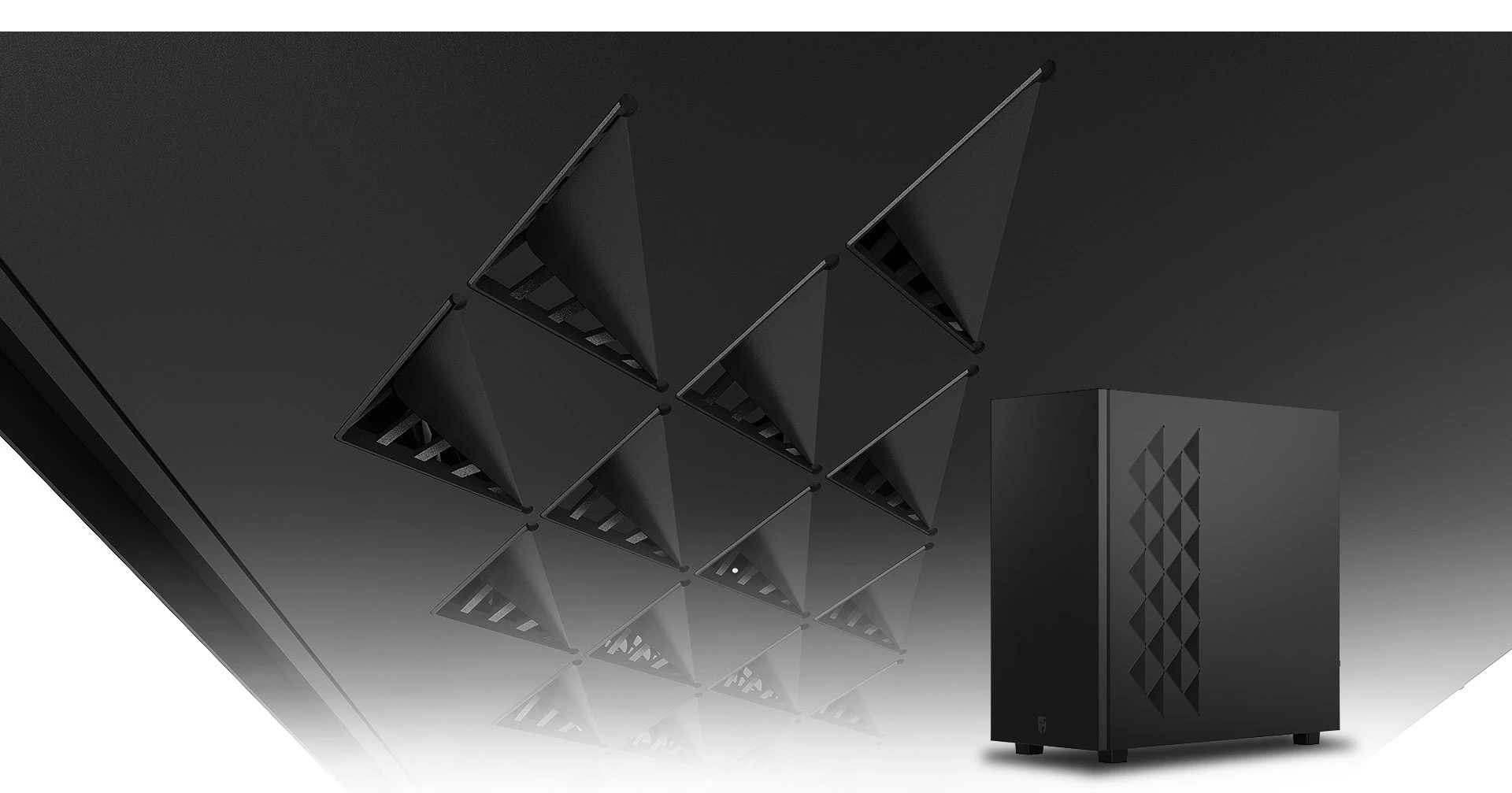

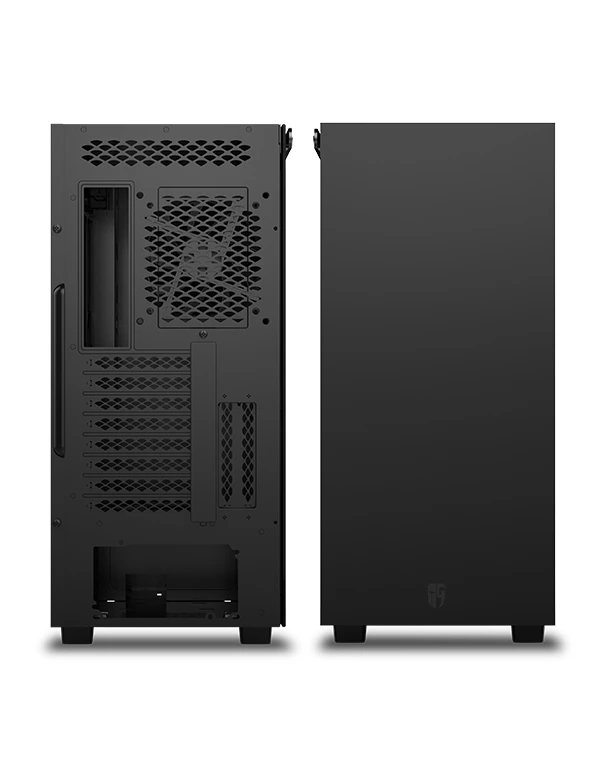

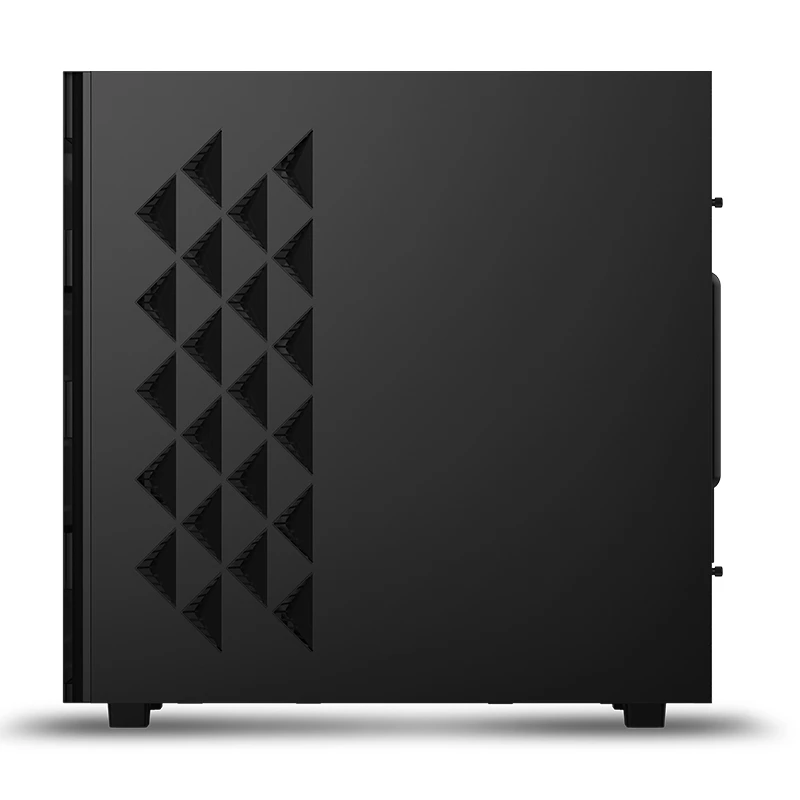

A unique ventilation hole array is integrated in the right side panel.
DEFORMATION & CORROSION RESISTANT

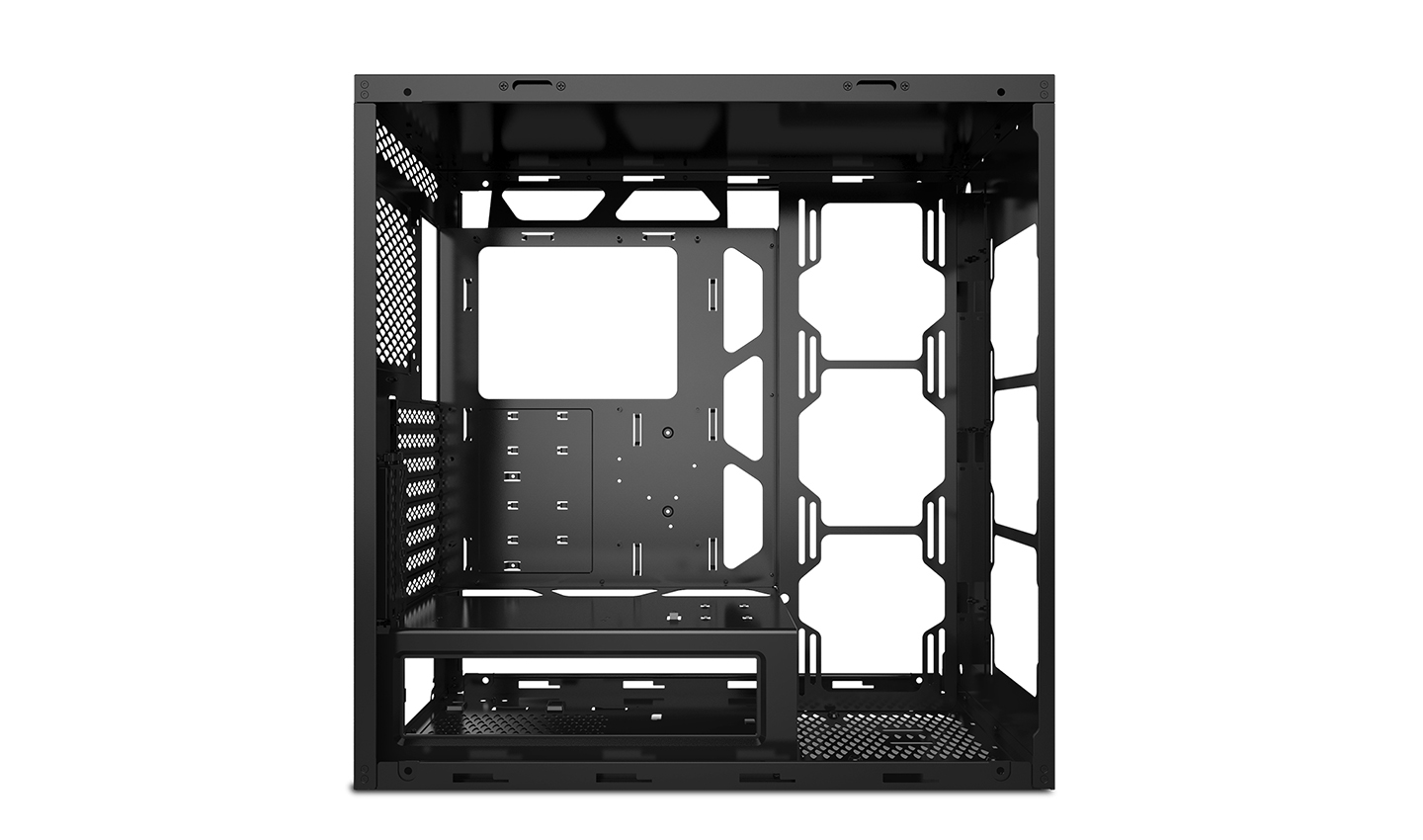

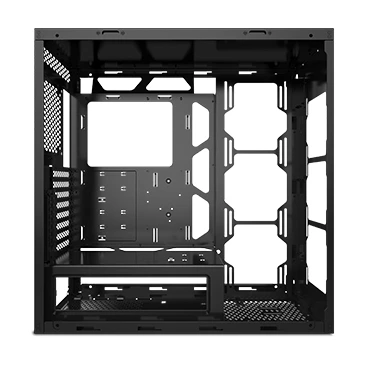

The whole structure of MACUBE 550 is built with 0.8mm SGCC (hot dip galvanized steel) material. Compared to the commonly used SPCC (Steel Plate Cold Rolled), SGCC is more sturdy, tenacious and corrosion resistant.
Corrosion Resistant
SGCC
SPCC
PREMIUM TEXTURE

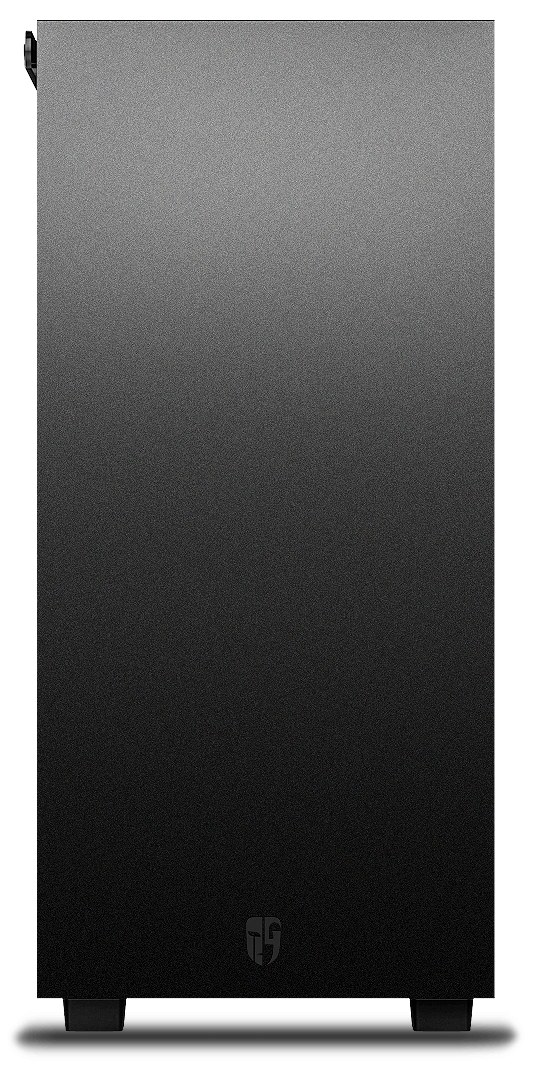

All metal plates in the case are covered by matte coating through an electrostatic spraying process. In addition, Logos are concealed on the front panel and the hand bar. The combination of these two features give this case a premium feeling.
FLEXIBLE AIR PATH
Dual air intake channels are hidden on both sides of the front panel. With the 6mm wide, low damping design, the intake channels provide abundant air flow for your system to breath.
FLEXIBLE AIR PATH
Dual air intake channels are hidden on both sides of the front panel. With the 6mm wide, low damping design, the intake channels provide abundant air flow for your system to breath.

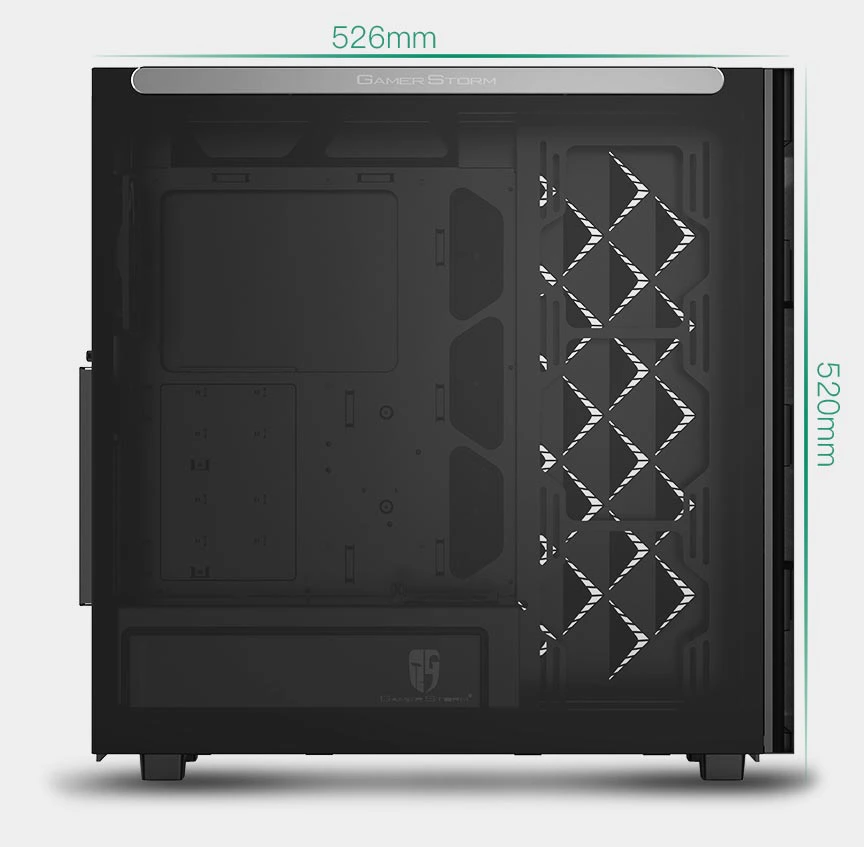

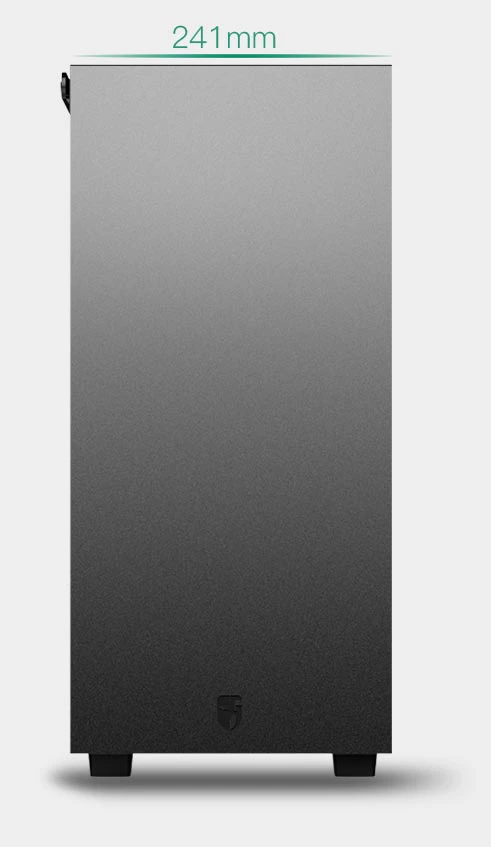

CASE DIMENSIONS
526mm×241mm×520mm(L×W×H)

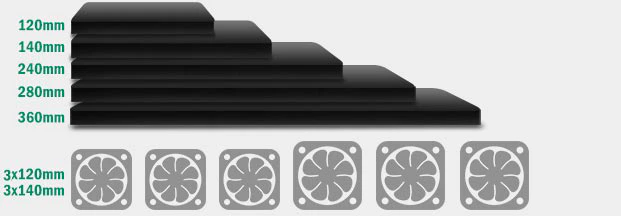

FAN SUPPORT / RADIATOR SUPPORT

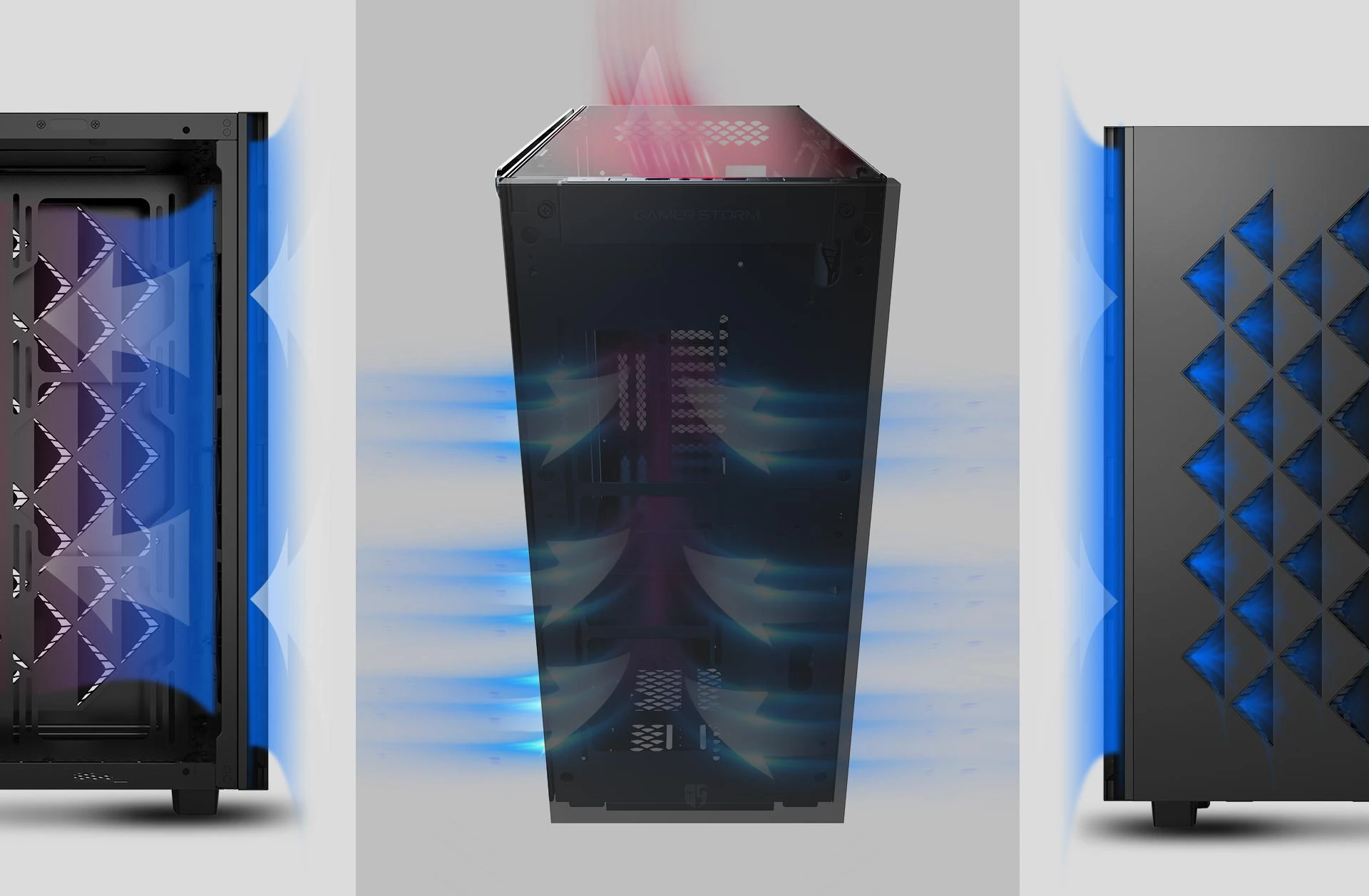

When serving as an exhaust (for liquid cooler), the scale array provides the shortest and most efficient air path.
When serving as an intake, the scale array, together with the front intake can strengthen air pressure and speed, thereby significantly enhancing the cooling performance.
Front
Rear
Side

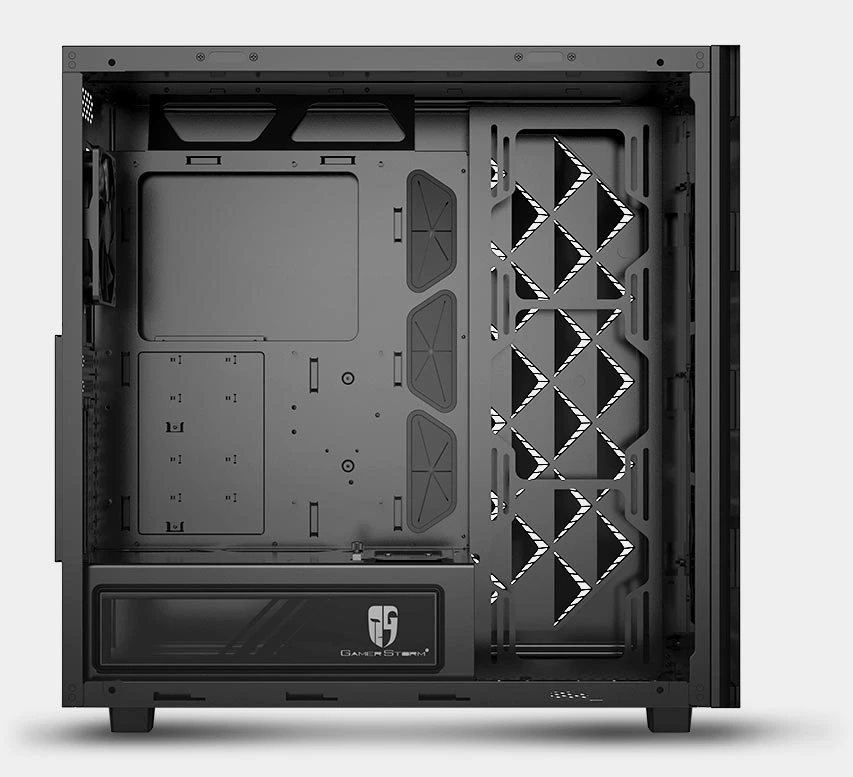

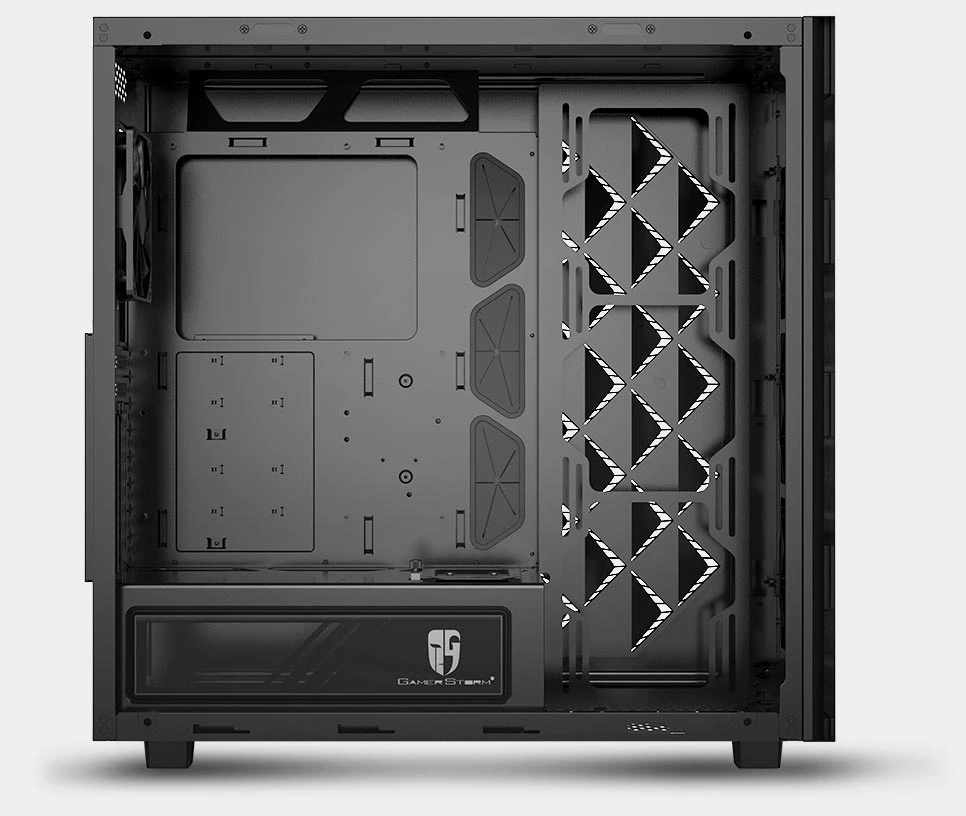

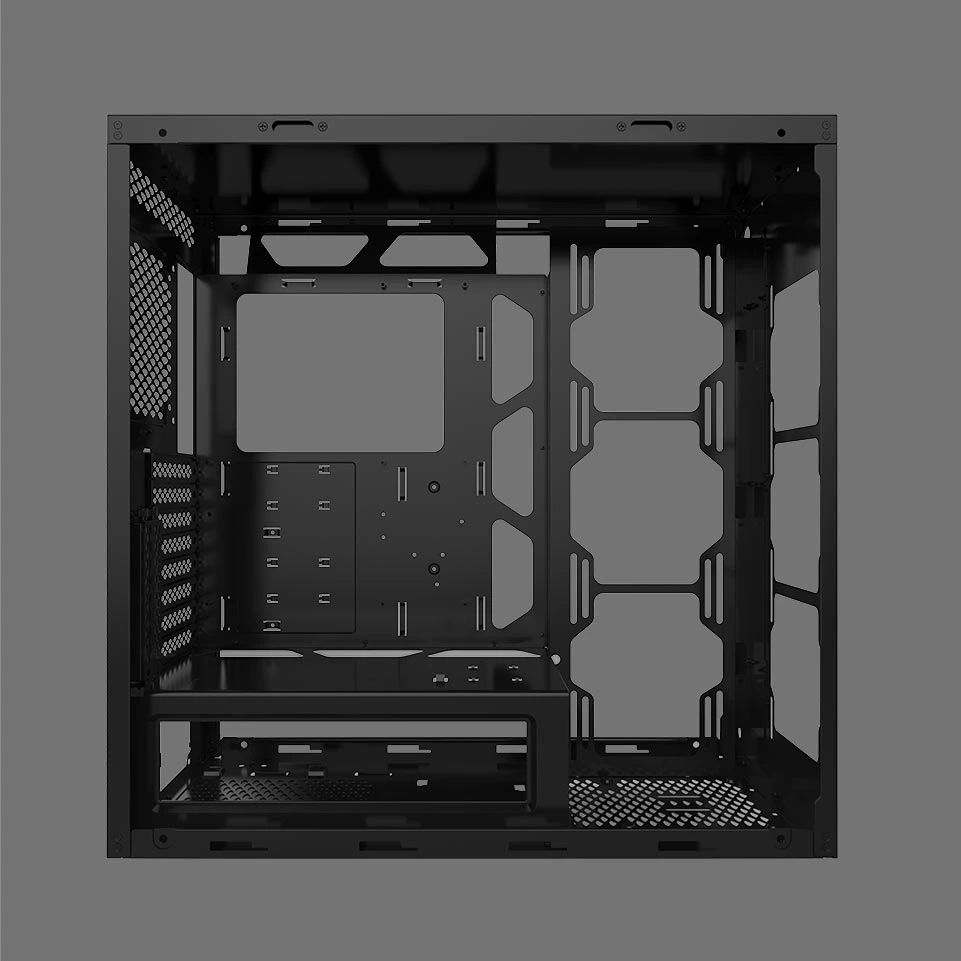

FAN SUPPORT / RADIATOR SUPPORT
Mini-ITX / Mico-ATX / ATX(305mm*276mm max)

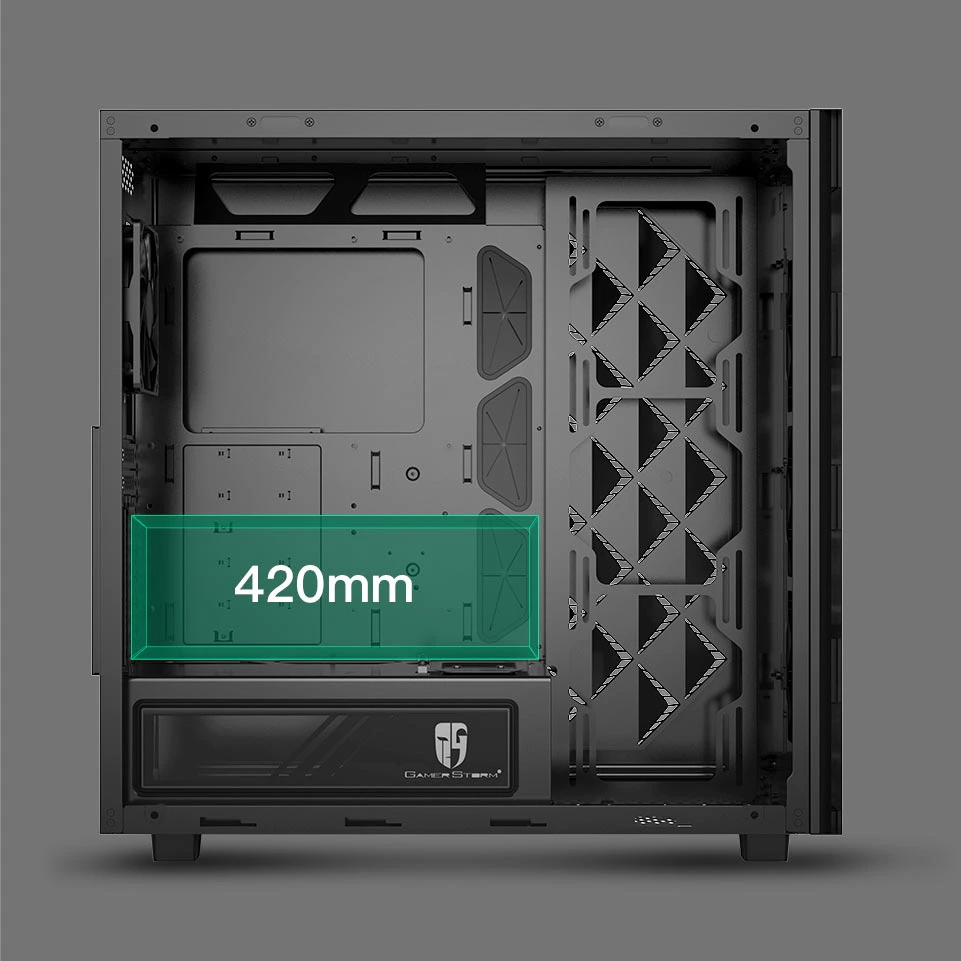

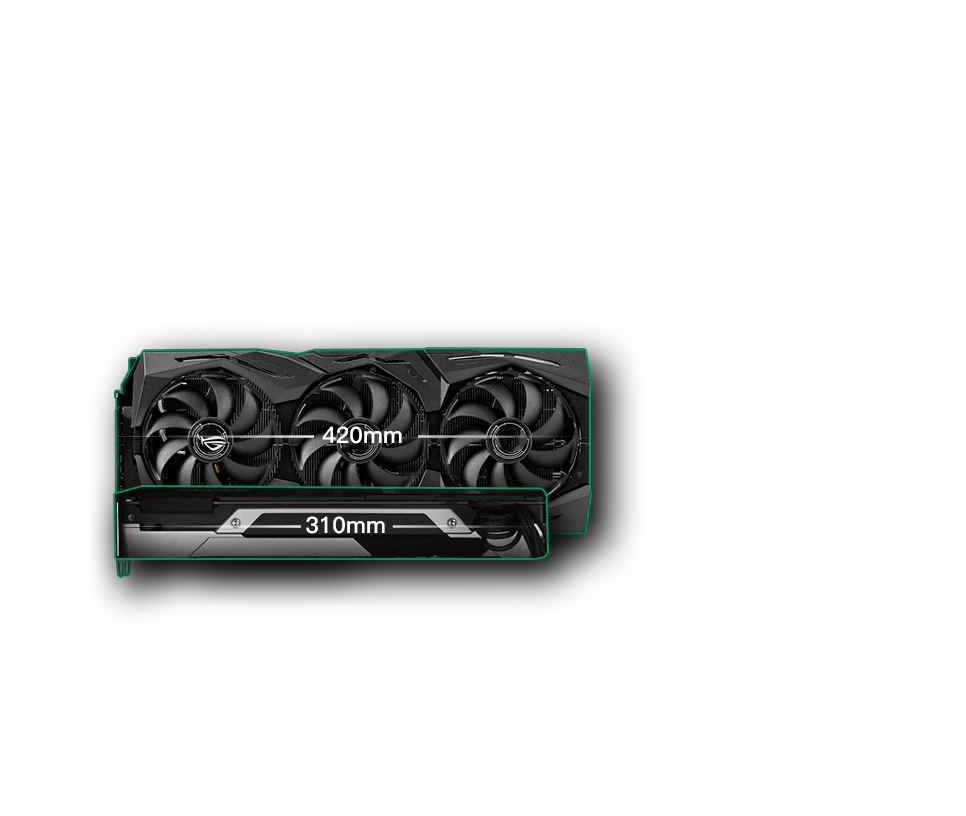

GPU Length:310mm horizontal,420mm vertical
  • OTHER HIGHLIGHTS
    Supports GPU vertical installation (separately sold accessory)
  • OTHER HIGHLIGHTS

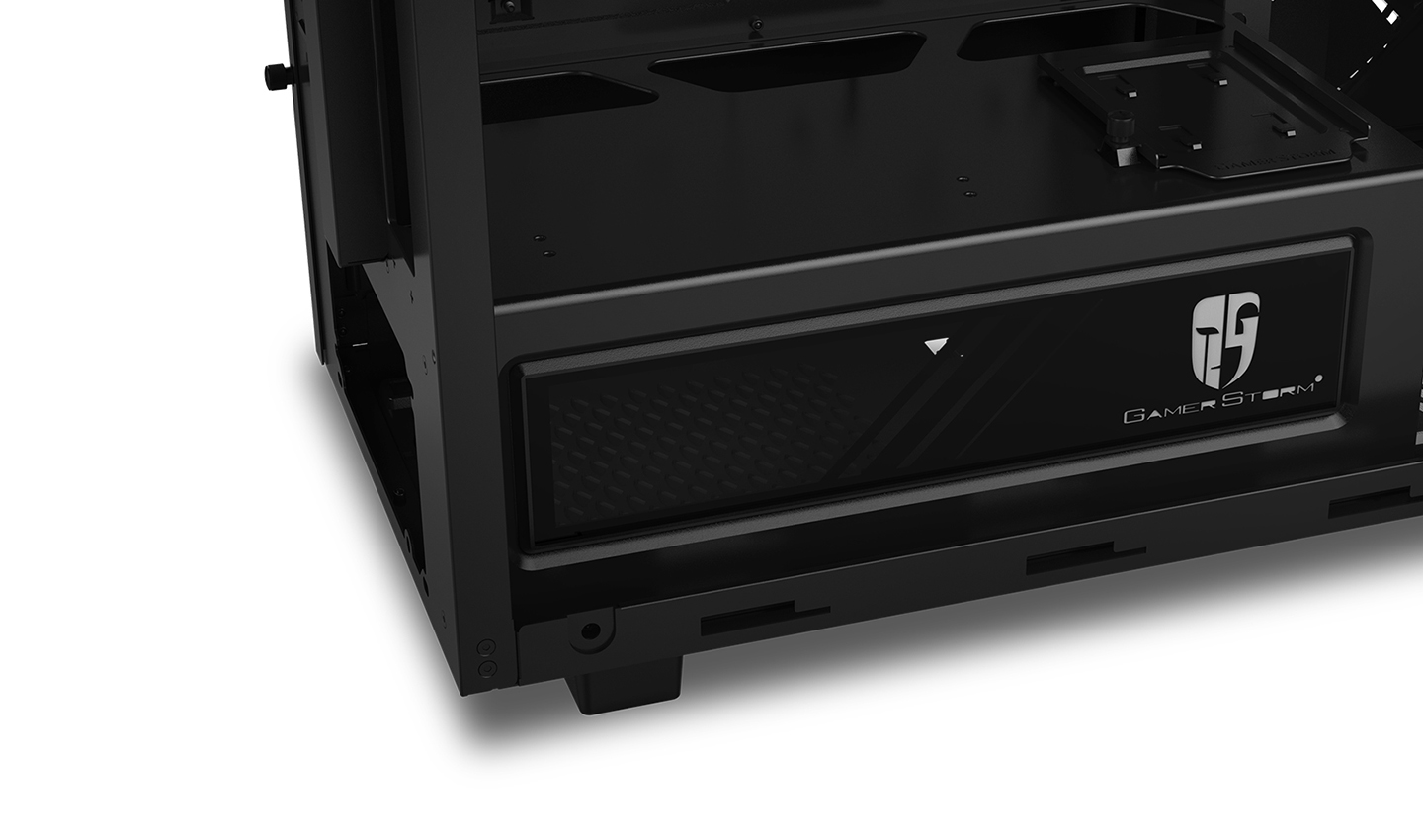

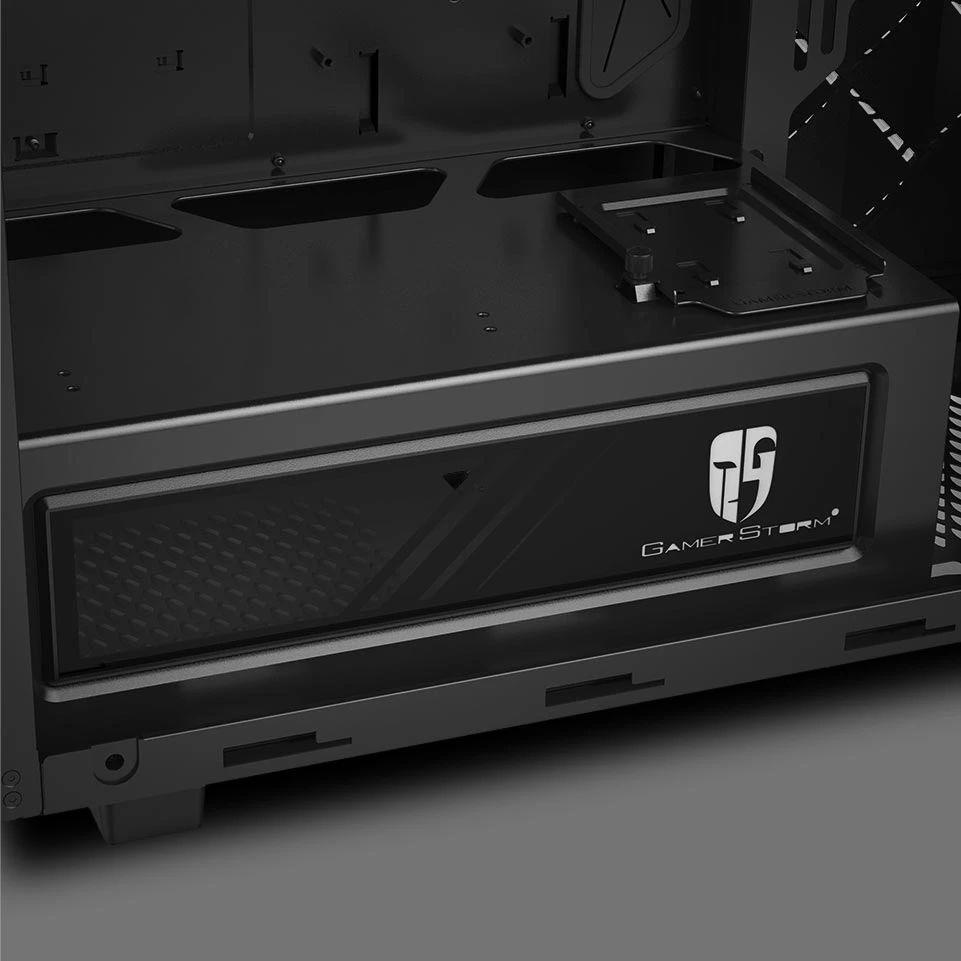

    Glass side panel of PSU shroud is ready to present your fancy power supply.
  • OTHER HIGHLIGHTS
    25mm cable management room makes life easier.
  • OTHER HIGHLIGHTS

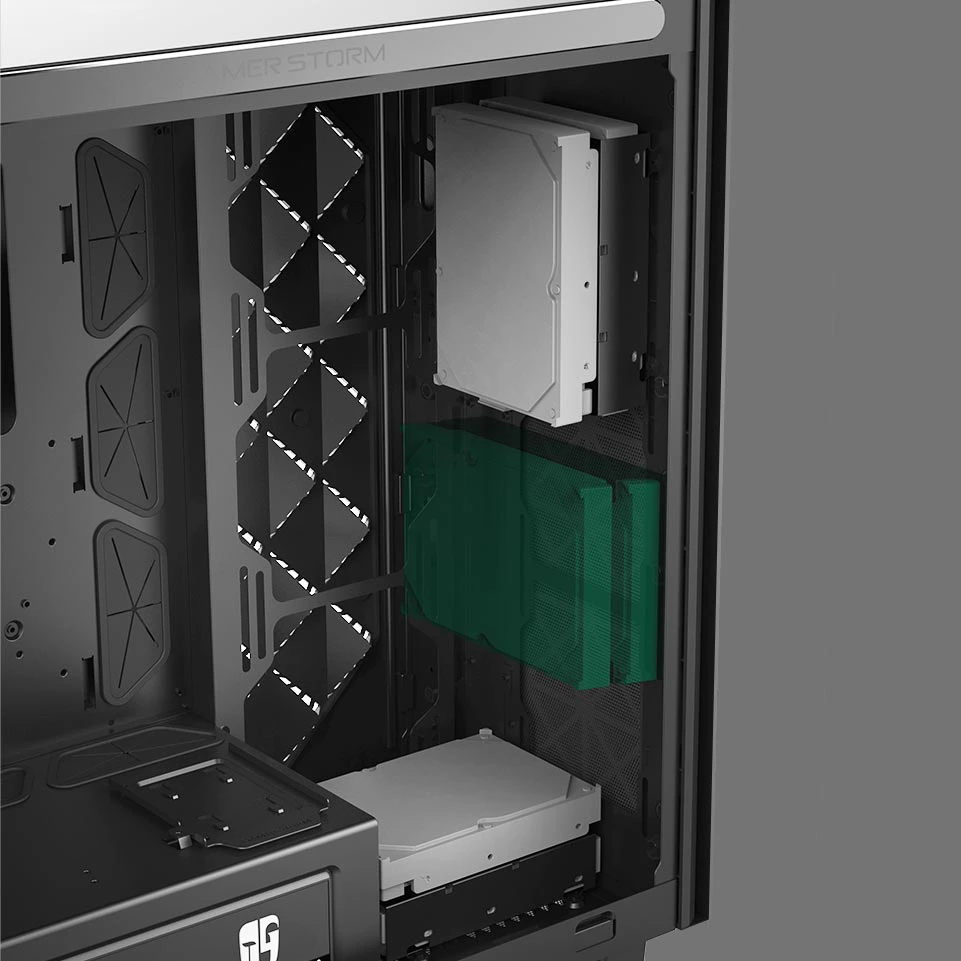

    2 HDD holders are included, each of which can hold 2 x 3.5-inch hard drives. The holders can be installed on all 120mm fan slots within the case.
  • OTHER HIGHLIGHTS

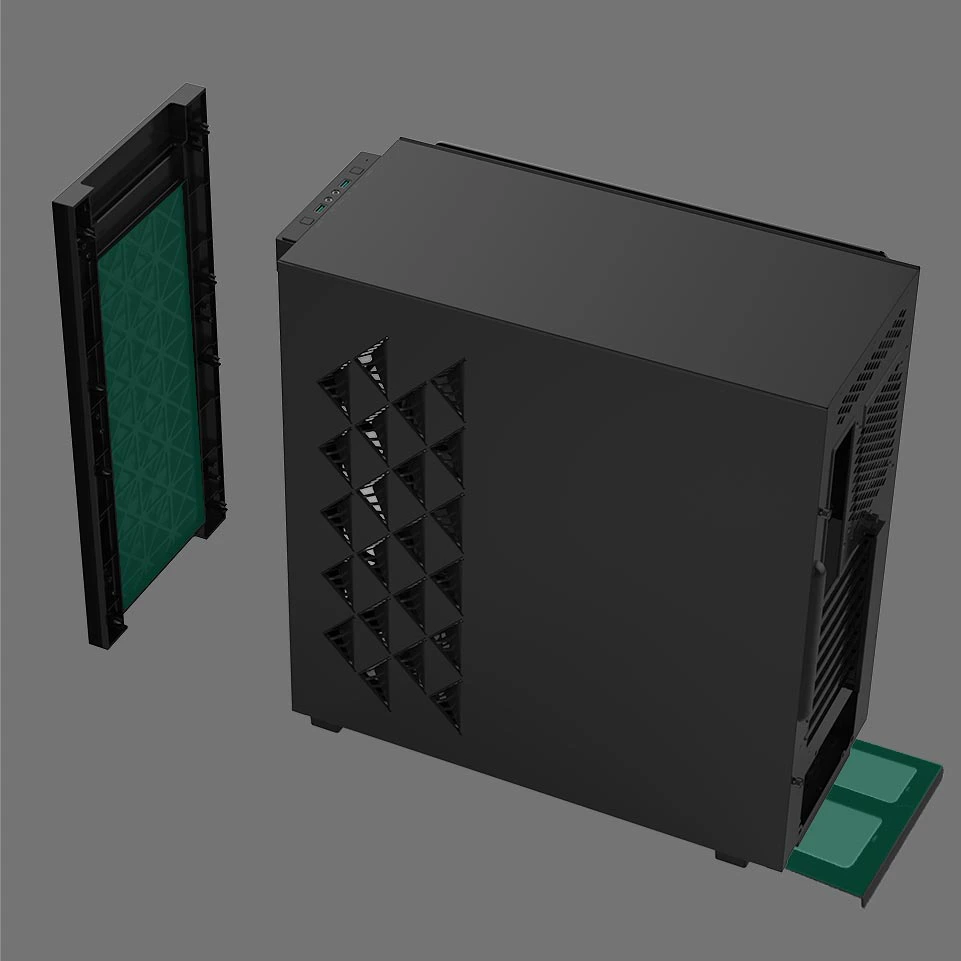

    Dust filters attached at the front and bottom of the case. The 2 bottom filters are easy to pull out and wash.
  • OTHER HIGHLIGHTS

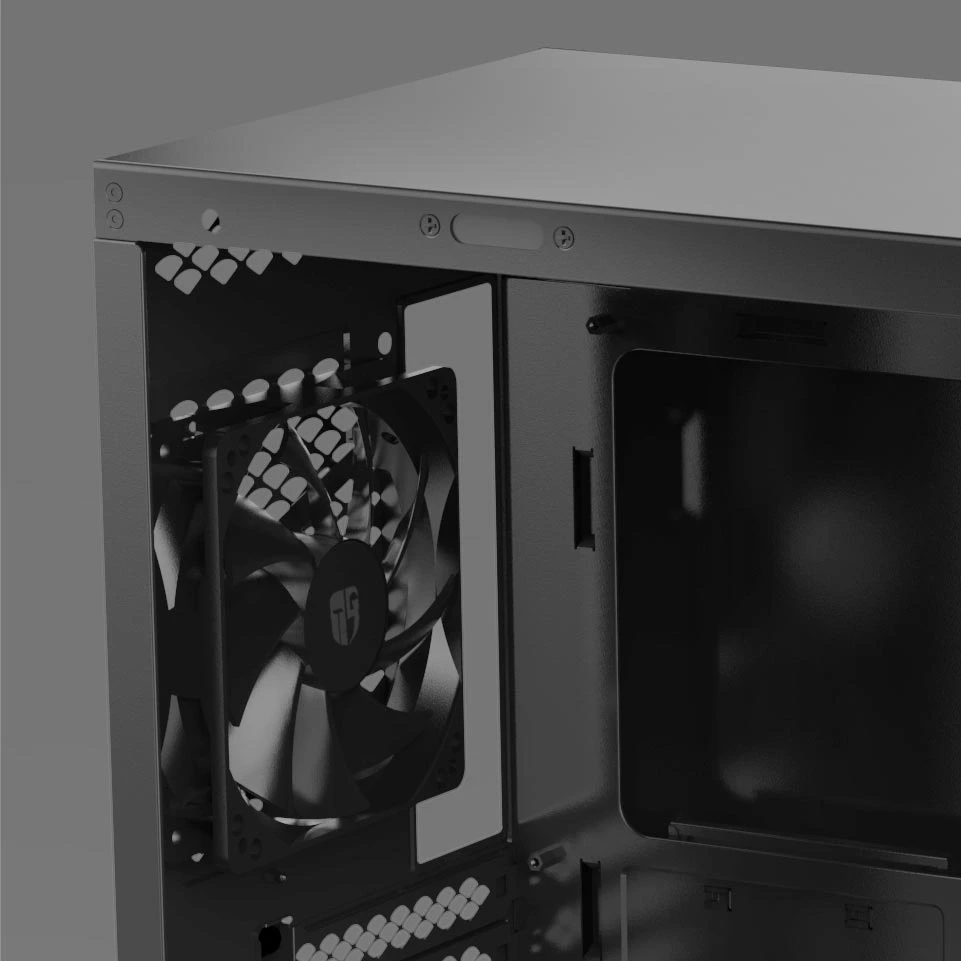

    A 120mm black fan is included at the rear of the case.
Technical Spec
Motherboards Mini-ITX/Micro-ATX/ATX(MAX 305*276mm)
Materials ABS+SGCC+Tempered Glass+Aluminum Plate
Product Dimensions 526mm×241mm×520mm(L×W×H)
Carton Dimensions 625mm*335mm*609mm
Net Weight 12.2Kg
Gross Weight 14.8Kg
5.25' Drive Bays 0
3.5' Drive Bays 4
2.5' Drive Bays 3

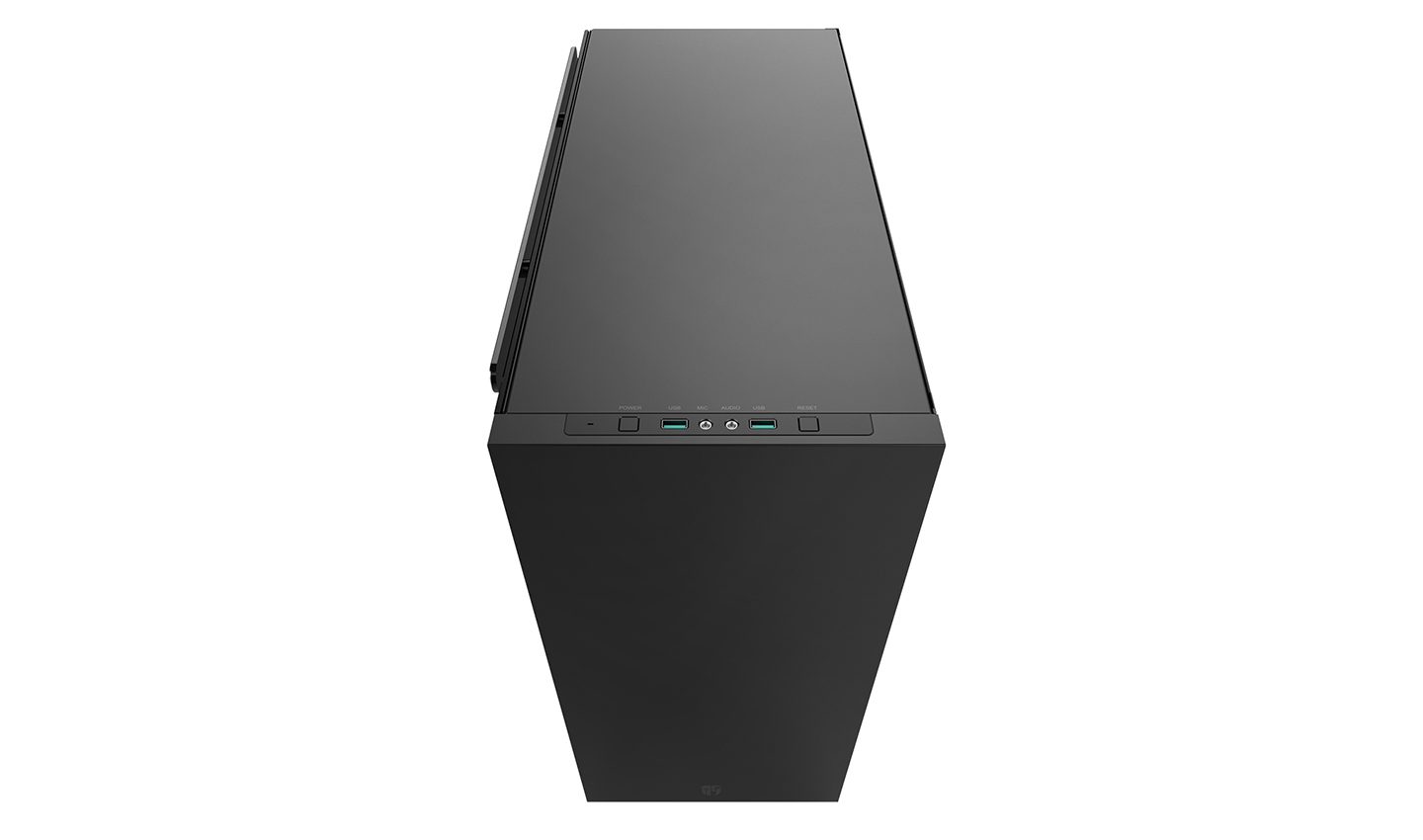

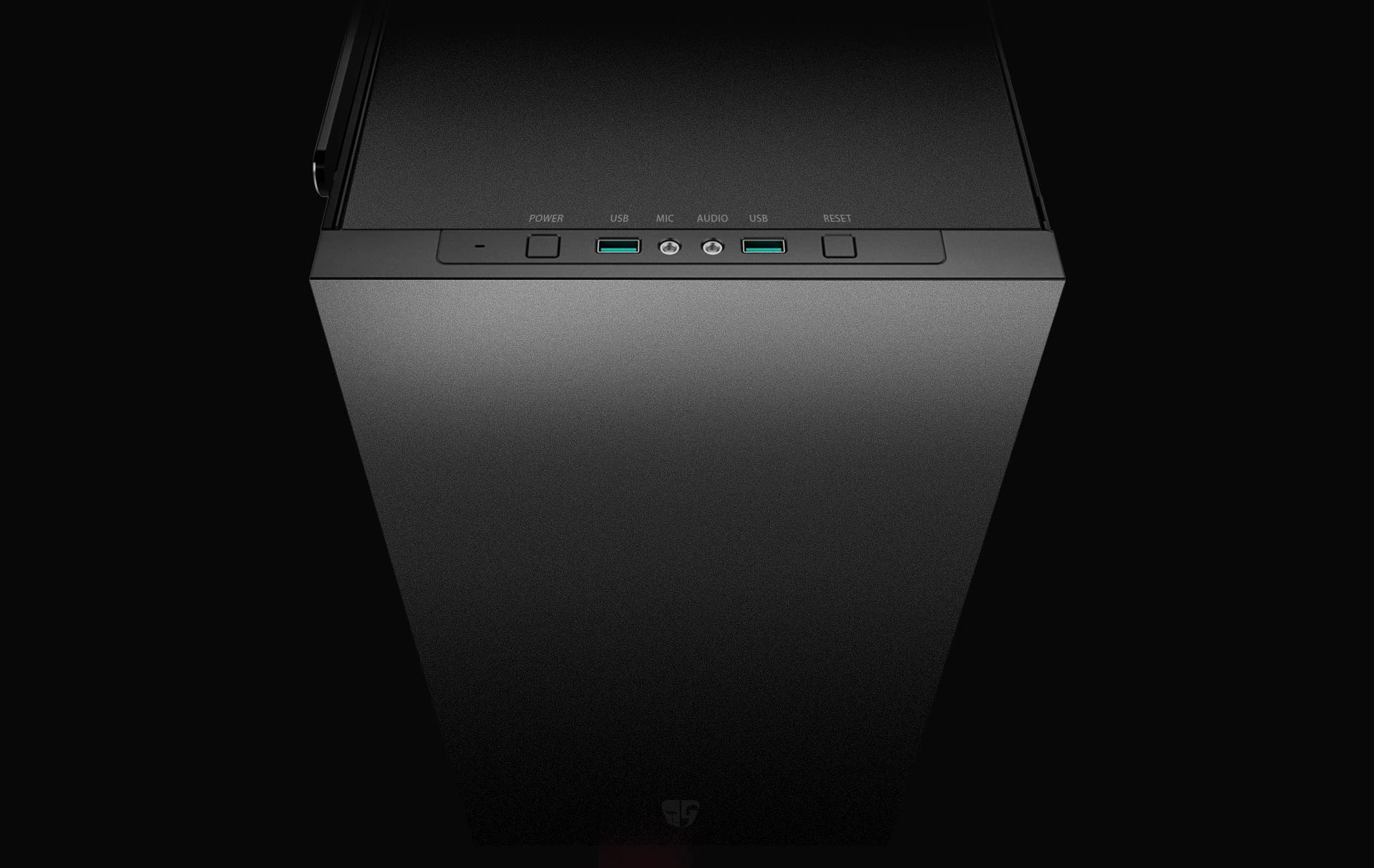

I/O Panel 2×USB3.0/Audio×1/Mic×1
Expansion Slots 8+2 Slots
Cooling Fans Support Pre-installed: Rear: 1×120mm DC fan; Optional: Front: 3×120mm; Side: 3x120mm/3x140mm
Power Supply Type ATX PS2 (maximum length: 170mm)
CPU Cooler Height Limit 186mm
CPU Cooler Compatibility Front: 120/240/360mm; Side: 120/140/240/280/360mm ; Rear: 120/140mm
Graphic Card Clearance 310mm Horizontal/420mm Vertical
Cable Management 25mm clearance
EAN 6933412713838
P/N GS-ATX-MACUBE550-BKG0P
Product Dimension
Download
MACUBE 550 Manual.pdf
