CH510
The DeepCool CH510 is a sleek and minimalistic mid-tower ATX case with great component compatibility and extensive cooling capacity support for a truly flexible build experience.
Colour
black
MODEL
CH510
Mid-Tower ATX Case
Mid-Tower ATX Case
The DeepCool CH510 is a sleek and minimalistic mid-tower ATX case with great component compatibility and extensive cooling capacity support for a truly flexible build experience.
A Complete Build Experience
The CH510 is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.
A Complete Build Experience
The CH510 is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.
Expand Your Cooling
Install up to a 360mm radiator either on top or in front for water cooling setups and support up to 9x 120mm or 5x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.

9

x120mm

5

x140mm

Side
Vents

Simply Streamlined

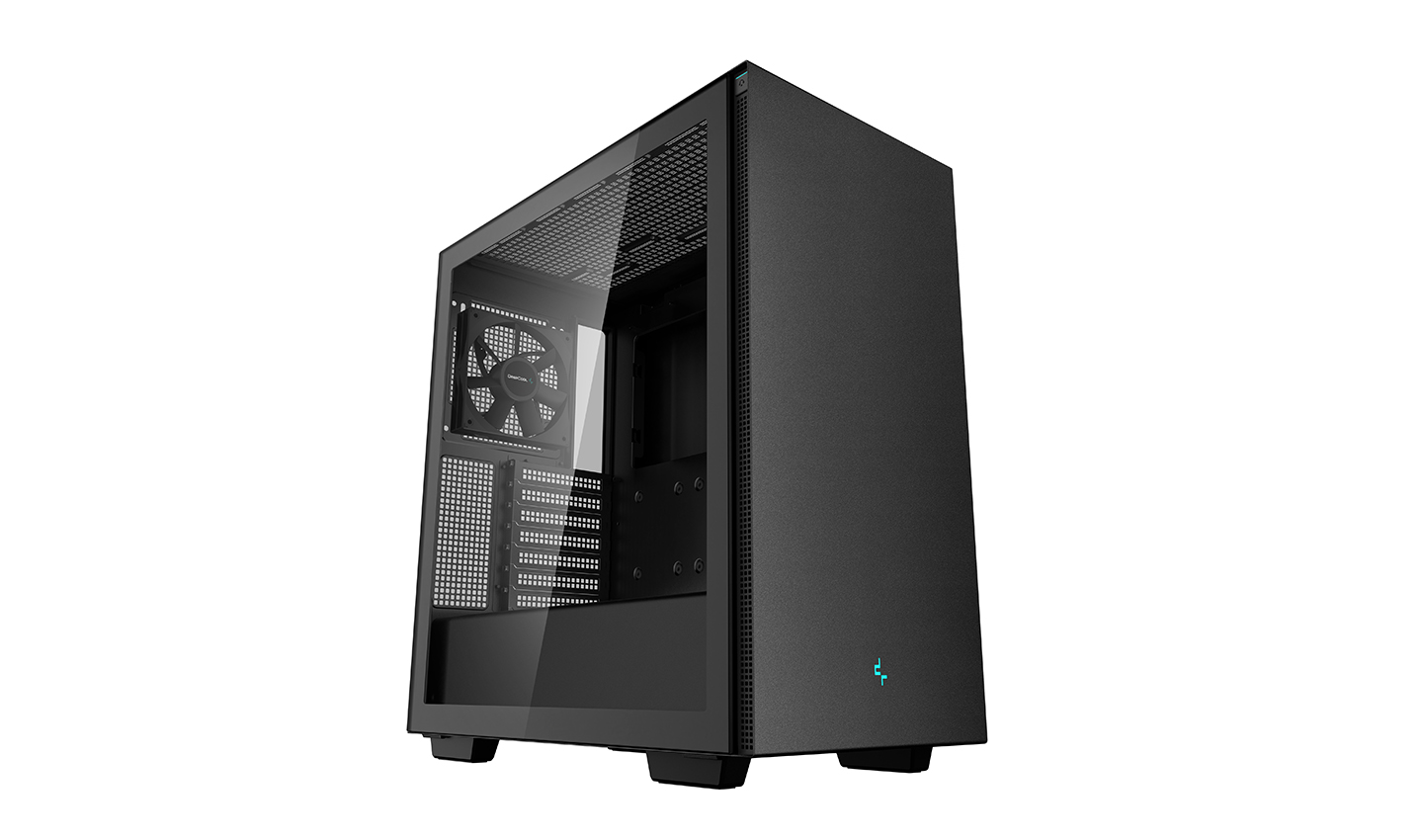

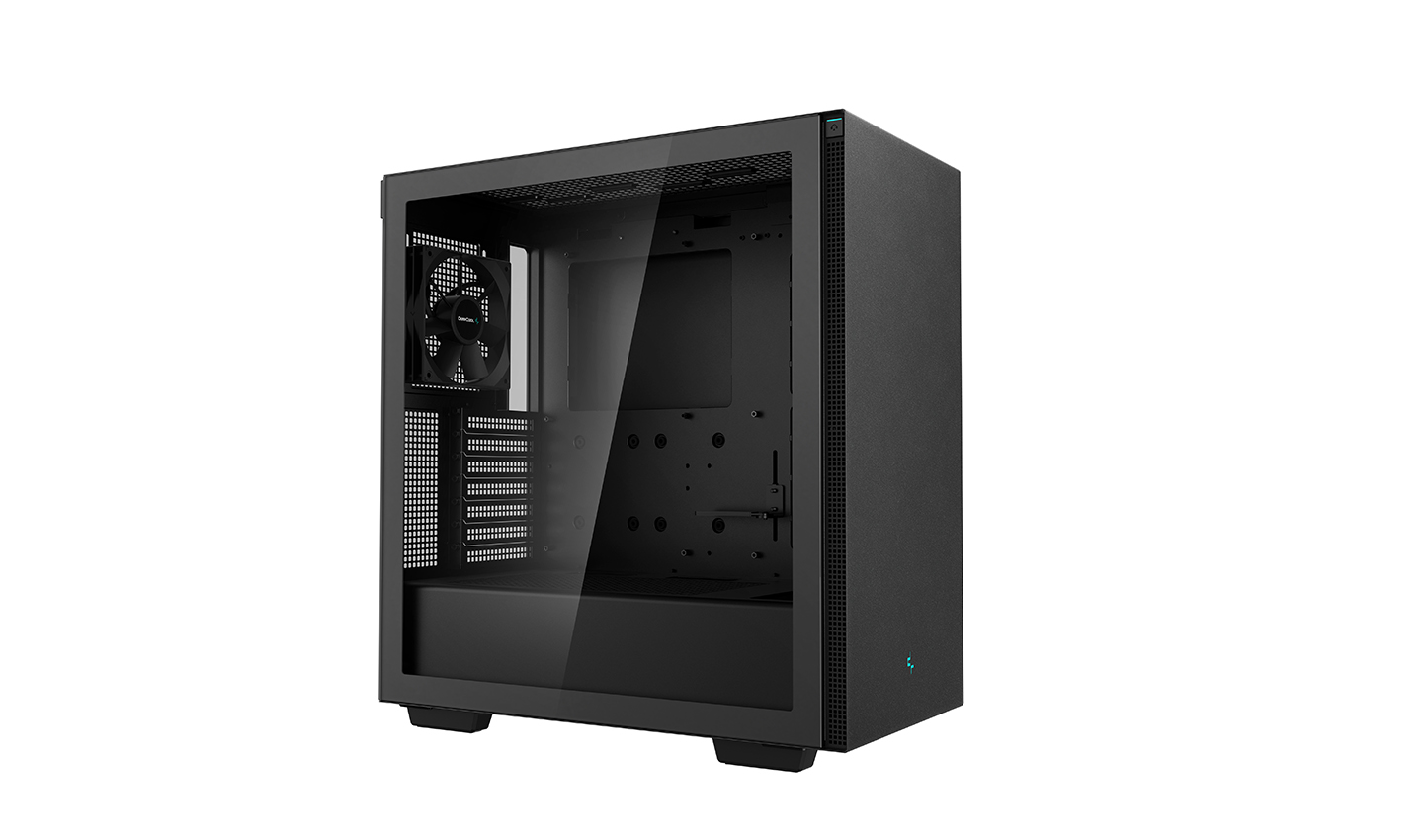

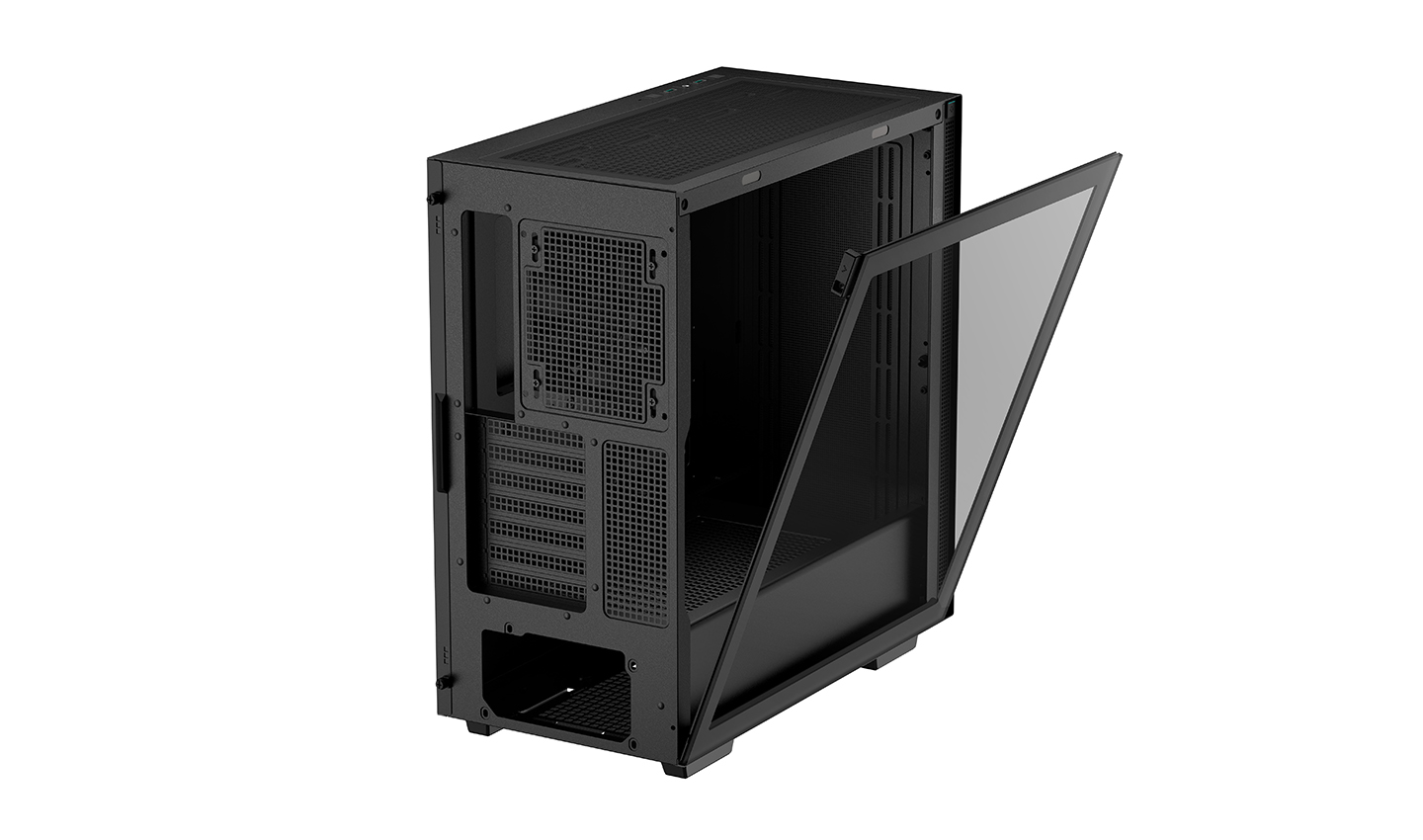

A magnetic tempered glass side panel offers the most convenient way to mount glass panels that includes an optional safety lock for extra security.
Wide and Spacious Interior
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.
The Support You Need
The built-in GPU support bracket ensures that your graphics card never has to sag.
A convenient headset holder can be pulled out from the front panel to help you organize.
A convenient headset holder can be pulled out from the front panel to help you organize.
Dedicated dust-filters help keep your system clean.
High quality rubber grommets and ample cable space helps manage clutter.
High quality rubber grommets and ample cable space helps manage clutter.

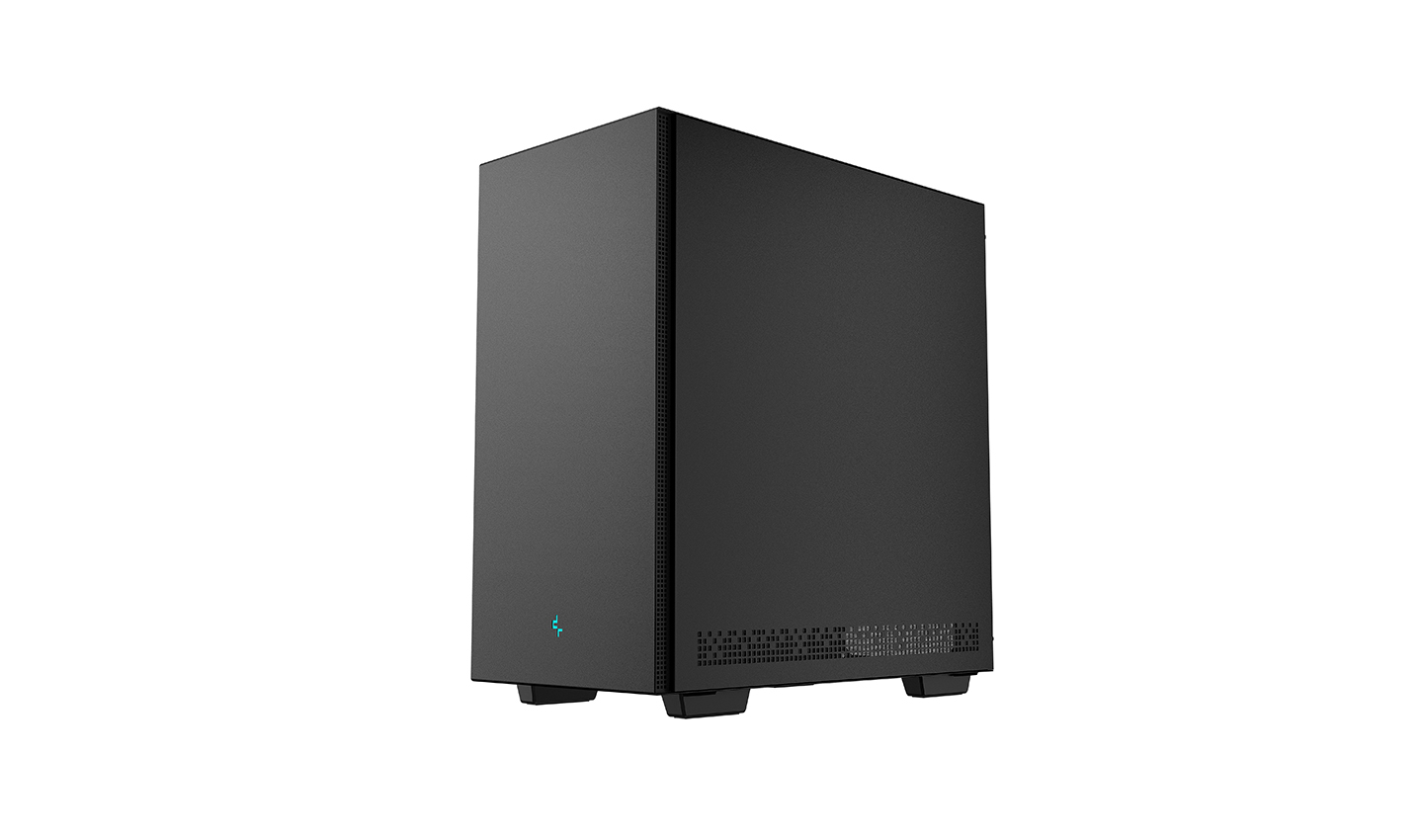

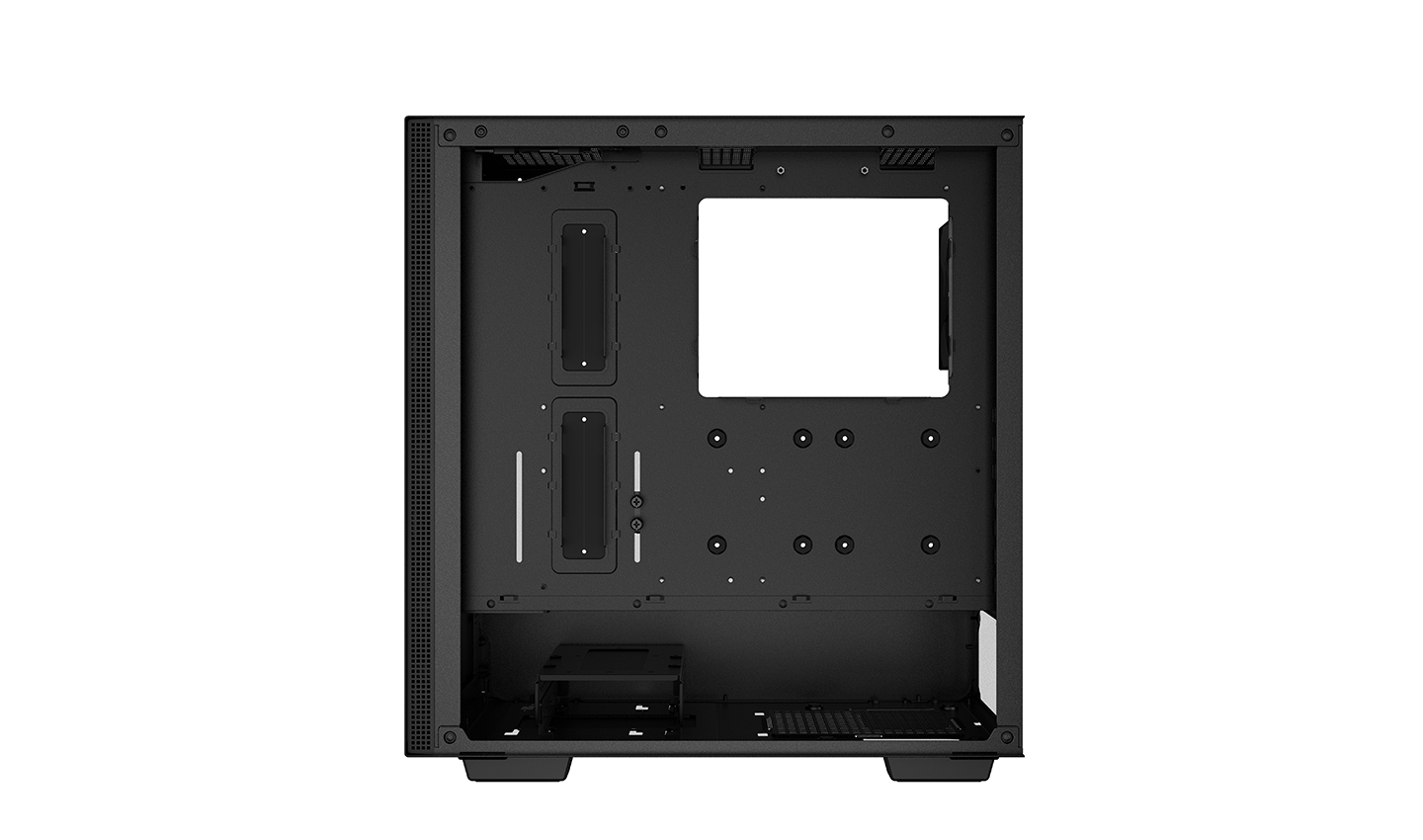

The steel side panel features ventilation for airflow when using PSU shroud fans.
Modular Front I/O

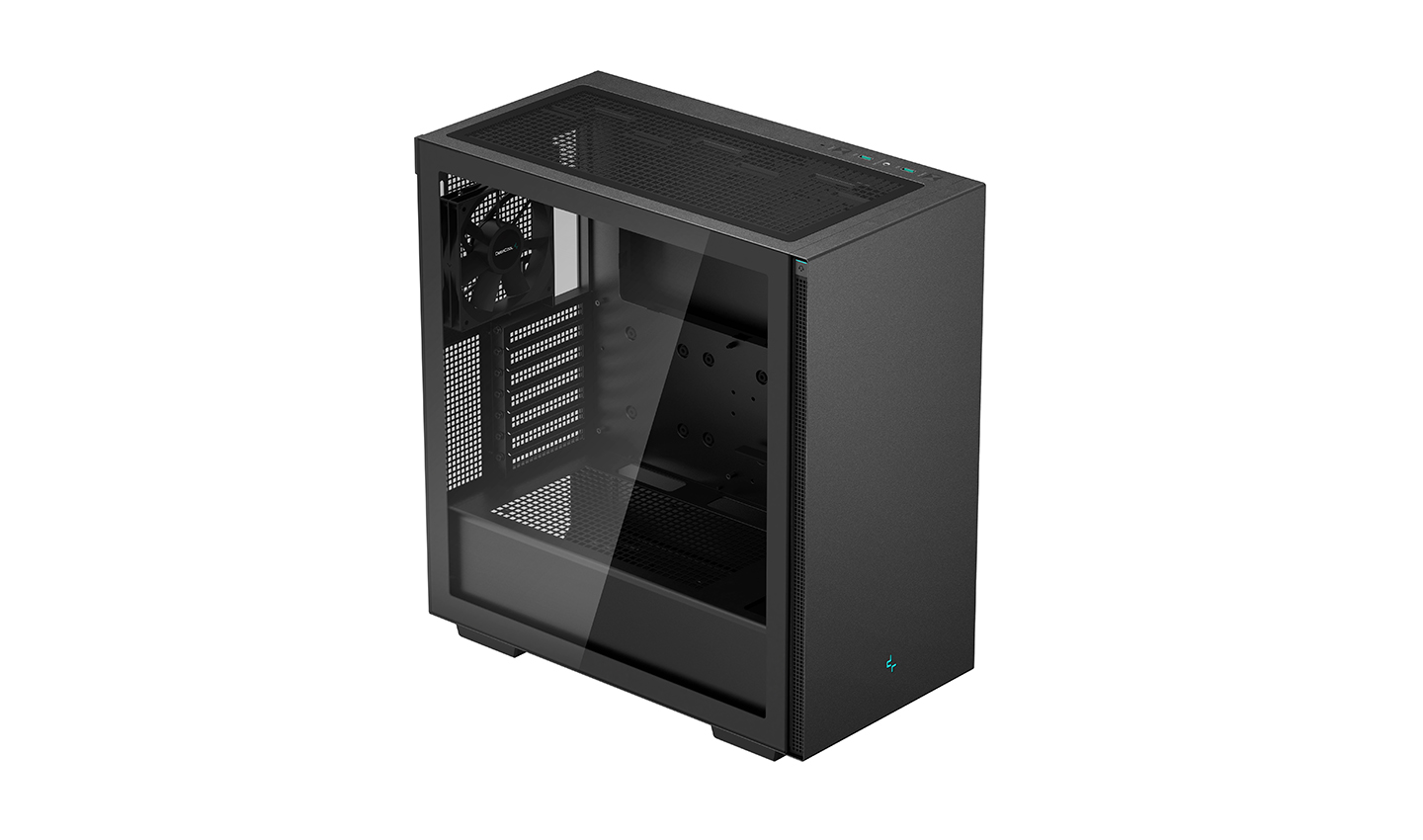

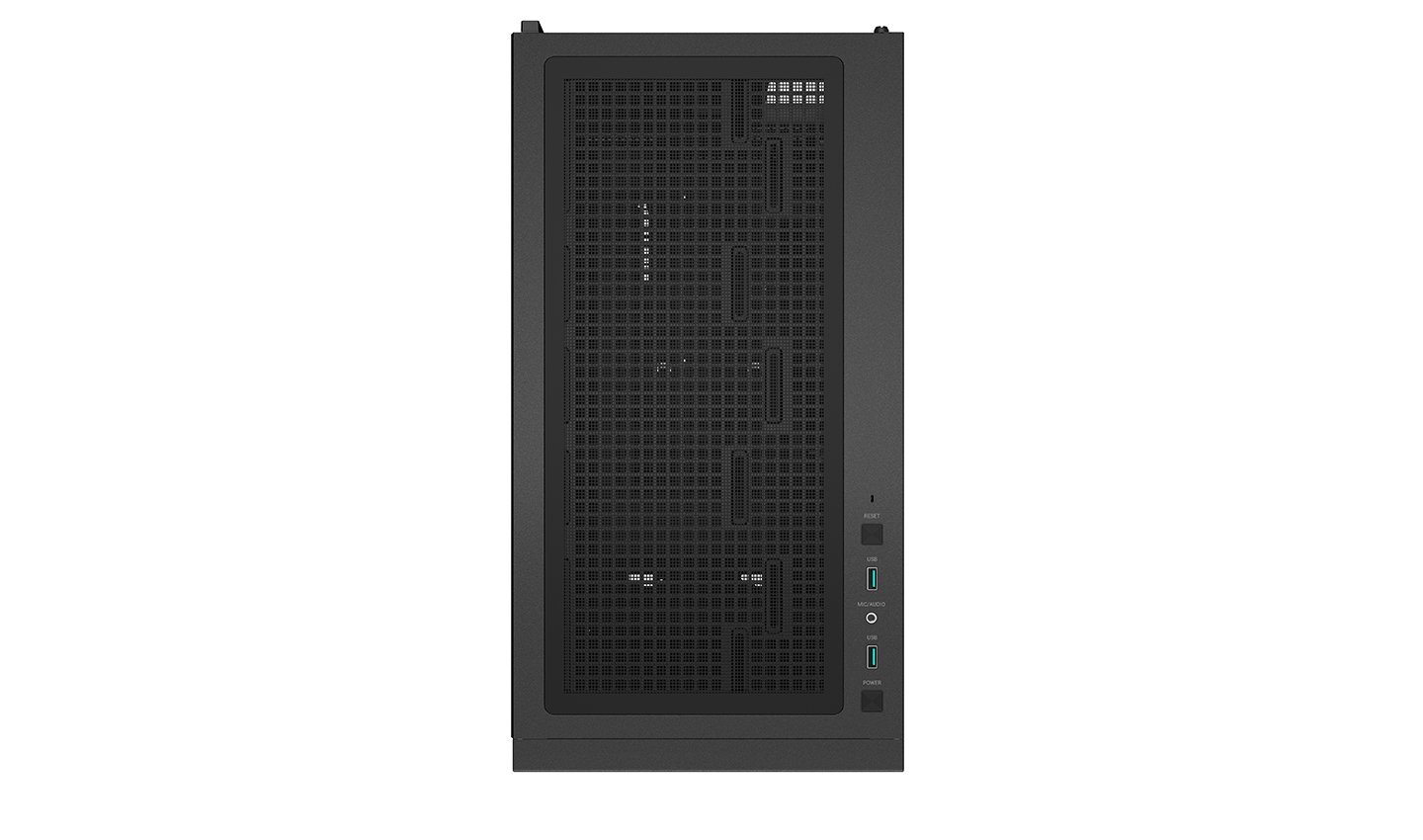

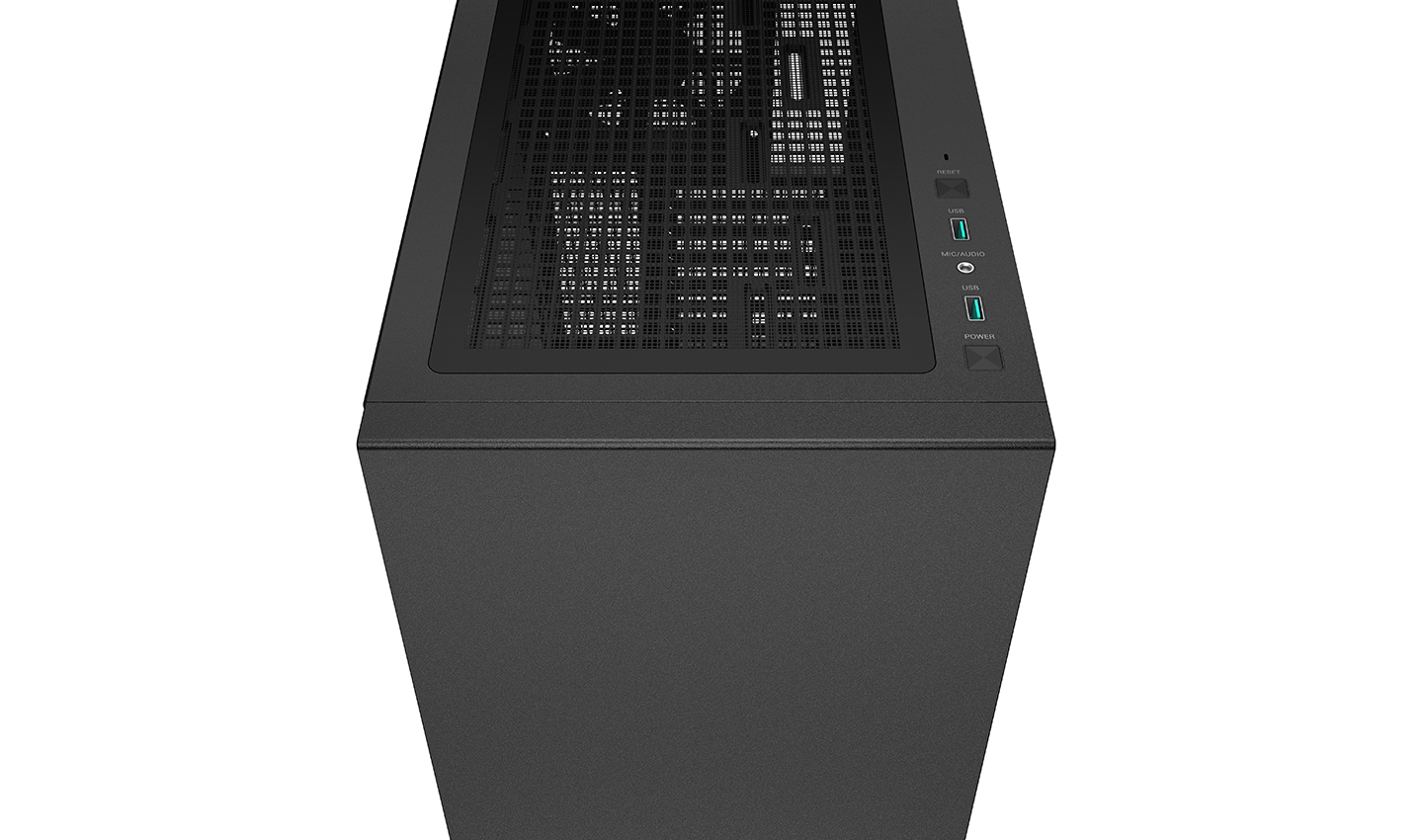

A standard 2x USB 3.0 sit conveniently at the top for quick-access and features a modular design.
Technical Spec
Product Dimensions435×230×471mm(L×W×H)
Net Weight7.2Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX / E-ATX
Front I/O PortsUSB3.0×2、Audio×1
3.5" Drive Bays2
2.5" Drive Bays2+1

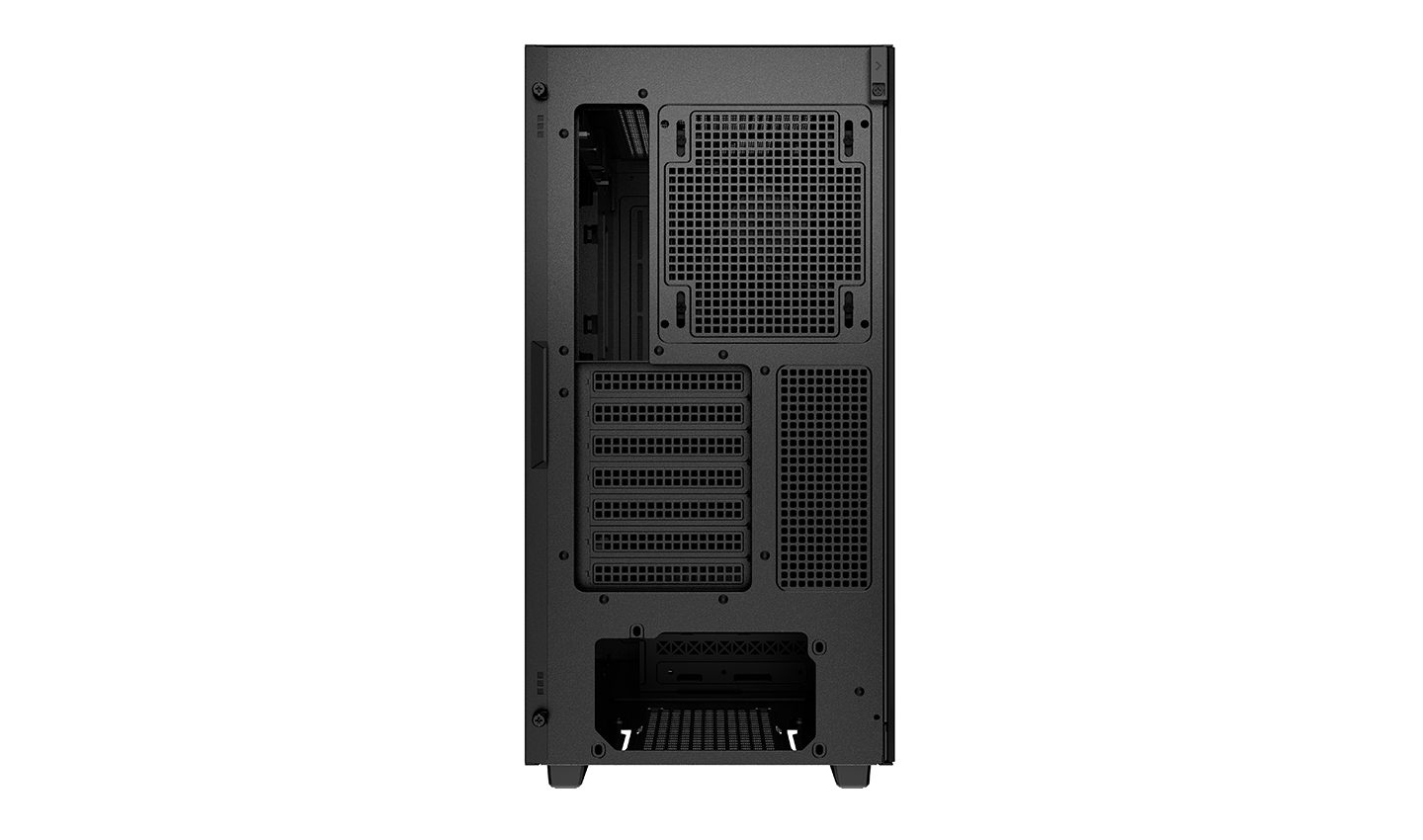

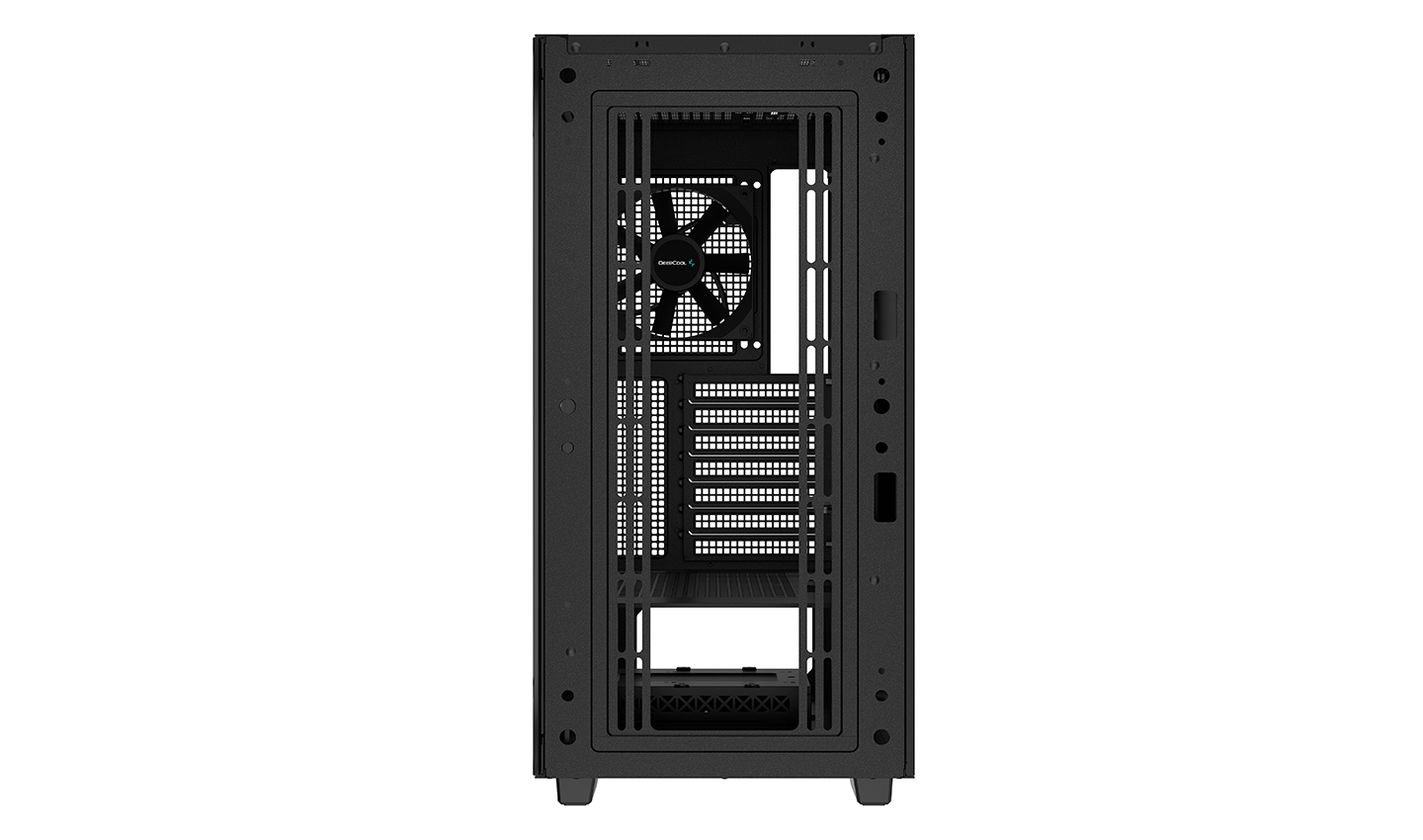

Expansion Slots7 Slots

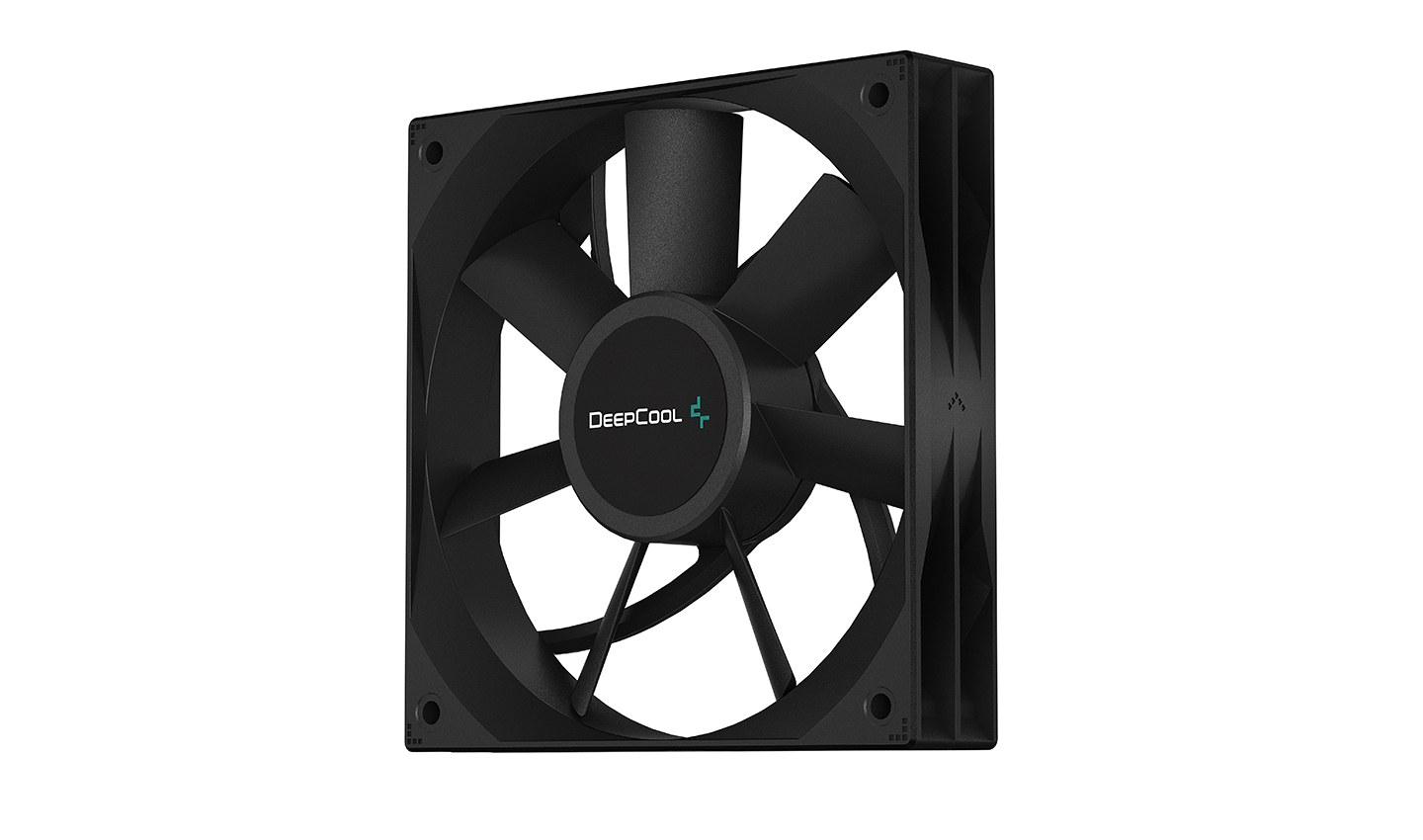

Pre-Installed FansRear: 1×120mm
Fan SupportFront: 3×120 / 2×140mm
Top: 3×120 / 2×140mm
Rear: 1×120 / 1×140mm
Radiator SupportFront: 120/140/240/280/360mm
Top: 120/140/240/280/360mm
Rear: 120/140mm
CPU Cooler Height Limit175mm
GPU Length Limit380mm
Power Supply TypeATX PS2 (maximum length: 170mm)
EAN Code6933412715009
PN CodeR-CH510-BKNNE1-G-1
Download
CH510 Manual.pdf
