CL6600 WH

HYPERSPLIT STARTS HERE

SPLIT FOR PERFECT FLOW

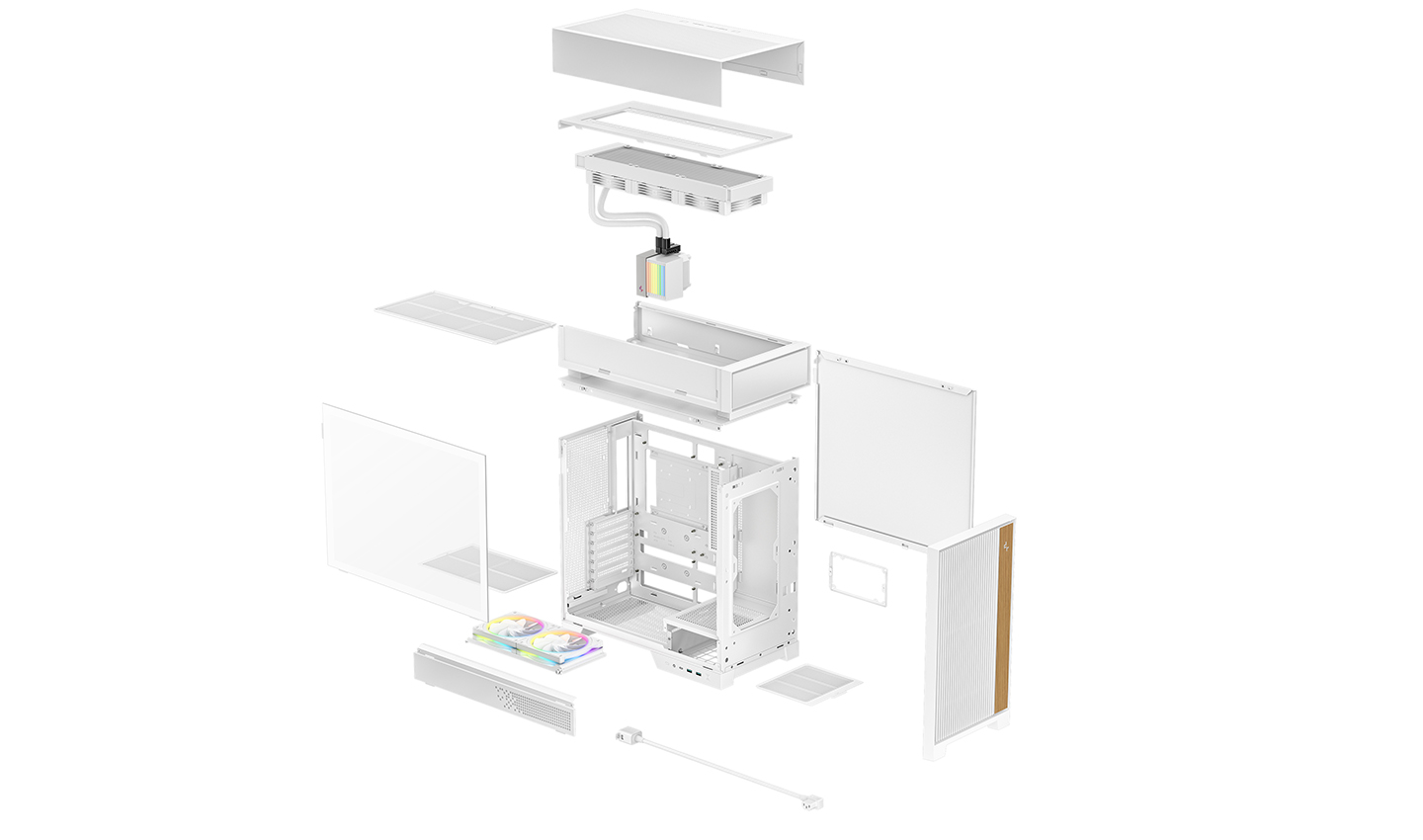

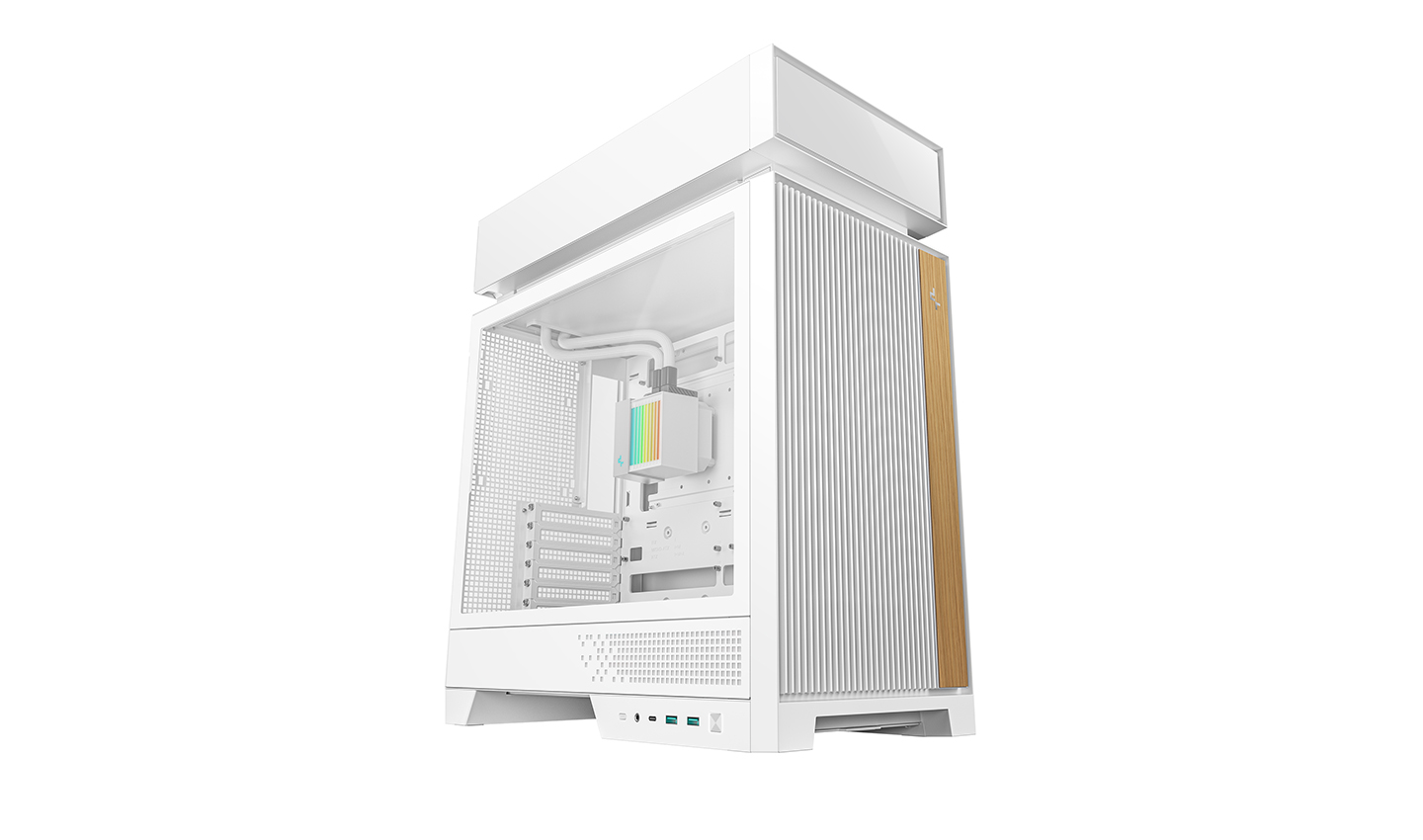

CL6600 WH keeps things cooler with a modular split-chamber layout. It places the radiator in its own zone, creating separate airflow paths for heat-generating components and letting the whole system run at its best.

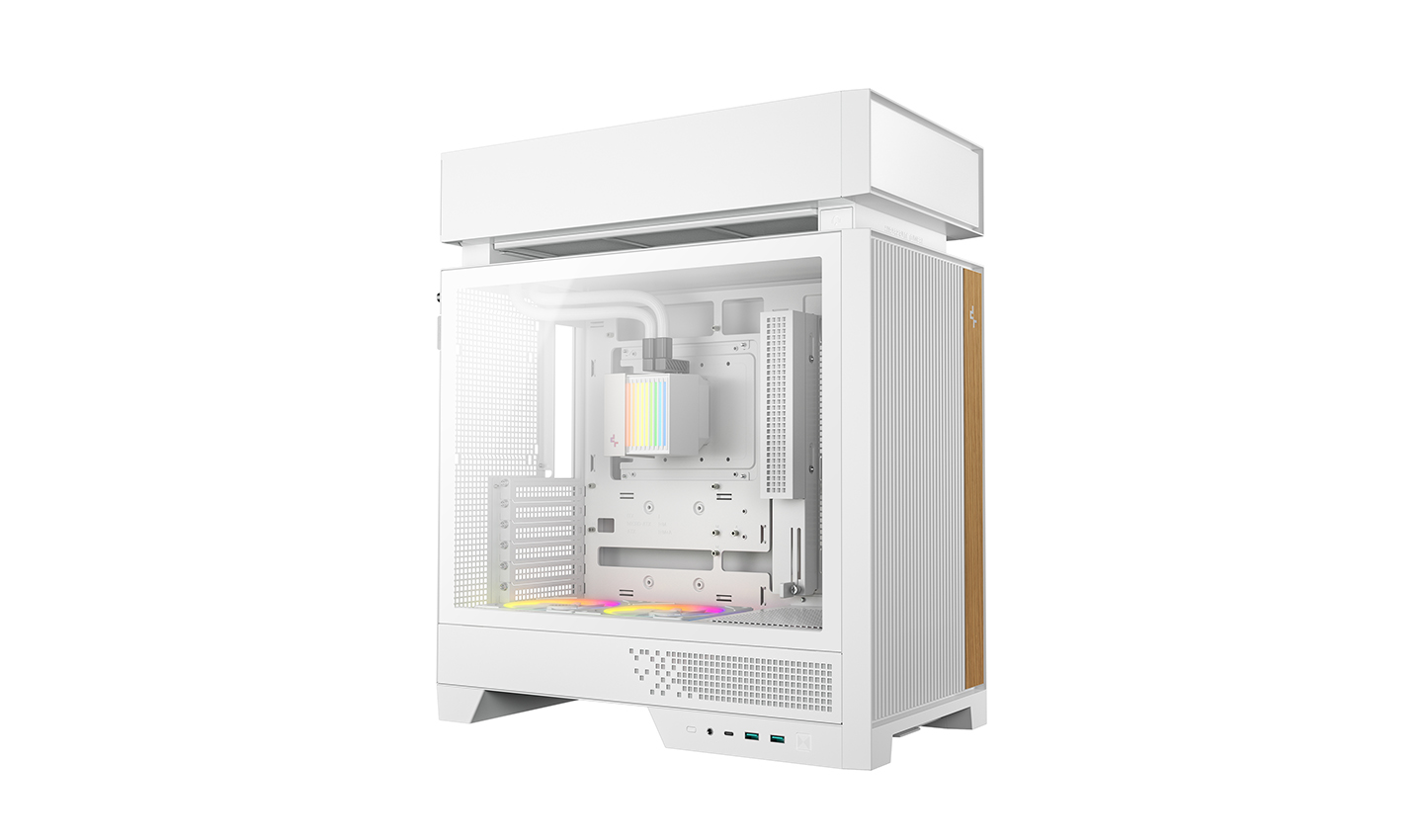

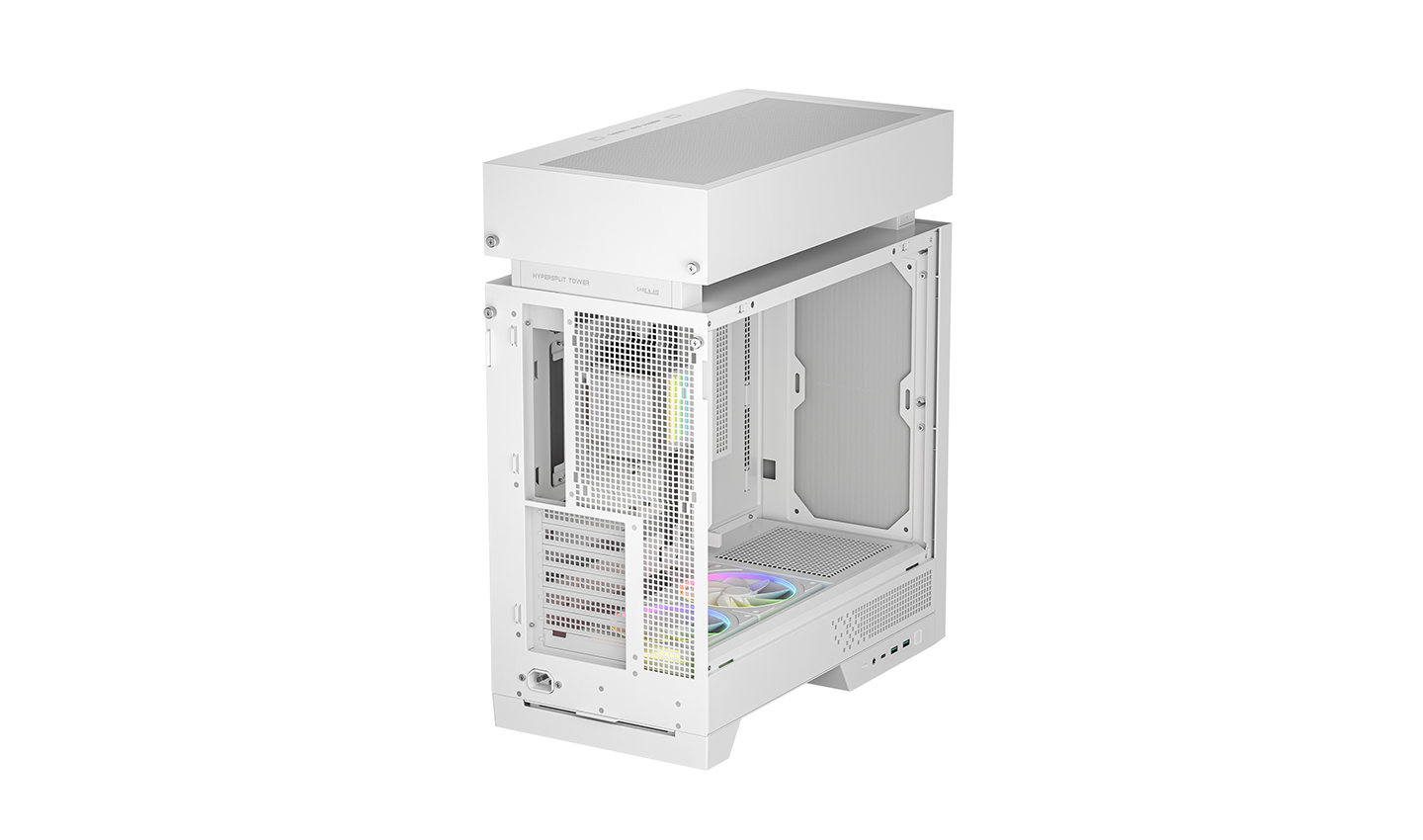

BALANCE IN LAYERS

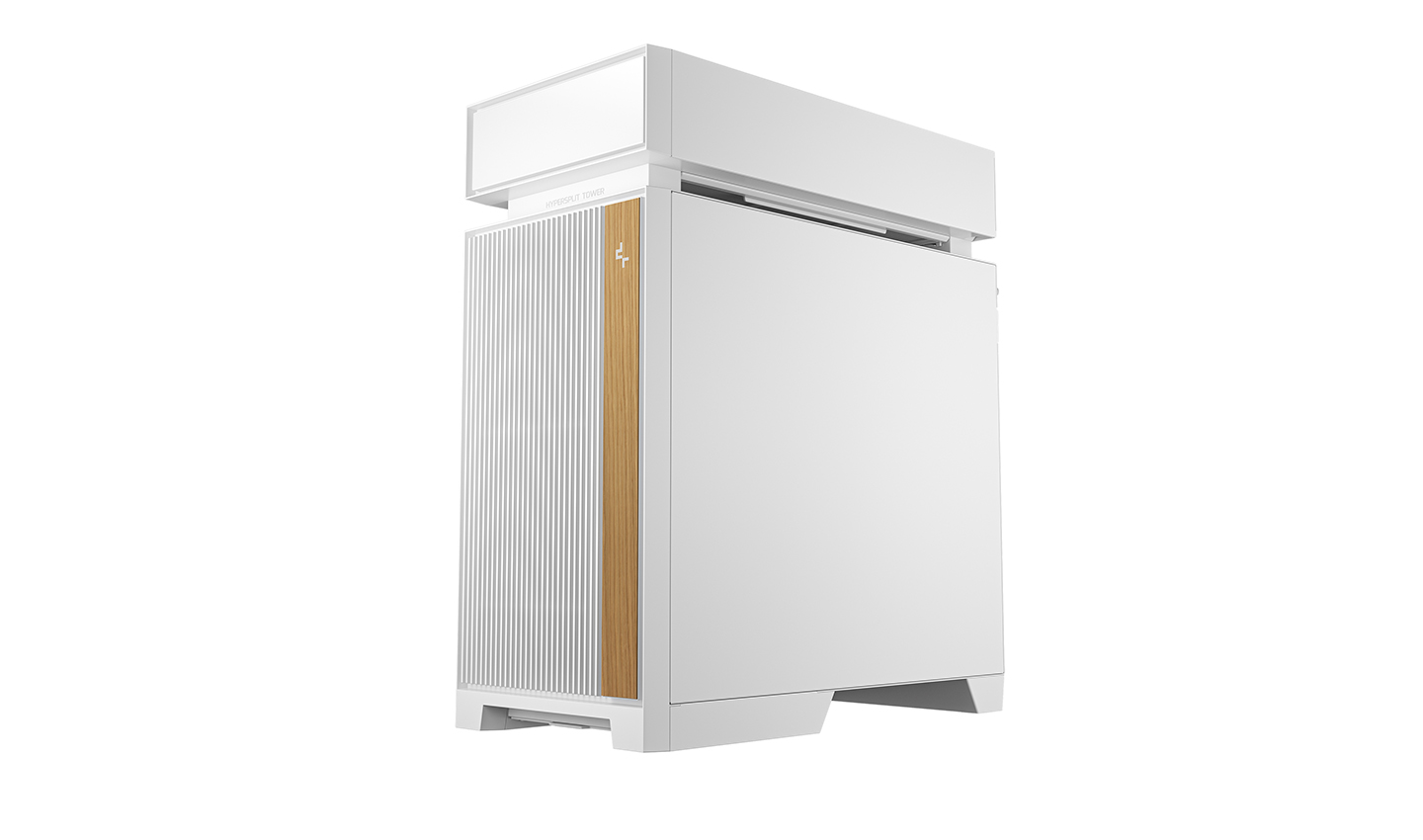

A raised top chamber redefines the overall silhouette while keeping space organized. Vertical grille bars at the front provide natural ventilation and create visual rhythm, with real wood adding an organic finish to the clean, modern aesthetic.

*The wood grain pattern may vary depending on the actual product.

READY TO HANDLE MORE

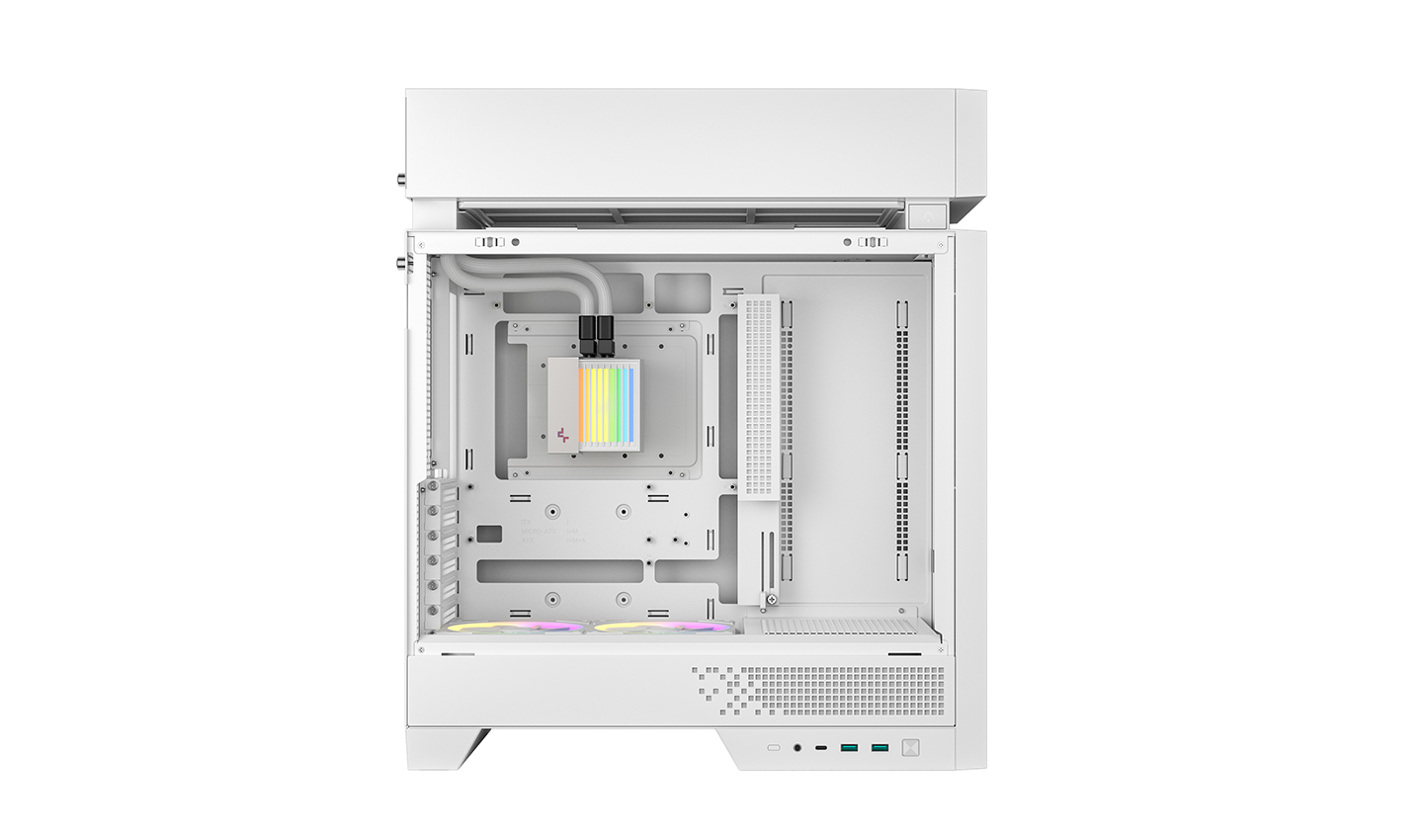

CL6600 WH packs premium cooling out of the box — see exactly what’s ready to kick off your build.

Pre-installed 360mm ARGB Liquid Cooler

Advanced pump with adjustable speeds from 2500–3400 RPM, balancing high efficiency with quiet operation.

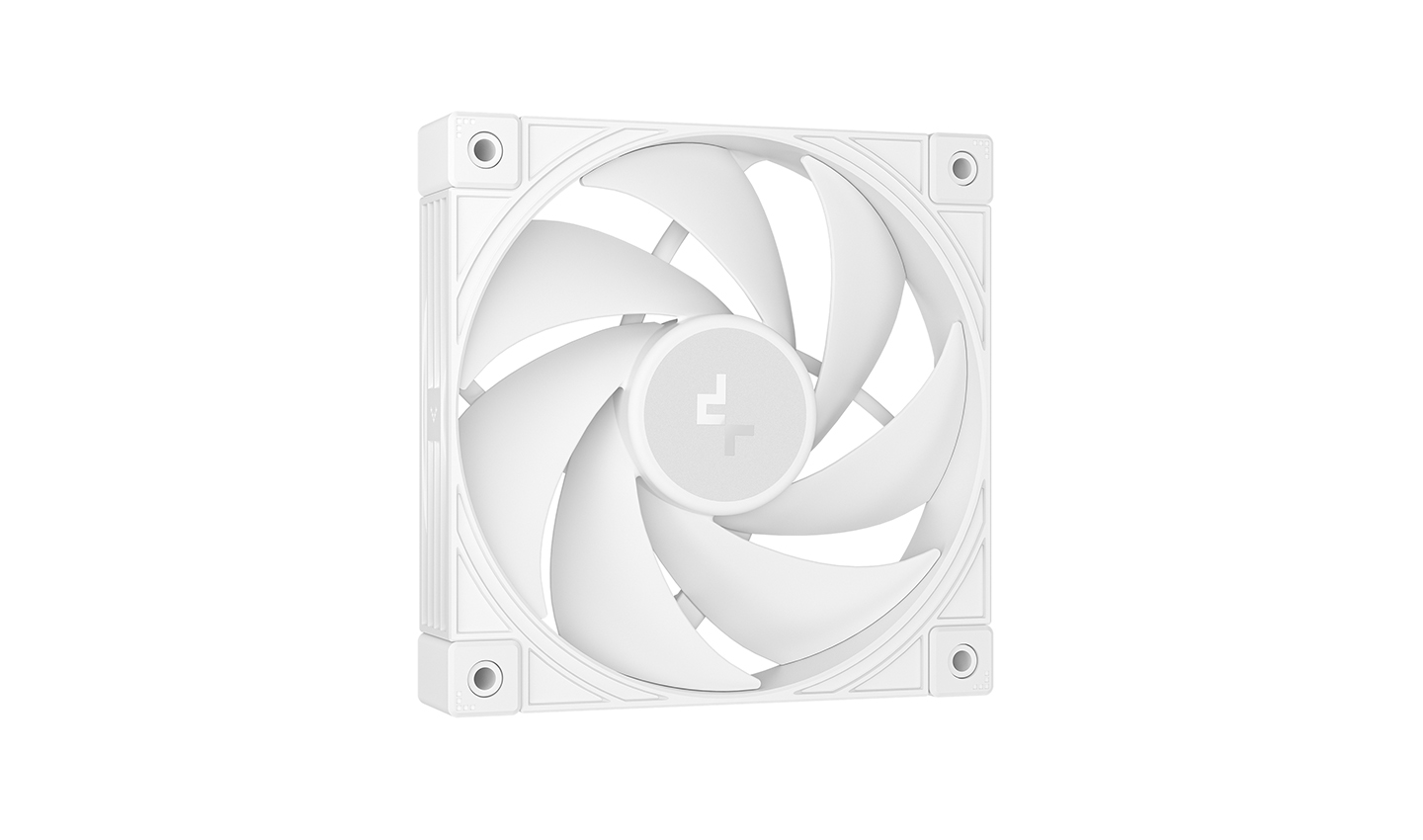

Triple high-performance FDB fans on the radiator ensure steady, reliable airflow.

DeepCool’s short-tube design keeps the main chamber neat and visually open.

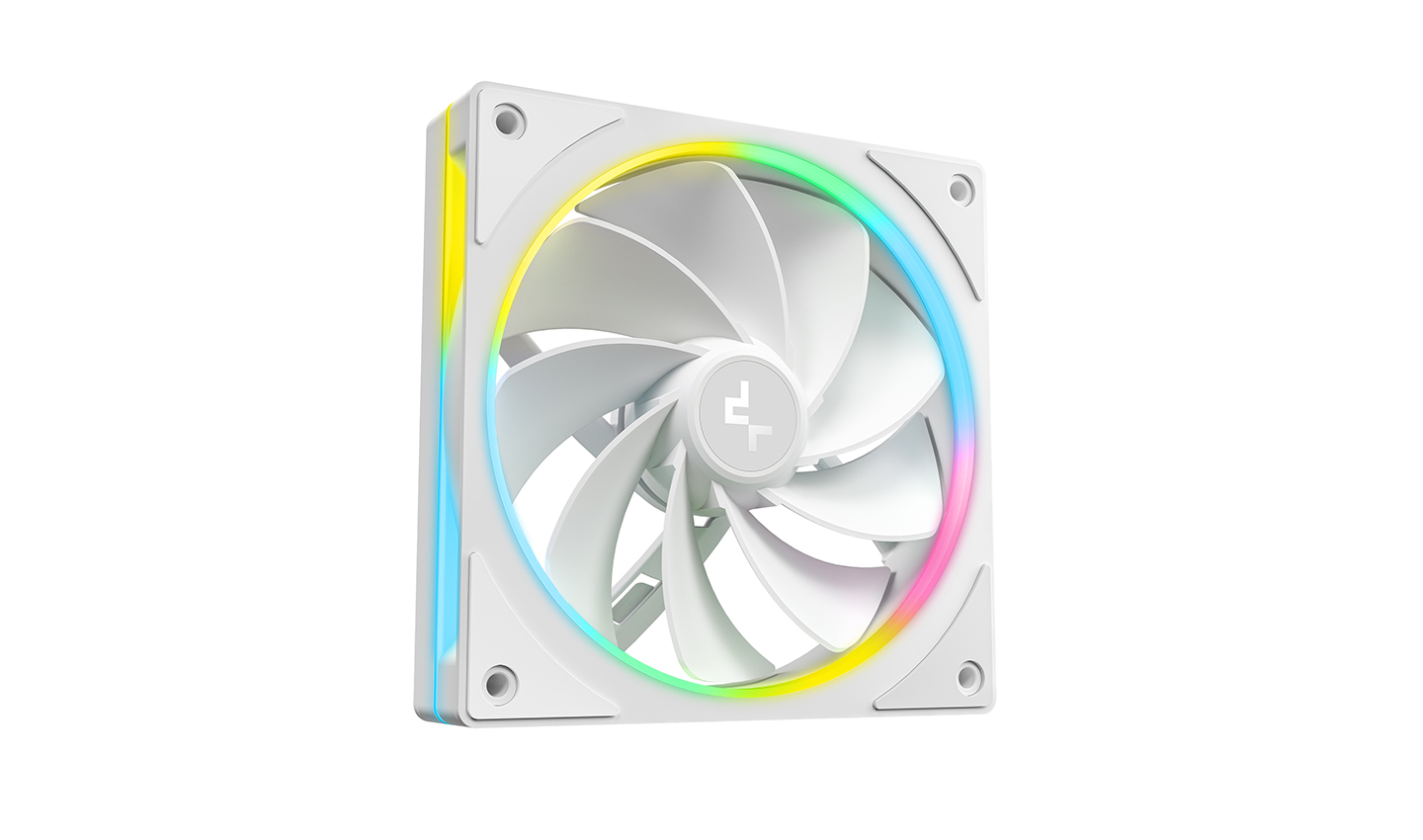

Includes 2xFL12R SE ARGB Fans

Dual reverse-blade fans at the bottom nest lower to pull in fresh air without crowding your build.

WIDE COOLING FLEXIBILITY

Maximize your cooling potential with support for 360mm AIOs and up to eight 120mm fans in total. Three 120mm fans or two 140mm fans can be mounted above the radiator in push-pull configuration (fan–radiator–fan).

Radiators
Fans

Radiator Support

Top: Pre-installed 360mm

Front: NA

Rear: 120mm

Fan Support

Top: 3×120mm / 2×140mm

Front: 2×140mm

Rear: 1×120mm / 1×140mm

Bottom: Pre-installed 2×120mm

120mm

140mm

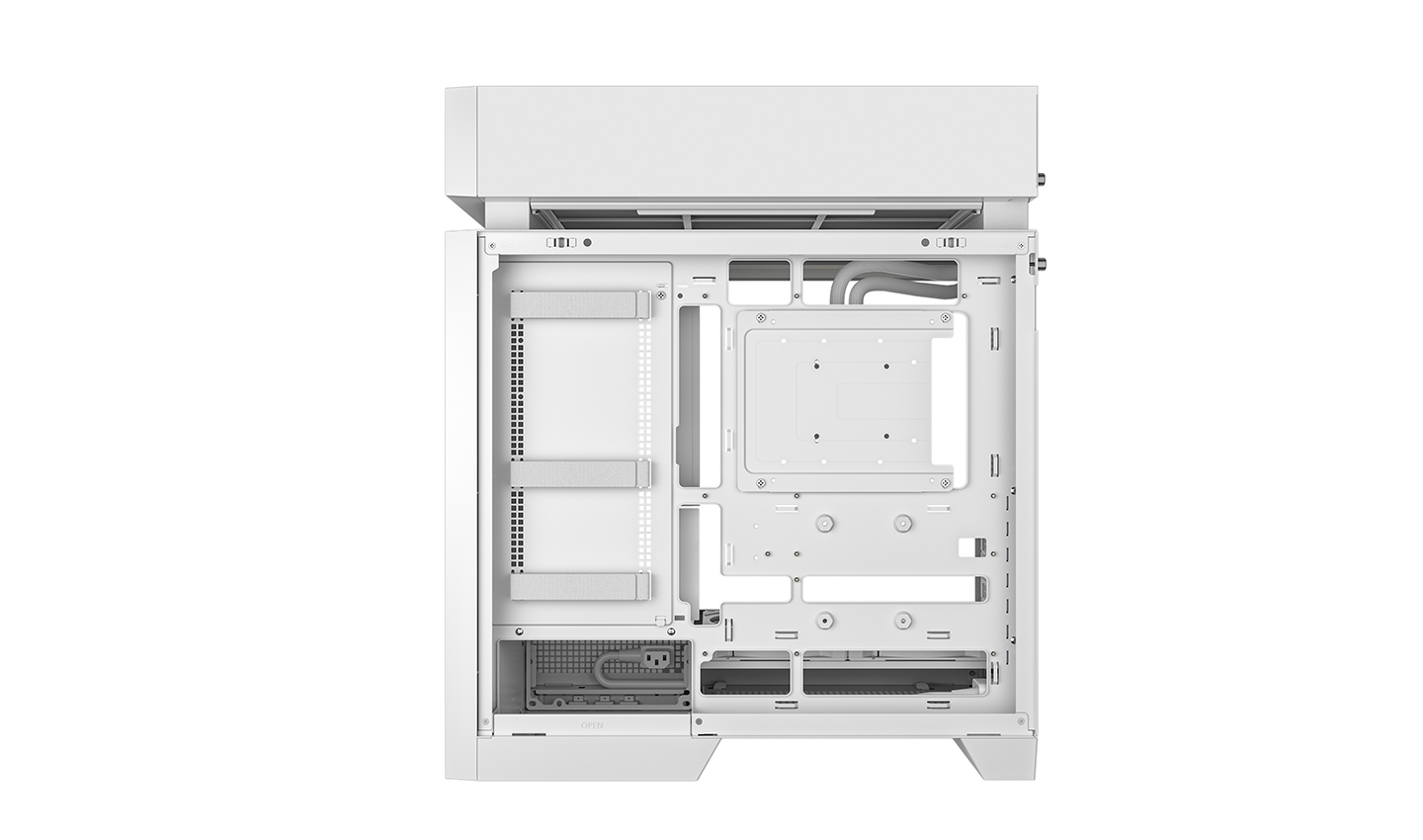

BUILD WITH CONFIDENCE

CL6600 WH gives high-end builds plenty of room, fitting GPUs up to 388mm, tall air coolers to 175mm, and standard ATX PSUs up to 160mm. Back-connect motherboard support and 7 expansion slots make future upgrades simple.

GPU

PSU

COOLER

COMFORT IN EVERY DETAIL

Cable Management Made Easy
35mm of routing space, Velcro straps, and tidy covers make cable routing easy for everyone.

Built-In Headset Hook
A hidden pop-out hook in the connecting bridge keeps your desk clear.

Quick-Release Panels
All panels remove without tools for quick, full access anytime.

GPU Support Included
Comes with a sturdy bracket to keep your graphics card secure.

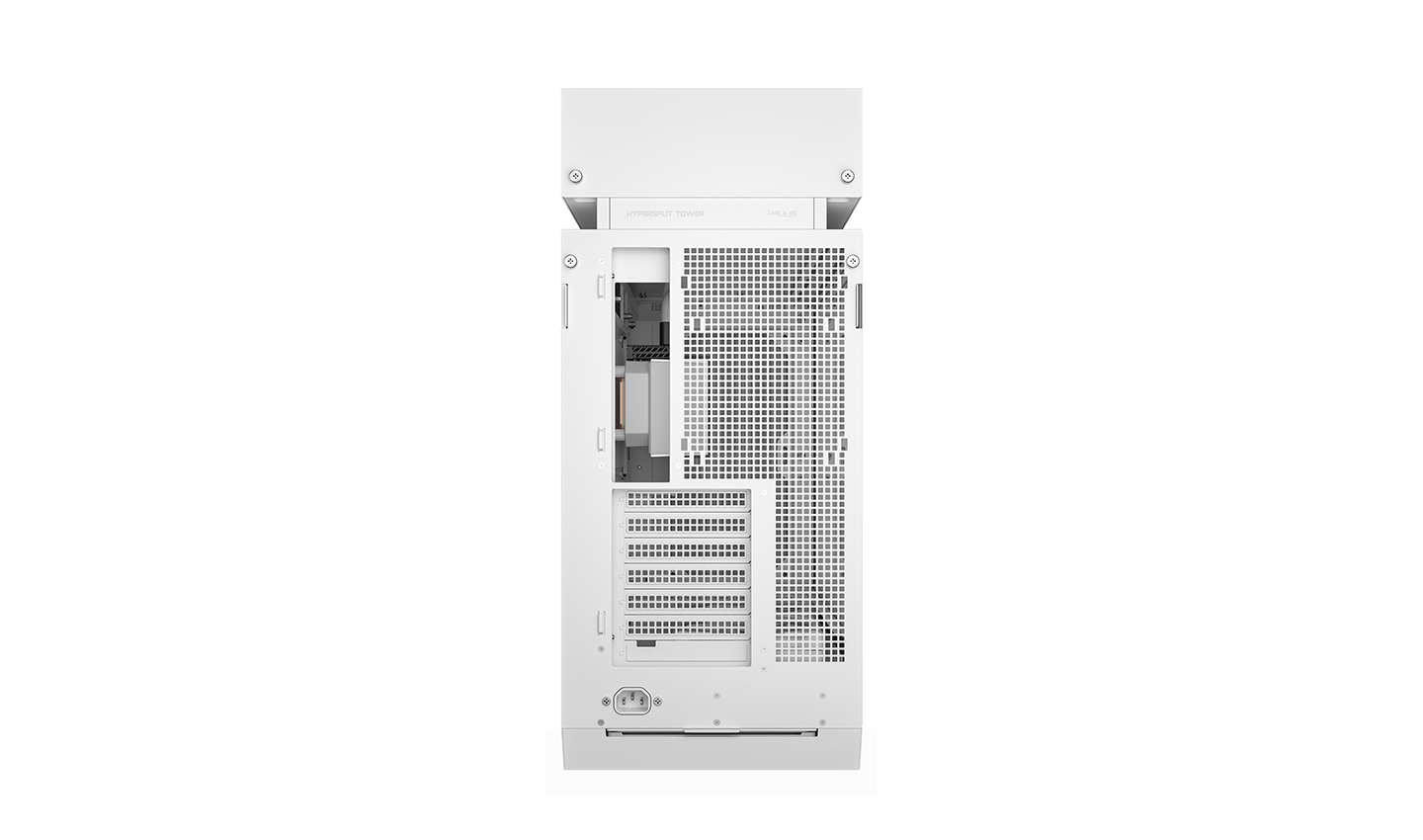

Front-Mounted PSU
The PSU mounted horizontally at the front, with cable connections face the back of the motherboard.

Accessible I/O Ports
2xUSB 3.0 ports, a Gen 2 Type-C port, and an audio jack, all placed within easy reach.

Technical Spec

Product Dimensions	457.5×235×533.5mm(L×W×H)
Net Weight	11.82Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX / ATX ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O Ports	USB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5" Drive Bays	2+1
2.5" Drive Bays	1+1
Expansion Slots	7 Slots
Pre-Installed Fans	Bottom: 2×120mm ARGB（Reverse Blade）
Fan Support	Top:3×120mm/2×140mm Front: 2×140mm Rear:1×140/1×120mm Bottom:2×120mm
Radiator Support	Top: Pre-Installed 360mm Front: NA Rear:120mm
CPU Cooler Height Limit	175mm
GPU Size Limit	413mm/388mm(With Front Fan)
Power Supply Type	ATX PS2（maximum length: 160mm)/SFX/SFX-L
Radiator Dimensions	402×120×27 mm
Radiator Material	Aluminum
Tube length	250 mm
Pump Dimensions	118×80×76 mm
Pump Speed	2500~3400 RPM±10%
Pump Connector	4-pin PWM
Pump Rated Voltage	12 VDC
Pump Rated Current	0.29 A
Pump Power Consumption	3.48 W
Fan Dimensions	120×120×25 mm
Fan Speed	500~2500 RPM±10% 0 rpm<5 % PWM
Fan Airflow	73.41 CFM
Fan Air Pressure	4.69 mmAq
Fan Noise	≤35.63 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Fluid Dynamic Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.3 A
Fan Power Consumption	3.6 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	1.7 W（PUMP）
EAN	6933412765301
P/N	R-CL6600-WHNNA0-G
