CL500
The DeepCool CL500 is a mid-tower ATX case designed for high airflow and ease of use to provide builders a sensible chassis with better functionality.
Colour
black
MODEL
CL500
Form Follows Function
FORM FOLLOWS FUNCTION
The DeepCool CL500 is a mid-tower ATX case designed for high airflow and ease of use to provide builders a sensible chassis with better functionality
PERFORMANCE BASED
Large mesh panels draw in more airflow to make sure
the system is cooled and performing at its peak.
SETUP MADE SIMPLE
Getting started is easy. Access from each side is effortless with
magnetic side panels and a one-touch button release for the top.
MADE FOR BUILDERS
An integrated PWM fan hub and built-in adjustable GPU holder help keep your system organized and aligned. Cable management is also made easy with Velcro straps, rubber grommets and added clearance.
MADE FOR BUILDERS
An integrated PWM fan hub and built-in adjustable GPU holder help keep your system organized and aligned. Cable management is also made easy with Velcro straps, rubber grommets and added clearance.
USB TYPE-C INTERFACE
Two front USB 3.0 ports and one USB 3.1 Gen 2 Type-C are available for fast charging and connectivity with the latest devices.
USB TYPE-C INTERFACE
Two front USB 3.0 ports and one USB 3.1 Gen 2 Type-C are available for fast charging and connectivity with the latest devices.
COMPATIBILITY
  • Compatibility - Dimensions
  • Compatibility - Radiator
  • Compatibility - Fan
  • Compatibility - Motherboard/GPU
Technical Spec
Motherboards Mini-ITX / Micro-ATX / ATX
Case Type ATX Case
Materials ABS+SPCC+Tempered Glass
Product Dimensions 473X226X519mm
Carton Dimensions 565X285X535mm
Net Weight 8.4Kg
Gross Weight 9.75Kg
5.25' Drive Bays 0
3.5' Drive Bays 2
External 3.5'' Drive Bays 0
2.5' Drive Bays 2
I/O Ports Audio×1、 USB3.0 Type-A×2 、USB3.1 Type-C×1
Expansion Slots 7 Slots
Power Supply Type ATX PS2 (maximum length: 160mm)
Cable Management 23mm clearance
CPU Cooler Height Limit 165mm
VGA Length Limit 330mm
Cooling Fans Support
Pre-installed: Rear: 1×120mm DC fan;Optional: Front: 120mm×3/140mm×2,Top: 120mm×2
Liquid Cooler Support
Front: 120/140/240/280/360; Rear: 120;TOP: 120/240
EAN 6933412714347
P/N R-CL500-BKNMA1N-G-1
Product Dimension
DeepCool CL500 Review - Something Different!
It's got an airflow focused design combined with some really cool industrial looks!

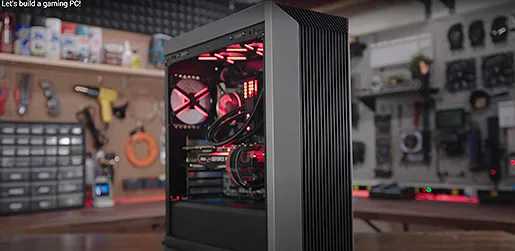

Let's build a gaming PC!
Bitwit used CL500 for his new PC build, and walked through the features of the case. Learn more about the case together with Bitwit!
