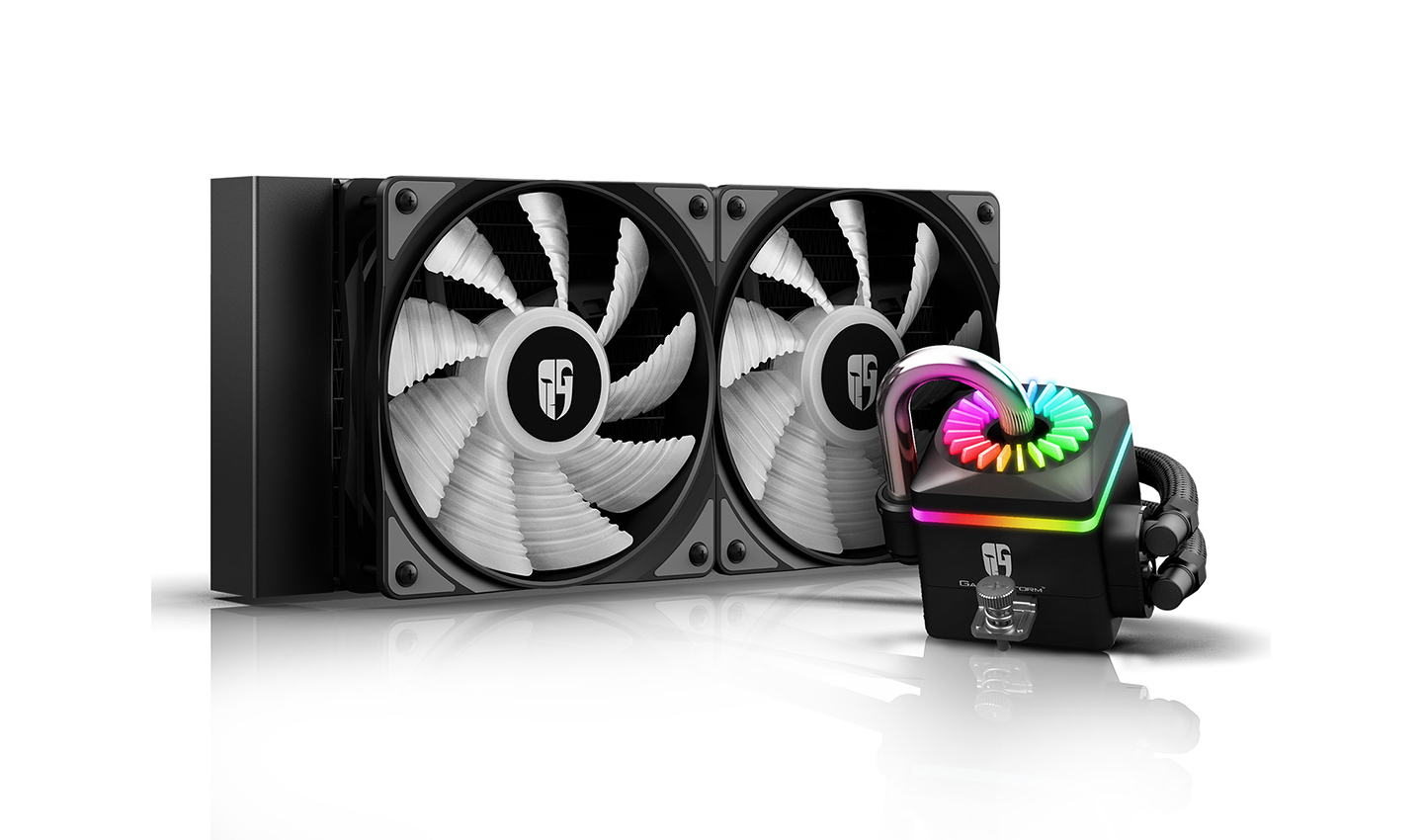

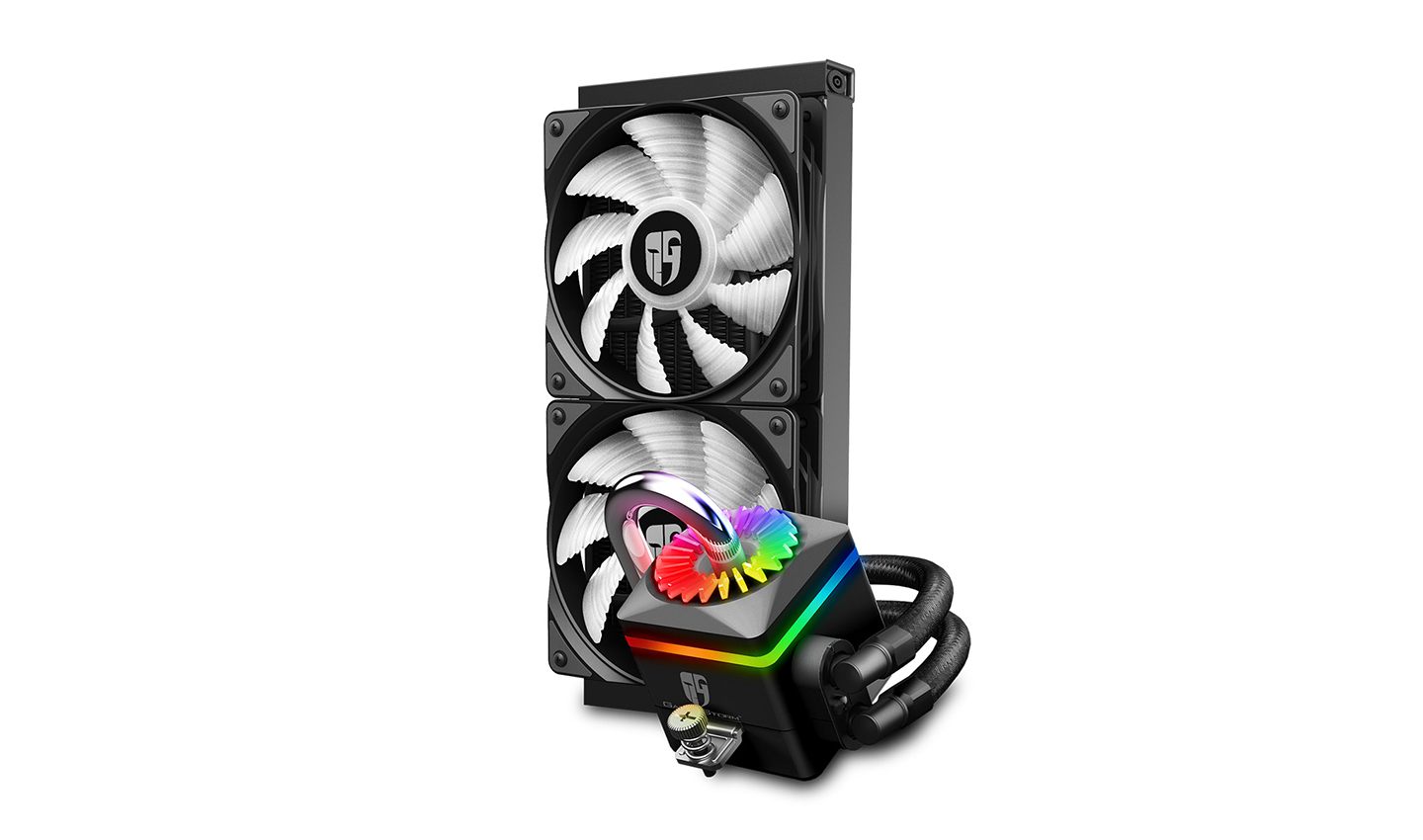

CAPTAIN 240PRO V2
The CAPTAIN 240PRO V2 AIO liquid CPU cooler is built with Anti-leak technology for better reliability and features an upgraded stainless steel pipe on the water block design with A-RGB lighting.
Colour
black
MODEL
CAPTAIN 240PRO V2
Leading the way
ANTI-LEAK TECH INSIDE
CAPTAIN 240PRO V2 is equipped with DeepCool’s exclusive Anti-leak Technology. The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems.With this technology, DeepCool is setting a new standard for liquid cooling systems.

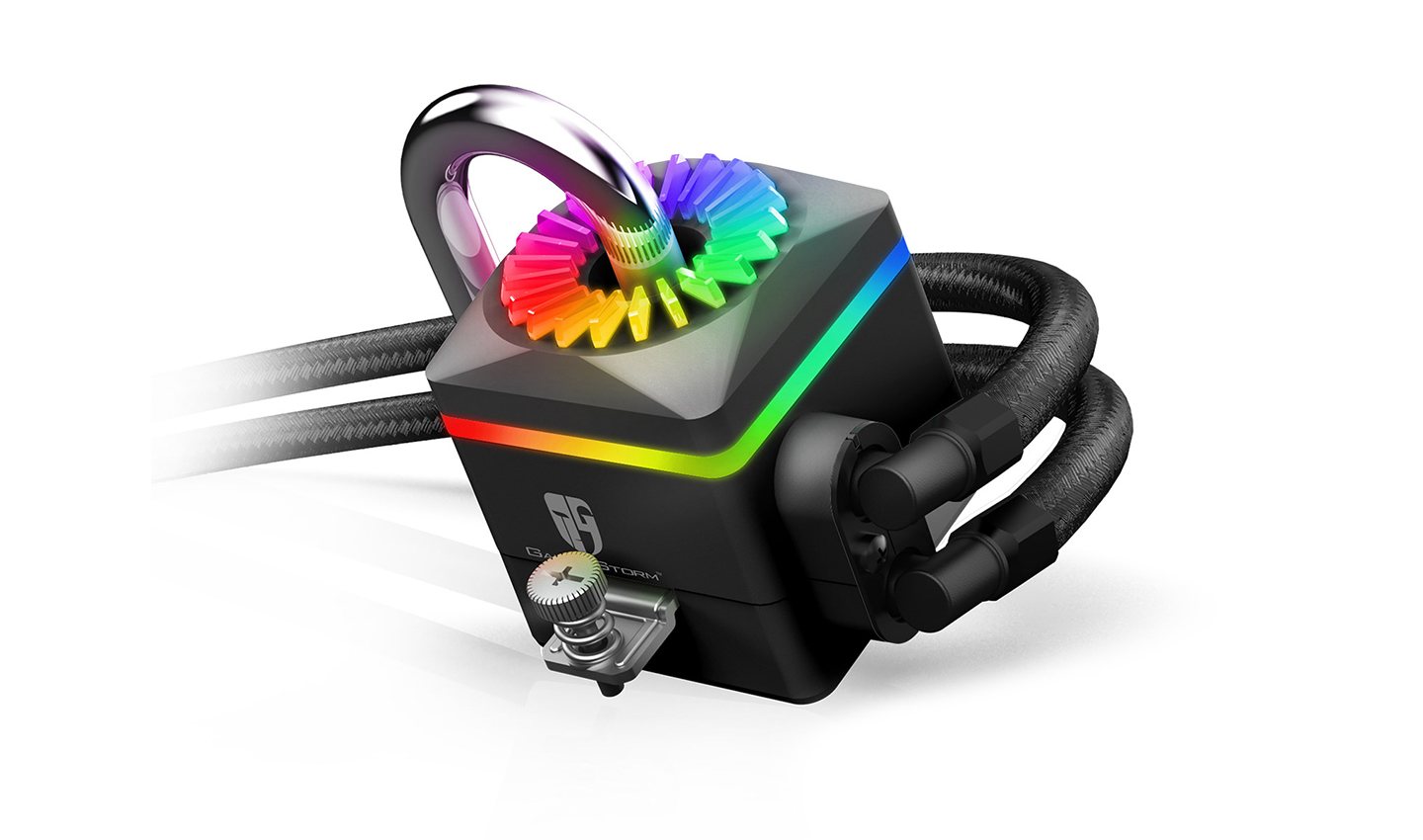

STAINLESS STEEL PIPE
CAPTAIN 240PRO V2 upgraded its U-shape pipe from glass to stainless steel, gaining extra sturdiness and machinery-like aesthetics.

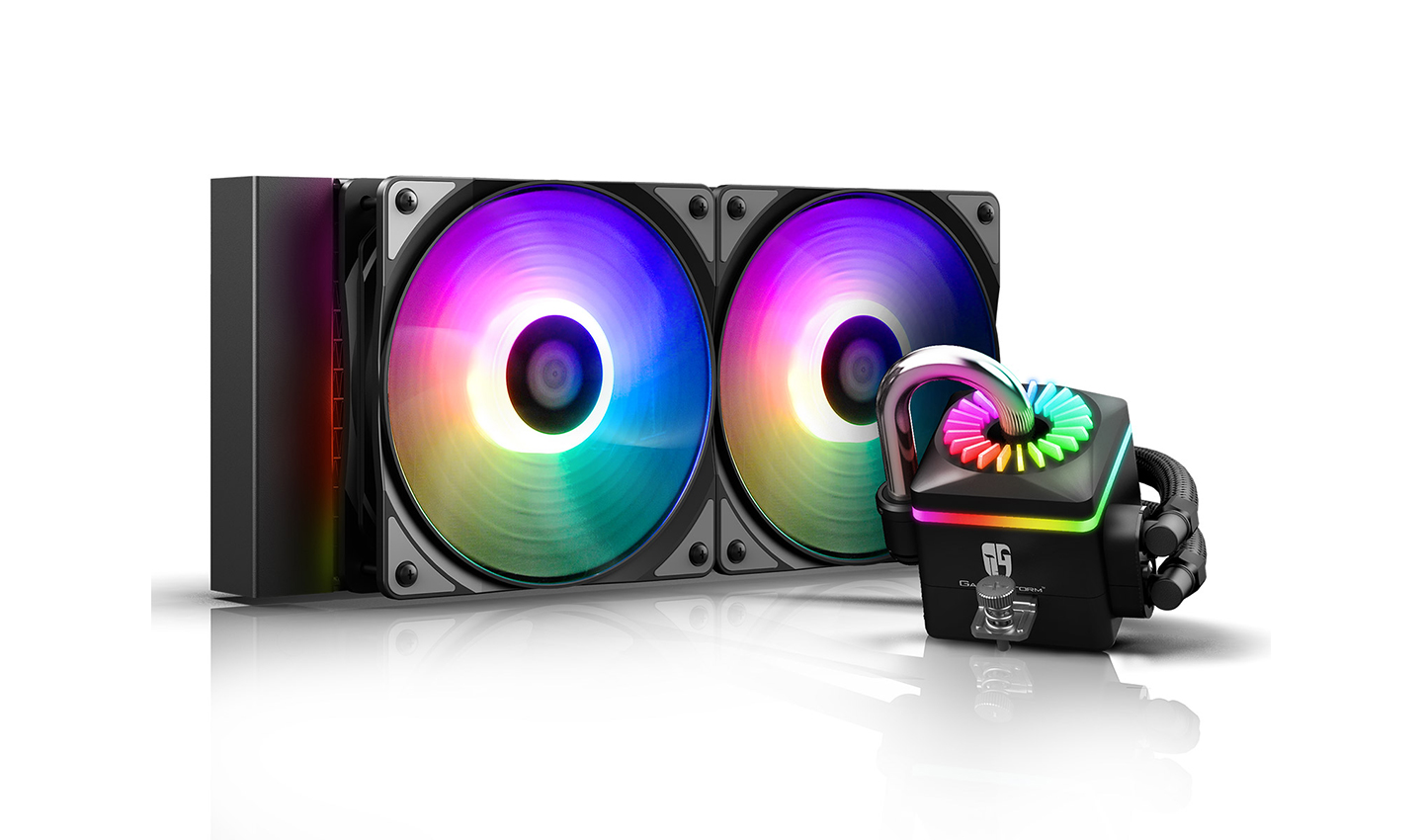

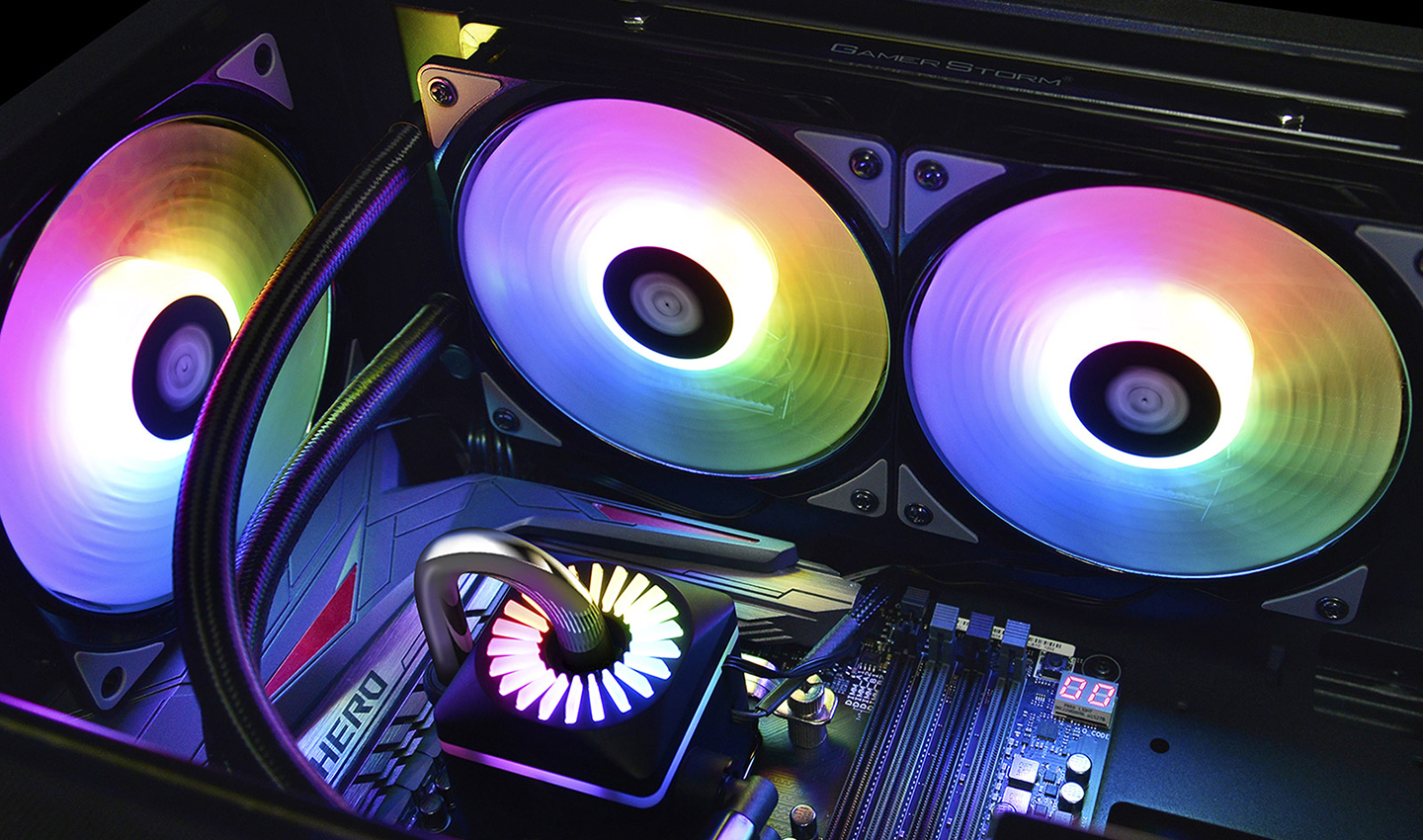

ADD-RGB LIGHTING SYSTEM

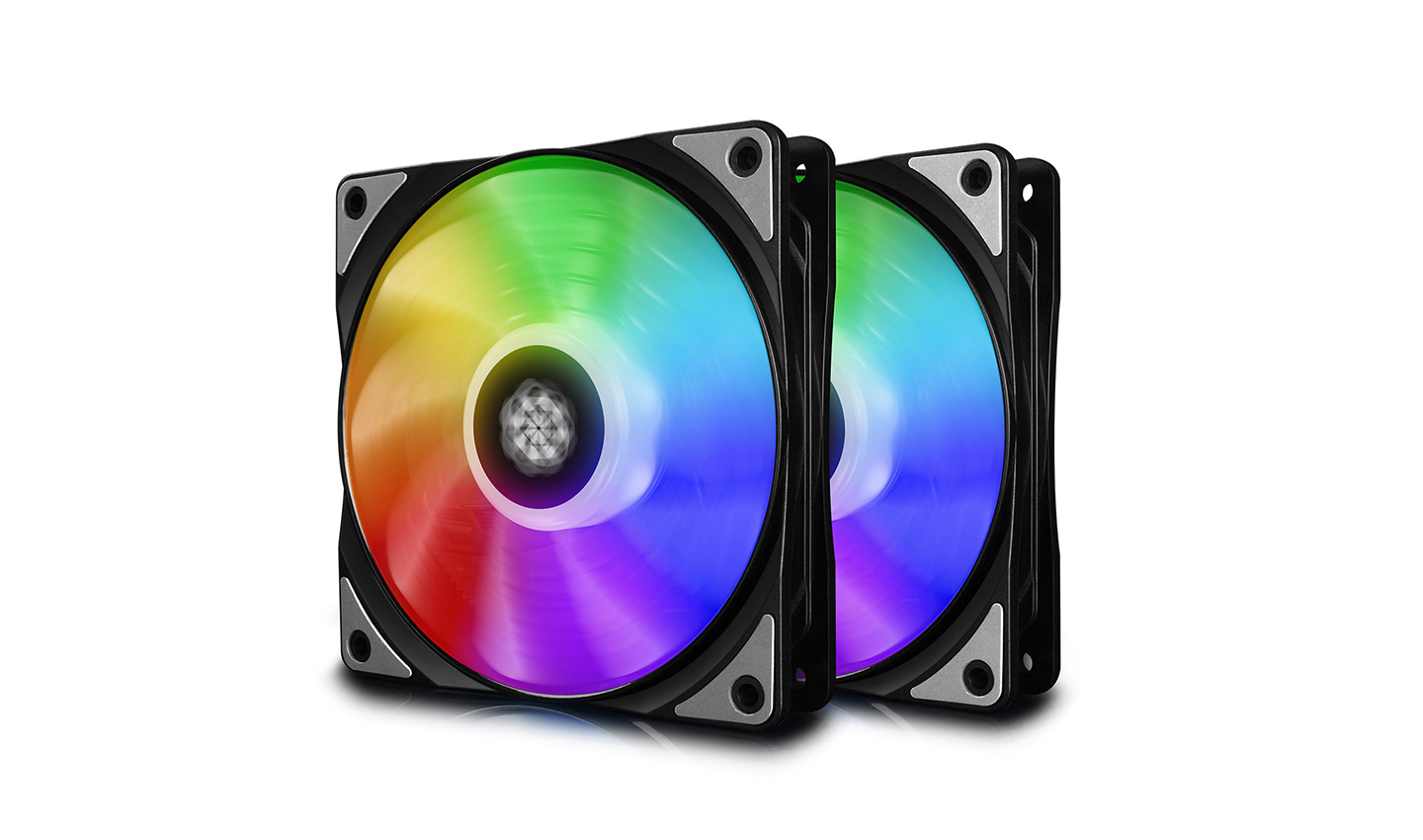

5V addressable LEDs are installed on both water block and fans.
The 16.7M true color flowing RGB system can be easily controlled by the included wired controller or motherboard SYNC software.
Mode+
Speed (Hold for 3 seconds to switch on/off)
Mode-
The lighting system has 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) and 36 interchangeable lighting modes. It also supports SNYC control by motherboards*.
Dynamic
Static
Breathing
Comet
Fashion Collision
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device:
5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, MSI, Gigabyte.
EASY TO INSTALL
Unique pre-installed spring screws make the installation on motherboard super convenient. Accessories like PWM hub and RGB extension cable also allows easy RGB and PWM control.
1Stainless Steel Pipe
2Zirconia Ceramic Bearings and Axis
3One Pump, Two Chambers
1Stainless Steel Pipe
2Zirconia Ceramic Bearings and Axis
3One Pump, Two Chambers
4Three-phase Winding Motor
5Micro Water Passages
4Three-phase Winding Motor
5Micro Water Passages
STRONG HEART
The powerful 3 phase motor boosts the TDP of CAPTAIN 240PRO V2 up to 250W, and makes the cooler a perfect partner of all flagship CPUs like Intel i9 series, Ryzen 3000 series, etc .
Application For
Intel
LGA2066/2011-v3/2011/LGA1200/1151/1150/1155/1366
AMD
TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec

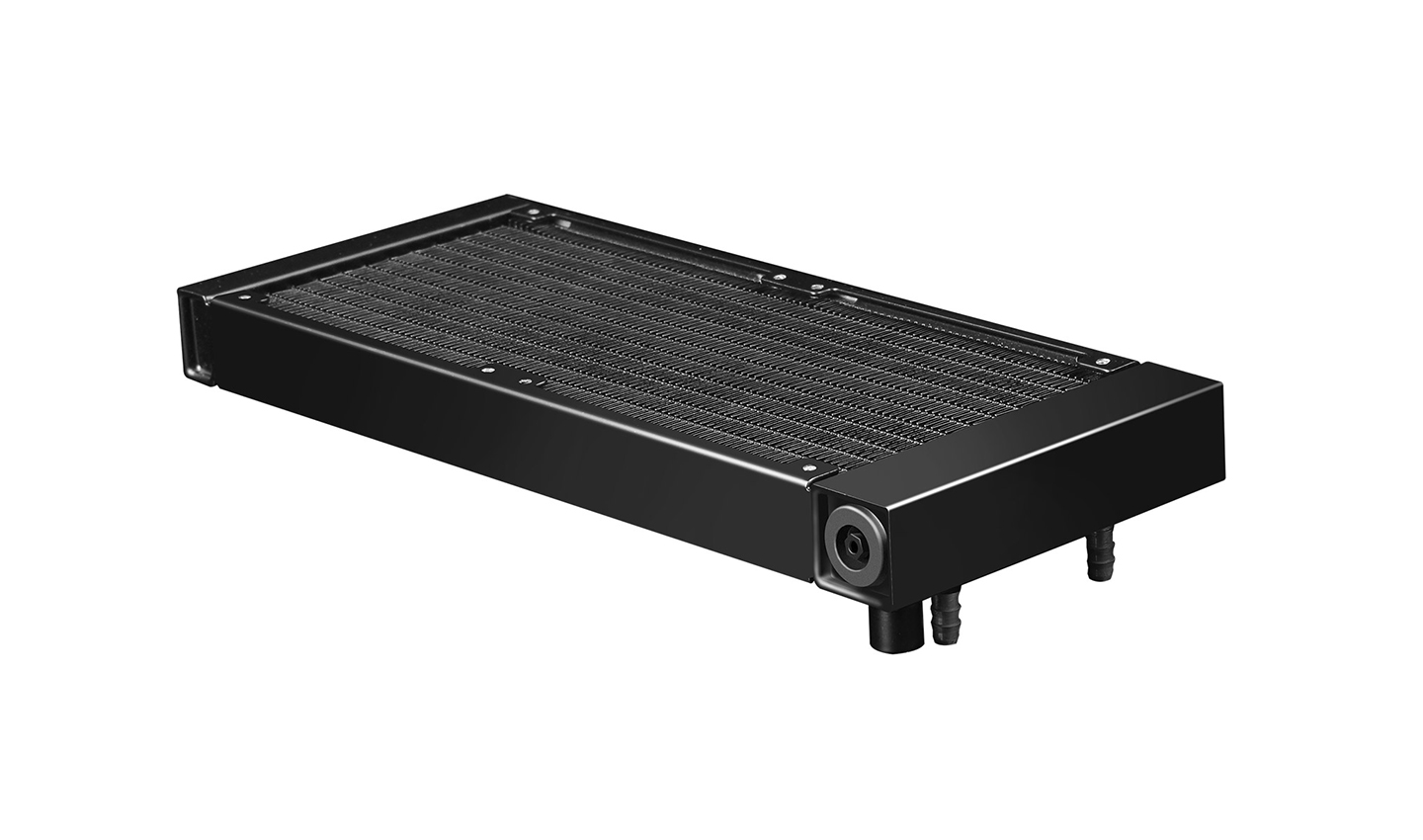

Radiator Dimensions 282×120×27 mm
Radiator Material Aluminum
Net Weight 1617 g
Tube length 380 mm
Pump Dimensions 93.7×93×85 mm
Pump Speed 2200 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.13 A
Pump Power Consumption 1.56 W
Fan Dimensions 120×120×25 mm
Fan Speed 500~1800 RPM±10%
Fan Airflow 69.34 CFM
Fan Air Pressure 2.42 mmAq
Fan Noise ≤30 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.17 A
Fan Power Consumption 2.04 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 0.9 W(PUMP)/4.8 W(FAN×2)
EAN 6933412726630
P/N DP-GS-H12AR-CT240PV2
Product Dimension
Download
CAPTAIN 240PRO V2 Manual.pdf
